Touch Switch
METROL Touch Switches are high precision touch switches with ON/OFF switching that enable
“high precision positioning” in all types of equipment such as jigs, industrial robots, and machine tools.
- Feature 01High accuracy achieved by the touch/contact method
- Feature 02Protection rating IP67, usable in environments with water and oil
- Feature 03A comprehensive lineup allows you to find the best switch for your needs
- Feature 04Customization available
Touch Swiches Product line

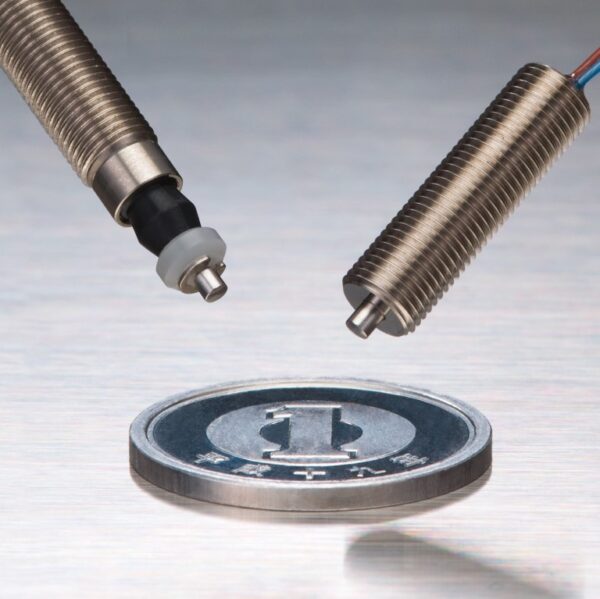

Ultra-compact High Precision PT-Touch Switches
World’s smallest level M5 x 17mm
enables miniaturization of machines
The world’s smallest size with a repeatability of 1μm, enabling precision positioning in a tight space and miniaturization of machines.
High Precision MT-Touch Switches
0.5 μm repeatability without amplifier
IP67, highly resistant to adverse environments
Top-of-the-line switch model for accuracy and durability
Performs precision positioning in adverse environments with splashing water, oil, coolant, and chips.
CS-Touch Switches
Compact and low-cost
No mutual interference even when spaced at 5 mm intervals
Extensive variations and optional contacts. The best-selling positioning switches.
Ball Plunger Switch Sensors
World’s smallest: φ4
Ball plunger with built-in switch
Indexing by ball plunger and confirmation signal output. Reduce the number of parts to make smaller machines at lower costs.
Stopper Bolt Switches Sensors
Two-in-one unit
Stopper bolt with built-in switch
Stops the workpiece with a stopper bolt and outputs a confirmation signal. Reduce costs by reducing the number of parts!
Micro-stopper Switches
Compact size (8 x 8 mm dia.)
Mountable on robotic fingertips
It can be directly embedded in a limited mounting space for chuck confirmation of a robot hand, workpiece seating confirmation, among others, to reduce the size of the machine.
Spring Plunger Switch Sensors
Two-in-one unit
Spring plunger with built-in switch
Workpiece ejection by spring plunger and confirmation signal output.
Reduce the number of parts to make smaller machines at lower costs!
Low-contact Force Switches
Low contact force of 0.1N
Ideal for detecting workpieces prone to scratching or deformation, such as semiconductors and ceramics.
Heat-resistant HT Switches
Usable in high temperature environments up to 200°C
Touch switches made of heat-resistant materials. The HT series is the only switch usable in high temperature environments such as in tooling and injection molding machines.
Switches for High Vacuum Class
High vacuum at 10-5Pa with low outgassing
Switches made of low outgas materials. Lower cost than sensors with amplifiers. Used in many wafer and mask detection applications in vacuum chambers and semiconductor manufacturing equipment.
Comparative Chart of Touch Switch
| Name of series | Outer diameter | Overall length | Repeartability | Contact force | How to touch the objects | Operating temperature range | High-vacuum resistance |
|---|---|---|---|---|---|---|---|
| High Precision MT-Touch Switches | 8 – 14mm | 38 – 84mm | 0.5μm | 1N – 1.5N | Straight・Angled | 0 – 80℃ | × |
| Ultra-compact High Precision PT-Touch Switches | 5mm | 18 – 25mm | 1 – 3μm | 0.5 – 0.8N | Straight | 0 – 80℃ | × |
| CS-Touch Switches | 5 – 12mm | 15 – 66mm | 3 – 5μm | 1N – 1.5N | Straight・Angled | – 80℃ | × |
| Ball Plunger Switch Sensors | 4 – 6mm | 12 – 32mm | 10μm | 1N – 8N | Straight・Angled・Sliding | – 80℃ | × |
| Switches for High Vacuum Class | 5 – 16mm | 18 – 47mm | 3 – 10μm | 0.5N – 1.5N | Straight・Angled・Sliding | 0 – 120℃ | ✔ |
| Heat-resistant HT Switches | 6 – 10mm | 19 – 47mm | 10μm | 1N – 13N | Straight・Angled・Sliding | 0 – 200℃ | × |
| Stopper Bolt Switch Sensors | 6 – 10mm | 51 – 75mm | 10μm | 2N – 4N | Straight | 0 – 80℃ | × |
| Micro-stopper Switches | 8 – 10mm | 8 – 19mm | 10μm | 0.8N – 1N | Straight・Angled | 0 – 80℃ | × |
| Spring Plunger Switch Sensors | 6 – 10mm | 40mm | 10μm | Max 11N | Straight | 0 – 80℃ | × |
| Low-contact Force Switches | 10mm | 30mm | 10μm | 0.1N | Straight | 0 – 80℃ | × |
Application
Origin setting for semiconductor inspection table
Correction of thermal displacement of XY-axis table in microns
Dispenser nozzle height detection
Z-axis compensation of tabletop robots in microns
Prevention of doubling of thin sheet metal
Detects two pieces of 0.5 mm thick sheet metal at 1/10 the price of a contact-type displacement sensor
Open-close confirmation of the brake pads
Stable detection of minute movements of 0.5 mm or less with no differential response.
Pulse motor drive origin setting
Originating the drive unit, the performance comparable to a servo motor.
Printing machine drum misalignment detection
Stabilized detection of misalignment of each CMYK drum in microns
Main Features and Benefits of Touch Switches
High repeatability
Improve production efficiency and quality control
No differential response
Capable of detecting minute movements of workpieces
Resistant to adverse environmental conditions
Stable detection without being affected by the external environment, such as the material, shape and temperature.
No mutual interference
Usable with narrow intervals
Eliminates the need to fabricate an intermediary actuator for stable detection.
Miniaturization and cost reduction of machines and equipment
