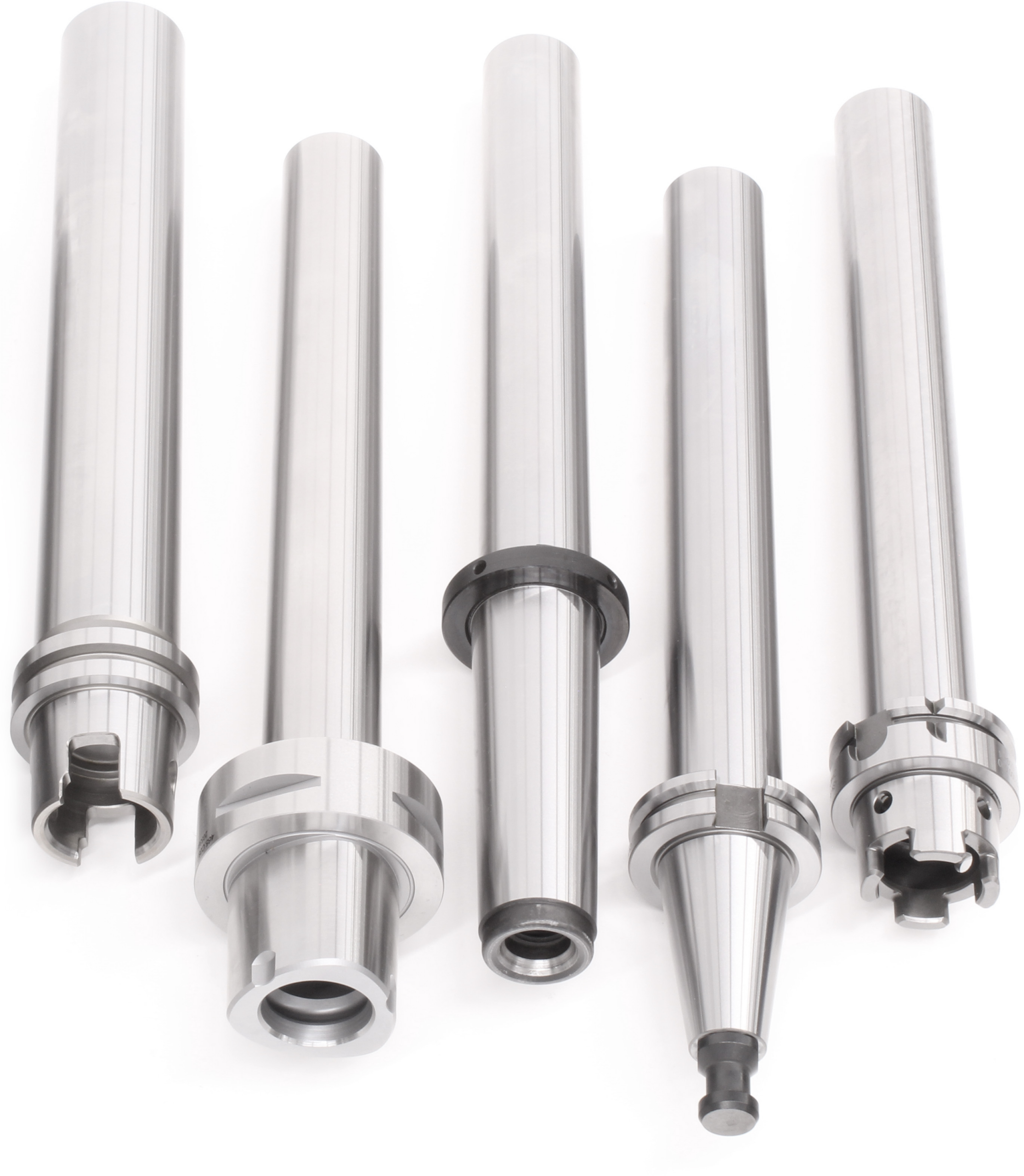

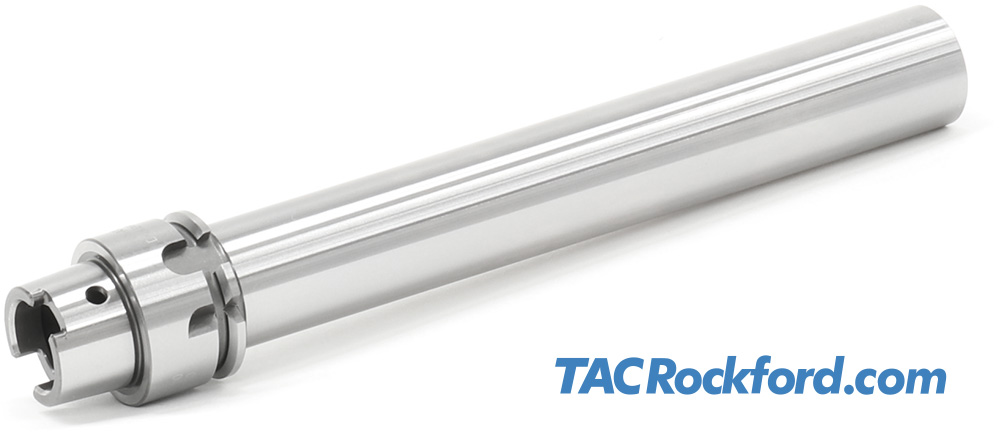

TAC Rockford’s HSK Spindle Runout Test Arbors are the essential high-precision instrument for verifying the accuracy of your machine tool spindles. This critical gauge provides a fast, reliable, and definitive way to diagnose alignment and runout issues that directly impact part quality and tool life.
– Ultra-High Precision: Typically guaranteed radial runout of 0.003mm (3 microns / 0.0001″) or better, ensuring the highest level of diagnostic accuracy.
– Manufactured from premium, hardened alloy steel and precision ground for stability and longevity.
– Each arbor is supplied with an individual Certificate.
– Contact us for other lengths, tapers, and other special requirements.
– Carrying cases are not included. Available case options listed below.
| Taper | Length (L) | Diameter (D) | Standard | Part Number | ||||
|---|---|---|---|---|---|---|---|---|
| HSK-A/C/E 25 | 140 mm | 20 mm | DIN 69893 / ISO 12164 / ASME B5.62 | 465.125.000.000 | ||||
| HSK-A/C/E 32 + B/D/F 40 | 180 mm | 24 mm | DIN 69893 / ISO 12164 / ASME B5.62 | 465.132.000.000 | ||||
| HSK-A/C/E 40 + B/D/F 50 | 180 mm | 24 mm | DIN 69893 / ISO 12164 / ASME B5.62 | 465.140.000.000 | ||||
| HSK-A/C/E 50 + B/D/F 63 | 346 mm | 32 mm | DIN 69893 / ISO 12164 / ASME B5.62 | 465.150.000.000 | ||||
| HSK-A/C/E 63 + B/D/F 80 | 346 mm | 40 mm | DIN 69893 / ISO 12164 / ASME B5.62 | 465.163.000.000 | ||||
| HSK-A/C/E 80 | 346 mm | 40 mm | DIN 69893 / ISO 12164 / ASME B5.62 | 465.180.000.000 | ||||
| HSK-A/C 100 | 349 mm | 40 mm | DIN 69893 / ISO 12164 / ASME B5.62 | 465.190.000.000 | ||||
| HSK-A/C 100 | 500 mm | 50 mm | DIN 69893 / ISO 12164 / ASME B5.62 | 465.190.050.500 | ||||
| HSK-A 125 | 349 mm | 40 mm | DIN 69893 / ISO 12164 / ASME B5.62 | 465.192.000.000 | ||||
| HSK-A 160 | 400 mm | 40 mm | DIN 69893 / ISO 12164 / ASME B5.62 | 465.196.000.000 | ||||
| HSK-B 80 | 345 mm | 50 mm | DIN 69893 / ISO 12164 / ASME B5.62 | 465.280.000.000 | ||||
| HSK-F 63 | 346 mm | 40 mm | DIN 69893 / ISO 12164 / ASME B5.62 | 465.663.000.000 | ||||
| HSK-F 63 Short | 150 mm | 40 mm | DIN 69893 / ISO 12164 / ASME B5.62 | 465.663.040.150 | ||||
| HSK-F 63 | 250 mm | 40 mm | DIN 69893 / ISO 12164 / ASME B5.62 | 465.663.040.250 | ||||
| HSK-F 80 | 346 mm | 50 mm | Makino Flange-Pin Spindles | 465.680.000.000 | ||||
| Custom | Contact us with your requirements | 465.100.SP |
-Maximum runout error 0.003mm / 3 micron / 0.00012 inch
-Cylindricity ≤ 0.002mm / 2 micron / 0.00008 inch
-Carrying cases are not included (see below for case options).
-A certificate of accuracy is included. Traceable certificates available; contact us for details.
-Contact us for other lengths, tapers, and other special requirements.

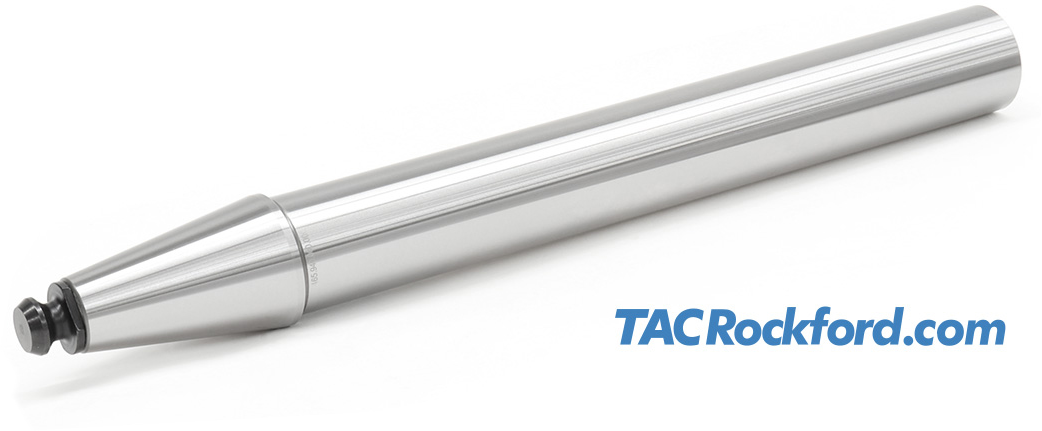

Compatible with Big-Plus® steep taper spindles.
| Spindle Taper | Length (L) | Diameter (D) | Part Number | |||||
|---|---|---|---|---|---|---|---|---|
| Steep Taper (BT) 30 Dual Contact | 125 mm | 25 mm | 465.F30.025.125 | |||||
| Steep Taper (BT) 30 Dual Contact | 235 mm | 32 mm | 465.F30.000.000 | |||||
| Steep Taper (BT) 40 Dual Contact | 300 mm | 40 mm | 465.F40.000.000 | |||||
| Steep Taper (BT) 50 Dual Contact | 300 mm | 50 mm | 465.F50.000.000 | |||||
| Steep Taper (CAT/ANSI) 40 Dual Contact | 300 mm | 40 mm | 465.G40.000.000 | |||||
| Steep Taper (CAT/ANSI) 50 Dual Contact | 300 mm | 50 mm | 465.G50.000.000 | |||||
| Steep Taper (DIN) 40 Dual Contact | Contact us | Contact us | 465.H40.000.000 | |||||
| Steep Taper (DIN) 50 Dual Contact | Contact us | Contact us | 465.H50.000.000 | |||||
| Custom Size | Contact us with your requirements | 465.F00.SP |
Made to the ISO 26623 Standard. Maximum runout error 0.003mm / 3 micron / 0.00012”. A certificate of accuracy is included. Storage are cases not included.
| Taper | L (mm) | D (mm) | Length | Standard | Part Number | |||
|---|---|---|---|---|---|---|---|---|
| PSC 32 / C3 | 180 | 25 | Standard | ISO 26623-1 | 465.C03.000.000 | |||
| PSC 40 / C4 | 300 | 35 | Standard | ISO 26623-1 | 465.C04.000.000 | |||
| PSC 40 / C4 | 180 | 25 | Short | ISO 26623-1 | 465.C04.000.001 | |||
| PSC 50 / C5 | 255 | 32 | Standard | ISO 26623-1 | 465.C05.000.000 | |||
| PSC 63 / C6 | 346 | 40 | Standard | ISO 26623-1 | 465.C06.000.000 | |||
| PSC 63 / C6 | 180 | 50 | Mid | ISO 26623-1 | 465.C06.050.180 | |||
| PSC 60 / C6 | 120 | 50 | Short | ISO 26623-1 | 465.C06.000.001 | |||
| PSC 80 / C8 | 346 | 40 | Standard | ISO 26623-1 | 465.C08.000.000 | |||
| PSC 80 / C8 | 175 | 38 | Short | ISO 26623-1 | 465.C08.000.001 | |||
| PSC 100 / C10 | Contact us with your requirements | 465.C10.000.000 | ||||||
| PSC/PSK Custom | Contact us with your requirements | 465.C00.SP |

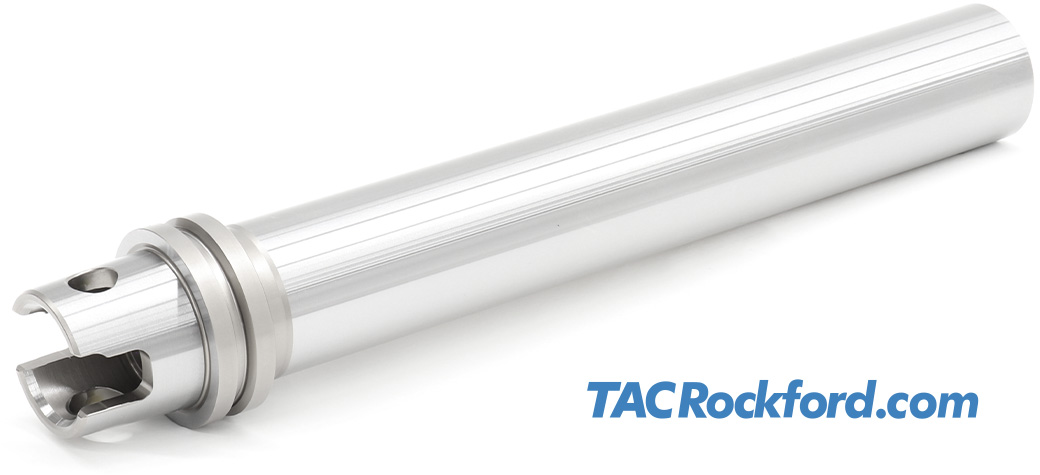

TAC Rockford’s KM Spindle Runout Test Arbors are the essential high-precision instrument for verifying the accuracy of your machine tool spindles. This critical gauge provides a fast, reliable, and definitive way to diagnose alignment and runout issues that directly impact part quality and tool life.
– Ultra-High Precision: Typically guaranteed radial runout of 0.003mm (3 microns / 0.0001″) or better, ensuring the highest level of diagnostic accuracy.
– Manufactured from premium, hardened alloy steel and precision ground for stability and longevity.
– Each arbor is supplied with an individual Certificate.
– Contact us for other lengths, tapers, and other special requirements.
– Carrying cases are not included. Available case options listed below.
| Taper | L (mm) | D (mm) | Configuration | Standard | Part Number | |||
|---|---|---|---|---|---|---|---|---|
| KM32 | 70 | 32 | Standard Length | ISO 26622* | 465.K32.000.000 | |||
| KM40 | 80 | 40 | Short Length | ISO 26622* | 465.K40.000.001 | |||
| KM50 | Standard Length | ISO 26622* | 465.K50.000.000 | |||||
| KM50 | 100 | 50 | Short Length | ISO 26622* | 465.K50.000.001 | |||
| KM5040 | Standard Length | KM5040 • UTS | 465.K54.000.000 | |||||
| KM63 | 340 | 50 | Standard Length | ISO 26622* | 465.K63.000.000 | |||
| KM63 | 120 | 63 | Short Length | ISO 26622* | 465.K63.000.001 | |||
| KM6350 | 300 | 50 | Standard Length | KM6350 • UTS | 465.K65.000.000 | |||
| KM80 | 350 | 50 | Standard Length | ISO 26622* | 465.K80.000.000 | |||
| KM80 | 120 | 80 | Short Length | ISO 26622* | 465.K80.000.001 | |||
| KM100 | 340 | 50 | Standard Length | ISO 26622* | 465.K90.000.000 | |||
| KM100 | 120 | 100 | Short Length | ISO 26622* | 465.K90.000.001 | |||
| KM10080 | 300 | 50 | Standard Length | KM10080 • UTS | 465.K98.000.000 | |||
| KM 32…100 | 465.K00.SP |

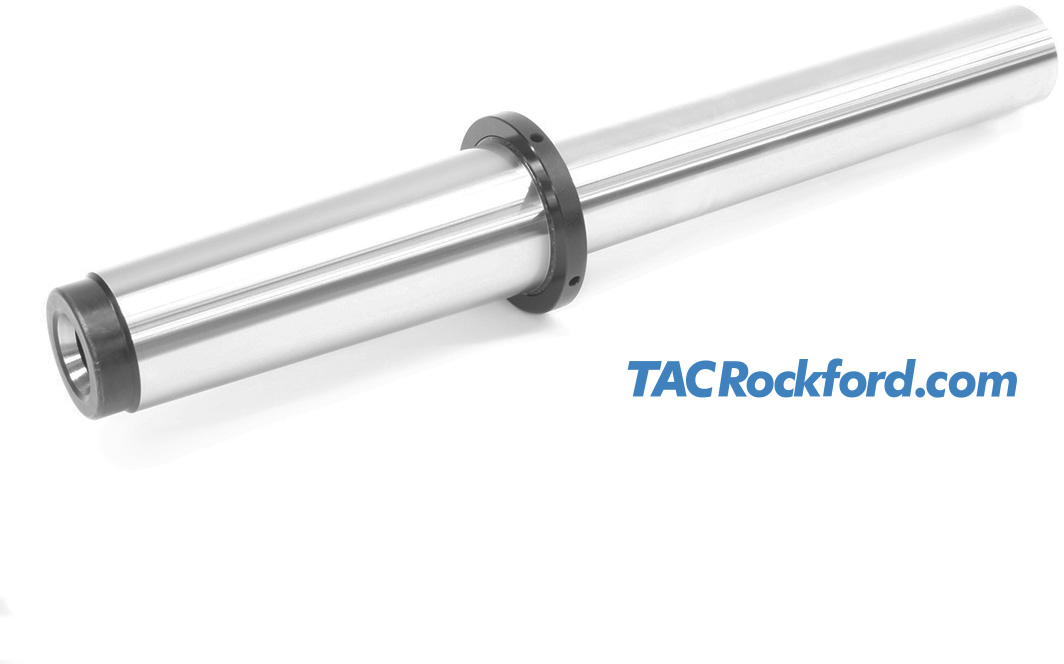

Morse taper runout arbors offer a quick and easy way to verify correct spindle runout for machines with Morse tapers. Included is a threaded spanner nut to facilitate removable from the Morse spindle.
Arbors are manufactured to standard DIN 229 with a metric thread. Contact us for different sizes or customized versions.
| Description | L (mm) | D (mm) | T (mm) | l1 (mm) | d1 (mm) | Part Number | ||
|---|---|---|---|---|---|---|---|---|
| 465.M00.SP | ||||||||
| 465.M07.000.000 | ||||||||
| Morse Taper MT0 | Contact us | 465.M00.000.000 | ||||||
| Morse Taper MT1 | 200 | 12 | M6x1 | 53.5 | 12.065 | 465.M01.000.000 | ||
| Morse Taper MT2 | 200 | 20 | M10x1.5 | 64 | 17.780 | 465.M02.000.000 | ||
| Morse Taper MT3 | 250 | 25 | M12x1.75 | 81 | 23.825 | 465.M03.000.000 | ||
| Morse Taper MT4 | 300 | 30 | M16x2 | 102.5 | 31.267 | 465.M04.000.000 | ||
| Morse Taper MT5 | 300 | 40 | M20x2.5 | 129.5 | 44.399 | 465.M05.000.000 | ||
| Morse Taper MT6 | 300 | 50 | M24x3 | 182 | 63.348 | 465.M06.000.000 |
Standard R8 spindle runout test arbor with inch retention thread.
Runout <=0.003 micron (0.00012 inch)
| Taper | L | D | Part Number | |||||
|---|---|---|---|---|---|---|---|---|
| R8 Spindle Taper | 260mm | 31.75mm [1.25in] | 465.R08.000.000 | |||||
| Carrying Case | Aluminum Horizontal Case |
แกนหมุนตรวจสอบความเที่ยงตรงของแกนเครื่องจักร ช่วยให้ตรวจสอบได้อย่างรวดเร็วและง่ายดายว่าแกนเครื่องจักรหมุนได้เที่ยงตรงหรือไม่ หลังจากเกิดอุบัติเหตุ หลังจากการเคลื่อนย้ายเครื่องจักร หรือเพื่อตรวจสอบประสิทธิภาพการทำงานเป็นระยะ แกนหมุนมีให้เลือกสำหรับขนาดเกลียวเครื่องจักรหลักๆ ทุกขนาด รวมถCAT/DIN/BT Steep Taper, HSK, Capto, Morse และอื่นๆ
