Load Cells
Dacell is providing ultra-precision load cells and various weighting and measuring products,
which can be used in various fields of industries, based on 20 years of experiences in manufacturing
of weighing and measuring products and with own superior technologies.
CB1, CB1A

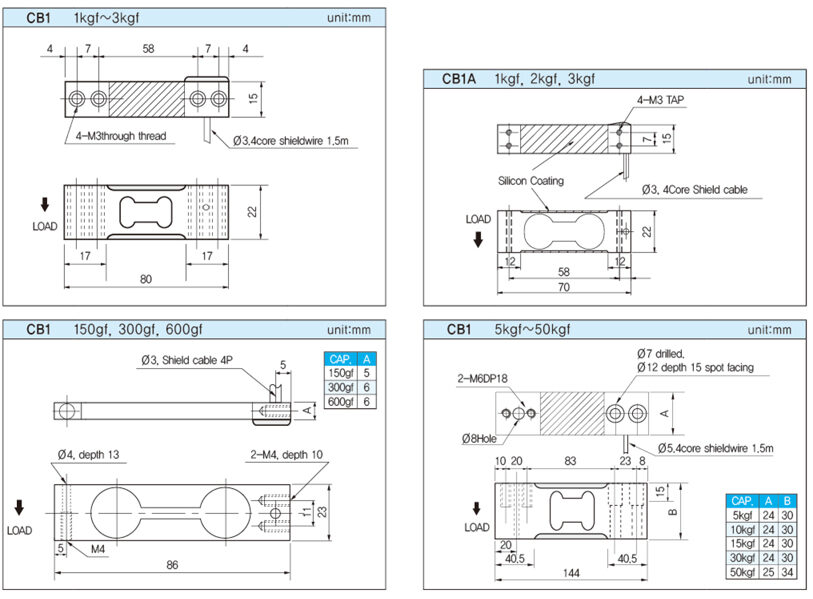

Dimensions
Specifications
| Specifications | Accuracy | ||
|---|---|---|---|
| Rated capacity(R.C) | 150gf, 300gf, 600gf (1.470N, 2.942N, 5.884N) |
1, 2, 3kgf (9.807N, 19.61N, 29.42N) |
5, 10, 15, 30, 50kgf (49.03N, 98.07N, 147.1N, 294.2N, 490.3N) |
| Rated output(R.O) | 1.2mV/V±20% | 1mV/V±20% | 1.5mV/V±20% |
| Nonlinearity | 0.02% R.O. | ||
| Hysteresis | 0.02% R.O. | ||
| Repeatability | 0.02% R.O. | ||
| Creep | 0.03% R.O/20MIN | 0.03% R.O./20MIN | 0.02% R.O./20MIN |
| Zero balance | ±5% R.O. | ||
| Terminal resistance, input | 420±30Ω | ||
| Terminal resistance, output | 350±2Ω | ||
| Insulation resistance | 2000㏁ | ||
| Temperature range compensated | 0~+40℃ | -10~+50℃ | -10~+50℃ |
| Temperature range, safe | -10~+50℃ | ||
| Temperature effect, on zero balance | 0.03% R.O./10℃ | ||
| Temperature effect, on rated output | 0.02% LOAD/10℃ | ||
| Excitation recommended | 10V DC | ||
| Safe overload | 150% R.C. | ||
| Cable length | Φ3, 4CORE SHIELD CABLE, 1.5m | Φ5, 4CORE SHIELD CABLE, 1.5m | |
| Allowable maximum Platform size | Φ80 | 200 X 200mm | 300 X 300mm |
| Weight | 200g | 300g | 400g |
| Wiring Information | EXC+ : RED, EXC- : WHITE, SIG+ : BLACK, SIG- : GREEN | ||
★Specifications are subiect to change without notice.
of weighing and measuring products and with own superior technologies.
CB122
- Miniature Single point load cell
- High accuracy and low price.
Dimensions
Specifications
| Specifications | Accuracy |
|---|---|
| Model | CB122 |
| Rated capacity(R.C) | 200gf, 300gf |
| Rated output(R.O) | 1.2mV/V ± 20% |
| Nonlinearity | 0.02% of R.O. |
| Hysteresis | 0.02% of R.O. |
| Repeatability | 0.02% of R.O. |
| Zero Balance | ±5% of R.O. |
| Temperature range, compensated | 0 ~ 40℃ |
| Temperature range, safe | -10 ~ 50℃ |
| Temp. Effect on rated output | ±0.02% of LOAD/10℃ |
| Temp. Effect on zero balance | ±0.03% of R.O./10℃ |
| Terminal resistance input | 420 ± 30Ω |
| Terminal resistance output | 350 ± 5Ω |
| Insulation resistance bridge | 2000MΩ |
| Cable length | Φ3, 4CORE SHIELD CABLE, 1.5m |
| Excitation recommended | 10V |
| Safe overload | 150% R.C |
| ◆ BEAM TYPE(CB1) | |
| Model | Capacity |
| CB1-G150 | 150gf |
| CB1-G300 | 300gf |
| CB1-G600 | 600gf |
| CB1-K001 | 1kgf |
| CB1-K050 | 50kgf |
| CB2 | All capa |
| CB4 | All capa |
| CB5 | All capa |
| CB6 | All capa |
| ◆ BEAM TYPE(CBC) | |
| Model | Capacity |
| CBC-K10 | 10kgf |
| CBC-K20 | 20kgf |
| CBC-K50 | 50kgf |
| CBC-K100 | 100kgf |
| CBC-K200 | 200kgf |
| CBC-K500 | 500kgf |
| ◆PLATFORM (CP) | |
| Model | Capacity |
| CP-K150 | 150kgf |
| CP-K300 | 300kgf |
| CP-K500 | 500kgf |
| CP-T001 | 1tf |
| CP-T002 | 2tf |
| CP-T003 | 3tf |
| CP-T005 | 5tf |
| CP-T010 | 10tf |
| CPS-T02 | 2tf |
| CPS-T005 | 5tf |
| CPS-T009 | 9tf |
| CPS-T010 | 10tf |
| CPB32 | 500kgf~2000kg |
| CPB32-T5 | 3tf~5f |
| CPB42-T2 | 2000kg |
| CPB42-T5 | 5000kg |
| CPB52-T2 | 2000kg |
| CPB52-T5 | 5000kg |
| ◆ TRUCK SCALES TYPE(CT) | |
| Model | Capacity |
| CT-T025-FS | 25tf |
| CT-T025-BC | 25tf |
| CT-T025-LC | 25tf |
| CTM-T010-FS | 10tf |
| CTM-T010-BC | 10tf |
| CTM-T010-LC | 10tf |
| ◆ Compression : CX | |
| Model | Capacity |
| CXG-K100 | 100kgf |
| CXG-K200 | 200kgf |
| CXG-K300 | 300kgf |
| CXG-K500 | 500kgf |
| CXG-T001 | 1tf |
| CXG-T002 | 2tf |
| CXG-T003 | 3tf |
| CXG-T005 | 5tf |
| CXG-T010 | 10tf |
| CXG-T020 | 20tf |
| CXG-T030 | 30tf |
| CXG-T050 | 50tf |
| CXG-T080 | 80tf |
| CXG-T100 | 100tf |
| CXG-T200 | 200tf |
| CX77-T300 | 300tf |
| CX77-T500 | 500tf |
| ◆ COMPRESSION LOAD CELL TYPE(CCX) | |
| CCX-T003-FS | 2tf |
| CCX-T004-FS | 3tf |
| CCX-T005-FS | 5tf |
| CCX-T010-FS | 10tf |
| CCX-T020-FS | 20tf |
| CCX-T030-FS | 30tf |
| CCX-T050-FS | 50tf |
| CCX-T100-FS | 100tf |
| CCX-T200-FS | 200tf |
| CCX-T300-FS | 300tf |
| CCX-T500-FS | 500tf |
| CCX-T003-LC | 2tf |
| CCX-T004-LC | 3tf |
| CCX-T005-LC | 5tf |
| CCX-T010-LC | 10tf |
| CCX-T020-LC | 20tf |
| CCX-T030-LC | 30tf |
| CCX-T050-LC | 50tf |
| CCX-T100-LC | 100tf |
| CCX-T200-LC | 200tf |
| CCX-T300-LC | 300tf |
| CCX-T500-LC | 500tf |
| ◆LOW PROFILE COMPRESSION: CL | |
| Model | Capacity |
| CL-TOO1 | 1tf |
| CL-TOO2 | 2tf |
| CL-TOO3 | 3tf |
| CL-TOO5 | 5tf |
| CL-TO10 | 10tf |
| CL-TO20 | 20tf |
| CL-TO30 | 30tf |
| CL-TO50 | 50tf |
| CL-T100 | 100tf |
| CL-T200 | 200tf |
| ◆ COMPRESSION Load cell (UL12) | |
| Model | Capacity |
| UL12-T6 | 6tf |
| UL12-T8 | 8tf |
| UL12-T12 | 12tf |
| UL12-T15 | 15tf |
| UL12-T20 | 20tf |
| UL12-T27 | 27tf |
| UL12-T34 | 34tf |
| UL12-T50 | 50tf |
| ◆ HOLLOW TYPE(CW) | |
| Model | Capacity |
| CWH-K500 | 500kgf |
| CWH-T001 | 1tf |
| CWH-T002 | 2tf |
| CWH-T003 | 3tf |
| CWH-T005 | 5tf |
| CWH-T010 | 10tf |
| CWH-T020 | 20tf |
| CWH-T050 | 50tf |
| CWH-T100 | 100tf |
| CWH-T200 | 200tf |
| CWW-K500 | 500kgf |
| CWW-T005 | 5tf |
| CWW-T010 | 10tf |
| CWW-T050 | 50tf |
| CWW-T100 | 100tf |
| CWW-T150 | 150tf |
| CWW-T200 | 200tf |
| ◆ COMPRESSION MINIATURE TYPE(CMM) | |
| Model | Capacity |
| CMM | 1kg~300kgf |
| CMM2 | 1kg~300kgf |
| CMM | 500kg~3tf |
| CMM2 | 500kg~3tf |
| CMM92 | 1kg~20kgf |
| CMM97 | |
| ◆ COMPRESSION MINIATURE TYPE(CM) | |
| Model | Capacity |
| CM-K50 | 50kgf |
| CM-K100 | 100kgf |
| CM-K200 | 200kgf |
| CM-K300 | 300kgf |
| CM-K500 | 500kgf |
| CM-T001 | 1tf |
| CM-T002 | 2tf |
| CM-T003 | 3tf |
| CM-T005 | 5tf |
| CM-T010 | 10tf |
| ◆Tension: TX | |
| Model | Capacity |
| TXG-K100 | 100kgf |
| TXG-K200 | 200kgf |
| TXG-K300 | 300kgf |
| TXG-K500 | 500kgf |
| TXG-T001 | 1tf |
| TXG-T002 | 2tf |
| TXG-T003 | 3tf |
| TXG-T005 | 5tf |
| TXG-T010 | 10tf |
| TXG-T020 | 20tf |
| TXG-T030 | 30tf |
| TXG-T050 | 50tf |
| TXG-T100 | 100tf |
| Tension Load cell (TS21 ) | |
| Model | Capacity |
| TS21-T001 | 1tf |
| TS21-T002 | 2tf |
| TS21-T005 | 5tf |
| TS21-T010 | 10tf |
| TS21-T020 | 20tf |
| TS21-T030 | 30tf |
| TS21-T050 | 50tf |
| TS21-T070 | 70tf |
| TS21-T100 | 100tf |
| TS21-T200 | 200tf |
| TX25-T1 | 1tf |
| TX25-T2 | 2tf |
| TX25-T3 | 3tf |
| TX25-T5 | 5tf |
| TX25-T10 | 10tf |
| ◆UNIVERSAL TYPE (UU) | |
| Model | Capacity |
| UU-K10 | 10kgf |
| UU-K20 | 20kgf |
| UU-K30 | 30kgf |
| UU-K50 | 50kgf |
| UU-K100 | 100kgf |
| UU-K200 | 200kgf |
| UU-K300 | 300kgf |
| UU-K500 | 500kgf |
| UU-T001 | 1tf |
| UU-T002 | 2tf |
| UU-T003 | 3tf |
| UU-T005 | 5tf |
| UU-T010 | 10tf |
| ◆LOW PROFILE TENSION OR COMPRESSION (UL) | |
| Model | Capacity |
| ULM-K500 | 500kgf |
| ULM-TOO1 | 1tf |
| ULM-TOO2 | 2tf |
| ULM-TOO3 | 3tf |
| ULM-TOO5 | 5tf |
| ULM-TO10 | 10tf |
| ULM-TO20 | 20tf |
| ULM-TO30 | 30tf |
| ULM-TO50 | 50tf |
| ULM-T100 | 100tf |
| ULM-T200 | 200tf |
| ◆ MINIATURE TENSION LOAD CELL(UM) | |
| Model | Capacity |
| UM | 50kg~2tf |
| UMA | 50kg~2tf |
| UMM | 1kg~200kgf |
| UMMA | 1kg~200kgf |
| UMF | |
| ◆Minature TENSION OR COMPRESSION (UMI) | |
| UMI-G100 | 100gf |
| UMI-G500 | 500gf |
| UMI- | 1kgf~200kgf |
| UMI-K500 | 500kgf |
| UMI-T1 | 1000kgf |
| UMI-T2 | 2000kgf |
| ◆Universal , bending beam load cell(US) | |
| US | 5N~19.61N |
| ◆Web TENSION Load cell RTB 14, 15 | |
| RTB14 | 10kgf |
| RTB14 | 20kgf |
| RTB14 | 50kgf |
| RTB14 | 100kgf |
| RTB14 | 200kgf |
| RTB15 | 10kgf |
| RTB15 | 20kgf |
| RTB15 | 50kgf |
| RTB15 | 100kgf |
| RTB15 | 200kgf |
| ◆Multi-axis load cells | |
| MC15-2 | 10kg~200kgf |
| MC15-2 | 500kgf |
| MC15-3 | 10kg~200kgf |
| MC15-3 | 500kgf |
| MC15-6 | |
| ◆Double ended shear beam load cell(PL8)+A107 | |
| PL8-T2 | 2tf |
| PL8-T5 | 5tf |
| PL8-T10 | 10tf |
| PL8-T20 | 20tf |
| PL8-T40 | 40tf |
| PL8-T50 | 50tf |
| PL11-T100 | 100tf |
| PL11-T125 | 125tf |
| PL11-T150 | 150 |
| RPM Sensor | |
| MP981 | RPM Sensor |
| Torque Sensors | |
| Model | Capacity |
| TRA-1K | 1kgf-m |
| TRA-20K | 20kgf-m |
| TRA-50K | 50kgf-m |
| TRA-100K | 100kgf-m |
| TRA-200K | 200kgf-m |
| TRA-300K | 300kgf-m |
| TRC-1K | 1kgf-m |
| TRC-20K | 20kgf-m |
| TRC-50K | 50kgf-m |
| TRC-100K | 100kgf-m |
| TRC-200K | 200kgf-m |
| TRC-300K | 300kgf-m |
| TRC-500K | 500kgf-m |
| TRB-1K | 1kgf-m |
| TRB-20K | 20kgf-m |
| TRB-50K | 50kgf-m |
| TRA-100K | 100kgf-m |
| TRB-200K | 200kgf-m |
| TRB-300K | 300kgf-m |
| TRB-500K | 500kgf-m |
| TRD-1K | 1kgf-m |
| TRD-20K | 20kgf-m |
| TRD-50K | 50kgf-m |
| TRD-100K | 100kgf-m |
| TRD-200K | 200kgf-m |
| TRD-300K | 300kgf-m |
| TRD-500K | 500kgf-m |
| TRE-20K | 20kgf-m |
| TRE-50K | 50kgf-m |
| TRE-100K | 100kgf-m |
| TRE-200K | 200kgf-m |
| ◆NON-ROTABLE TORSION TRANSDUCER (TCN) | |
| Model | Capacity |
| TCN-2KC | 2kgf-cm |
| TCN-5KC | 5kgf-cm |
| TCN-10KC | 10kgf-cm |
| TCN-20KC | 20kgf-cm |
| TCN-50KC | 50kgf-cm |
| TCN-K1 | 1kgf-m |
| TCN-K2 | 2kgf-m |
| TCN-K5 | 5kgf-m |
| TCN-K10 | 10kgf-m |
| TCN-K20 | 20kgf-m |
| TCN-K50 | 50kgf-m |
| TCN-K100 | 100kgf-m |
| TCN-K200 | 200kgf-m |
| TCN-K500 | 500kgf-m |
| TCN15-2KC | 2kgf-cm |
| TCN15-5KC | 5kgf-cm |
| TCN15-10KC | 10kgf-cm |
| TCN15-20KC | 20kgf-cm |
| TCN15-50KC | 50kgf-cm |
| TCN15-K1 | 1kgf-m |
| TCN15-K2 | 2kgf-m |
| TCN15-K5 | 5kgf-m |
| TCN15-K10 | 10kgf-m |
| TCN15-K20 | 20kgf-m |
| TCN15-K50 | 50kgf-m |
| TCN15-K100 | 100kgf-m |
| TCN16-2KC | 2kgf-cm |
| TCN16-5KC | 5kgf-cm |
| TCN16-10KC | 10kgf-cm |
| TCN16-20KC | 20kgf-cm |
| TCN16-50KC | 50kgf-cm |
| TCN16-K1 | 1kgf-m |
| TCN16-K2 | 2kgf-m |
| TCN16-K5 | 5kgf-m |
| TCN16-K10 | 10kgf-m |
| TCN16-K20 | 20kgf-m |
| TCN16-K50 | 50kgf-m |
| TCN16-K100 | 100kgf-m |
| TCN23-K5 | 5kgf-m |
| TCN23-K10 | 10kgf-m |
| TCN23-K20 | 20kgf-m |
| TCN23-K50 | 50kgf-m |
| Model | Capacity |
| LPS | 30mm |
| LPS | 100mm |
| CTP | 500~1000mm |
| ◆ DIGITAL INDICATOR | |
| Model | Capacity |
| DN550N | Indicator |
| DN500N | Indicator |
| DN510N | Indicator |
| DN530N | Indicator |
| DN520N | Indicator |
| PDN-10 | . |
| PDN-20 | . |
| DN120 | Indicator |
| DN20W | Indicator |
| DN10W | Indicator |
| DN10W-485 | |
| DN15W | Indicator |
| DN50W | |
| DN30W | RPM indicator |
| DN1000 | AC Indicator |
| DN100 | Indicator |
| DN200 | Indicator |
| DN150 | Indicator |
| DN250 | Indicator |
| DN130L | 2 Ch indicator |
| DN130T | 2 Ch indicator |
| DN230A | 2 Ch indicator |
| SM150 | |
| SM110 | |
| MR900 | Remote display |
| MR930 | Remote display |
| YJ350 | Printer |
| PT100 | Printer |
| DN-AM100 | Amplifier |
| DN-AM210 | Amplifier |
| DN-AM310 | Amplifier |
| DN-AM1000 | Amplifier |
| DN-ACM200 | Amplifier |
| OPTION | |
| 0~10 V | |
| 4~20mA | |
| RS422,485 | |
| BCD OUT | |
| BCD IN | |
| Summing Box | |
| SB4P | |
| SB6P | |
| SB8P | |
| SB42 | |
| DN-FGA | 2kg~50kgf |
| DN-FGA | 100kgf |
◆ BEAM TYPE(CB1)
Model Capacity
CB1-G150 150gf
CB1-G300 300gf
CB1-G600 600gf
CB1-K001 1kgf
CB1-K050 50kgf
CB2 All capa
CB4 All capa
CB5 All capa
CB6 All capa
◆ BEAM TYPE(CBC)
Model Capacity
CBC-K10 10kgf
CBC-K20 20kgf
CBC-K50 50kgf
CBC-K100 100kgf
CBC-K200 200kgf
CBC-K500 500kgf
◆PLATFORM (CP)
Model Capacity
CP-K150 150kgf
CP-K300 300kgf
CP-K500 500kgf
CP-T001 1tf
CP-T002 2tf
CP-T003 3tf
CP-T005 5tf
CP-T010 10tf
CPS-T02 2tf
CPS-T005 5tf
CPS-T009 9tf
CPS-T010 10tf
CPB32 500kgf~2000kg
CPB32-T5 3tf~5f
CPB42-T2 2000kg
CPB42-T5 5000kg
CPB52-T2 2000kg
CPB52-T5 5000kg
◆ TRUCK SCALES TYPE(CT)
Model Capacity
CT-T025-FS 25tf
CT-T025-BC 25tf
CT-T025-LC 25tf
CTM-T010-FS 10tf
CTM-T010-BC 10tf
CTM-T010-LC 10tf
◆ Compression : CX
Model Capacity
CXG-K100 100kgf
CXG-K200 200kgf
CXG-K300 300kgf
CXG-K500 500kgf
CXG-T001 1tf
CXG-T002 2tf
CXG-T003 3tf
CXG-T005 5tf
CXG-T010 10tf
CXG-T020 20tf
CXG-T030 30tf
CXG-T050 50tf
CXG-T080 80tf
CXG-T100 100tf
CXG-T200 200tf
CX77-T300 300tf
CX77-T500 500tf
◆ COMPRESSION LOAD CELL TYPE(CCX)
CCX-T003-FS 2tf
CCX-T004-FS 3tf
CCX-T005-FS 5tf
CCX-T010-FS 10tf
CCX-T020-FS 20tf
CCX-T030-FS 30tf
CCX-T050-FS 50tf
CCX-T100-FS 100tf
CCX-T200-FS 200tf
CCX-T300-FS 300tf
CCX-T500-FS 500tf
CCX-T003-LC 2tf
CCX-T004-LC 3tf
CCX-T005-LC 5tf
CCX-T010-LC 10tf
CCX-T020-LC 20tf
CCX-T030-LC 30tf
CCX-T050-LC 50tf
CCX-T100-LC 100tf
CCX-T200-LC 200tf
CCX-T300-LC 300tf
CCX-T500-LC 500tf
◆LOW PROFILE COMPRESSION: CL
Model Capacity
CL-TOO1 1tf
CL-TOO2 2tf
CL-TOO3 3tf
CL-TOO5 5tf
CL-TO10 10tf
CL-TO20 20tf
CL-TO30 30tf
CL-TO50 50tf
CL-T100 100tf
CL-T200 200tf
◆ COMPRESSION Load cell (UL12)
Model Capacity
UL12-T6 6tf
UL12-T8 8tf
UL12-T12 12tf
UL12-T15 15tf
UL12-T20 20tf
UL12-T27 27tf
UL12-T34 34tf
UL12-T50 50tf
◆ HOLLOW TYPE(CW)
Model Capacity
CWH-K500 500kgf
CWH-T001 1tf
CWH-T002 2tf
CWH-T003 3tf
CWH-T005 5tf
CWH-T010 10tf
CWH-T020 20tf
CWH-T050 50tf
CWH-T100 100tf
CWH-T200 200tf
CWW-K500 500kgf
CWW-T005 5tf
CWW-T010 10tf
CWW-T050 50tf
CWW-T100 100tf
CWW-T150 150tf
CWW-T200 200tf
◆ COMPRESSION MINIATURE TYPE(CMM)
Model Capacity
CMM 1kg~300kgf
CMM2 1kg~300kgf
CMM 500kg~3tf
CMM2 500kg~3tf
CMM92 1kg~20kgf
CMM97
◆ COMPRESSION MINIATURE TYPE(CM)
Model Capacity
CM-K50 50kgf
CM-K100 100kgf
CM-K200 200kgf
CM-K300 300kgf
CM-K500 500kgf
CM-T001 1tf
CM-T002 2tf
CM-T003 3tf
CM-T005 5tf
CM-T010 10tf
◆Tension: TX
Model Capacity
TXG-K100 100kgf
TXG-K200 200kgf
TXG-K300 300kgf
TXG-K500 500kgf
TXG-T001 1tf
TXG-T002 2tf
TXG-T003 3tf
TXG-T005 5tf
TXG-T010 10tf
TXG-T020 20tf
TXG-T030 30tf
TXG-T050 50tf
TXG-T100 100tf
Tension Load cell (TS21 )
Model Capacity
TS21-T001 1tf
TS21-T002 2tf
TS21-T005 5tf
TS21-T010 10tf
TS21-T020 20tf
TS21-T030 30tf
TS21-T050 50tf
TS21-T070 70tf
TS21-T100 100tf
TS21-T200 200tf
TX25-T1 1tf
TX25-T2 2tf
TX25-T3 3tf
TX25-T5 5tf
TX25-T10 10tf
◆UNIVERSAL TYPE (UU)
Model Capacity
UU-K10 10kgf
UU-K20 20kgf
UU-K30 30kgf
UU-K50 50kgf
UU-K100 100kgf
UU-K200 200kgf
UU-K300 300kgf
UU-K500 500kgf
UU-T001 1tf
UU-T002 2tf
UU-T003 3tf
UU-T005 5tf
UU-T010 10tf
◆LOW PROFILE TENSION OR COMPRESSION (UL)
Model Capacity
ULM-K500 500kgf
ULM-TOO1 1tf
ULM-TOO2 2tf
ULM-TOO3 3tf
ULM-TOO5 5tf
ULM-TO10 10tf
ULM-TO20 20tf
ULM-TO30 30tf
ULM-TO50 50tf
ULM-T100 100tf
ULM-T200 200tf
◆ MINIATURE TENSION LOAD CELL(UM)
Model Capacity
UM 50kg~2tf
UMA 50kg~2tf
UMM 1kg~200kgf
UMMA 1kg~200kgf
UMF
◆Minature TENSION OR COMPRESSION (UMI)
UMI-G100 100gf
UMI-G500 500gf
UMI- 1kgf~200kgf
UMI-K500 500kgf
UMI-T1 1000kgf
UMI-T2 2000kgf
◆Universal , bending beam load cell(US)
US 5N~19.61N
◆Web TENSION Load cell RTB 14, 15
RTB14 10kgf
RTB14 20kgf
RTB14 50kgf
RTB14 100kgf
RTB14 200kgf
RTB15 10kgf
RTB15 20kgf
RTB15 50kgf
RTB15 100kgf
RTB15 200kgf
◆Multi-axis load cells
MC15-2 10kg~200kgf
MC15-2 500kgf
MC15-3 10kg~200kgf
MC15-3 500kgf
MC15-6
◆Double ended shear beam load cell(PL8)+A107
PL8-T2 2tf
PL8-T5 5tf
PL8-T10 10tf
PL8-T20 20tf
PL8-T40 40tf
PL8-T50 50tf
PL11-T100 100tf
PL11-T125 125tf
PL11-T150 150
RPM Sensor
MP981 RPM Sensor
Torque Sensors
Model Capacity
TRA-1K 1kgf-m
TRA-20K 20kgf-m
TRA-50K 50kgf-m
TRA-100K 100kgf-m
TRA-200K 200kgf-m
TRA-300K 300kgf-m
TRC-1K 1kgf-m
TRC-20K 20kgf-m
TRC-50K 50kgf-m
TRC-100K 100kgf-m
TRC-200K 200kgf-m
TRC-300K 300kgf-m
TRC-500K 500kgf-m
TRB-1K 1kgf-m
TRB-20K 20kgf-m
TRB-50K 50kgf-m
TRA-100K 100kgf-m
TRB-200K 200kgf-m
TRB-300K 300kgf-m
TRB-500K 500kgf-m
TRD-1K 1kgf-m
TRD-20K 20kgf-m
TRD-50K 50kgf-m
TRD-100K 100kgf-m
TRD-200K 200kgf-m
TRD-300K 300kgf-m
TRD-500K 500kgf-m
TRE-20K 20kgf-m
TRE-50K 50kgf-m
TRE-100K 100kgf-m
TRE-200K 200kgf-m
◆NON-ROTABLE TORSION TRANSDUCER (TCN)
Model Capacity
TCN-2KC 2kgf-cm
TCN-5KC 5kgf-cm
TCN-10KC 10kgf-cm
TCN-20KC 20kgf-cm
TCN-50KC 50kgf-cm
TCN-K1 1kgf-m
TCN-K2 2kgf-m
TCN-K5 5kgf-m
TCN-K10 10kgf-m
TCN-K20 20kgf-m
TCN-K50 50kgf-m
TCN-K100 100kgf-m
TCN-K200 200kgf-m
TCN-K500 500kgf-m
TCN15-2KC 2kgf-cm
TCN15-5KC 5kgf-cm
TCN15-10KC 10kgf-cm
TCN15-20KC 20kgf-cm
TCN15-50KC 50kgf-cm
TCN15-K1 1kgf-m
TCN15-K2 2kgf-m
TCN15-K5 5kgf-m
TCN15-K10 10kgf-m
TCN15-K20 20kgf-m
TCN15-K50 50kgf-m
TCN15-K100 100kgf-m
TCN16-2KC 2kgf-cm
TCN16-5KC 5kgf-cm
TCN16-10KC 10kgf-cm
TCN16-20KC 20kgf-cm
TCN16-50KC 50kgf-cm
TCN16-K1 1kgf-m
TCN16-K2 2kgf-m
TCN16-K5 5kgf-m
TCN16-K10 10kgf-m
TCN16-K20 20kgf-m
TCN16-K50 50kgf-m
TCN16-K100 100kgf-m
TCN23-K5 5kgf-m
TCN23-K10 10kgf-m
TCN23-K20 20kgf-m
TCN23-K50 50kgf-m
Model Capacity
LPS 30mm
LPS 100mm
CTP 500~1000mm
◆ DIGITAL INDICATOR
Model Capacity
DN550N Indicator
DN500N Indicator
DN510N Indicator
DN530N Indicator
DN520N Indicator
PDN-10 .
PDN-20 .
DN120 Indicator
DN20W Indicator
DN10W Indicator
DN10W-485
DN15W Indicator
DN50W
DN30W RPM indicator
DN1000 AC Indicator
DN100 Indicator
DN200 Indicator
DN150 Indicator
DN250 Indicator
DN130L 2 Ch indicator
DN130T 2 Ch indicator
DN230A 2 Ch indicator
SM150
SM110
MR900 Remote display
MR930 Remote display
YJ350 Printer
PT100 Printer
DN-AM100 Amplifier
DN-AM210 Amplifier
DN-AM310 Amplifier
DN-AM1000 Amplifier
DN-ACM200 Amplifier
OPTION
0~10 V
4~20mA
RS422,485
BCD OUT
BCD IN
Summing Box
SB4P
SB6P
SB8P
SB42
DN-FGA 2kg~50kgf
DN-FGA 100kgf
