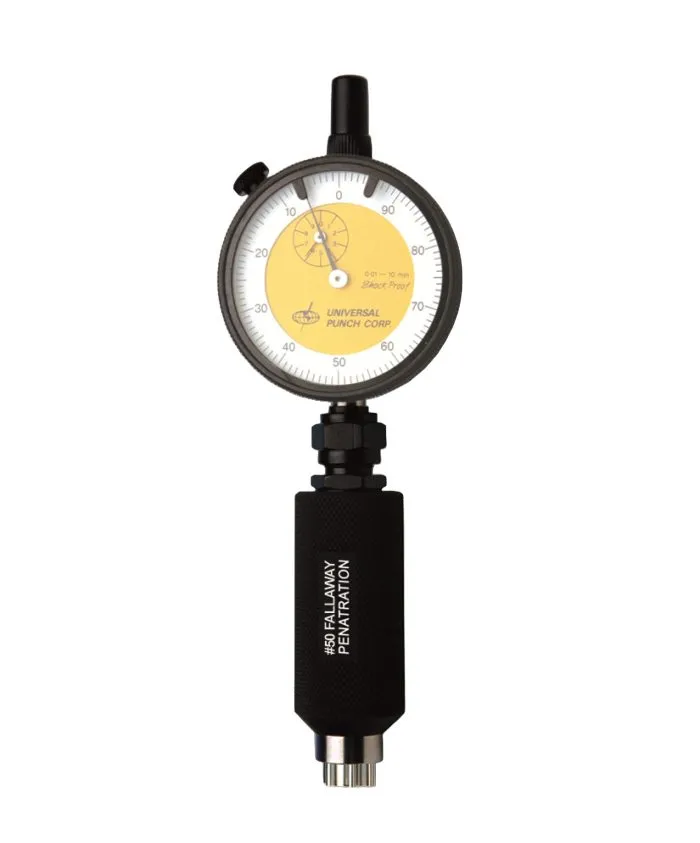

#1181 6-Lobe (TX) GO Penetration Gage
Universal Punch Corp. | Precision GagingPrecision GO penetration gaging for internal 6-Lobe (TX) recess head screws. Designed for production and receiving inspection where verifying minimum acceptable recess form and proper driver engagement is critical to manufacturing quality.
Internal 6-Lobe (TX) Recess
TMF-804 / TXQ-804
Sizes T4 – T100
Inch or metric dial indicators are available. SPC-compatible digital indicators are available on request. Tamper-proof style is available for sizes #6 through #45.
Product Family
GO Penetration Gages
Drive System
6-Lobe (TX)
Inspection Focus
Minimum Form Acceptance
Available Sizes
T4 through T100
Product Overview
The #1181 6-Lobe (TX) GO Penetration Gage is built for production and receiving inspection of internal 6-Lobe recess head screws where reliable minimum form verification is essential. This gage helps confirm that the recess will properly accept the intended driver and meet the expected manufacturing requirement.
GO penetration gaging provides a fast, repeatable method for checking internal drive quality on incoming parts and on the production floor. It supports process control, helps identify undersized or irregular recess conditions, and gives quality teams greater confidence before assembly or shipment.
Universal Punch designs precision gaging systems for demanding manufacturing environments where repeatability, durability, and professional inspection performance are expected every day.
What This Gage Checks
- Minimum acceptable internal 6-Lobe recess form
- Driver compatibility and usable recess engagement
- Receiving inspection consistency
- Production process control across manufacturing lots
- Conformance prior to final assembly or shipment
Technical Specifications
Series#1181
Product TypeGO Penetration Gage
Drive Type6-Lobe (TX)
ApplicationInternal recess head screws
Reference StandardsTMF-804, TXQ-804
Available SizesT4 – T100
Indicator OptionsInch or metric dial indicator
SPC CompatibilityDigital indicators available on request
Tamper-Proof OptionAvailable for sizes #6 – #45
ConstructionHeat treated, thermally stabilized, surface treated probes
TraceabilityLong-form calibration certificate, NIST traceable
Use EnvironmentProduction and receiving inspection
Available Sizes and Ordering Information
Standard sizes are available from T4 through T100. Use the table below to align drive size, part number, and gage reference number.
| Drive Size | Part Number | Reference Number |
|---|---|---|
| T4 | 1181-04 | 4-TXI-804 |
| T5 | 1181-05 | 5-TXI-804 |
| T6 | 1181-06 | 6-TXI-804 |
| T7 | 1181-07 | 7-TXI-804 |
| T8 | 1181-08 | 8-TXI-804 |
| T9 | 1181-09 | 9-TXI-804 |
| T10 | 1181-10 | 10-TXI-804 |
| T15 | 1181-15 | 15-TXI-804 |
| T20 | 1181-20 | 20-TXI-804 |
| T25 | 1181-25 | 25-TXI-804 |
| T27 | 1181-27 | 27-TXI-804 |
| T30 | 1181-30 | 30-TXI-804 |
| T40 | 1181-40 | 40-TXI-804 |
| T45 | 1181-45 | 45-TXI-804 |
| T50 | 1181-50 | 50-TXI-804 |
| T55 | 1181-55 | 55-TXI-804 |
| T60 | 1181-60 | 60-TXI-804 |
| T70 | 1181-70 | 70-TXI-804 |
| T80 | 1181-80 | 80-TXI-804 |
| T90 | 1181-90 | 90-TXI-804 |
| T100 | 1181-100 | 100-TXI-804 |
Standards, Quality, and Traceability
Universal Punch manufactures gaging products for precision manufacturing environments where repeatability, dimensional consistency, and inspection confidence are essential. The #1181 GO Penetration Gage is referenced to TMF-804 and TXQ-804 for internal 6-Lobe recess head screws.
Gage probes are heat treated, thermally stabilized, and surface treated to maximize wear life and long-term dimensional stability. Long-form calibration certificates provide NIST traceability to support quality systems, controlled inspection records, and reliable ongoing use.
Typical Applications
- Fastener manufacturing quality control
- Receiving inspection of incoming parts
- Production line process verification
- Aerospace and defense fastener programs
- Automotive, medical device, and industrial precision assembly operations
Ordering Notes
- Specify inch or metric dial indicator when ordering
- SPC-compatible digital indicators available on request
- Tamper-proof style available for sizes #6 through #45
- Contact Universal Punch for application guidance and quote support
