  • เครื่องวัดค่าความร่วมศูนย์สำหรับชิ้นงานกลม Concentricity Gages USA

เครื่องวัดค่าความร่วมศูนย์สำหรับชิ้นงานกลม Concentricity Gages USA

A-10 Universal Punch Concentricity Gage
A-10 Universal Punch Concentricity Gage
A-10 Universal Punch Concentricity Gage
B-10 Universal Punch Concentricity Gage
B-10 Universal Punch Concentricity Gage
B-20 Universal Punch Concentricity Gage
B-20 Universal Punch Concentricity Gage
B-40 Universal Punch Concentricity Gage
B-40 Universal Punch Concentricity Gage
E-10 Universal Punch Concentricity Gage
E-10 Universal Punch Concentricity Gage
E-20 Universal Punch Concentricity Gage
E-20 Universal Punch Concentricity Gage
E-40 Universal Punch Concentricity Gage
E-40 Universal Punch Concentricity Gage
F-10 Universal Punch Concentricity Gage
F-10 Universal Punch Concentricity Gage
F-20 Universal Punch Concentricity Gage
F-20 Universal Punch Concentricity Gage
G1-10 Universal Punch Concentricity Gage
G1-10 Universal Punch Concentricity Gage
G1-20 Universal Punch Concentricity Gage
G1-20 Universal Punch Concentricity Gage
G1-40 Universal Punch Concentricity Gage
G1-40 Universal Punch Concentricity Gage
G2-10 Universal Punch Concentricity Gage
G2-10 Universal Punch Concentricity Gage
G2-20 Universal Punch Concentricity Gage
G2-20 Universal Punch Concentricity Gage
G2-40 Universal Punch Concentricity Gage
G2-40 Universal Punch Concentricity Gage
H-10 Universal Punch Concentricity Gage
H-10 Universal Punch Concentricity Gage
H-20 Universal Punch Concentricity Gage
H-20 Universal Punch Concentricity Gage
H-40 Universal Punch Concentricity Gage
H-40 Universal Punch Concentricity Gage
HL-10 Universal Punch Concentricity Gage
HL-10 Universal Punch Concentricity Gage
HL-20 Universal Punch Concentricity Gage
HL-20 Universal Punch Concentricity Gage
HL-40 Universal Punch Concentricity Gage
HL-40 Universal Punch Concentricity Gage
J-10 Universal Punch Concentricity Gage
J-10 Universal Punch Concentricity Gage
J-20 Universal Punch Concentricity Gage
J-20 Universal Punch Concentricity Gage

J-40 Universal Punch Concentricity Gage
JLP-10 Universal Punch Concentricity Gage
JLP-10 Universal Punch Concentricity Gage
JSLP-10 Universal Punch Concentricity Gage
JSLP-10 Universal Punch Concentricity Gage
JSLP-10C Universal Punch Concentricity Gage
JSLP-10C Universal Punch Concentricity Gage
K1-10 Universal Punch Concentricity Gage
K1-10 Universal Punch Concentricity Gage
K1-20 Universal Punch Concentricity Gage
K1-20 Universal Punch Concentricity Gage
K1-40 Universal Punch Concentricity Gage
K1-40 Universal Punch Concentricity Gage
K2-10 Universal Punch Concentricity Gage
K2-10 Universal Punch Concentricity Gage
K2-20 Universal Punch Concentricity Gage
K2-20 Universal Punch Concentricity Gage
K2-40 Universal Punch Concentricity Gage
K2-40 Universal Punch Concentricity Gage
KK1-10 Universal Punch Concentricity Gage
KK1-10 Universal Punch Concentricity Gage
KK1-20 Universal Punch Concentricity Gage
KK1-20 Universal Punch Concentricity Gage
KK1-40 Universal Punch Concentricity Gage
KK1-40 Universal Punch Concentricity Gage
KK2-10 Universal Punch Concentricity Gage
KK2-10 Universal Punch Concentricity Gage
KK2-20 Universal Punch Concentricity Gage
KK2-20 Universal Punch Concentricity Gage
KK2-40 Universal Punch Concentricity Gage
KK2-40 Universal Punch Concentricity Gage
LG-10 Universal Punch Concentricity Gage
LG-10 Universal Punch Concentricity Gage
LG-20 Universal Punch Concentricity Gage
LG-20 Universal Punch Concentricity Gage

เบอร์โทรศัพท์
081-389-4990
Line ID
mechatronics09
ขอใบเสนอราคา

Concentricity Gages

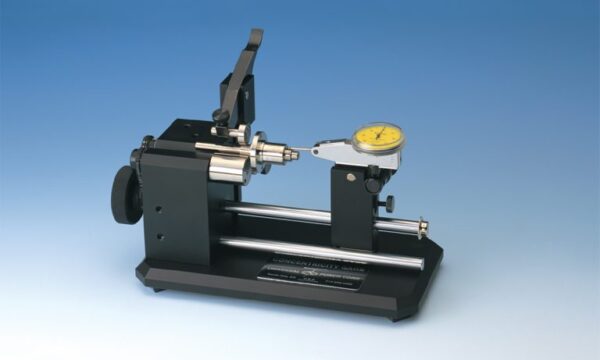

A-10 Model



Part Diameters: 1/8” to 1” (3mm to 25mm)

Part Lengths: Up to 3” (76mm)

Gage Length: 8.5” (216mm)

Gage Width: 4.5” (114mm)

Shipping Weight: 4.5lb. (2.0kg.)

3/32” (1mm) Capacity with Zero Style Rollers



B-10 Model



Part Diameters: 1/8” to 1” (3mm to 25mm)

Part Lengths: Up to 4” (102mm)

Gage Length: 10.5” (267mm)

Gage Width: 4.5” (114mm)

Shipping Weight: 4.9lb. (2.2kg.)

3/32” (1mm) Capacity with Zero Style Rollers



B-20 Model



Part Diameters: 3/8” to 2” (10mm to 50mm)

Part Lengths: Up to 6” (152mm)

Gage Length: 12.5” (318mm)

Gage Width: 4.5” (114mm)

Shipping Weight: 6.4lb. (2.9kg.)



B-40 Model



Part Diameters: 3/4” to 4” (20mm to 102mm)

Part Lengths: Up to 8” (203mm)

Gage Length: 14.5” (368mm)

Gage Width: 6” (152mm)

Shipping Weight: 11.2lb. (5.1kg.)



E-10 Model



Part Diameters: 1/8” to 1” (3mm to 25mm)

Part Lengths: Up to 4” (102mm)

Shipping Weight: 4.9lb. (2.2kg.)



E-20 Model



Part Diameters: 3/8” to 2” (10mm to 50mm)

Part Lengths: Up to 6” (152mm)

Shipping Weight: 6.4lb. (2.9kg.)



E-40 Model



Part Diameters: 3/4” to 4” (20mm to 102mm)
Part Lengths: Up to 8” (203mm)
Shipping Weight: 11.2lb. (5.1kg.)



F-10 Model



Part Diameters: 1/8” to 1” (3mm to 25mm)
Part Lengths: Up to 4” (102mm)
Shipping Weight: 4.9lb. (2.2kg.)



F-20 Model



Part Diameters: 3/8” to 2” (10mm to 50mm)
Part Lengths: Up to 6” (152mm)
Shipping Weight: 6.4lb. (2.9kg.)



G1-10 Model



Part Diameters: 1/8” to 1” (3mm to 25mm)
Part Lengths: Up to 4” (102mm)
Shipping Weight: 4.9lb. (2.2kg.)



G1-20 Model



Part Diameters: 3/8” to 2” (10mm to 50mm)
Part Lengths: Up to 6” (152mm)
Shipping Weight: 6.4lb. (2.9kg.)



G1-40 Model



Part Diameters: 3/4” to 4” (20mm to 102mm)
Part Lengths: Up to 8” (203mm)
Shipping Weight: 11.2lb. (5.1kg.)



G2-10 Model



Part Diameters: 1/8” to 1” (3mm to 25mm)
Part Lengths: Up to 4” (102mm)
Shipping Weight: 4.9lb. (2.2kg.)



G2-20 Model



Part Diameters: 3/8” to 2” (10mm to 50mm)
Part Lengths: Up to 6” (152mm)
Shipping Weight: 6.4lb. (2.9kg.)



G2-40 Model



Part Diameters: 3/4” to 4” (20mm to 102mm)
Part Lengths: Up to 8” (203mm)
Shipping Weight: 11.2lb. (5.1kg.)



K1-10 Model



Part Diameters: 1/8” to 1” (3mm to 25mm)
Part Lengths: Up to 4” (102mm)
Shipping Weight: 11.5lb. (5.2kg.)



K1-20 Model



Part Diameters: 3/8” to 2” (10mm to 50mm)
Part Lengths: Up to 6” (152mm)
Shipping Weight: 14.8lb. (6.8kg.)



K1-40 Model



Part Diameters: 3/4” to 4” (20mm to 102mm)
Part Lengths: Up to 8” (203mm)
Shipping Weight: 18.5lb. (8.4kg.)



K2-10 Model



Part Diameters: 1/8” to 1” (3mm to 25mm)
Part Lengths: Up to 4” (102mm)
Shipping Weight: 4.9lb. (2.2kg.)



K2-20 Model



Part Diameters: 3/8” to 2” (10mm to 50mm)
Part Lengths: Up to 6” (152mm)
Shipping Weight: 14.8lb. (6.8kg.)



K2-40 Model



Part Diameters: 3/4” to 4” (20mm to 102mm)
Part Lengths: Up to 8” (203mm)
Shipping Weight: 18.5lb. (8.4kg.)

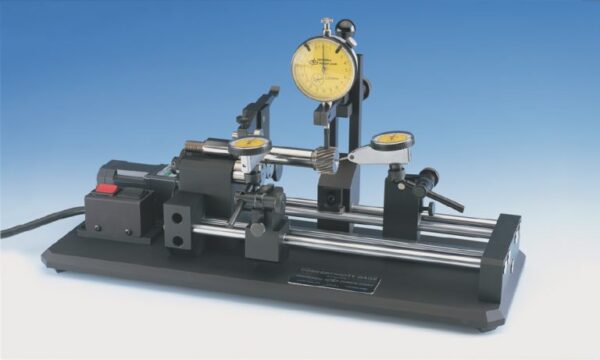

KK1-10 Model



Part Diameters: 1/8” to 1” (3mm to 25mm)
Part Lengths: Up to 4” (102mm)
Shipping Weight: 4.9lb. (2.2kg.)



KK1-20 Model



Part Diameters: 3/8” to 2” (10mm to 50mm)
Part Lengths: Up to 6” (152mm)
Shipping Weight: 14.8lb. (6.8kg.



KK1-40 Model



Part Diameters: 3/4” to 4” (20mm to 102mm)
Part Lengths: Up to 8” (203mm)
Shipping Weight: 18.5lb. (8.4kg.)



KK2-10 Model



Part Diameters: 1/8” to 1” (3mm to 25mm)
Part Lengths: Up to 4” (102mm)
Shipping Weight: 4.9lb. (2.2kg.)



KK2-20 Model



Part Diameters: 3/8” to 2” (10mm to 50mm)
Part Lengths: Up to 6” (152mm)
Shipping Weight: 14.8lb. (6.8kg.)



KK2-40 Model



Part Diameters: 3/4” to 4” (20mm to 102mm)
Part Lengths: Up to 8” (203mm)
Shipping Weight: 18.5lb. (8.4kg.)

(Optional Motorized Drive Unite Shown)



LG-10 Model



Part Diameters: 1/8” to 1” (3mm to 25mm)
Part Lengths: Up to 6” (152mm)
Shipping Weight: 3.5lb. (1.6kg.)



LGM-10 Model



Part Diameters: 1/8” to 1” (3mm to 25mm)
Part Lengths: Up to 6” (152mm)
Shipping Weight: 3.7lb. (1.8kg.)
Fixed Speed AC 110v/220v 1w/60hz
(Stepping Motorized Drive Units Available)



LG-20 Model



Part Diameters: 3/8” to 2” (10mm to 50mm)
Part Lengths: Up to 6” (152mm)
Shipping Weight: 3.7lb. (1.8kg.)



LGM-20 Model



Part Diameters: 3/8” to 2” (10mm to 50mm)
Part Lengths: Up to 6” (152mm)
Shipping Weight: 4.9lb. (2.2kg.)
(Stepping Motorized Drive Units Available)



H-10 Model



Part Diameters: 1/8” to 1” (3mm to 25mm)
Part Lengths: Up to 12” (305mm)
Shipping Weight: 7.5 lb. (3.4kg.)



HL-10 Model



Part Diameters: 1/8” to 1” (3mm to 25mm)
Part Lengths: Up to 24” (610mm)
Shipping Weight: 24.5lb. (11.1kg.)



H-20 Model



Part Diameters: 3/8” to 2” (10mm to 50mm)
Part Lengths: Up to 12” (305mm)
Shipping Weight: 8.5lb. (3.9kg.)



HL-20 Model



Part Diameters: 3/8” to 2” (10mm to 50mm)
Part Lengths: Up to 24” (610mm)
Shipping Weight: 26.5lb. (12kg.)



H-40 Model



Part Diameters: 3/4” to 4” (20mm to 102mm)
Part Lengths: Up to 12” (305mm)
Shipping Weight: 11.2lb. (5.1kg.)



HL-40 Model



Part Diameters: 3/4” to 4” (20mm to 102mm)
Part Lengths: Up to 24” (610mm)
Shipping Weight: 29.5lb. (13.5kg.)



JLS-10, JLP-10, J-10 Models



Part Diameters: 1/8” to 1” (3mm to 25mm)
Part Lengths: Up to 4” (102mm)
Shipping Weight: 3.5lb. (1.6kg.



J-20 Model



Part Diameters: 3/8” to 2” (10mm to 50mm)
Part Lengths: Up to 6” (152mm)
Shipping Weight: 4.4lb. (2.0kg.)



J-40 Model



Part Diameters: 3/4” to 4” (20mm to 102mm)
Part Lengths: Up to 8” (203mm)
Shipping Weight: 9.2lb. (4.2kg.)

Main Rollers

Full Plain 110FP, 120FP, 140FP



Half Plain 110HP, 120HP, 140HP



Quarter Plain 110QP, 120QP, 140QP



Full Zero Rollers 110FZ



Half Zero Rollers 110HZ



Quarter Zero Rollers 110QZ



Model H & HL Rollers



Extra Thin Zero Rollers



Special Rollers



Special Main Rollers To Order

Universal Pro Modular Gages

Universal Pro-Fixture Series™ is an adaptable and versatile gaging system made out of high-tensile, plated aerospace aluminum. Fixtures of all kinds and sizes can be assembled quickly using single components chosen from the large variety available. Modular design and extreme flexibility facilitate the adaptation to many different tasks in quality assurance for mass production, pilot production, tooling and prototypes. Outstanding quality standards, proven functionality, Cost-effective solutions – with these advantages the Universal Pro-Fixture Series™ system sets a new benchmark in measuring and clamping technology.

Advantages • Measurement fixtures self-built using the building block principle • Short response time for changing work pieces • Flexible, cost-effective, turnkey gaging solutions • Easily expandable, and assembled or disassembled at a later date • Outstanding stability, resistant to bending • T-slot geometric design allows rapid and parallel construction • T-slots serve to assist in locating and guiding the modular components



Universal External Tri-Roll Gages

Tri-Roll Variable Reading Thread Gages

ADJUSTABLE 3-POINT GAGE FRAME – Has a self-contained alignment system that eliminates the need for setting templates or micrometers to achieve perfect 120° spacing. The frame design re-duces the inspection space and additional expense normally required by other systems using numerous gage frames for different sizes.

GAGE RANGE – The 3-POINT™ Thread System covers a size range from #4 (3mm) to 1-1/2” (40mm) with two adjustable frames.

GAGE PERFORMANCE – The gage roll sets are easily changed from one size to another. The lower rolls are mounted in a fixed position to support the workpiece. The upper roll arm assembly exerts a consistent force and actuates the indicator providing ac-curate readings.

GAGE DURABILITY – Thread rolls are designed to revolve with the workpiece, distributing wear evenly. (OptionaL) TITANIUM-NI-TRIDE (TiN) coatings protects the gage roll surface and provides additional hardness that extends gage roll life.

SPC COMPATIBLE – Universal gages provide the ideal system for data collection. Adjustments can be made at the machine before scrap is created, resulting in improved productivity and quality.















External Tri-Rolls

  1. BEST WIRE ROLLS- Pitch Diameter (Minimum Material condition)
  2. FULL FORM ROLLS- Functional Diameter (Maximum Material condition)
  3. PLAIN ROLLS- Major Diameter (Multi lobe out-of- roundness)
  4. CONE & VEE ROLLS- Single Element Pitch Diameter Flank contact limited
  5. MINOR DIAMETER ROLLS- (55° included angle) Two full profile “vee” rolls and one full profile cone roll

GAGE TRI-ROLLS There are interchangeable gage rolls available for standard thread gaging
applications. Each set of 3 rolls corresponds to one particular thread size. For measuring Pitch Diameter
use best wire rolls. For measuring Functional Size use full form rolls. For measuring Major Diameter use
plain rolls. For measuring Minor Diameter (not shown) use included angle rolls. Special thread rolls are
priced on request.







External 2-Point Thread Gages

2-POINT THREAD GAGE– Utilizes the most advanced precision linear bearings system. Accurate linear movement and consistent gaging force assures repeatable readings throughout the measuring range. Universal’s 180° frame design provides the best method for gaging functional size and other thread geometry. Helical path seating and 60% peripheral contact provide functional size position within the pitch diameter tolerance assigned.

GAGE RANGE – The 2-POINT gages cover a size range from #4 (3mm) to 3/4” (20mm) or 13/16” (22mm) to 1-1/2” (40mm).

GAGE PERFORMANCE – The external thread gages are easily set-up to use. With an appropriate thread setting plug gage, adjustment can be made quickly in setting the indicator to the actual size of the master, greatly reducing inspection time.

GAGE DURABILITY – The external 2-POINTTM thread gages are constructed to provide a consistent
gaging force for repeatable readings. The frame offers positive alignment that gives the flexibility to measure parts at the machine.

UNAMBIGUOUS READINGS – A consistent and precise reading eliminates opinion and operator variability. With a master thread plug gage, setting adjustments are made in seconds allowing actual size to be “seen” as opposed to the operator “feel” necessary with GO NO/GO ring gaging.



External Segments

  1. BLADE SEGMENTS- Minor Diameter & Taper (Minimum Material Condition)
  2. FULL FORM SEGMENTS- Functional Diameter (Maximum Material Condition)
  3. FLAT SEGMENTS- Major Diameter (Multi Lobe Out-Of-Roundness)

GAGING SEGMENTS – There are various interchangeable gaging segments available for standard and special threads. Thread gage segments are (Optional) TITANIUM-NITRIDE (TiN) coated for maximum wear. This coating provides additional hardness to the surfaces and visual indication of the need for replacement. Special thread segments are priced on request.



Master Setting Thread Plug Gages

SETTING THREAD PLUG GAGES – Universal Master Setting Thread Gages provide a traceable means to set and maintain the Variable Reading Thread Gaging System. Each thread size requires a Master Setting Thread Gage to establish a calibrated position before measuring a product. These masters are certified To N.I.S.T standards.

Internal Thread Gages

INTERNAL THREAD GAGE FRAMES- Utilizes advanced state of the art precision linear bearings ensuring zero deflection and accurate movement. Consistent gaging force and smooth gage action guarantee repeatable readings throughout the entire measuring range.

GAGE RANGE – Internal 2-POINT System covers a size range from #4 (3mm) to 1-1/2” (40mm) with two adjustable frames. 1st Frame; #4 (3mm) to 3/4” (20mm) 2nd Frame; 13/16” (22mm) to 1-1/2” (40mm).

GAGE PERFORMANCE – The internal thread gaging elements are easily set-up to use. With precision frame alignment, thread elements are easily changed from one size to another.

GAGE DURABILLITY – Universal internal thread gage frames have a three-year limited warranty. All internal gaging elements are TITANIUM-NITRIDE (TiN) coated for maximum wear. This coating protects the surface and provides additional hardness that extends gage element life.

COST EFFECTIVE – With a master thread setting ring gage adjustments are made in seconds to the actual size. This process reduces inspection time to a third of that required for inspecting parts with “GO-NOT GO” plug gages.



Internal Gaging Elements

INTERNAL GAGING ELEMENTS – For measuring Pitch Diameter use single gaging elements “Cone & Vee” design. For measuring Functional Size use full form elements. For measuring Minor Size and Circularity use plain elements. Special thread elements are priced on request.



Internal Thread Setting Masters

SETTING THREAD GAGES – Universal Master Setting Thread Gages provide a traceable means to set and maintain the Variable Reading Thread Gaging System. Each thread size requires a Master Setting Thread Gage or Plain Ring Gage to establish a calibrated position before measuring a product.

CERTIFIED MASTERS – Short form certifications are supplied with thread setting plug gages, thread setting rings gages and plain ring gages. Long form certifications are quoted separately.



สินค้าที่คล้ายกัน

Perfectcnc Pi 167304 2025 219191 42 30

PERFECT Spindle Gripper Force Tester ผลิตที่ประเทศไต้หวัน

PRODUCTS 1-1｜BT Spindle Gripper Force Tester XXRS-BT30 Spindle Gripper Force

เลือกรูปแบบสินค้า
Screenshot 2026 05 22 161637

เครื่องตรวจสอบชิ้นงาน Rivet หมุดย้ำ น็อต และสกรู

เครื่องคัดแยกอัตโนมัติ

ระบบตรวจสอบและคัดแยกหมุดรีเวท (Vision Inspection & Sorting Machine) เครื่องตรวจสอบชิ้นงาน
เลือกรูปแบบสินค้า
Img Main (2)

Air Gap Sensor

Air Gap Sensor

The Air Gap Sensor
เลือกรูปแบบสินค้า
Kelch Precision

KELCH – Precision and dynamics

KELCH – Precision and dynamics for your manufacturing กว่า 70
เลือกรูปแบบสินค้า

PRODUCT INFORMATION

Buyer information
