Toque Sensors

Dacell is providing ultra-precision load cells and various weighting and measuring products,
which can be used in various fields of industries, based on 20 years of experiences in manufacturing
of weighing and measuring products and with own superior technologies.

Toque Sensors

Dacell is providing ultra-precision load cells and various weighting and measuring products,
which can be used in various fields of industries, based on 20 years of experiences in manufacturing
of weighing and measuring products and with own superior technologies.

TRB

  • Model TRB load cell measure the torque of continuous rotation object.
  • Platinum coated connector provides long term signal stability and high accuracy.
  • These models are most appropriate for industrial measurement.
  • Applications indlude the performance testers for automotive components such as clutchs,transmissions, motors and pump.



SPECIFICATIONS

Specifications Accuracy
Rated capacity(R.C.) 1~2000㎏f-m
(9.807N-m~19.61kN-m)
Rated output(R.O.) 1.5mV/V±1%(1~5㎏f-m:1mV/V)
Nonlinearity 0.3%R.O
Hysteresis 0.2%R.O
Repeatability 0.3%R.O.
Excitation recommended 10V
Terminal resistance 350 Ω ±5%
Insulation resistance bridge 200 ㏁
Temperature effect, on rated output 0.3% Load/10 C
Temperature effect, on zero balance 0.2% R.O./10 C
Safe overload 120% R.O
Cable length φ7.4 core cable 3m

DIMENSIONS

Model Capacity A B C D E F φG φH I J K φL M R R.P.M Weight
(kg)
TRB-1K 1kgf-m
(9.807N-m)		 191 43 105 38 68 50 18 72 41 72 86 7 8.5 5×5 5000 3
TRB-2K 2kgf-m
(19.61N-m)		 191 43 105 38 68 50 18 72 41 72 86 7 8.5 5×5 5000 3
TRB-5K 5kgf-m
(49.03N-m)		 191 43 105 38 68 50 18 72 41 72 86 7 8.5 5×5 5000 3
TRB-10K 10kgf-m
(98.07N-m)		 260 55 150 40 100 84 32 100 63 98 115 7 12 10×8 5000 7
TRB-20K 20kgf-m
(196.1N-m)		 260 55 150 40 100 84 32 100 63 98 115 7 12 10×8 4000 7
TRB-50K 50kgf-m
(490.3N-m)		 310 80 150 70 120 98 47 118 75 124 148 9 15 12×8 4000 12
TRB-100K 100kgf-m
(980.7N-m)		 310 80 150 70 120 98 47 118 75 124 148 9 15 12×8 4000 12
TRB-200K 200kgf-m
(1.961KN-m)		 375 100 175 85 120 98 63 135 90 150 180 10.5 20 18×11 4000 25
TRB-300K 300kgf-m
(2.942KN-m)		 375 100 175 95 120 98 63 135 90 150 180 10.5 20 18×11 3000 25
TRB-500K 500kgf-m
(4.903kN-m)		 500 140 220 115 148 118 90 170 114 162 192 11 26 25X14 3000 55
TRB-1000k 1000kgf-m
(9.807kN-m)		 500 140 220 115 148 118 90 170 114 162 192 11 26 25X14 3000 55
TRB-2000k 2000kgf-m
(19.61kN-m)		 680 208 264 160 210 172 115 210 138 190 230 13 26 32X18 3000 110

Toque Sensors

Dacell is providing ultra-precision load cells and various weighting and measuring products,
which can be used in various fields of industries, based on 20 years of experiences in manufacturing
of weighing and measuring products and with own superior technologies.

TRC

  • Transformer method torque transducer
  • The brush-less type torque transducers are designed for high RPM application.
  • Therefore, the steady performance is gotten as for the measurement for a long time, because driving side and the measurement side are noncontact.
  • This model can be used for various tests including aircraft engine test which requires high RPM and high accuracy.
  • Option : r.p.m. sensor

DIMENSIONS

SPECIFICATIONS

Specifications Accuracy
Rated capacity(R.C) 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000(kgf-m), 9.807, 19.61,
49.03, 98.07, 196.1, 490.3, 980.7(N-m) 1.961, 4.903, 9.807, 19.61(kN-m)
Rated output(R.O) 1.3mV/V±1%
Nonlinearity ±0.5% R.O.
Hysteresis ±0.5% R.O.
Reperatability ±0.5% R.O.
Excitation recommended 2 VAC
Temperature operating 0 ~60℃
Insulation resistance bridge 0.2% Load / 10℃
Temperature effect, on rated output 0.3% R.O / 10℃
Temperature effect, on zero balance 120% R.C
Safe overload φ7.4 core cable 3m
Cable length cable φ10, 4core shield 3m

DIMENSIONS

Model Capacity A B C φD φE F G I M N O φP Q R R.P.M Weight
(kg)
TRC-1K 1kgf-m
(9.807N-m)		 236 146 45 84 17 40 5×5 55 12 83 101 7 91 109 10,000 3
TRC-2K 2kgf-m
(19.61N-m)		 236 146 45 84 17 40 5×5 55 12 83 101 7 91 109 10,000
TRC-5K 5kgf-m
(49.03N-m)		 236 146 45 84 17 40 5×5 55 12 83 101 7 91 109 10,000
TRC-10K 10kgf-m
(98.07N-m)		 240 150 45 90 25 40 8×7 60 12 83 101 7 97 115 10,000 8
TRC-20K 20kgf-m
(196.1N-m)		 240 150 45 90 25 40 8×7 60 12 83 101 7 97 115 10,000
TRC-50K 50kgf-m
(490.3N-m)		 302 162 70 114 45 60 10×8 75 15 97 121 9 123 147 8,000 15
TRC-100K 100kgf-m
(980.7N-m)		 302 162 70 114 45 60 10×8 75 15 97 121 9 123 147 8,000
TRC-200K 200kgf-m
(1.961KN-m)		 336 176 80 148 70 70 18×11 95 20 97 121 9 157 181 5,000 25
TRC-500K 500kgf-m
(4.903KN-m)		 336 176 80 148 70 70 18×11 95 20 97 121 9 157 181 5,000
TRC-1000K 1000kgf-m
(9.807KN-m)		 445 185 130 173 90 110 25×14 110 20 108 134 11 184 210 3,800 55
TRC-2000K 2000kgf-m
(19.61KN-m)		 513 193 160 203 110 140 28×16 128 23 121 159 13 216 254 3,000 110

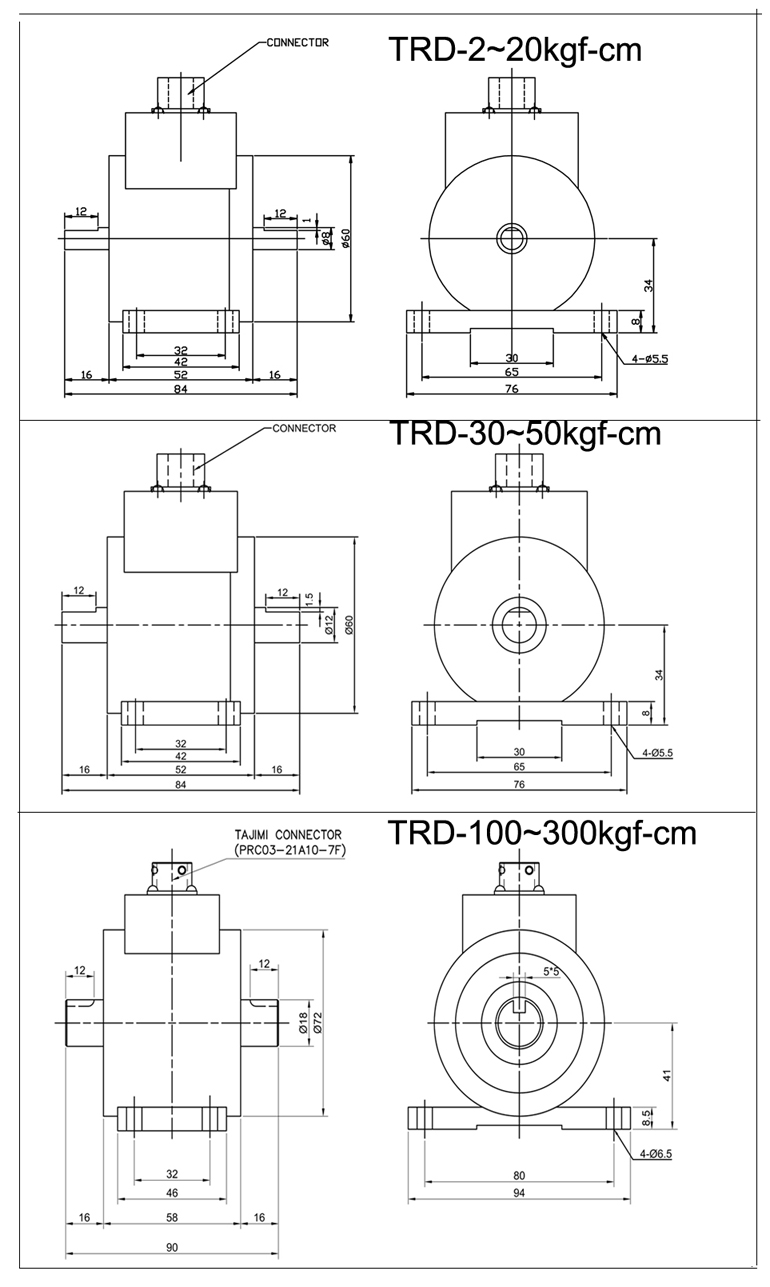

TRD 2~300kgf-cm

Model TRD loadcell measure the torque of continuous rotating object. Long term signal stability and high accuracy. These models are most appropriate for industrial measurement. Applications : the performance testers for automotive  components such as clutchs, transmissions, motors and pumps.
Specifications Accuracy
Rated capacity(R.C) 2, 5, 10, 20, 30, 50(kgt-cm),1, 2, 3(kgf-m)
Rated output(R.O) 1mV/V±1%
Nonlinearity 0.3% R.O.
Hysteresis 0.3% R.O.
Reperatability 0.2% R.O.
Excitation recommended 10 V
Terminal resistance 350Ω±5%
Insulation resistance bridge 200㏁
Temperature effect, on rated output 0.2% Load / 10℃
Temperature effect, on zero balance 0.3% R.O / 10℃
Safe overload 120% R.C
Cable length φ7.4core coble 3m


TRD, 5-2000kgf-m

  • Model TRD loadcell measure the torque of continuous rotating object. Platinum coated connector provides long term signal stability and high accuracy.
  • These models are most appropriate for industrial measurement. Applications include the performance testers for automotive components such as clutchs, transmissions, motors and pumps.
SPECIFICATIONS
Specifications Accuracy
Rated capacity(R.C)  2 ~ 50kgf-cm  (0.196N-m ~ 4.903N-m)
1 ~ 2000kgf-m (9.807N-m ~ 19.61kN-m)
Rated output(R.O) 1.5mV/V ± 1% (2㎏f-cm ~ 5kgf-m : 1mV/V± 1%)
Nonlinearity 0.3% R.O.
Hysteresis 0.3% R.O.
Reperatability 0.2% R.O.
Excitation recommended 10 V
Terminal resistance 350Ω±5%
Insulation resistance bridge 200㏁
Temperature effect, on rated output 0.2% Load / 10℃
Temperature effect, on zero balance 0.3% R.O / 10℃
Safe overload 120% R.C
Cable length φ7.4core coble 3m

DIMENSIONS

unit:mm

Model Capacity A B C D E F φG φH I J K φL M R R.P.M
TRD-2KC 2kgf-cm
(0.196N-m)		 84 16 52 12 42 32 8 60 34 65 76 5.5 8 1 2500
TRD-5KC 5kgf-cm
(0.490N-m)		 84 16 52 12 42 32 8 60 34 65 76 5.5 8 1 2500
TRD-10KC 10kgf-cm
(0.981N-m)		 84 16 52 12 42 32 8 60 34 65 76 5.5 8 1 2500
TRD-20KC 20kgf-cm
(1.961N-m)		 84 16 52 12 42 32 8 60 34 65 76 5.5 8 1 2500
TRD-30KC 30kgf-cm
(2.942N-m)		 84 16 52 12 42 32 12 60 34 65 76 5.5 8 1.5 2500
TRD-50KC 50kgf-cm
(4.903N-m)		 84 16 52 12 42 32 12 60 34 65 76 5.5 8 1.5 2500
TRD-1K 1kgf-m
(9.807N-m)		 90 16 58 12 46 32 18 72 41 80 94 6.5 8.5 5×5 3000
TRD-2K 2kgf-m
(19.61N-m)		 90 16 58 12 46 32 18 72 41 80 94 6.5 8.5 5×5 3000
TRD-3K 3kgf-m
(29.42N-m)		 90 16 58 12 46 32 18 72 41 80 94 6.5 8.5 5×5 3000
TRD-5K 5kgf-m
(49.03N-m)		 180 42.5 95 35 64 50 18 80 46 80 100 7 12 5×5 5000
TRD-10K 10kgf-m
(98.07N-m)		 180 42.5 95 35 64 50 18 80 46 80 100 7 12 5×5 5000
TRD-20K 20kgf-m
(196.1N-m)		 220 55 110 45 100 84 32 100 63 98 115 7 12 10×8 4000
TRD-50K 50kgf-m
(490.3N-m)		 220 55 110 45 100 84 32 100 63 98 115 7 12 10×8 4000
TRD-100K 100kgf-m
(980N-m)		 280 80 120 69 120 98 47 100 66 124 148 8.5 15 12×8 4000
TRD-200K 200kgf-m
(1.961KN-m)		 280 80 120 69 120 98 47 100 66 124 148 8.5 15 12×8 4000
TRD-500K 500kgf-m
(4.903KN-m)		 390 130 130 100 126 100 90 172 101 154 180 11 20 25×14 2000
TRD-1000K 1000kgf-m
(9.807KN-m)		 390 130 130 100 126 100 90 172 101 154 180 11 20 25×14 2000
TRD-2000K 2000kgf-m
(19.61KN-m)		 440 150 140 120 148 110 115 210 130 190 228 13 23 32×18 2000

of weighing and measuring products and with own superior technologies.

TRE

  • Model TRE slipring rotating torque transducers have flange drives at both ends. This model is designed for the application with minmal space and high capacity requirement.

DIMENSIONS

SPECIFICATIONS

Specifications Accuracy
Rated capacity 20kgf~500kgf-m (196.1N-m~4.903kN-m)
Rated output 1.5mV/V
Nonlinearity 0.3%
Hysteresis 0.3%
Reperatability 0.3%
Terminal resitance, input 350Ω ± 5%
Terminal resitance, output 350Ω ± 3%
Insulation resistance 200㏁
Temperature range compensated -10~60℃
Temperature range safe -20~70℃
Temperature effect, on zero balance 0.3% R.O / 10℃
Temperature effect, on rated output 0.2% Load / 10℃
Excitation recommended 10V DC
Safe overload 150% R.C
Cable φ7 Shield 3m

DIMENSIONS

unit:mm

Model Capacity A B C φD φE φF φG H I J K L P R.P.M
TRE-20K 20kgf-m
(196.1N-m)		 130 98 12 65 52 127 81 38 6-φ6.5 40 64 105 M6DP8 5,000
TRE-50K 50kgf-m
(490.3N-m)		 134 102 12 76 62 136 88 41.5 6-φ8.5 40 64 114 M6DP8 4,000
TRE-100K 100kgf-m
(980.7N-m)		 134 102 12 86 68 156 100 48 8-φ10.5 48 64 130 M8DP8 4,000
TRE-200K 200kgf-m
(1.961KN-m)		 148 108 16 102 75 172 116 56 8-φ10.5 50 68 146 M8DP8 3,000
TRE-300K 300kgf-m
(2.942KN-m)		 148 108 16 102 75 172 116 56 8-φ10.5 50 68 146 M8DP8 3,000
TRE-500K 500kgf-m
(4.903KN-m)		 142 102 16 107 81 184 128 62 8-φ10.5 56 74 158 M8DP8 3,000
RS-025

RPM processor/tachometer (frequency input). The setup sequence is simple and quick using four push buttons only.

SPECIFICATIONS

Specifications Accuracy
Detection method Hall element
Measurement range 1㎐~20㎑(using a 60P/R gear, 1~20,000r/min, with
an output waveform duty cycle 50%±20%)
Detection gear Strong magnetic materials
Gap between detector and gear (modulus 0.5~3, tooth width 3 mm or greater)
Power supply used DC 12V±2V(0.5Vp-p or less ripple)
Current consumption 40mA or less(12V, at 25℃)
Output waveform LOW level; +0.5V or less,

HIGH level; 5V±0.5V  rectangular waveform (With no load)
Output impedance Approx. 330Ω
Output type Floating groung
Protective circuit Power supply polarity and output short protection
Operating temperature range -10℃~+70℃
Storage temperature range -20℃~+80℃
Matching connector 6-pin connector(type R04-PB6F plug)
Allowable vibration double-ended 1.2mm at 30㎐ in X, Y and Z direction
(during-operation) for one hour each
Allowable shock(non-operating) 490m/s2 in X and Y direction each 3 times
Withstand voltage 1. DC250V, 1min.(between shield and signal cable)
2. DC250V, 1min.(between shield and sensor head
Interface indicator DN-30
Weight Approx. 80g(including two mounting nuts)
Accessories Mounting nuts(2)
