The #1185 6-Lobe (TX) Final Inspection Gage is designed for finished product verification of internal 6-Lobe recess head screws where final acceptance and dimensional consistency must be confirmed after manufacturing and finishing operations. This gage supports the last critical inspection step before parts move to shipment, assembly, or customer release.
In practical use, final inspection gaging helps verify that the recess remains acceptable after coating, plating, or other downstream processes that can influence usable form. It gives quality teams a repeatable way to confirm finished part readiness and maintain confidence in outgoing product.
Universal Punch designs precision gaging systems for demanding manufacturing environments where reliability, repeatability, and professional inspection performance are essential.
Standard sizes are available from T4 through T100. Use the table below to align drive size, part number, and gage reference number.
| Drive Size | Part Number | Reference Number |
|---|---|---|
| T4 | 1185-04 | 4-TXI-901 |
| T5 | 1185-05 | 5-TXI-901 |
| T6 | 1185-06 | 6-TXI-901 |
| T7 | 1185-07 | 7-TXI-901 |
| T8 | 1185-08 | 8-TXI-901 |
| T9 | 1185-09 | 9-TXI-901 |
| T10 | 1185-10 | 10-TXI-901 |
| T15 | 1185-15 | 15-TXI-901 |
| T20 | 1185-20 | 20-TXI-901 |
| T25 | 1185-25 | 25-TXI-901 |
| T27 | 1185-27 | 27-TXI-901 |
| T30 | 1185-30 | 30-TXI-901 |
| T40 | 1185-40 | 40-TXI-901 |
| T45 | 1185-45 | 45-TXI-901 |
| T50 | 1185-50 | 50-TXI-901 |
| T55 | 1185-55 | 55-TXI-901 |
| T60 | 1185-60 | 60-TXI-901 |
| T70 | 1185-70 | 70-TXI-901 |
| T80 | 1185-80 | 80-TXI-901 |
| T90 | 1185-90 | 90-TXI-901 |
| T100 | 1185-100 | 100-TXI-901 |
Universal Punch manufactures gaging products for precision manufacturing environments where final inspection accuracy, repeatability, and outgoing quality confidence are critical. The #1185 Final Inspection Gage is referenced to TMQ-811, TMF-811, TXF-811, and TXQ-811 for internal (TX) recess head screws.
Gage probes are heat treated, thermally stabilized, and surface treated to maximize wear life. Long-form calibration certificates provide dimensions and tolerances to specified standards and are traceable to NIST, supporting controlled final inspection documentation and dependable long-term use.
This layout is ideal for a scalable WordPress product system. It supports images, embedded video, technical data, ordering tables, and strong quote-driven calls to action while keeping the page clean, modern, and easy to scan.
Suggested related products: #1180 Penetration Gage, #1181 GO Penetration Gage, #1182 No-Go Fallaway Gage, #1184 GO / NO-GO Gage.
Universal Punch Corp. | Precision Gaging
Combined GO / NO-GO gaging for internal ISO Hexalobular recess head screws. Designed for efficient production inspection where both minimum acceptable form and maximum allowable recess condition must be checked in one compact, repeatable gaging tool.
The #1194 Hexalobular GO / NO-GO Gage is designed for fast, repeatable inspection of internal ISO Hexalobular recess head screws where both lower and upper form limits must be controlled. By combining GO and NO-GO functionality into one inspection tool, this gage supports efficient evaluation on the production floor and in receiving inspection environments.
In practical use, the GO end is used to verify that the recess meets the minimum acceptable condition, while the NO-GO end helps confirm that the recess does not exceed the maximum allowable size condition. This combined format improves operator efficiency and supports consistent inspection across lots, work cells, and international quality programs.
Universal Punch designs precision gaging systems for demanding manufacturing environments where inspection speed, dimensional confidence, and long service life are essential.
Standard sizes are available from 6 through 100. Use the table below to align drive size and part number.
| Drive Size | Part Number | Reference Number |
|---|---|---|
| 6 | 1194-06 | ISO10664 3.2 / 3.3 |
| 8 | 1194-08 | – |
| 10 | 1194-10 | – |
| 15 | 1194-15 | – |
| 20 | 1194-20 | – |
| 25 | 1194-25 | – |
| 30 | 1194-30 | – |
| 40 | 1194-40 | – |
| 45 | 1194-45 | – |
| 50 | 1194-50 | – |
| 55 | 1194-55 | – |
| 60 | 1194-60 | – |
| 70 | 1194-70 | – |
| 80 | 1194-80 | – |
| 90 | 1194-90 | – |
| 100 | 1194-100 | – |
Universal Punch manufactures gaging products for precision manufacturing environments where international standard compliance, repeatability, and process control are critical. The #1194 Hexalobular GO / NO-GO Gage is referenced to IFI 562, ISO 10664 3.3.1, and JIS B1015:2008.
Universal’s gage probes are heat treated, thermally stabilized, and surface treated to provide additional hardness for maximum wear. Gage probes are calibrated to dimensions and tolerances as specified and are traceable to the N.I.S.T. National Institute of Standards and Technology.
Universal Punch Corp. | Precision Gaging
Combined GO / NO-GO gaging for internal Extra (TXP) recess head screws. Designed for efficient production inspection where both minimum acceptable form and maximum allowable recess condition must be checked in one compact, repeatable gaging tool.
The #1284 Extra (TXP) Production GO NO-GO Gage is designed for fast, repeatable inspection of internal Extra (TXP) recess head screws where both lower and upper form limits must be controlled. By combining GO and NO-GO functionality into one inspection tool, this gage supports efficient evaluation on the production floor and in receiving inspection environments.
In practical use, the GO end is used to verify that the recess meets the minimum acceptable condition, while the NO-GO end helps confirm that the recess does not exceed the maximum allowable size condition. This combined format improves operator efficiency and supports consistent inspection across lots and work cells.
Universal Punch designed the Extra (TXP) family to improve driver fit, torque transfer, and tool life while reducing camout and slippage in high-performance fastening applications.
Standard sizes are available from 5IP through 100IP. Use the table below to align part number, drive size, and reference number.
| Part Number | Drive Size | Reference Number |
|---|---|---|
| 1284-05 | 5IP | 5-PLI-800 |
| 1284-06 | 6IP | 6-PLI-800 |
| 1284-07 | 7IP | 7-PLI-800 |
| 1284-08 | 8IP | 8-PLI-800 |
| 1284-09 | 9IP | 9-PLI-800 |
| 1284-10 | 10IP | 10-PLI-800 |
| 1284-15 | 15IP | 15-PLI-800 |
| 1284-20 | 20IP | 20-PLI-800 |
| 1284-25 | 25IP | 25-PLI-800 |
| 1284-27 | 27IP | 27-PLI-800 |
| 1284-30 | 30IP | 30-PLI-800 |
| 1284-40 | 40IP | 40-PLI-800 |
| 1284-45 | 45IP | 45-PLI-800 |
| 1284-50 | 50IP | 50-PLI-800 |
| 1284-55 | 55IP | 55-PLI-800 |
| 1284-60 | 60IP | 60-PLI-800 |
| 1284-70 | 70IP | 70-PLI-800 |
| 1284-80 | 80IP | 80-PLI-800 |
| 1284-90 | 90IP | 90-PLI-800 |
| 1284-100 | 100IP | 100-PLI-800 |
Universal Punch manufactures gaging products for precision manufacturing environments where dimensional accuracy, repeatability, and process control are critical. The #1284 Extra (TXP) Production GO NO-GO Gage is referenced to CIQ-804.1 and CIQ-804.2 for internal Extra recess head screw inspection.
All gage probes are heat treated, thermally stabilized, and surface treated to provide additional wear resistance and dimensional stability. Long-form calibration certificates provide traceability to the N.I.S.T. National Institute of Standards and Technology, supporting controlled inspection documentation and dependable long-term use.
Universal Punch Corp. | Precision Gaging
Precision final inspection GO gaging for internal Extra (TXP) recess head screws. Designed for finished product verification where post-process recess acceptance, dimensional consistency, and final quality confidence are critical before shipment or assembly.
The #1285 Extra (TXP) Final Inspection GO Gage is designed for finished product verification of internal Extra (TXP) recess head screws where final acceptance and dimensional consistency must be confirmed after manufacturing and finishing operations. This gage supports the last critical inspection step before parts move to shipment, assembly, or customer release.
In practical use, final inspection GO gaging helps verify that the recess remains acceptable after coating, plating, or other downstream processes that can influence usable form. It gives quality teams a repeatable way to confirm finished part readiness and maintain confidence in outgoing product.
Universal Punch designed the Extra (TXP) family to deliver improved driver fit, torque transfer, and driver life while reducing camout and slippage in demanding fastening applications.
Standard sizes are available from 5IP through 100IP. Use the table below to align part number, drive size, and reference number.
| Part Number | Drive Size | Reference Number |
|---|---|---|
| 1285-05 | 5IP | 5-PLI-801 |
| 1285-06 | 6IP | 6-PLI-801 |
| 1285-07 | 7IP | 7-PLI-801 |
| 1285-08 | 8IP | 8-PLI-801 |
| 1285-09 | 9IP | 9-PLI-801 |
| 1285-10 | 10IP | 10-PLI-801 |
| 1285-15 | 15IP | 15-PLI-801 |
| 1285-20 | 20IP | 20-PLI-801 |
| 1285-25 | 25IP | 25-PLI-801 |
| 1285-27 | 27IP | 27-PLI-801 |
| 1285-30 | 30IP | 30-PLI-801 |
| 1285-40 | 40IP | 40-PLI-801 |
| 1285-45 | 45IP | 45-PLI-801 |
| 1285-50 | 50IP | 50-PLI-801 |
| 1285-55 | 55IP | 55-PLI-801 |
| 1285-60 | 60IP | 60-PLI-801 |
| 1285-70 | 70IP | 70-PLI-801 |
| 1285-80 | 80IP | 80-PLI-801 |
| 1285-90 | 90IP | 90-PLI-801 |
| 1285-100 | 100IP | 100-PLI-801 |
Universal Punch manufactures gaging products for precision manufacturing environments where final inspection accuracy, repeatability, and outgoing quality confidence are critical. The #1285 Extra (TXP) Final Inspection GO Gage is referenced to NIQ-811 and CIQ-811 for internal Extra recess head screw inspection.
All gage probes are heat treated, thermally stabilized, and surface treated to provide additional wear resistance and dimensional stability. Long-form calibration certificates provide traceability to the N.I.S.T. National Institute of Standards and Technology, supporting controlled final inspection documentation and dependable long-term use.
MADE IN USA

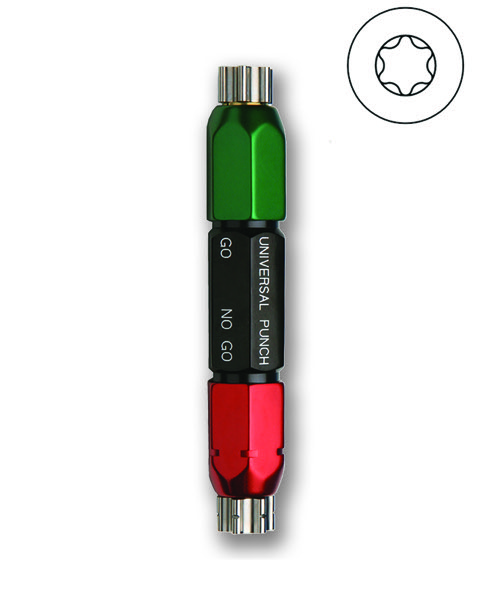

The #1184 6-Lobe (TX) GO / NO-GO Gage is designed for efficient inspection of internal 6-Lobe recess head screws where both lower and upper form limits must be verified. By combining GO and NO-GO functionality into a single tool, the gage supports faster inspection routines and more consistent operator use on the production floor and in receiving inspection.
In practice, the GO end verifies that the recess meets the minimum acceptable condition for driver engagement, while the NO-GO end confirms that the recess does not exceed the maximum allowable size condition. This combined approach reduces tool changes and improves inspection efficiency without sacrificing dimensional confidence.
Standard sizes are available from T4 through T100. Use the table below to align drive size, part number, and gage reference number.
| Drive Size | Part Number | Reference Number |
|---|---|---|
| T4 | 1184-04 | 4-TXI-900 |
| T5 | 1184-05 | 5-TXI-900 |
| T6 | 1184-06 | 6-TXI-900 |
| T7 | 1184-07 | 7-TXI-900 |
| T8 | 1184-08 | 8-TXI-900 |
| T9 | 1184-09 | 9-TXI-900 |
| T10 | 1184-10 | 10-TXI-900 |
| T15 | 1184-15 | 15-TXI-900 |
| T20 | 1184-20 | 20-TXI-900 |
| T25 | 1184-25 | 25-TXI-900 |
| T27 | 1184-27 | 27-TXI-900 |
| T30 | 1184-30 | 30-TXI-900 |
| T40 | 1184-40 | 40-TXI-900 |
| T45 | 1184-45 | 45-TXI-900 |
| T50 | 1184-50 | 50-TXI-900 |
| T55 | 1184-55 | 55-TXI-900 |
| T60 | 1184-60 | 60-TXI-900 |
| T70 | 1184-70 | 70-TXI-900 |
| T80 | 1184-80 | 80-TXI-900 |
| T90 | 1184-90 | 90-TXI-900 |
| T100 | 1184-100 | 100-TXI-900 |
The #1184 GO / NO-GO Gage is referenced to TMF-804 and TXQ-804 for internal 6-Lobe recess head screws. Universal Punch manufactures gaging products for precision inspection environments where repeatability, durability, and documented control are critical.
Gage probes are heat treated, thermally stabilized, and surface treated to maximize wear life. Long-form calibration certificates provide dimensions and tolerances to specified standards and are traceable to NIST for dependable inspection performance.
Universal Punch also offers complementary 6-Lobe inspection tools for penetration, fallaway, and final inspection requirements.
