#10000 Concentricity Fixtures
Fixtures • Concentricity and Runout Inspection Systems
Concentricity and runout inspection fixtures designed to support accurate, repeatable measurement workflows for fastener screws and related precision components. The #10000 series helps stabilize parts during inspection, improve alignment consistency, and support dependable results across production, lab, and receiving inspection operations.

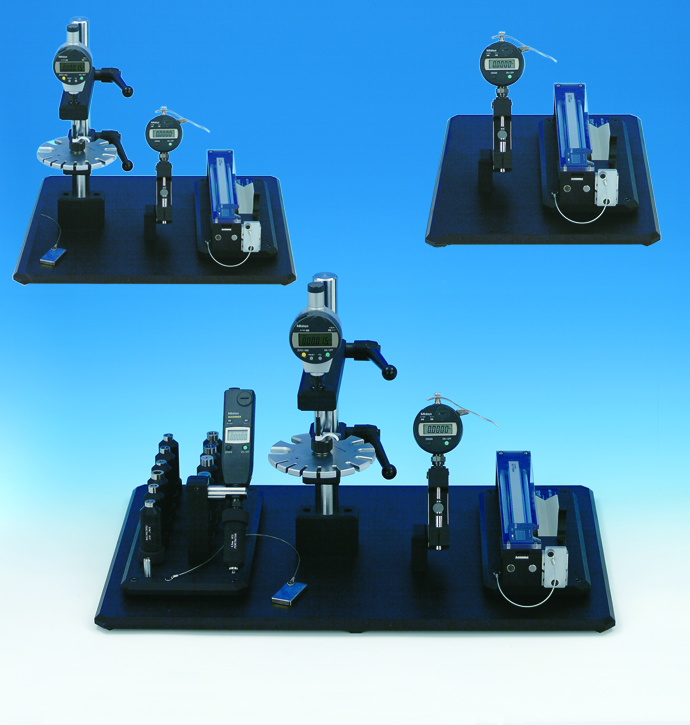

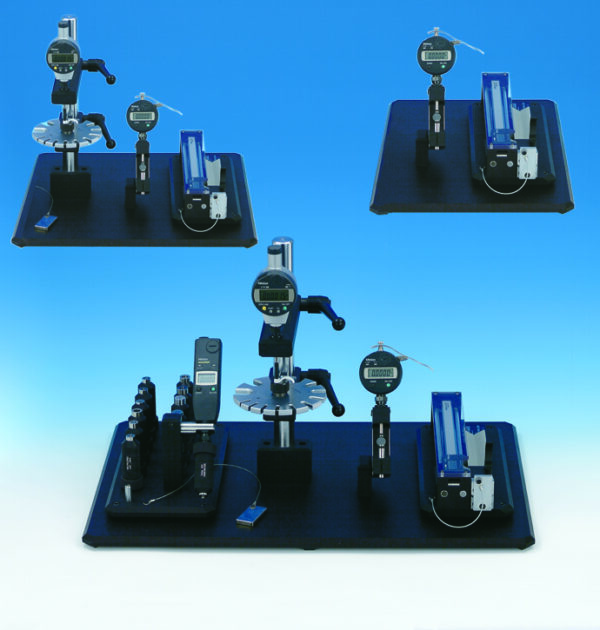

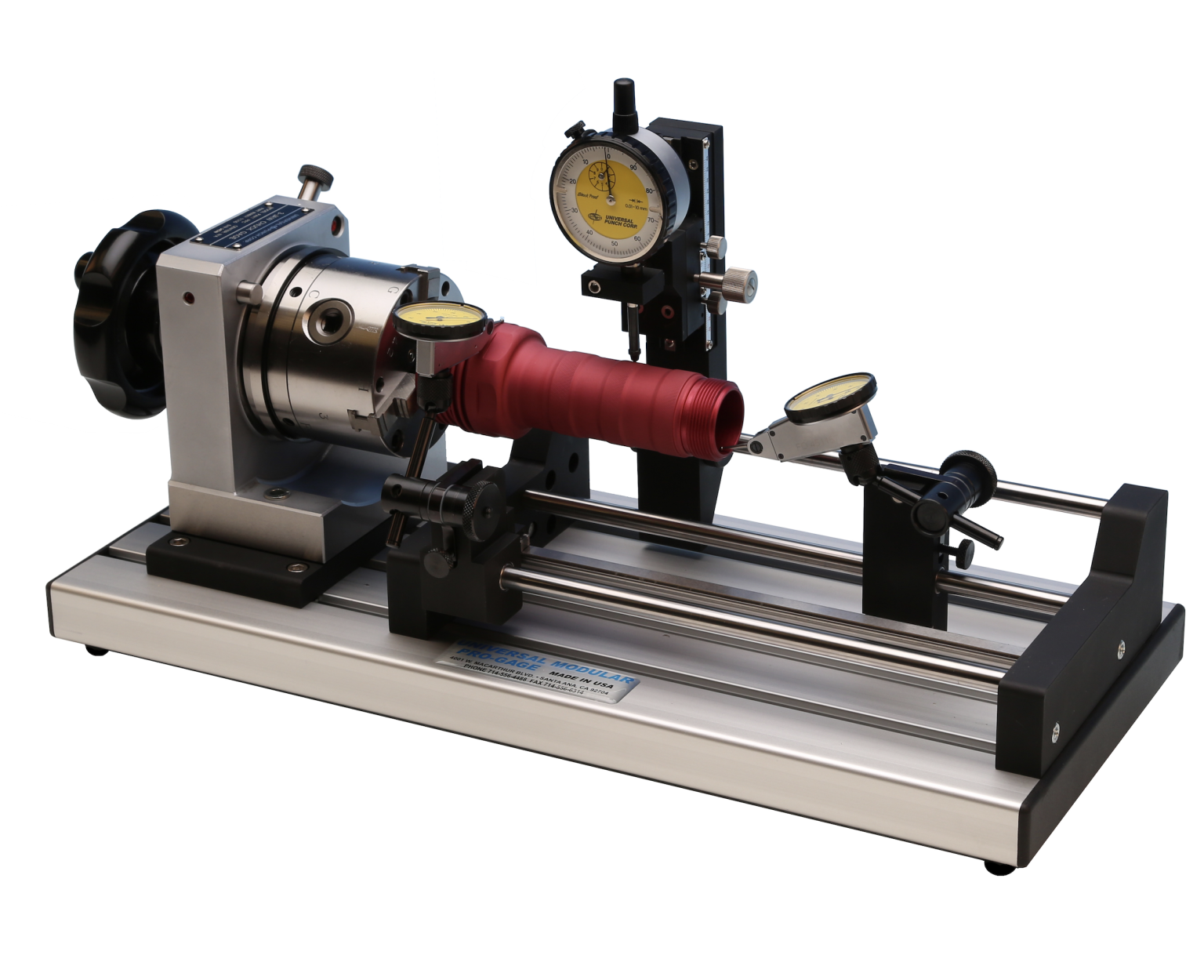

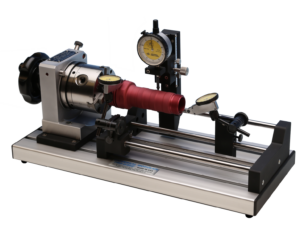

Catalog reference image for the #10000 Concentricity Fixture system and related gaging station configurations.
Key product details for quick review before selecting a fixture station or requesting a quote.
Series #10000
Product Family Fixtures
Fixture Type Concentricity and Runout Inspection Fixture
Primary Function Supports part holding and alignment during concentricity measurement
Application Concentricity and runout verification for fastener screws and precision components
Inspection Focus Repeatable alignment for concentricity and runout measurement
Use Environment Production, quality, lab, and receiving inspection
Construction Precision-machined fixture components
Compatibility Universal Punch gaging and inspection systems
Standards ISO, DIN, IFI and JIS
For measuring fastener screws to ISO, DIN, IFI and JIS standards.
9 Entries
| Part Number | Part Description |
|---|---|
| 10000-02 | Nut Gaging Station |
| 10000-03 | Bolt Gaging Station |
| 10000-04 | Screw Gaging Station |
| 575-123 | IDU Digital Indicator 0.5” / 12.7mm |
| 543-683B | IDC Digital Indicator 0.5” / 12.7mm |
| 543-456B | IDC Digital Indicator 1” / 25.4mm |
| 543-566B | IDC Digital Indicator 2” / 50.8mm |
| 905338 | SPC Connecting Cable (1M / 40”) |
| 264503 | DPIHS Miniprocessor Recorder |
External 3-POINT™ Thread Gage
A variable reading external thread gaging system designed for fast, repeatable measurement of pitch diameter, functional diameter, major diameter, and thread condition in production and quality environments.

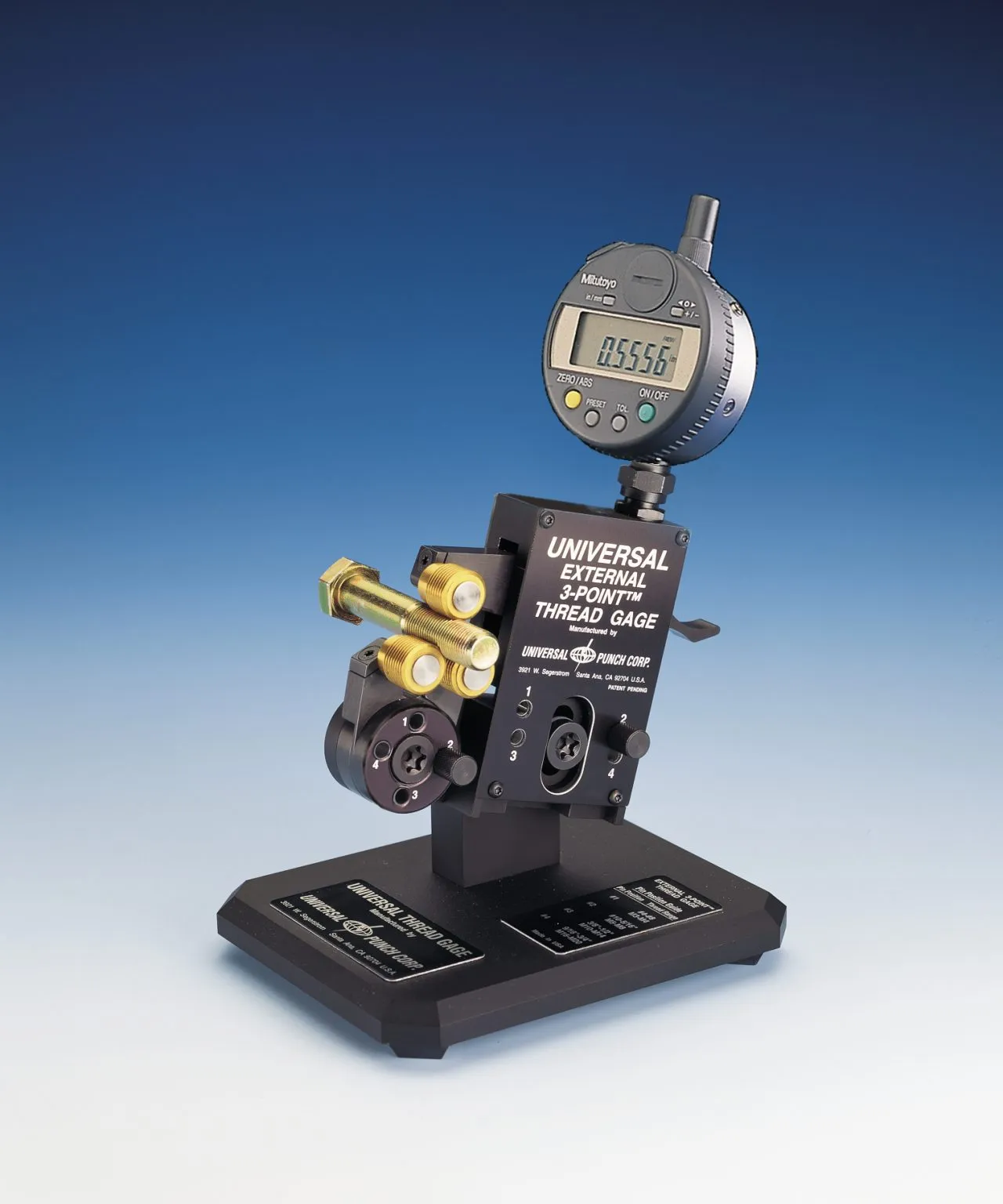

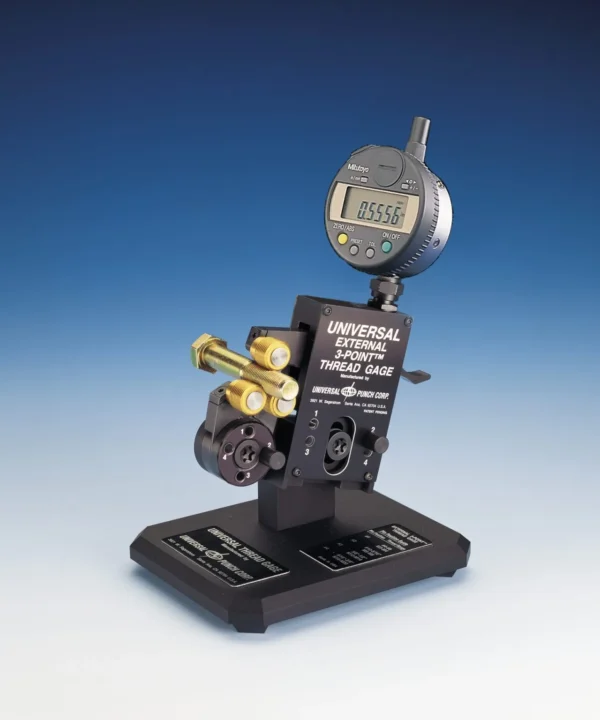

The #12000 External 3-POINT™ Thread Gage from Universal Punch Corp. is a variable reading thread gaging system built for accurate, repeatable external thread inspection. Rather than functioning as a simple fixture, this is a complete gaging platform designed to measure critical thread attributes with greater consistency and reduced operator variation.
The system uses a self-contained alignment design that eliminates the need for separate setting templates or micrometers to achieve 120° spacing. With interchangeable gage roll sets, adjustable frame coverage, indicator options, mounting stand configurations, and thread setting masters, the #12000 platform supports efficient external thread measurement across a broad range of production and inspection applications.
Eliminates the need for separate setting templates or micrometers to establish proper three-point spacing.
Supports measurement of pitch diameter, functional diameter, and major diameter using application-specific gage rolls.
Roll sets are easily changed from one size to another, improving inspection efficiency across multiple thread sizes.
Designed to support data collection and process control so adjustments can be made before scrap is created.
Universal variable reading thread gaging systems provide a fast and accurate way to maintain thread tolerances during manufacturing. By generating actual measurement values rather than simple pass/fail feedback, the #12000 system helps operators monitor variation, improve process control, and reduce costly sorting or rework.
This makes the #12000 platform especially valuable for manufacturers that need dependable external thread inspection with measurable, repeatable results that can be compared against tolerance limits and used to guide machine adjustments.
The #12000 system uses interchangeable gage roll sets matched to the thread size and the specific characteristic being evaluated. Each set of three rolls corresponds to one particular thread size.
Used for pitch diameter measurement, minimum material condition.
Used for functional diameter measurement, maximum material condition.
Plain Rolls
Used for major diameter measurement and multi-lobe out-of-roundness evaluation.
A complete #12000 external variable reading thread gage system is typically configured around five core elements so the build matches your part, thread size, and inspection workflow.
Universal Punch can configure the #12000 system with a range of mechanical and electronic indicators to match your measurement method, display preference, and data collection requirements. Available options may include inch or metric units, preset capability, analog readout, SPC functionality, and battery or AC-powered operation.
The platform can also be supplied in portable handle, single stand, dual mount stand, or multi-gage mounting configurations depending on the level of flexibility and throughput required in your operation.
Master setting thread gages provide a traceable means to set and maintain the variable reading thread gaging system. Each thread size requires a master setting thread gage or plain ring gage to establish a calibrated position before measuring production parts.
The #12000 External 3-POINT™ Thread Gage is well suited for manufacturers that need actual measured values for external thread control rather than relying only on pass/fail ring gaging. It is especially useful in production environments where thread size trends must be monitored and machine adjustments made before defects accumulate.
Universal Punch can review your thread size range, measurement objective, indicator preference, stand configuration, and master setting requirements to recommend the right #12000 external thread gage package for your operation.
Universal Punch Corp. | Precision Fixtures
The #18000 2-Point Thread Fixtures from Universal Punch Corp. are designed to support accurate and repeatable inspection of thread geometry using two-point measurement methods. These fixtures provide stable part positioning and controlled alignment during inspection, helping operators verify thread dimensions and pitch diameter with improved consistency across production and quality workflows.
Engineered for demanding manufacturing environments, the #18000 fixture platform reduces setup variation between operators and improves repeatability during thread inspection operations. This supports reliable measurement results in both production and receiving inspection environments.
Thread inspection fixture system
Supports stable part positioning and alignment
Designed for repeatable two-point thread measurement workflows
Production and quality control use
Compatible with Universal Punch thread gaging systems
Request a Quote
Speak With Engineering
Fixture configurations may be customized depending on the thread size, part geometry, and inspection requirements.
