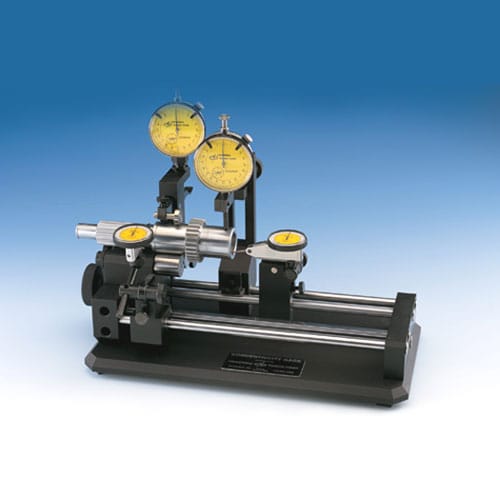

Model Description: Triple Indicator Gage / 20-105mm / Standard Carrier / Side Carrier & Vertical Carrier
KK2-40 Standard Concentricity Gage, Accuracy ≤ 4µm (.00016”)
Specifications:
Part Diameter Capacity: 3/4” – 4” (20 – 102 mm)
Part Length Capacity: 0.25” – 8” (6.3 – 203 mm)
Gage Length: 14.5” (368mm)
Gage Width: 8” (203mm)
Gage Height: 8” appx. (203mm)
Accurate and reliable measurements are a key factor in today’s competitive manufacturing environment. Universal Punch’s patented Concentricity Gaging Systems offer less than 2 microns accuracy that has proven results in a variety of industrial applications. Continuous improvements to its modular design adapts to customer requirements and provides the flexibility necessary for maintaining quality. Standard Black Gages are guaranteed to be better than ≤ 4µm (.00016″) accuracy.
Model Description: Triple Indicator Gage / 20-105mm / Standard Carrier / Side Carrier & Vertical Carrier
KK2-40 Standard Concentricity Gage, Accuracy ≤ 4µm (.00016”)
Specifications:
Part Diameter Capacity: 3/4” – 4” (20 – 102 mm)
Part Length Capacity: 0.25” – 8” (6.3 – 203 mm)
Gage Length: 14.5” (368mm)
Gage Width: 8” (203mm)
Gage Height: 8” appx. (203mm)
Accurate and reliable measurements are a key factor in today’s competitive manufacturing environment. Universal Punch’s patented Concentricity Gaging Systems offer less than 2 microns accuracy that has proven results in a variety of industrial applications. Continuous improvements to its modular design adapts to customer requirements and provides the flexibility necessary for maintaining quality. Standard Black Gages are guaranteed to be better than ≤ 4µm (.00016″) accuracy.
