MC15
DIMENSIONS
2-Component loadcells
| 2-Component loadcells table | |||||||
| Model | Rated Capacity (Force : N, Moment : N-m) |
||||||
| Fx | Fy | Fz | Mx | My | Mz | ||
| MC15-2A | 50 | 50 | 50 | (100) | (10) | (10) | (10) |
| 100 | 100 | 100 | (200) | (20) | (20) | (20) | |
| 200 | 200 | 200 | (500) | (50) | (50) | (50) | |
| 500 | 500 | 500 | (750) | (100) | (100) | (100) | |
| 10 | 10 | (30) | 10 | (2) | (2) | (2) | |
| 20 | 20 | (50) | 20 | (5) | (5) | (5) | |
| MC15-2B | 50 | 50 | (100) | 50 | (10) | (10) | (10) |
| 100 | 100 | (200) | 100 | (20) | (20) | (20) | |
| 200 | 200 | (500) | 200 | (50) | (50) | (50) | |
| 500 | 500 | (750) | 500 | (100) | (100) | (100) | |
3-Component loadcells
| 3-Component loadcells table | ||||||||
| Model | Rated Capacity (Force : N, Moment : N-m) |
|||||||
| Fx | Fy | Fz | Mx | My | Mz | |||
| MC15-3A | ||||||||
| 50 | 50 | 50 | 50 | (10) | (10) | (10) | ||
| 100 | 100 | 100 | 100 | (20) | (20) | (20) | ||
| 200 | 200 | 200 | 200 | (50) | (50) | (50) | ||
| 500 | 500 | 500 | 500 | (100) | (100) | (100) | ||
| MC15-3B | ||||||||
| 50 | 50 | 50 | (10) | (10) | (10) | 5 | ||
| 100 | 100 | 100 | (20) | (20) | (20) | 10 | ||
| 200 | 200 | 200 | (50) | (50) | (50) | 20 | ||
| 500 | 500 | 500 | (100) | (100) | (100) | 50 | ||
| MC15-3C | ||||||||
| 50 | 50 | (100) | 50 | (10) | 5 | (10) | ||
| 100 | 100 | (200) | 100 | (20) | 10 | (20) | ||
| 200 | 200 | (500) | 200 | (50) | 20 | (50) | ||
| 500 | 500 | (750) | 500 | (100) | 50 | (100) | ||
SPECIFICATIONS
| Specifications | Accuracy |
|---|---|
| Rated output(R.O.) | 0.5mV/V |
| Nonlinearity | 0.5% of R.O. |
| Hysteresis | 0.5% of R.O. |
| Reperatability | 0.3% of R.O. |
| Excitation recommended | 10V |
| Terminal resistance | Input resistance :700Ω±3.5Ω, Output resistance 700Ω±3.5Ω |
| Insulation resistance bridge | 2000MΩ |
| Temperature effect, on rated output | ±0.03% LOAD/℃ |
| Temperature effect, on zero balance | ±0.03% R.O./℃ |
| Safe overload | 120% R.C. |
| Cable length | Φ6, 8core shield cable, 3m |
| Degree of interference | 3% R.O. |
MC134(6 axis)
SPECIFICATIONS
| Specifications | Accuracy |
|---|---|
| Rated output(R.O.) | 0.5mV/V |
| Non-Linearity | 0.5% R.O. |
| Hysteresis | 0.5% R.O. |
| Repeatability | 0.3% R.O. |
| Excitation recommended | 10V |
| Terminal resistance | Input resistance :700Ω±20Ω,Output resistance 700Ω±15Ω |
| Insulation resistance bridge | 2000M |
| Temperature, effect on rated output | ±0.03% LOAD/10℃ |
| Temperature, effect on zero balance | ±0.03% R.O./10℃ |
| Safe overload | 120% R.C. |
| Cable length | φ7mm x 14C x 3m |
| Degree of interference | ±3% R.O. |

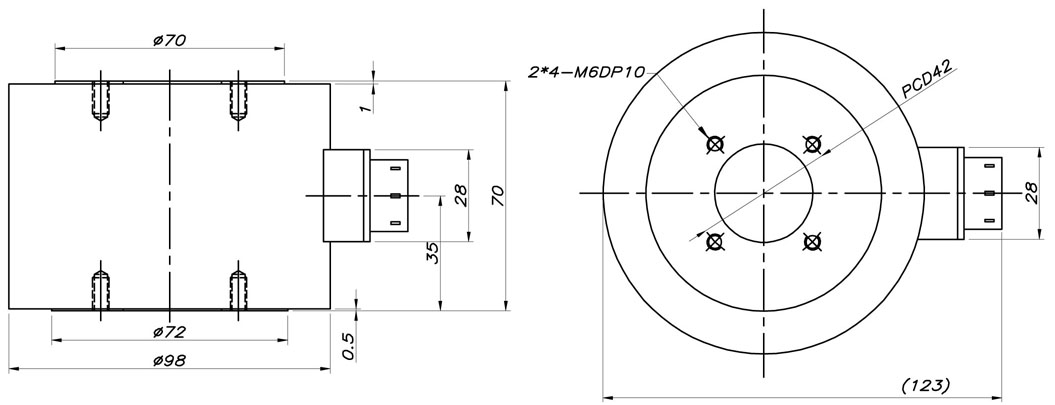

DIMENSIONS
(Force : N, Moment : Nm)
| Capacity | Fx | Fy | Fz | Mx | My | Mz |
|---|---|---|---|---|---|---|
| MC134-6A-50 | 50 | 50 | 50 | 5 | 5 | 5 |
| MC134-6A-100 | 100 | 100 | 100 | 10 | 10 | 10 |
| MC134-6A-200 | 200 | 200 | 200 | 20 | 20 | 20 |
| MC134-6A-500 | 500 | 500 | 500 | 50 | 50 | 50 |
CS142
This can measure X and Y force of Gear shifting lever.
Dimensions
SPECIFICATIONS
| Specifications | Accuracy |
|---|---|
| Model | CS142-500N |
| Rated Capacity (R.C.) | 500N |
| Rated Output (R.O.) | 1mV/V±1% |
| Non-Linearity | 1% R.O. |
| Hysteresis | 1% R.O. |
| Resistance, Input Output | 350 Ohm±M1% |
| Safe Overload | 120% R.C. |
CS201-500N
This can measure X and Y force of Gear shifting lever.
of weighing and measuring products and with own superior technologies.
MC86-R,MC86-L
MC86 can measure Fx,Fy,Fz.
Dimensions
※ MC86-R ( Right pedal) , MC86-L ( left pedal)
Specifications
| Specifications | Accuracy |
|---|---|
| Rated capacity(R.C) | Fx : 1000N Fy : 1000N FZ : 2000N |
| Rated output(R.O) | 0.6 ~ 1mV/V |
| Nonlinearity | 0.5% of R.O. |
| Hysteresis | 0.5% of R.O. |
| Repeatability | 0.5% of R.O. |
| Zero Balance | ±1% of R.O. |
| Temperature range, compensated | -10℃ ~ 40℃ |
| Temperature range, safe | -20℃ ~ 70℃ |
| Terminal resistance input | 350Ω ± 3.5Ω |
| Terminal resistance output | 350Ω ± 5Ω |
| Mutual interfere | ±4%R.O. |
| Insulation resistance bridge | 2000MΩ |
| Cable length | Φ3mm x 4core x 3m |
| Excitation recommended | 10V |
| Safe overload | 120% R.C |
