Model Description: Triple Indicator Gage / 10-50mm / Standard Carrier / Side Carrier & Vertical Carrier

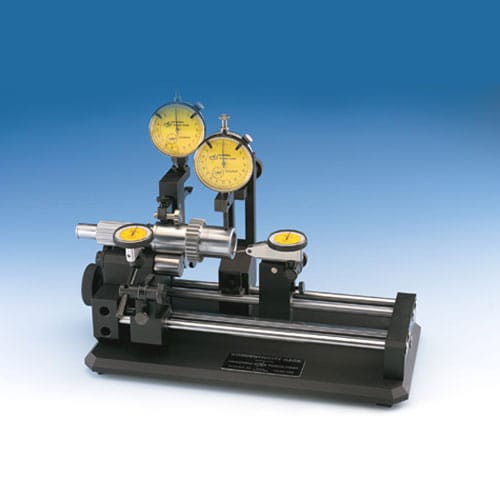

KK2-20 Standard Concentricity Gage, Accuracy ≤ 4µm (.00016”)
KK2-20P Precision Gold Concentricity Gage, Accuracy ≤ 2µm (.00008”)
Specifications:
Part Diameter Capacity: 3/8” – 2” (10 – 50 mm)
Part Length Capacity: 0.18” – 6” (4.7 – 152 mm)
Gage Length: 12.5” (318mm)
Gage Width: 6.5” (165mm)
Gage Height: 6” appx. (152mm)

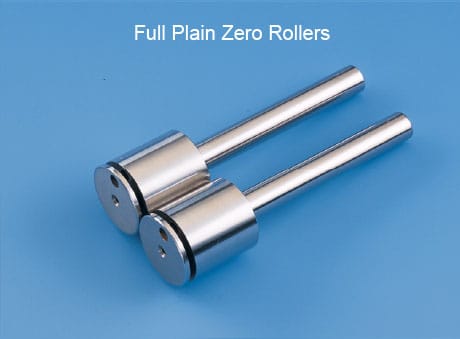

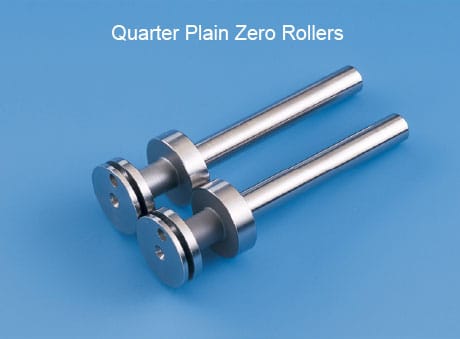

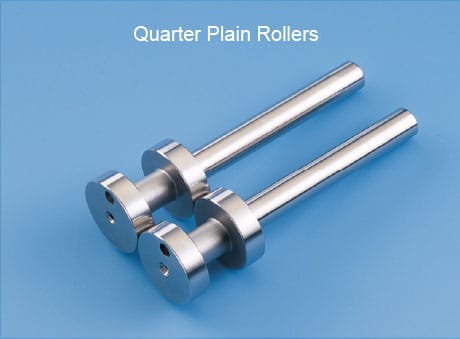

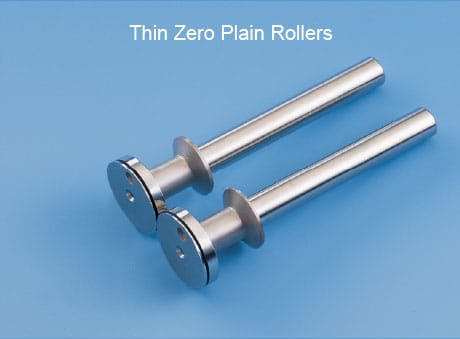

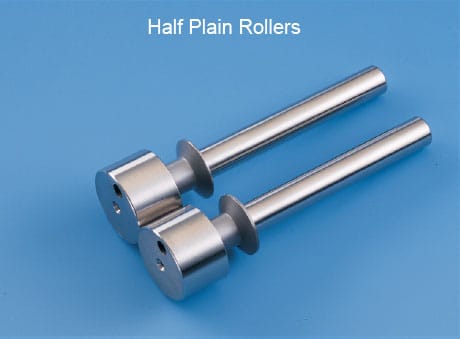

KK2-20 Universal Punch Concentricity Gages are comprised of three main components for assembly:
Model Description: Triple Indicator Gage / 10-50mm / Standard Carrier / Side Carrier & Vertical Carrier
KK2-20 Standard Concentricity Gage, Accuracy ≤ 4µm (.00016”)
KK2-20P Precision Gold Concentricity Gage, Accuracy ≤ 2µm (.00008”)
Specifications:
Part Diameter Capacity: 3/8” – 2” (10 – 50 mm)
Part Length Capacity: 0.18” – 6” (4.7 – 152 mm)
Gage Length: 12.5” (318mm)
Gage Width: 6.5” (165mm)
Gage Height: 6” appx. (152mm)
Accurate and reliable measurements are a key factor in today’s competitive manufacturing environment. Universal Punch’s patented Concentricity Gaging Systems offer less than 2 microns accuracy that has proven results in a variety of industrial applications. Continuous improvements to its modular design adapts to customer requirements and provides the flexibility necessary for maintaining quality.
There are two classifications calibrated and directly traceable to (N.I.S.T.). Standard Black Gages are guaranteed to be better than ≤ 4µm (.00016″) accuracy. Precision Gold Gages are guaranteed better than ≤ 2µm (.00008”) accuracy.
