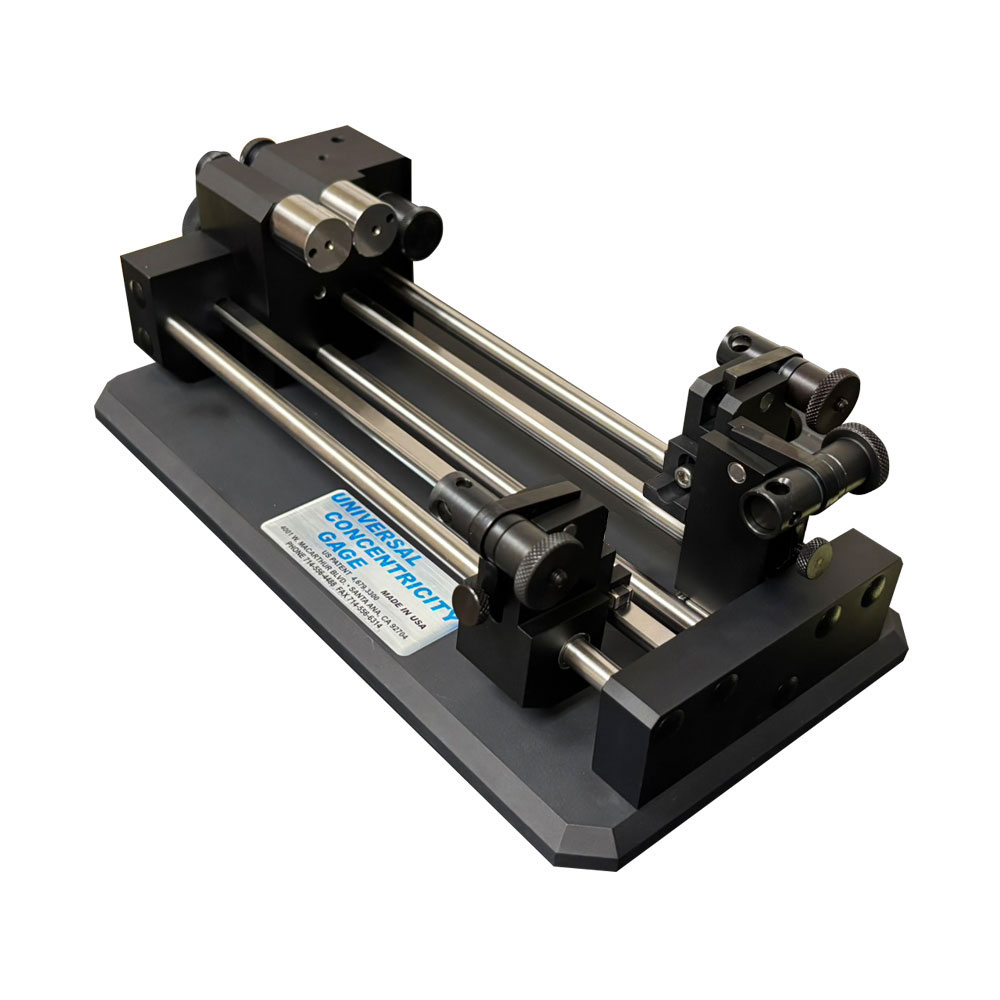

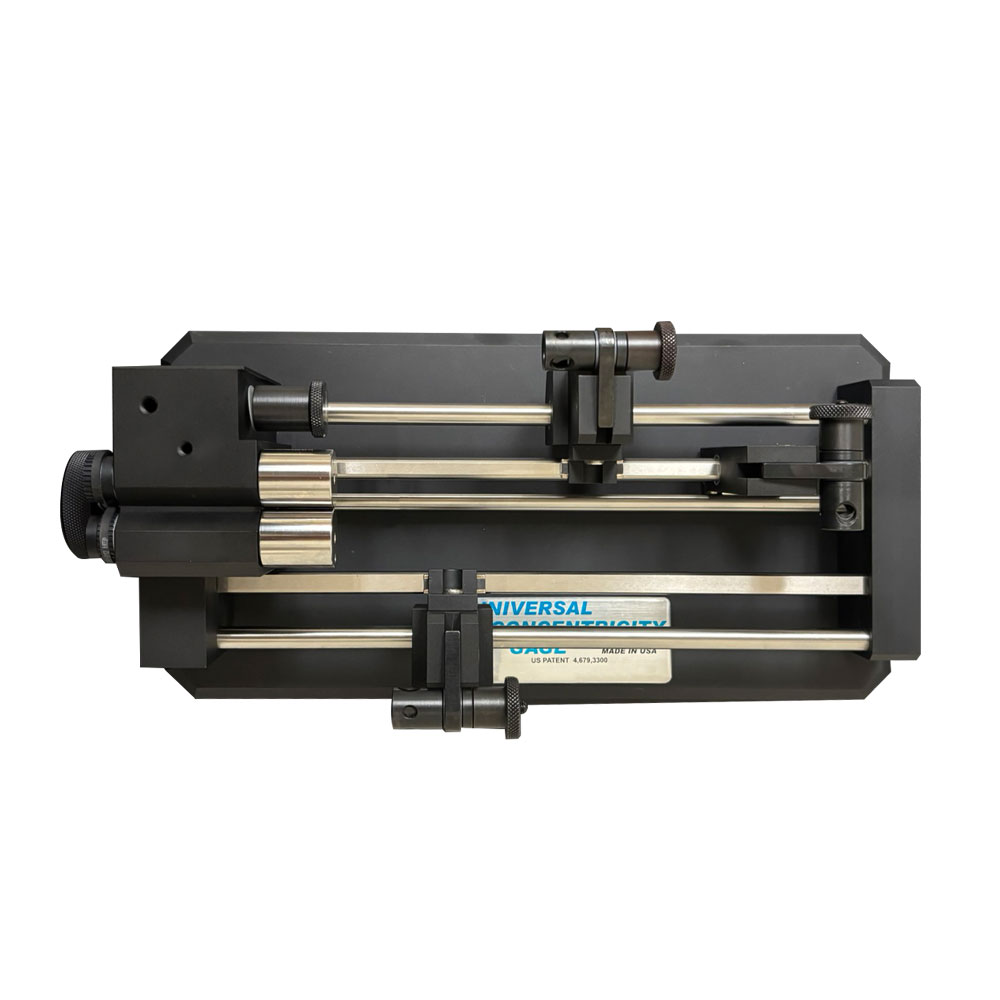

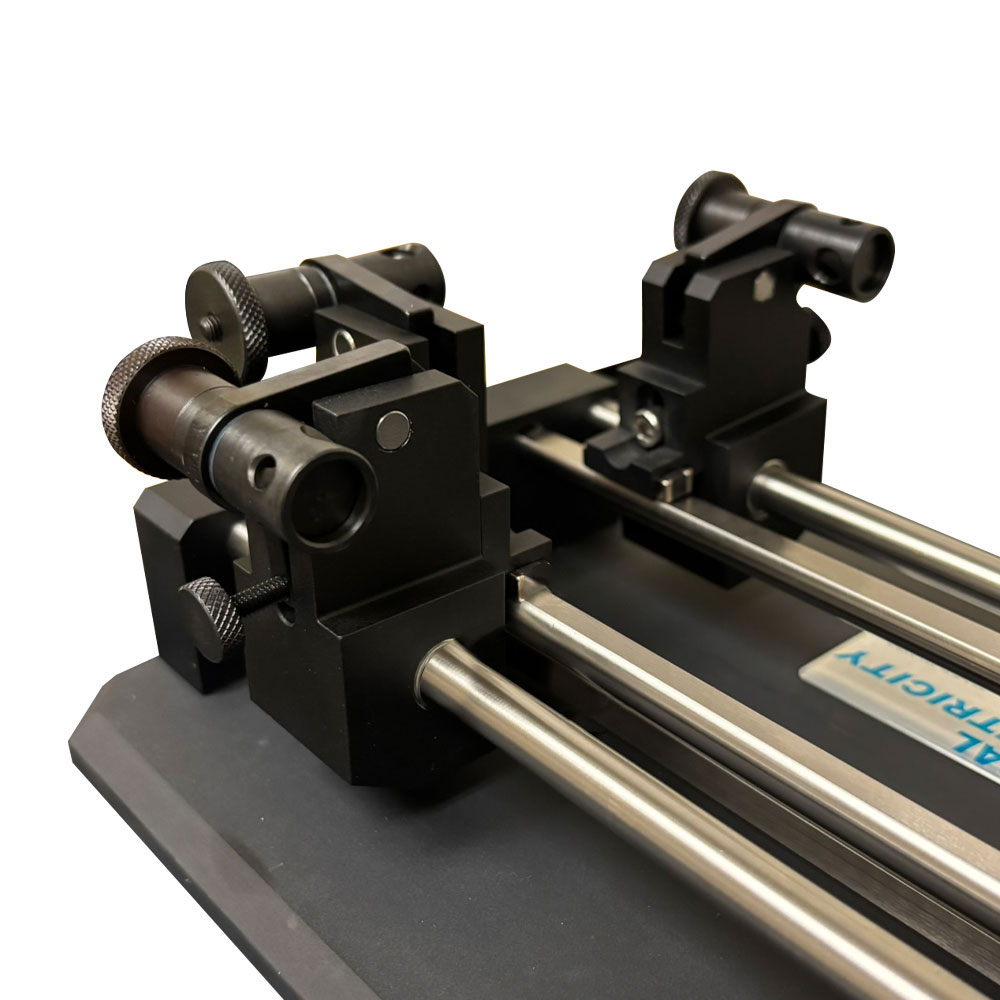

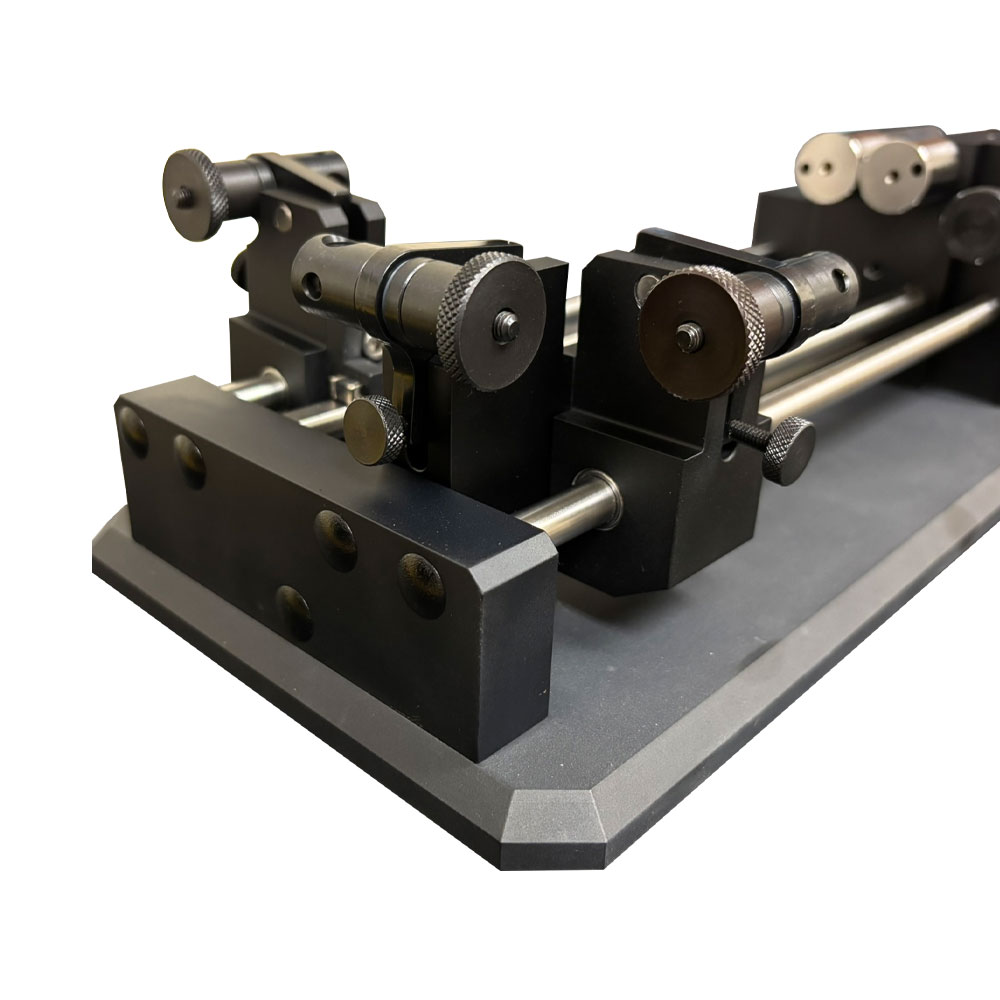

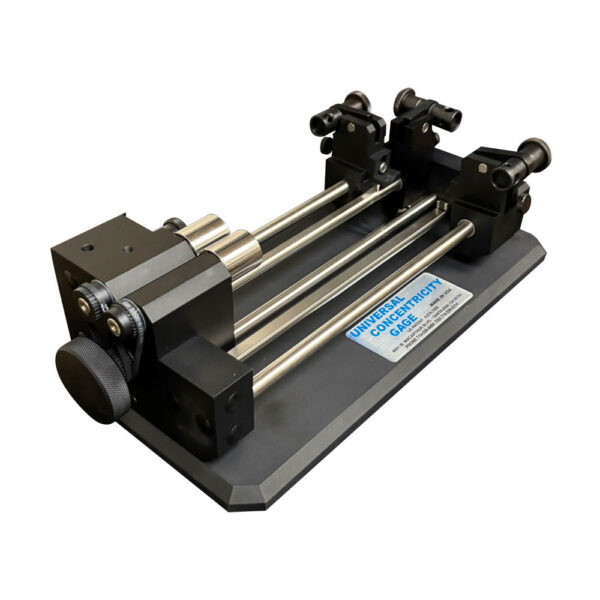

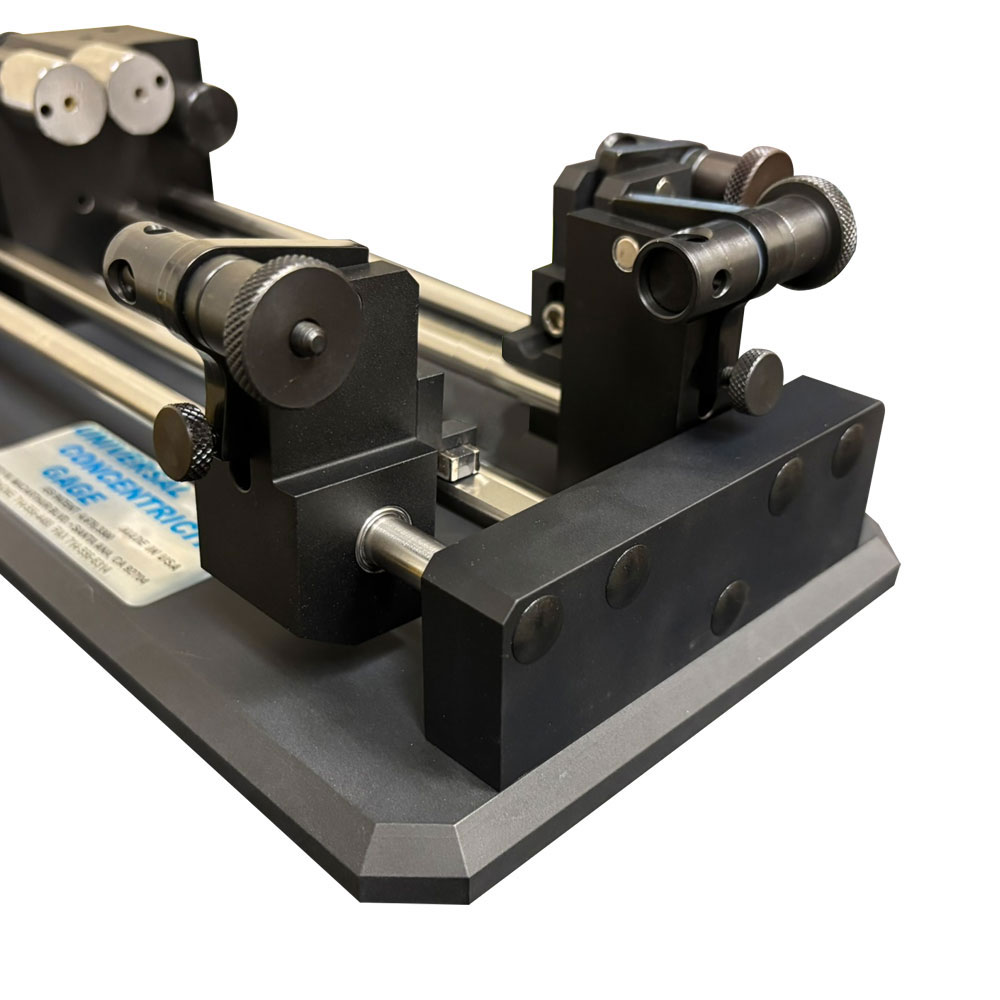

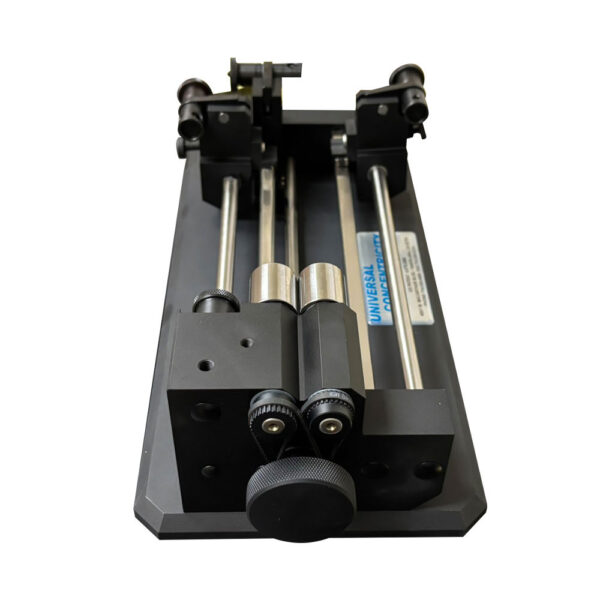

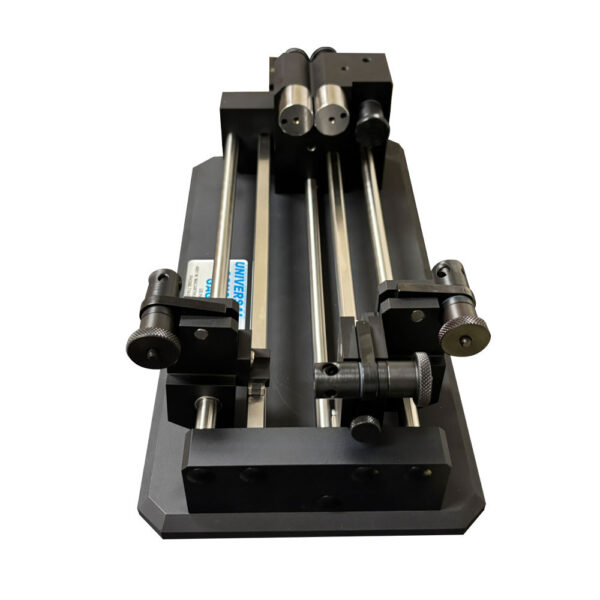

Model KK1-10 Concentricity Gage

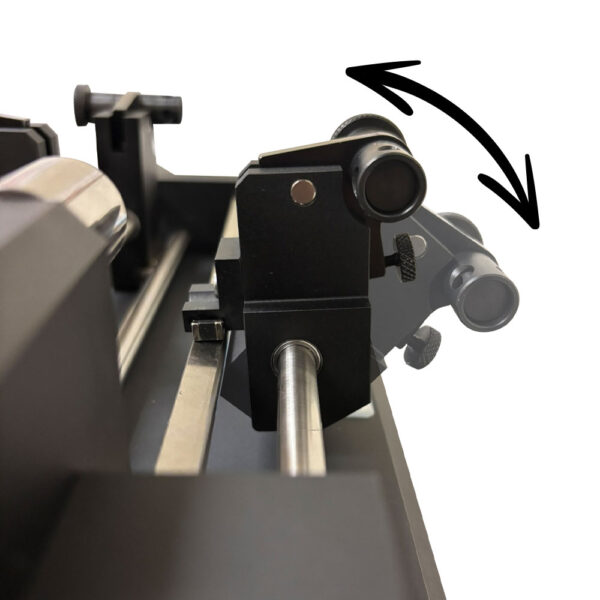

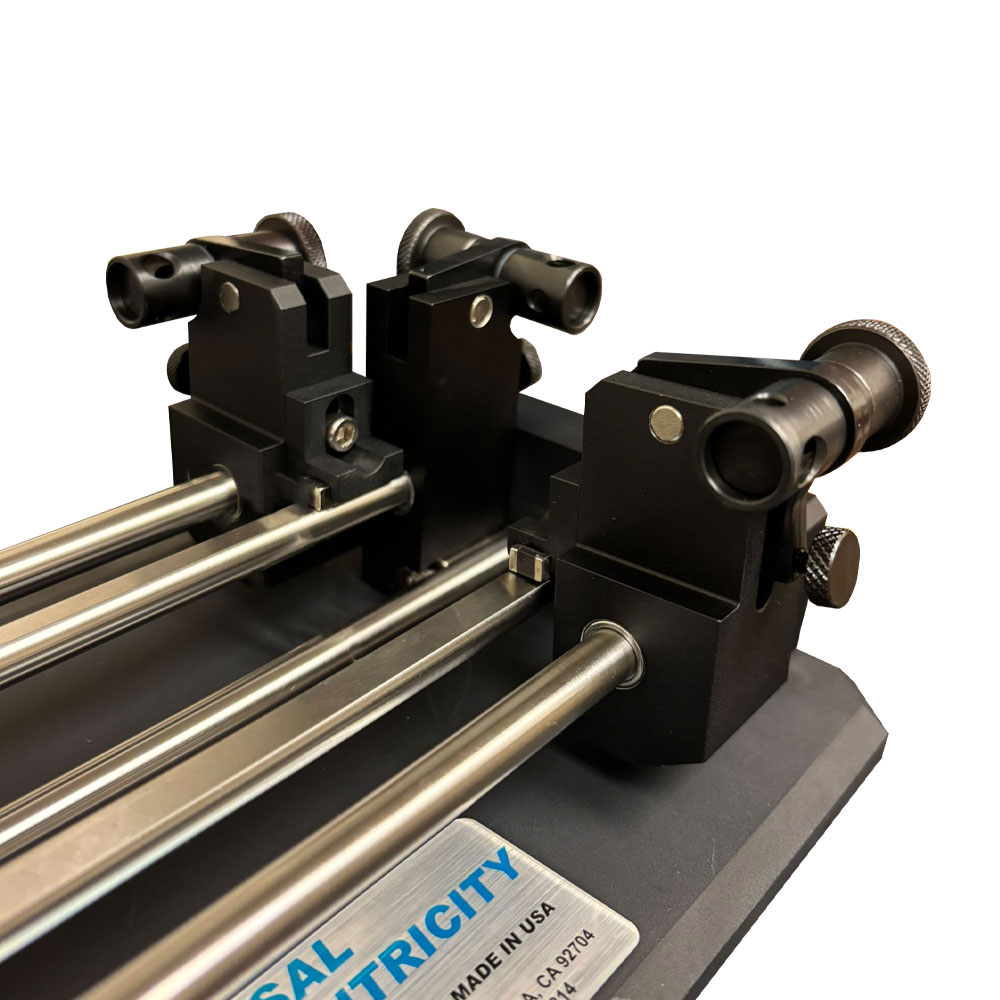

Model Description: Triple Indicator Gage / 3-25mm / Standard Carrier / Two Side Carriers

KK1-10 Standard Concentricity Gage, Accuracy ≤ 4µm (.00016”)
KK1-10P Precision Gold Concentricity Gage, Accuracy ≤ 2µm (.00008”)

Specifications:
Part Diameter Capacity: 1/8” to 1” (3mm to 25mm)
Diameter Minimum 1/24” (1mm) or less with Zero Style Rollers
Part Length Capacity: Up to 4” (102mm)
Gage Length: 10.5” (267mm)
Gage Width: 4.5” (114mm)
Gage Height: 6” appx. (152mm)

Accurate and reliable measurements are a key factor in today’s competitive manufacturing environment. Universal Punch’s patented Concentricity Gaging Systems offer less than 2 microns accuracy that has proven results in a variety of industrial applications. Continuous improvements to its modular design adapts to customer requirements and provides the flexibility necessary for maintaining quality.

There are two classifications calibrated and directly traceable to (N.I.S.T.). Standard Black Gages are guaranteed to be better than ≤ 4µm (.00016″) accuracy. Precision Gold Gages are guaranteed better than ≤ 2µm (.00008”) accuracy.

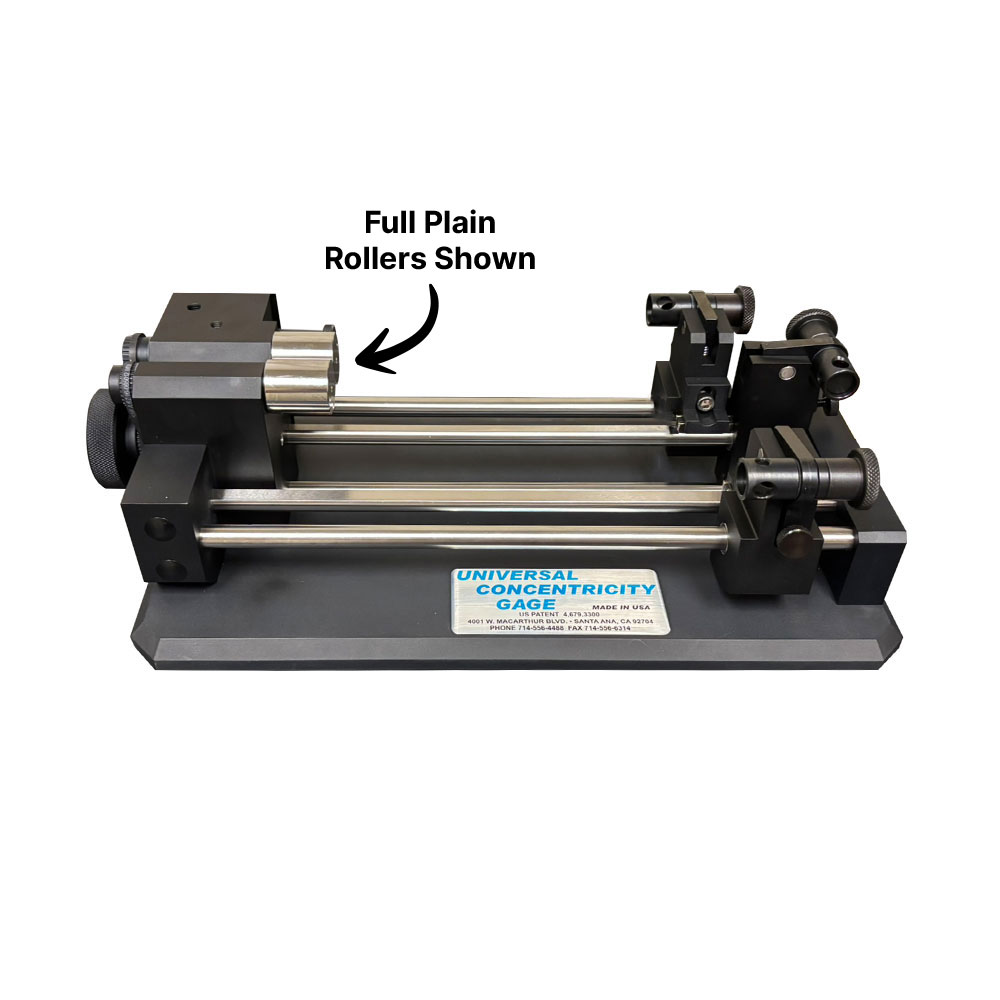

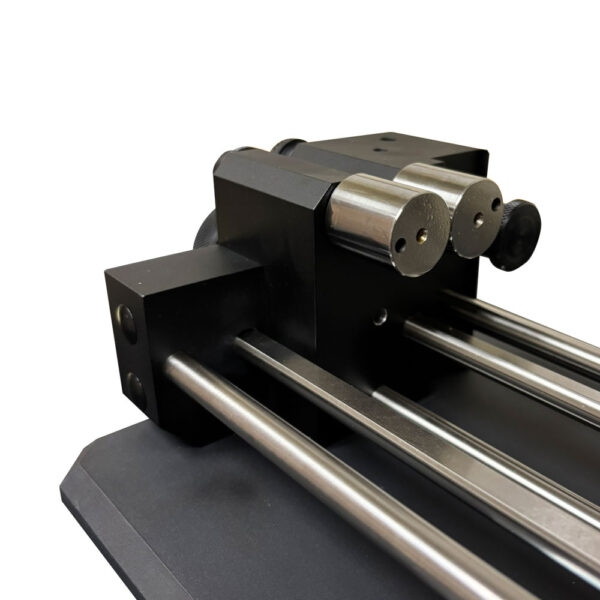

Zero Plain Rollers

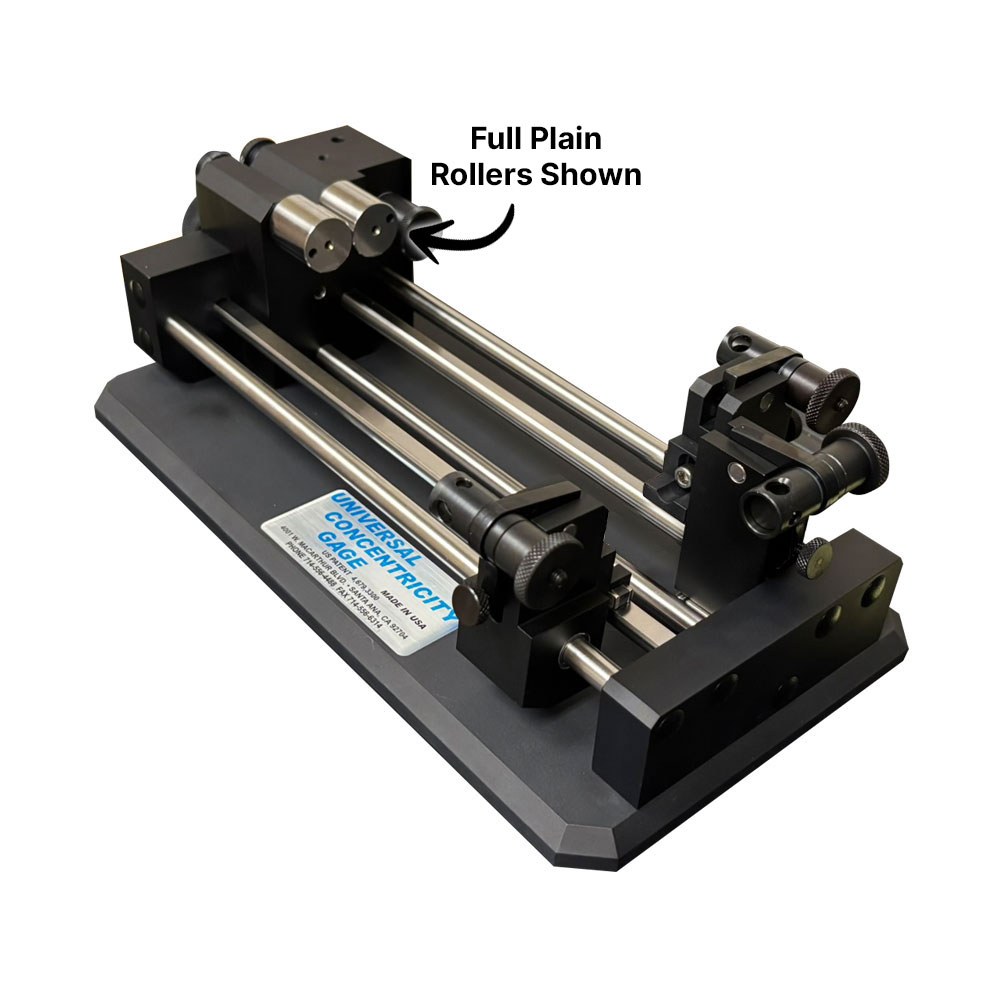

For Block Size -10 models, Zero Plain Rollers may be used to decrease the capacity diameter minimum to nearly zero in/mm.
