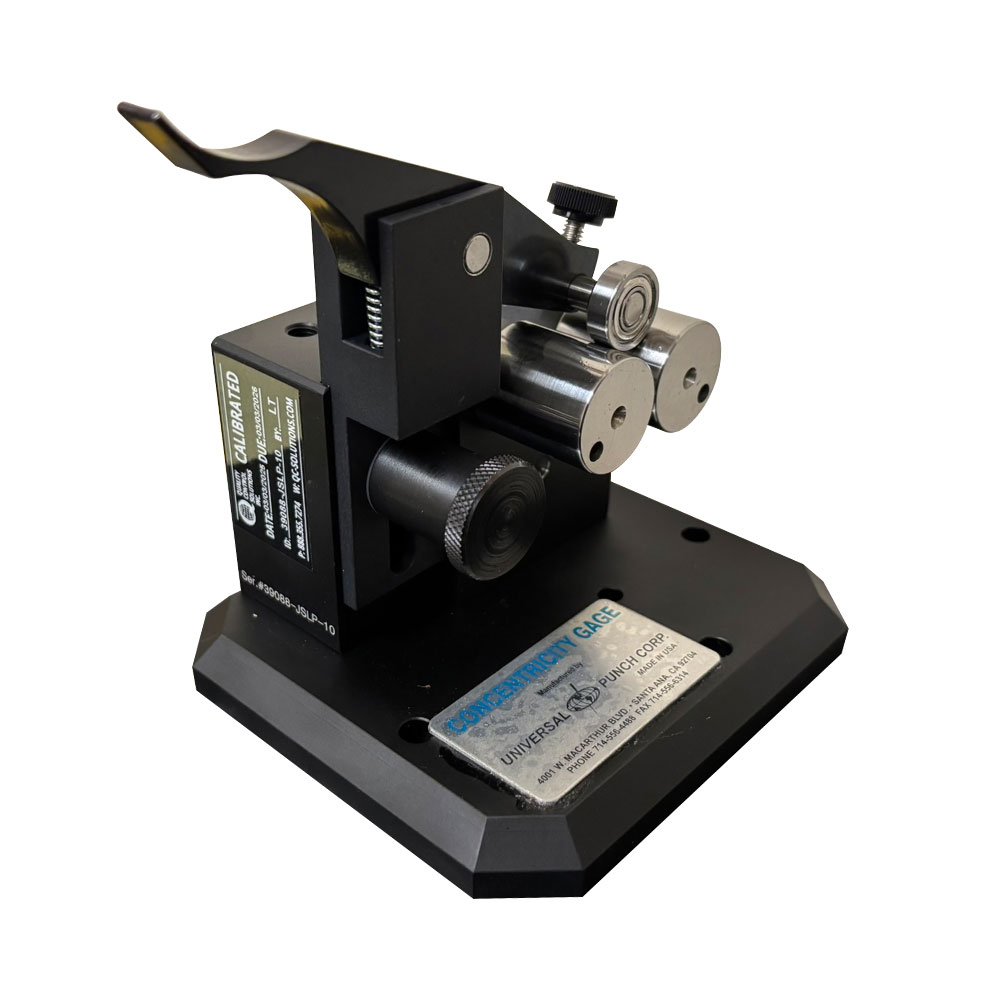

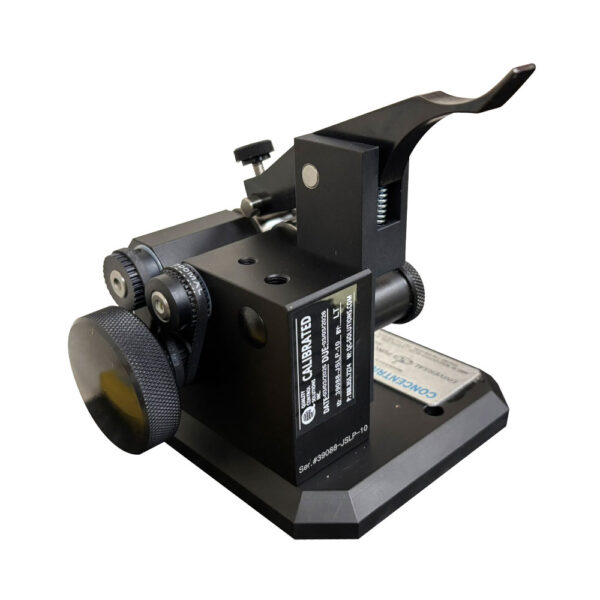

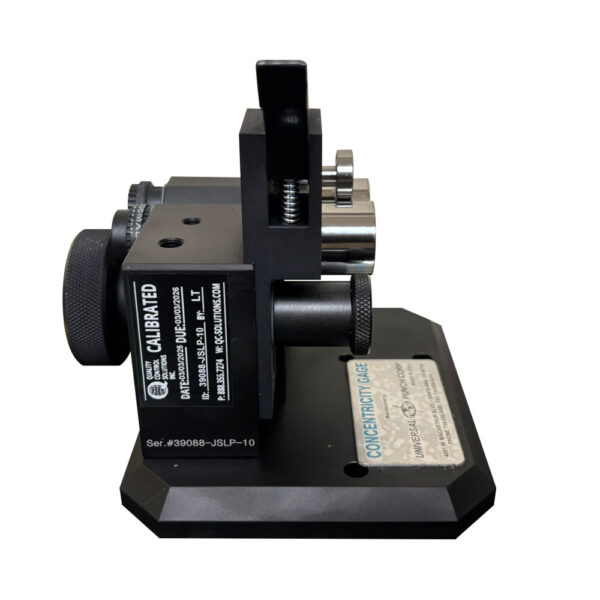

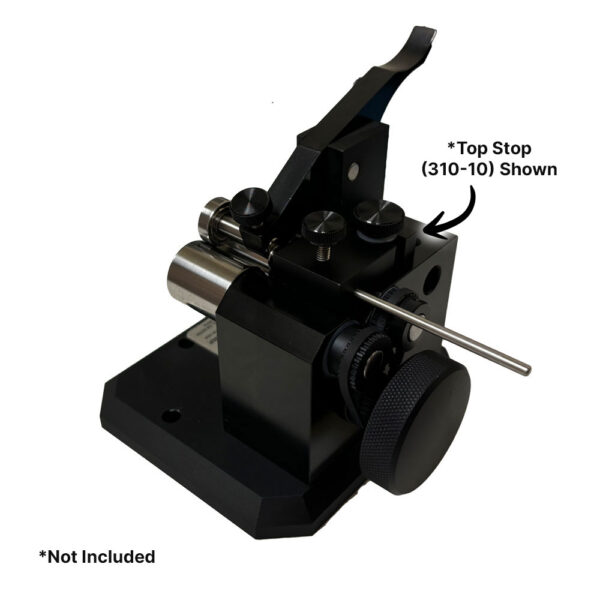

Model Description: Slim Low Profile Comparator Gage / 3-25mm
JSLP-10 Standard Concentricity Gage, Accuracy ≤ 4µm (.00016”)
JSLP-10P Precision Gold Concentricity Gage, Accuracy ≤ 2µm (.00008”)
Specifications:
Part Diameter Capacity: 1/8” to 1” (3mm to 25mm)
Diameter Minimum 1/24” (1mm) or less with Zero Style Rollers
Part Length Capacity: Up to 4” (102mm)
Gage Length: 6” (152mm)
Gage Width: 4.5” (114mm)
Gage Height: 5.5” appx. (140 mm)
Model Description: Slim Low Profile Comparator Gage / 3-25mm
JSLP-10 Standard Concentricity Gage, Accuracy ≤ 4µm (.00016”)
JSLP-10P Precision Gold Concentricity Gage, Accuracy ≤ 2µm (.00008”)
Specifications:
Part Diameter Capacity: 1/8” to 1” (3mm to 25mm)

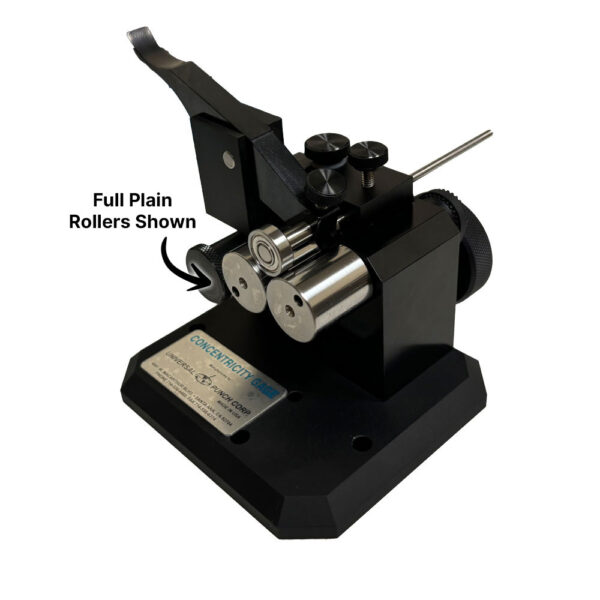

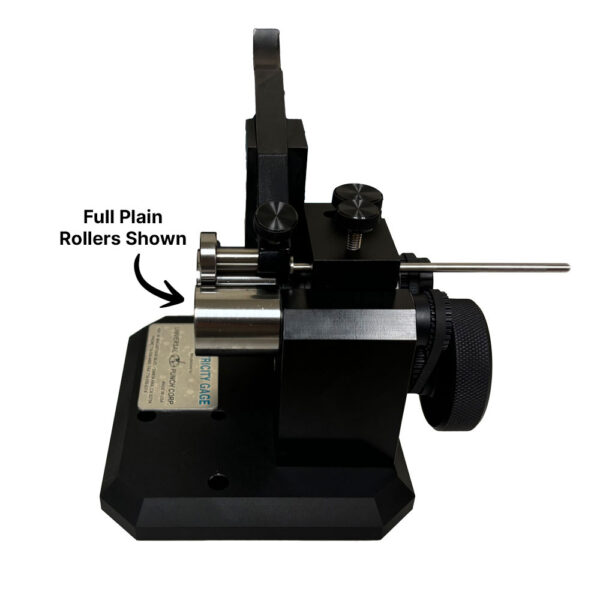

Diameter Minimum 1/24” (1mm) or less with Zero Style Rollers
Part Length Capacity: Up to 4” (102mm)
Gage Length: 6” (152mm)
Gage Width: 4.5” (114mm)
Gage Height: 5.5” appx. (140 mm)
