Model Description: Surface Plate or Comparator Gage / 10-50mm

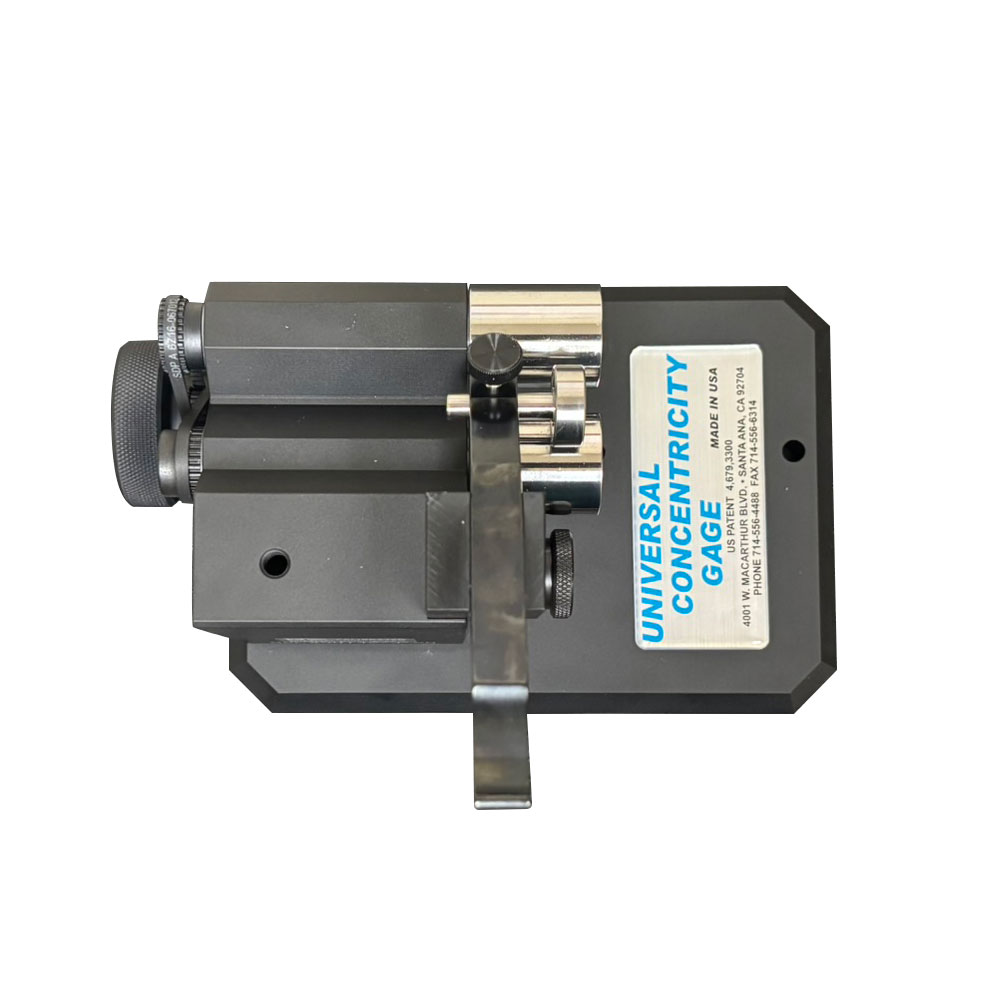

J-20 Standard Concentricity Gage, Accuracy ≤ 4µm (.00016”)
J-20P Precision Gold Concentricity Gage, Accuracy ≤ 2µm (.00008”)
Specifications:
Part Diameter Capacity: 3/8” – 2” (10 – 50 mm)
Part Length Capacity: 0.18” – 6” (4.7 – 152 mm)
Gage Length: 7” (178mm)
Gage Width: 5” (127mm)
Gage Height: 5.5” appx. (140mm)
Specifications:
Part Diameter Capacity: 3/8” – 2” (10 – 50 mm)
Part Length Capacity: 0.18” – 6” (4.7 – 152 mm)
Gage Length: 7” (178mm)
Gage Width: 5” (127mm)
Gage Height: 5.5” appx. (140mm)

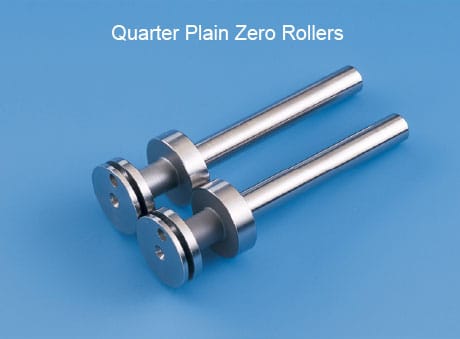

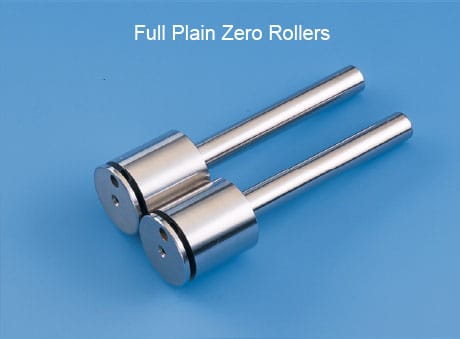

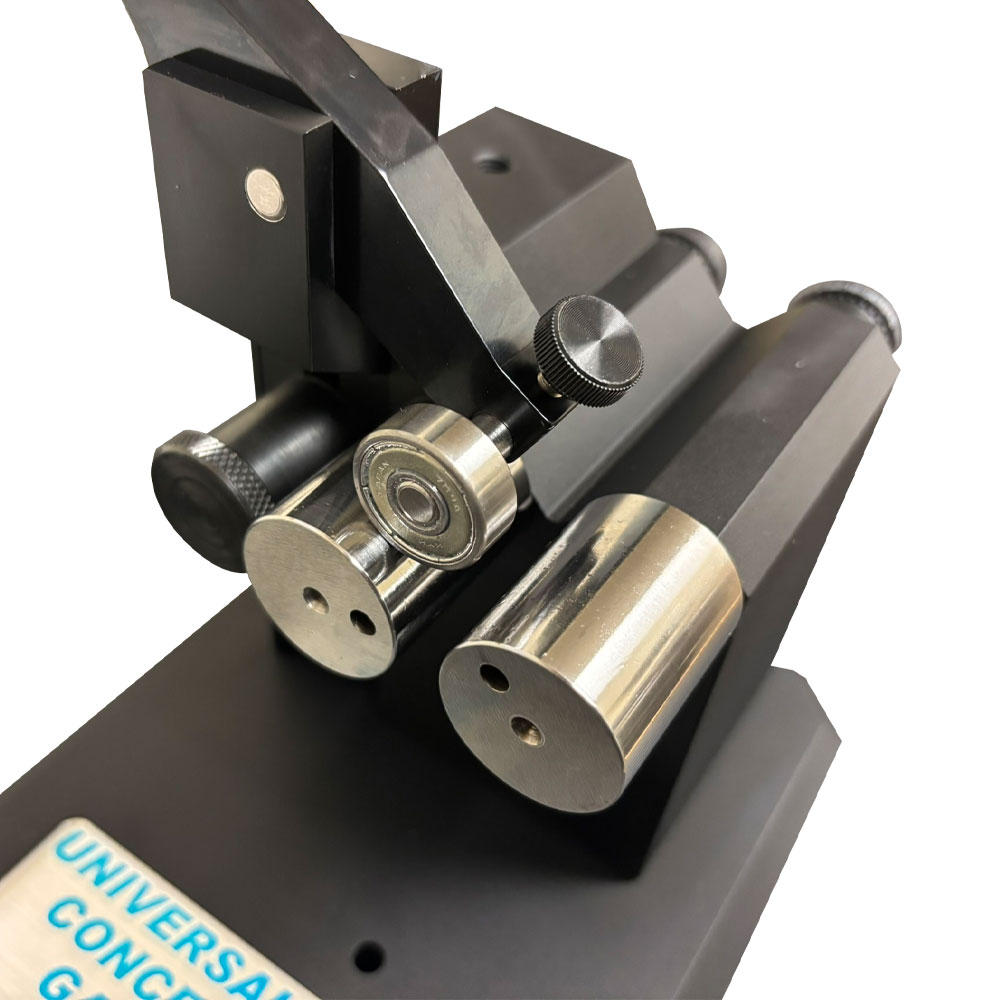

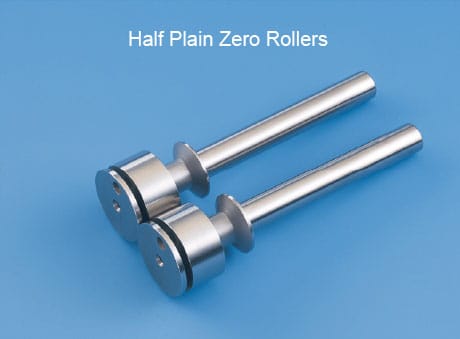

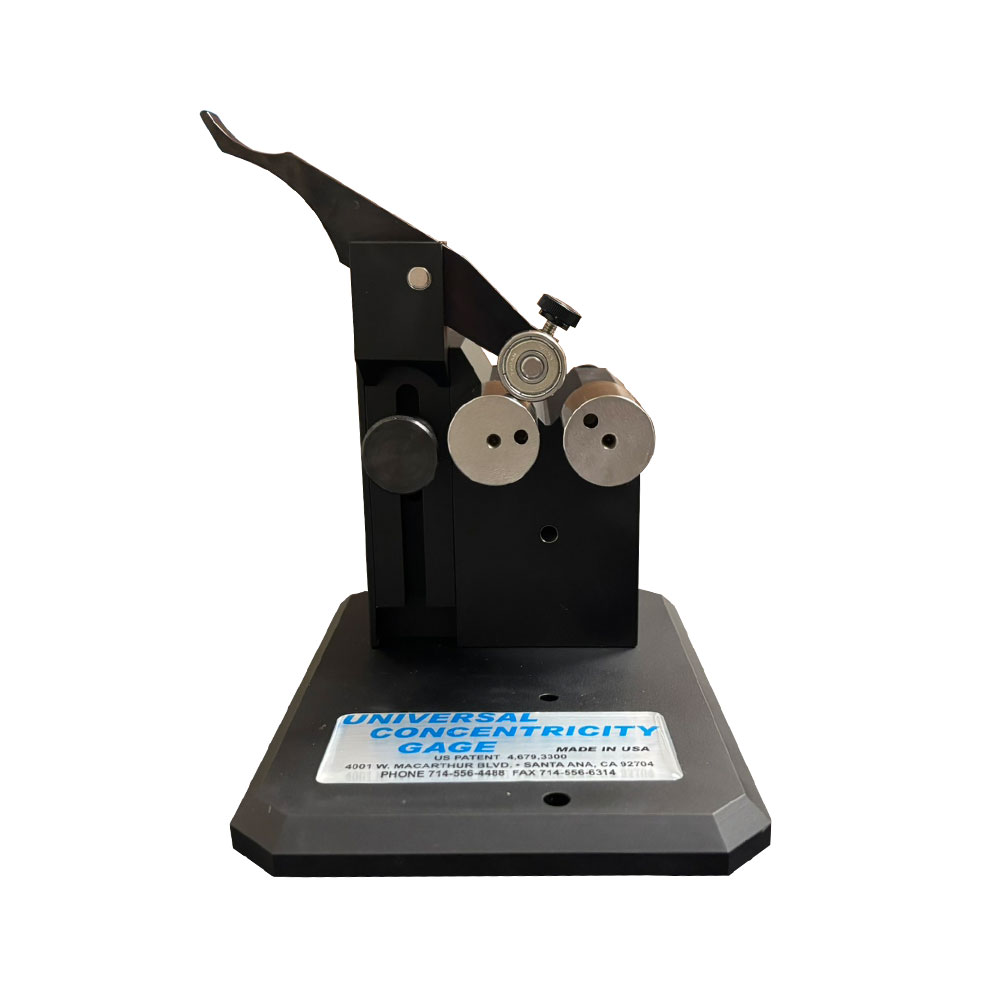

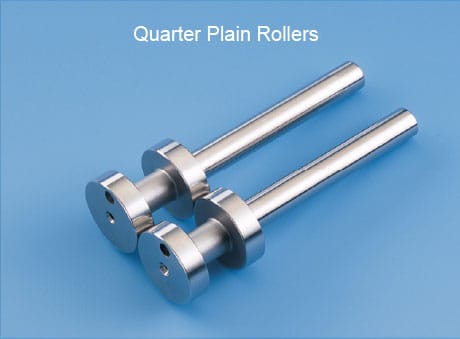

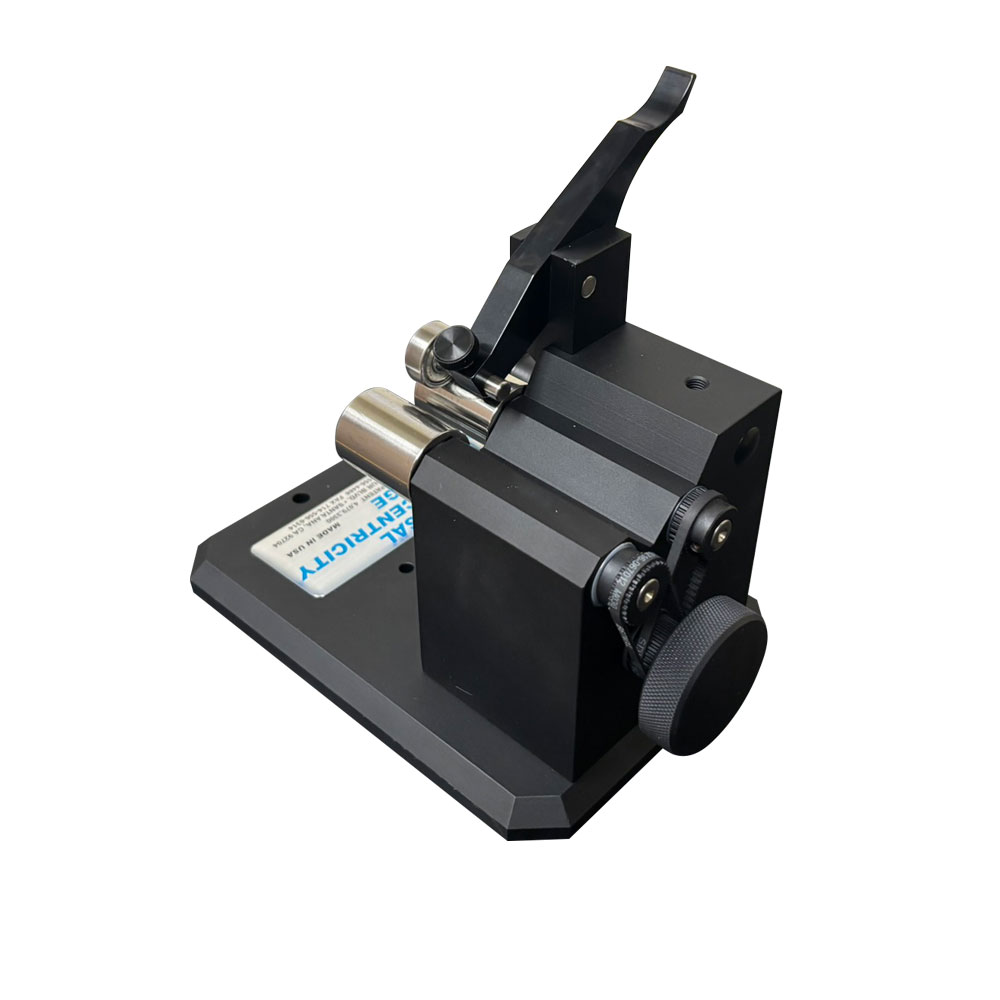

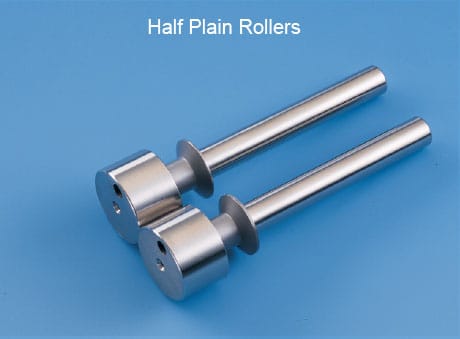

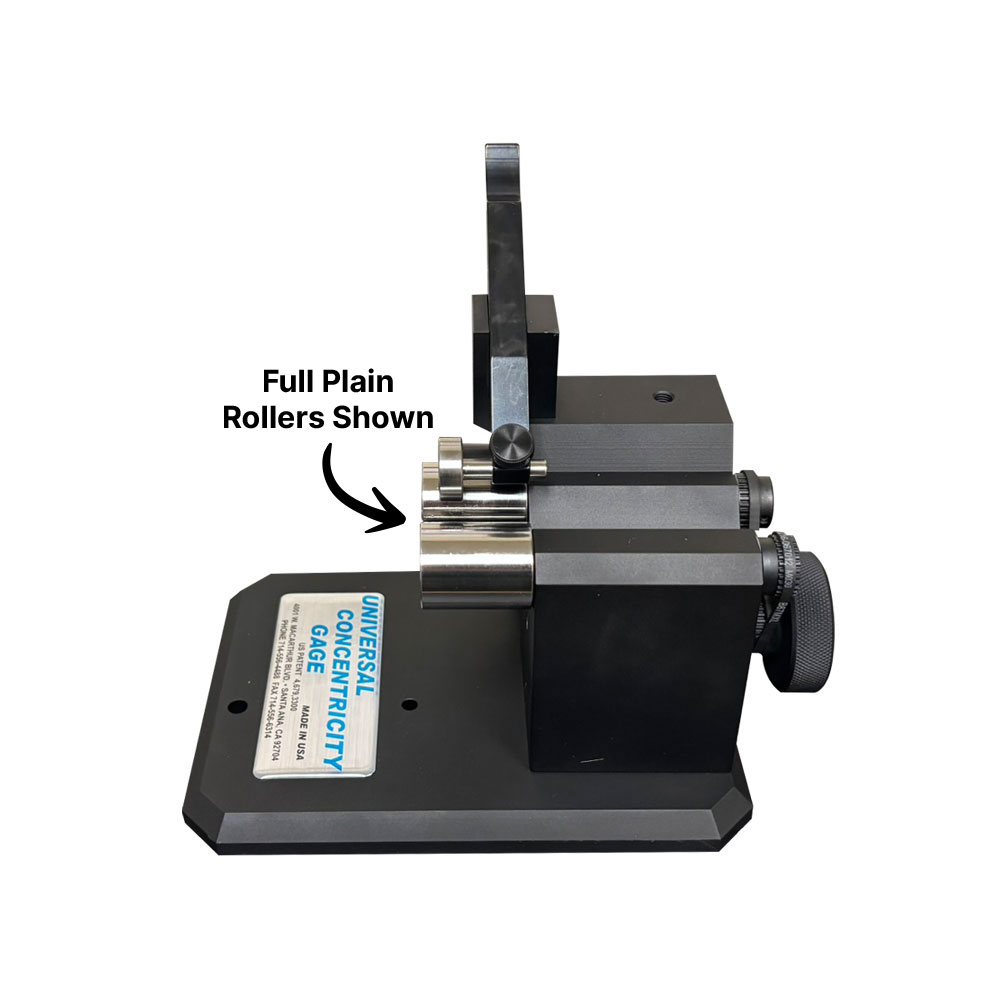

J-20 Universal Punch Concentricity Gages are comprised of three main components for assembly:
