SLU-X

Self-centering Steady Rests

Standard Line

Self centering steady rest Standard Line

• Sealed body
• Stroke control for end position open (switch not included)

SLUB

Self-centering Steady Rests

Standard Line

Self centering steady rest Standard Line Extra compact with side mounted cylinder

• Monitoring open / closed via proximity switch
• Special sizes on request

SLUB-A

Self-centering Steady Rests

Standard Line

Self centering steady rest Standard Line Extra compact with side mounted cylinder

• Additional pivoting upper arm for vertical loading
• Monitoring open / closed via proximity switch
• Special sizes on request

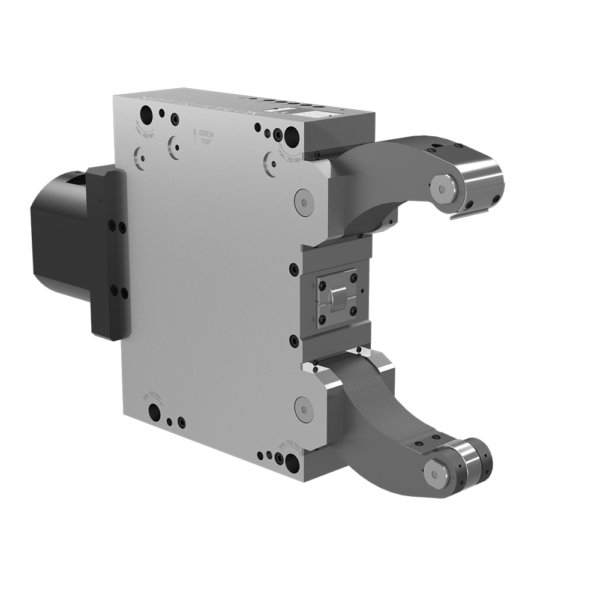

SLU

Self-centering Steady Rests

Basic Line

Self centering steady rest Basic Line

• Large clamping range
• Monitoring open / closed via proximity switch
• Hardened arms

SLU-A

Self-centering Steady Rests

Basic Line

Self centering steady rest Basic Line

• Additionalpivotingupperarm
• Monitoring of position Steady Rest open and closed
• Hardened arms

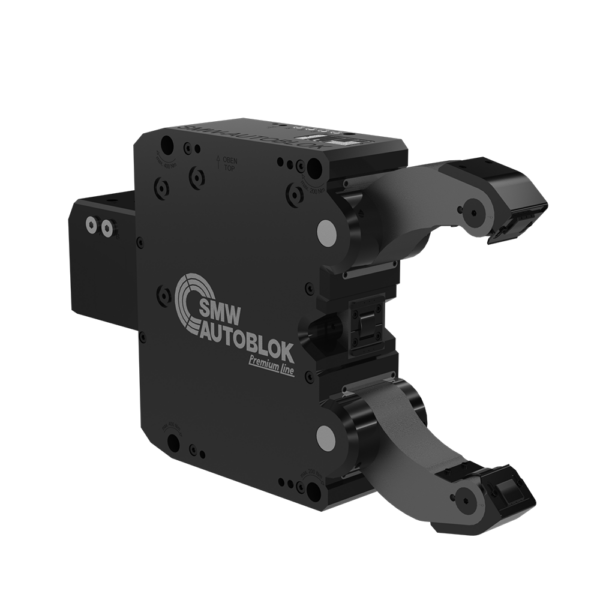

SR

Self-centering Steady Rests

Premium Line

Self centering steady rest Premium Line

• Sealed body
• Integrated coolant flush
• Chip guard with coolant nozzles
• Stroke control unit or proximity switch for end position open

SRA

Self-centering Steady Rests

Premium Line

Self centering steady rest Premium Line additional pivoting upper arm for vertical loading

• Sealed body
• Integrated coolant flush
• Chip guard with coolant nozzles
• Stroke control unit or proximity switch for end position open

SR-CL

Self-centering Steady Rests

Premium Line – with fine adjustment

Self centering steady rest Premium Line with fine adjustment

• With fine adjustment of the clamped work piece
• Sealed body
• Integrated coolant flush
• Chip guard with coolant nozzles

K

Self-centering Steady Rests

Premium Line

Self centering steady rest Premium Line compact design

• Sealed body
• Chip guard with coolant nozzles
• Stroke control unit or proximity switches

KA

Self-centering Steady Rests

Premium Line

Self centering steady rest Premium Line additional pivoting upper arm for vertical loading

• Compact design, sealed body
• Chip guard with coolant nozzles
• Double guided center arm to carry heavy loads
• Excenter fine adjustment on the outer arms

KLU

Self-centering Steady Rests

Premium Line

KLU-A

Self centering steady rest Premium Line with narrow arms for crankshafts

• Sealed body
• Chip guard with coolant nozzles
• Stroke control unit or proximity switches

RX

Self-centering Steady Rests

Premium Line

Self centering steady rest Premium Line extra compact steady rest

• Integrated cylinder
• Sealed body
• Chip guard with coolant nozzles
• Stroke control with proximity switch

USP 4.0

Ultrasonic linear stroke control

Ultrasonic linear stroke control

• for SMW-AUTOBLOK steady rests
• Non-contact distance measurement using ultrasonic technology
• Time and energy saving due to only partial opening of the steady rest (with corresponding machine hydraulics)
• Output signal analog 0 – 10 V / 4 – 20 mA Protection class IP 67, 24 VDC
• proofline® = fully sealed – low maintenance

SCU

For SMW-AUTOBLOK Steady Rests

Linear stroke control unit for steady rests

• Completely sealed, protection class IP66
• Output signal 4-20mAor0-10V

SRG

Grinding Steady Rests

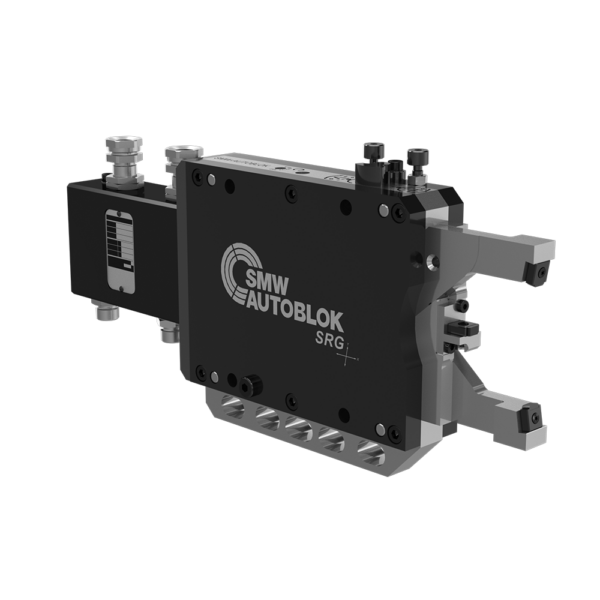

SRG-B

side cylinder

Grinding Steady Rests with fine adjustment of the center

• Horizontal and vertical fine adjustment of the grinding center
• Retractable Steady Rest arms
• Port for compressed air against dust and coolant
• Monitoring via proximity switches
• Suitable for follow down grinding
