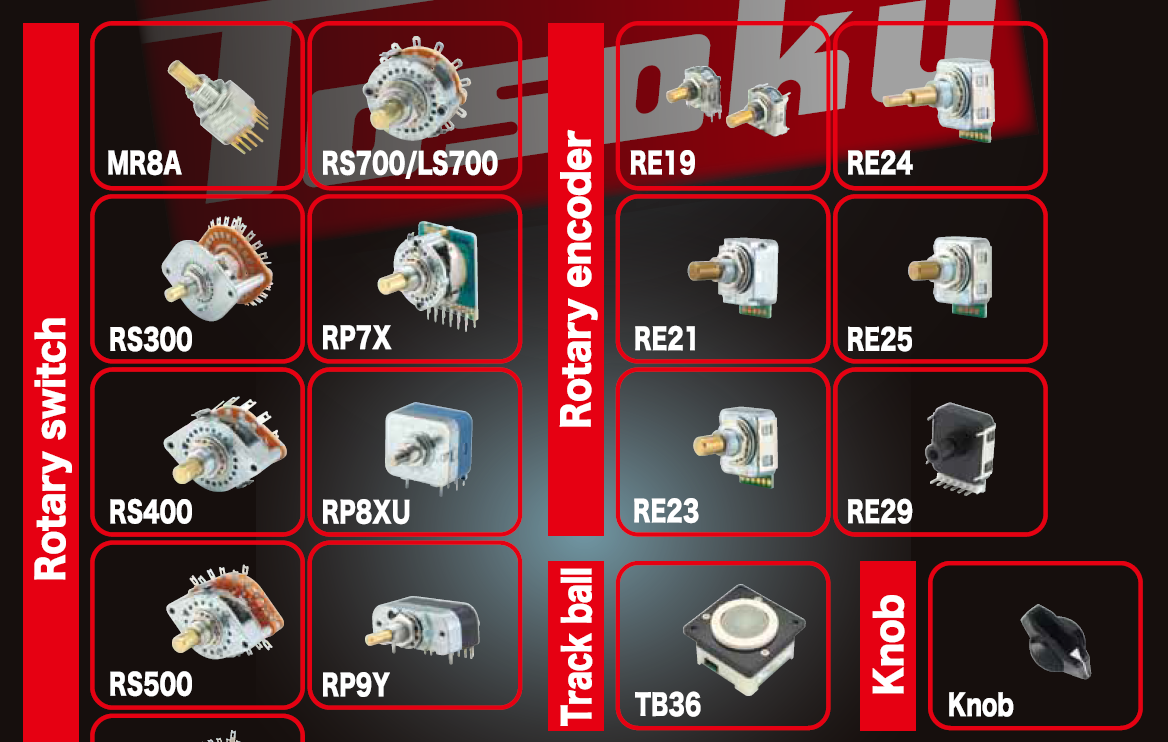

RS300 / 400 / 500
   |
Our RS series embody the manufacturing history of our company. All series are sturdy and solid with high dependability designed for control units of plants, installations, audio equipments, etc. |
 （1.14MB）See PDF file |
|---|
MR8A
 |
8mm square extremely compact rotary switch, designed to be mounted to printed wiring boards. Highly reliable with gold contact and its sealed structure enables to be washed after mounted to PWBs. | （952KB） See PDF file |
|---|
Code Switch
DP
 |
A digital code switch with multiple choices of codes and step angles. A water-proof model also provided. | （721KB） See PDF file |
|---|
MR8C
 |
8mm square ultra-compact digital code switch for mounting to printed wiring boards. Highly reliable with gold contact and its sealed structure enables to be washed after mounted to PWBs. | （778KB） See PDF fil |
|---|
Rotary Encoder
RE29
 |
RE29 packs compact rotary encoder with dual-functional resin shaft into the space-saving resin enclosure. Recommended for wide range of machines including measurement components, medical and telecommunication devices. |
（1.09MB） See PDF file |
|---|
RE25
 |
RE25 is a VA designed eco friendly – power-saving and low cost with lesser parts – rotary encoder. Its size, mounting procedures and inner-structures have been designed for a wide-array of uses; measurement devices, medical equipments, industrial machineries, telecommunication devices and machine tools. | （1.05MB） See PDF file |
|---|
RE24
 |
RE24 rotary encoder series contain unique mechanism for its shaft; its rotational outer axis for rotary encoder and the inner axis for push switch. It is designed for use in various industrial areas: measurement component, medical equipment, industrial machinery, telecommunication device and machine tool. |
（1.05MB） See PDF file |
|---|
RE23
 |
RE23 series are optical rotary encoders with pushing/rotating functions on its shaft. Its size, mounting procedures and inner-structures have been designed for a wide-array of uses; measurement devices, medical equipments, industrial machineries, telecommunication devices and machine tools. |
|---|
RE45T
 |
RE45T is an ultra-thin optical rotary encoder developed for manual pulse input for NC machine tools. The size, mounting procedures and inner-structures have been designed as an input device of direct human instructions or as a digital potentiometer for not only machine tools but various industrial machines. |
（523KB） See PDF file |
|---|
RE45B
 |
RE45B is an optical rotary encoder developed for manual pulse input for NC machine tools. Single center nut lock model/triple nut lock model provided. Easy to see and easy to operate with a larger dial. |
（583KB） See PDF file |
|---|

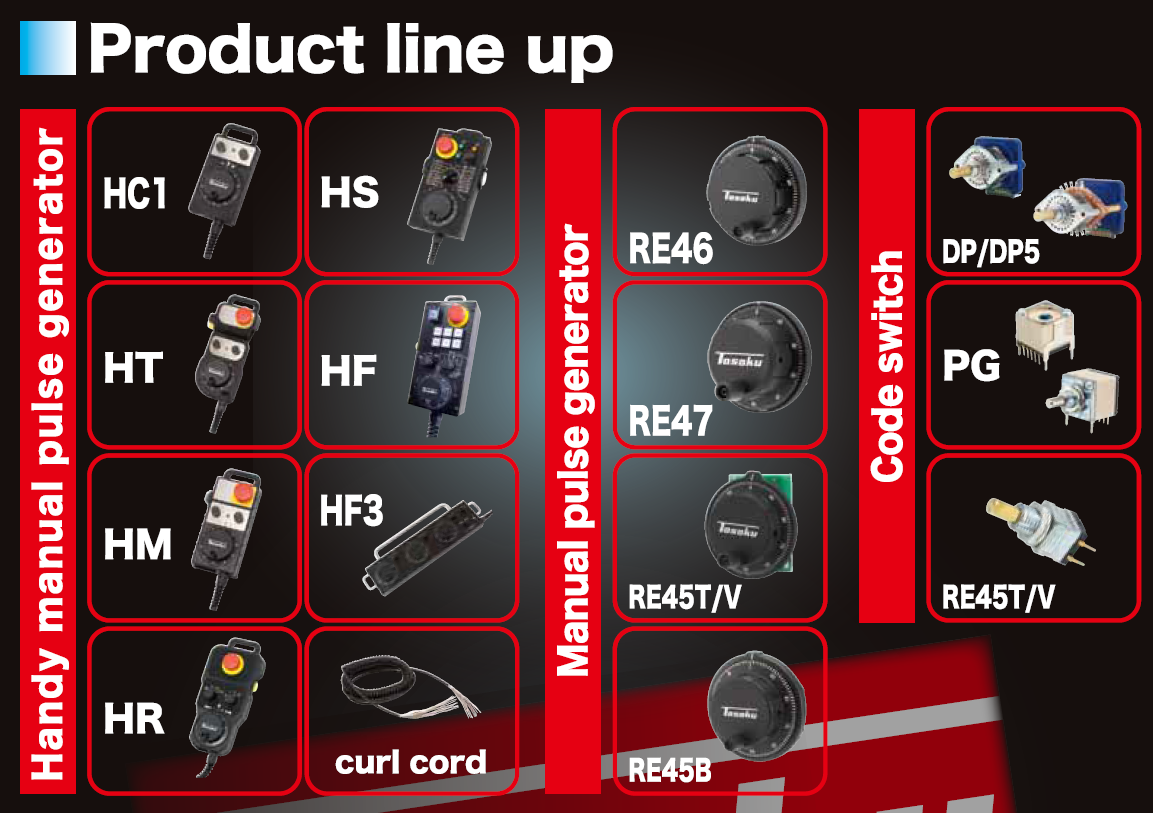

RE46
 |
RE46 series are incremental optical manual pulse generators developed for NC machine tools. The depth of the surface-bottom is mere 8mm which allows you to save space behind the panel. |
（543KB） See PDF file |
|---|
RE47
 |
RE47 is an incremental optical manual pulse generator developed mainly for NC machine tools. The series are most compact of all MPGs on our line-up and universally compatible with various sorts of compact MPGs. |
|---|
HT
 |
Our latest model of handheld MPG; compact, lightweight yet highly efficient. 3-position (off-on-off) enabling switch available on either side/both sides, as well as emergency stop button and other switches at your request. | （535KB） See PDF file . |
|---|

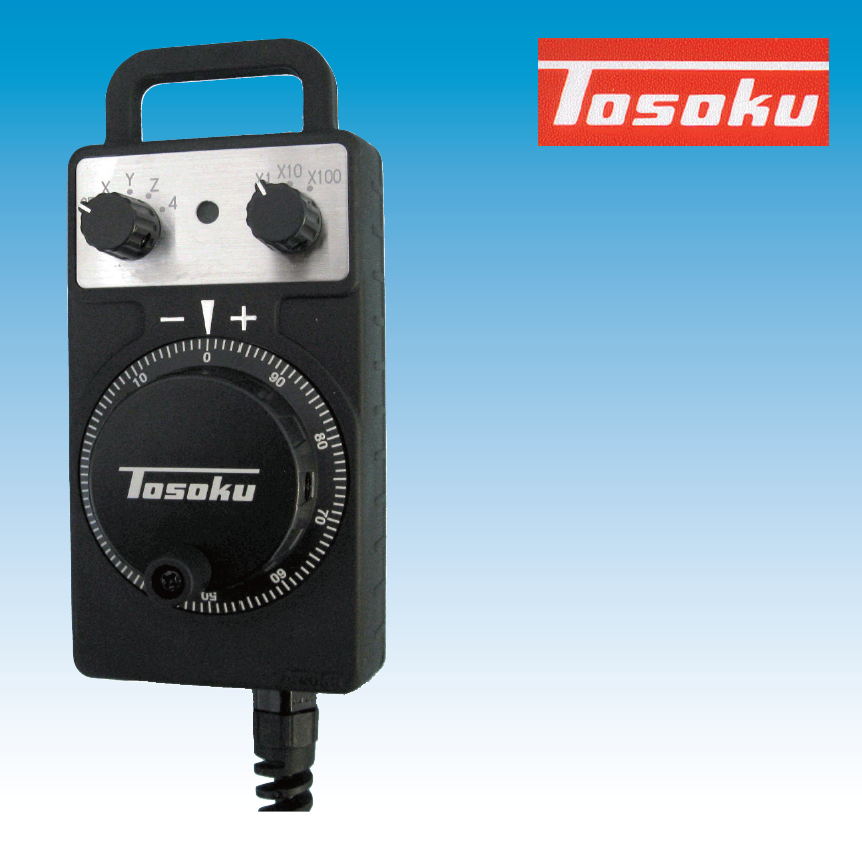

HC1
 |
Compact handheld MPG designed for various uses including machine tools and industrial machineries. Curl cords standardized. Male/Female connectors available, along with code switches for option for wire saving. | （969KB） See PDF file |
|---|
HM
 |
Compact and yet free to locate emergency stop button, push buttons and rotary switches at your requests. Enabling switches are available on either side or both sides. | （1.38MB） See PDF file |
|---|
HR
 |
Handheld MPG with emergency stop button available on either side or both sides. Upper part is free to design and allows various kinds of switches to be located. DP type digital code switches and RS400 type rotary switches selectable for selector switches. |
（668KB） See PDF file |
|---|
HS
 |
Free-to-design handheld MPG; switches and encoders located at any request. Lightweight with resin case and whole box is sealed for waterproof. | （975KB） |
|---|
