Type C

Live centers type C with 60° center for high speeds.

Type	Taper	Dimensions in mm					Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	C	D	d	max. kg	min-1 max.
C-3	Morse 3	29	48	86	57	22	750	10000	3.5103.101	●
C-3	Ø 25	29	48	54.5	57	22	750	10000	3.5103.110	●
C-3	Ø 25.4	29	48	54.5	57	22	750	10000	3.5103.111	●
C-3	Ø 32	29	48	86	57	22	750	10000	3.5103.107	●
C-4	Morse 4	38	60	108.5	70	30	1400	1750	3.5104.101	●
C-4	Ø 32	38	60	108.5	70	30	1400	1750	3.5104.107	●
C-5	Morse 5	52	77	135	96	45	2500	3000	3.5105.101	●
C-6	Morse 6	74	100	187.5	128	65	3800	4800	3.5106.101

Type CV

Live centers type CV with extended point for high speeds.

Type	Taper	Dimensions in mm						Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	C	D	d	E	max. kg	min -1 max.
CV-3	Morse 3	32	48	86	57	22	12	700	10000	3.5203.101	●
CV-3	Ø 32	32	48	86	57	22	12	700	10000	3.5203.107	●
CV-4	Morse 4	46	60	108.5	70	30	15	1300	8000	3.5204.101	●
CV-4	Ø 32	46	60	108.5	70	30	15	1300	8000	3.5204.107	●
CV-5/4	Morse 5	46	60	133.5	70	30	15	1300	8000	3.5205.4101	●
CV-5	Morse 5	72	77	135	96	45	18.5	1900	6000	3.5205.101	●
CV-6	Morse 6	105	100	187.5	128	65	22	2800	4000	3.5206.101

Type CK

The CK-types have an inner taper that accepts various interchangeable inserts. The inserts can be removed with an ejection tool.

Type	Taper	Dimensions in mm						Workpiece weight	Axial pressure max. daN	Admissible speed	Article number	Availability*
	K	A	B	C	D	d	E	max. kg		min -1 max.
CK-4	MK 4	14.5	60	108.5	70	30	18	1400	1750	8000	3.6304.101	●
CK-5/4	MK 5	14.5	60	135	70	30	18	1400	1750	8000	3.6305.4101

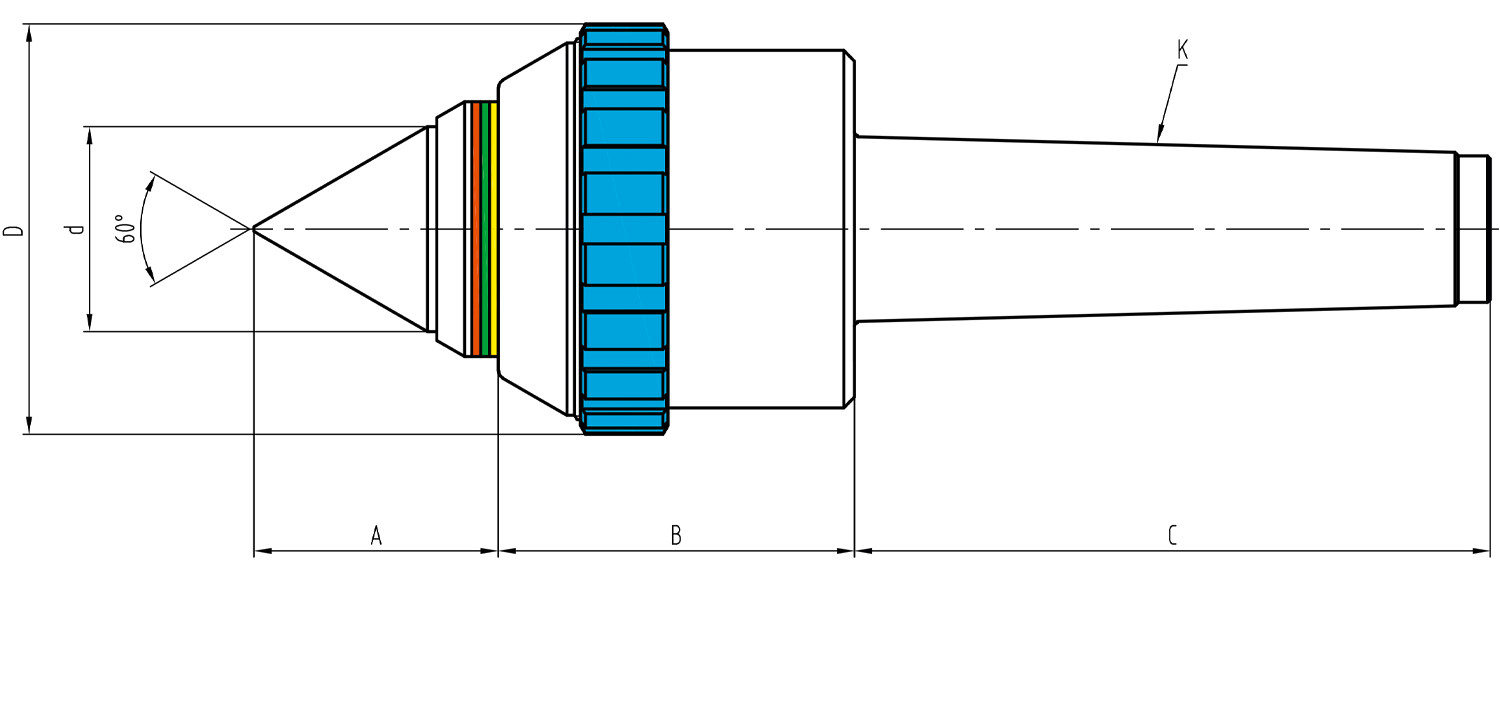

ype R

R-type centers feature a reliable pressure indicator which permits rapid setting and monitoring of the optimum pressure that is selected according to the geometry and stability of the workpiece. Thermal expansion of the workpiece during machining is automatically compensated. R-type centers offer excellent reproducibility and reliability in production.

Type	Taper	Dimensions in mm					Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	C	D	d	max. kg	min -1 max.
R-3	Morse 3	31	48	86	57	25	720	4000	3.5303.101	●
R-3	Ø 25	31	48	54.5	57	25	720	4000	3.5303.110	●
R-3	Ø 25.4	31	48	54.5	57	25	720	4000	3.5303.111	●
R-3	Ø 32	31	48	86	57	25	720	4000	3.5303.107	●
R-4	Morse 4	42	61	108.5	70	35	1200	3000	3.5304.101	●
R-4	Ø 32	42	61	108.5	70	35	1200	3000	3.5304.107	●
R-5	Morse 5	58	81	135	96	50	2000	2000	3.5305.101	●
R-6	Morse 6	79	104	187.5	128	70	3400	1000	3.5306.101

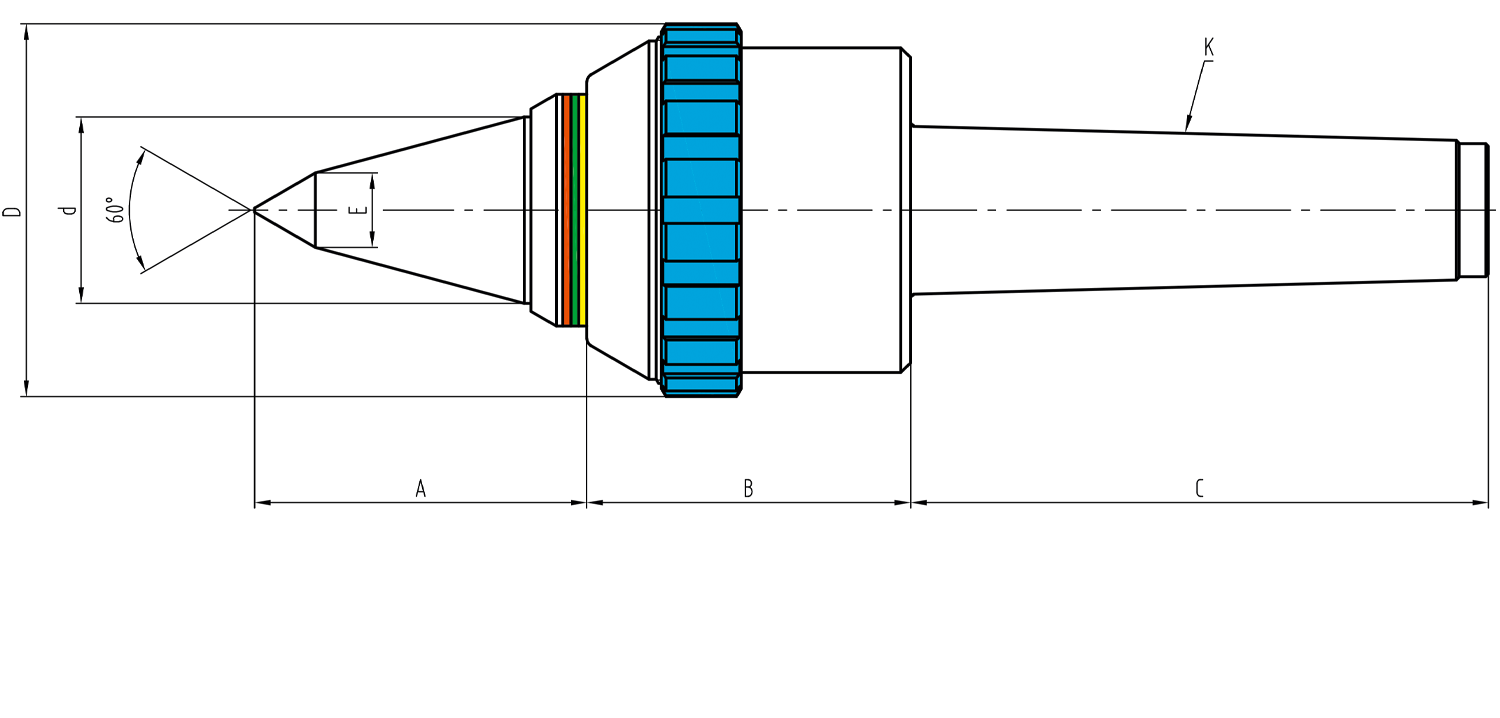

Type RV

The RV version is designed for turning smalldiameter shafts and for use on CNC machine tools or copying lathes.

Type	Taper	Dimensions in mm						Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	C	D	d	E	max. kg	min -1 max.
RV-3	Morse 3	42	48	86	57	25	12	550	4000	3.5403.101	●
RV-3	Ø 32	42	48	86	57	25	12	550	4000	3.5403.107	●
RV-4	Morse 4	60	61	108.5	70	42	14	900	3000	3.5404.101	●
RV-4	Ø 32	60	61	108.5	70	42	14	900	3000	3.5404.107	●
RV-5	Morse 5	88	81	135	96	50	18	1400	2000	3.5405.101	●
RV-6	Morse 6	125	104	187.5	128	70	22	2500	1000	3.5406.101

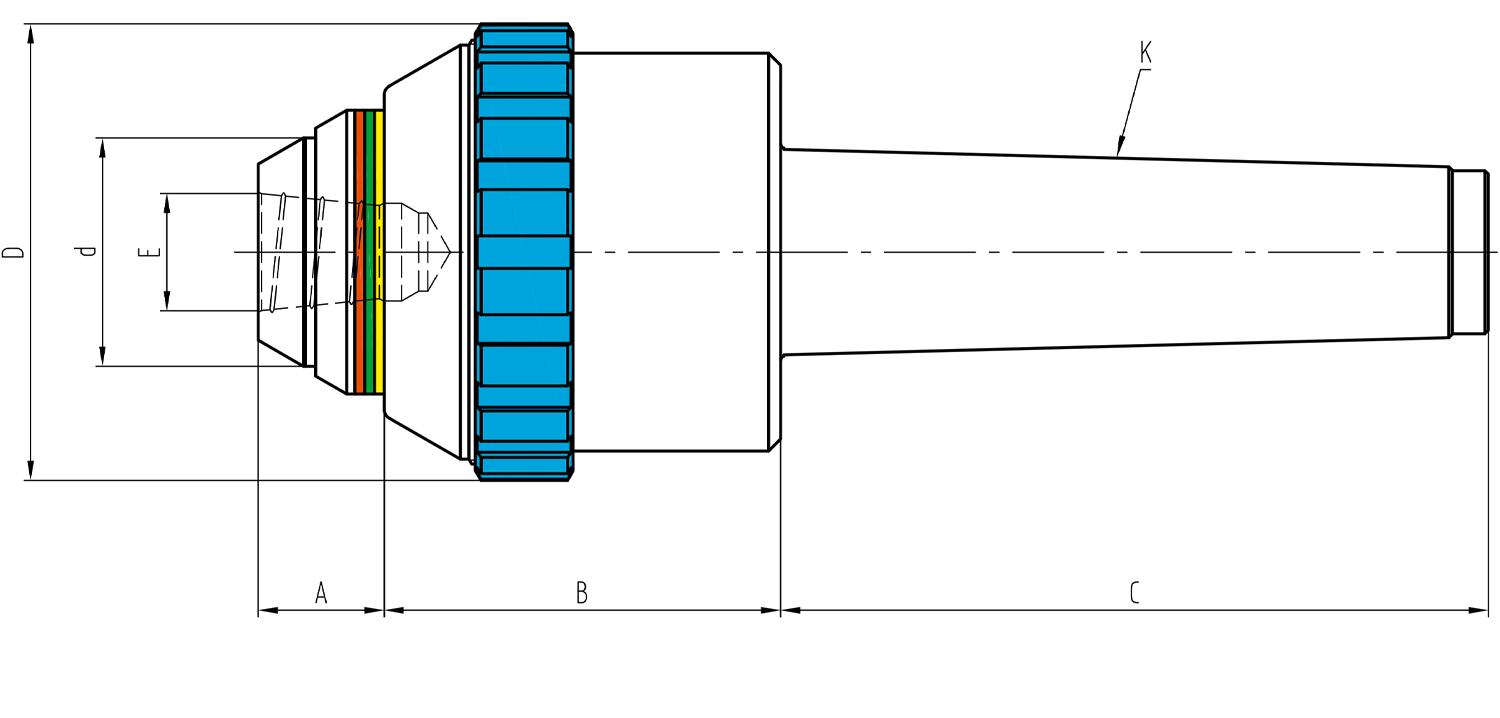

Type RK

RK-type centers feature a reliable pressure indicator which permits rapid setting and monitoring of the optimum pressure that is selected according to the geometry and stability of the workpiece. Thermal expansion of the workpiece during machining is automatically compensated. RK-type centers offer excellent reproducibility and reliability in production. The RK-types have an inner taper that accepts various interchangeable inserts. The inserts can be removed with an ejection tool.

Type	Taper	Dimensions in mm			Workpiece weight	Admissible speed	Article number	Availability*
	K	A	d	E	max. kg	min -1 max.
RK-3	Morse 3	15	25	14	720	4000	3.5503.101	●
RK-4	Morse 4	19	35	18	1200	3000	3.5504.101	●
RK-5	Morse 5	22	50	28	2000	2000	3.5505.101

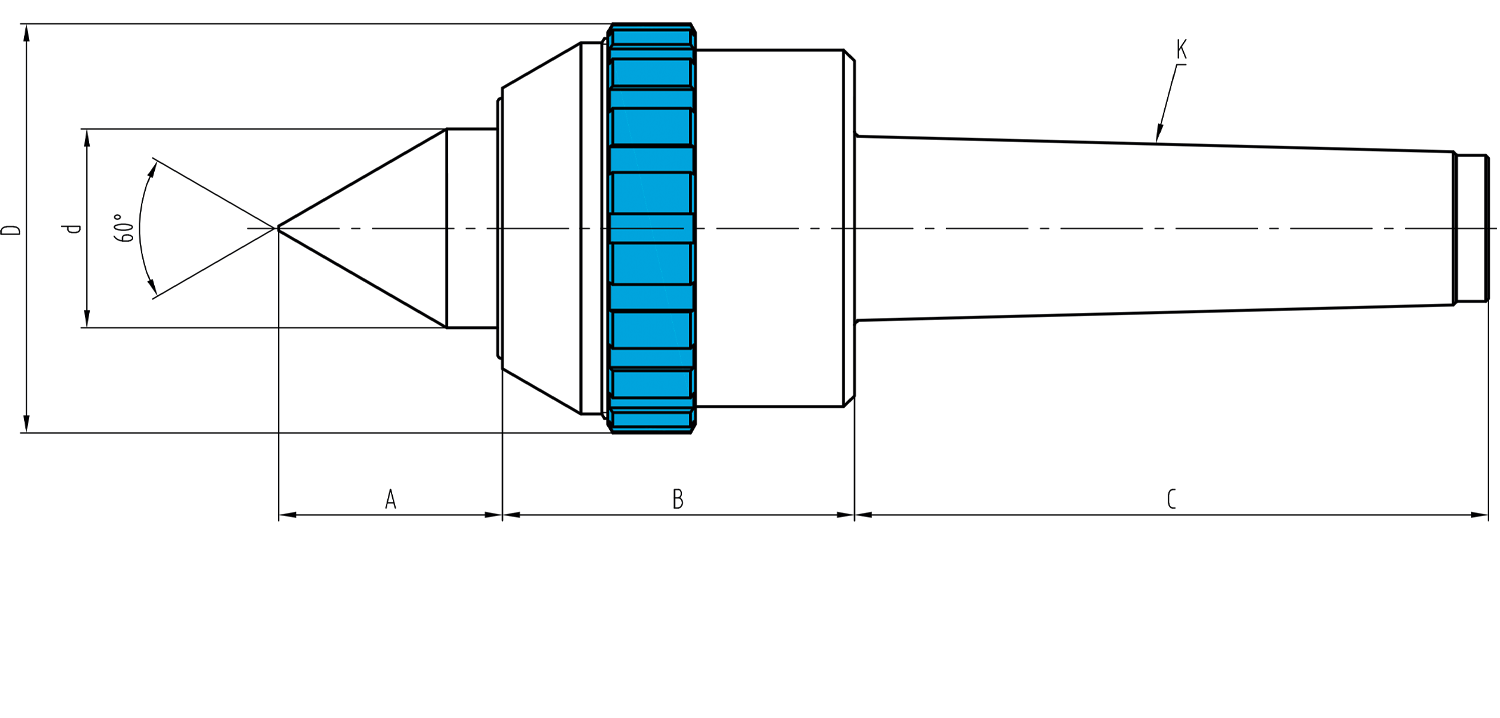

Type D

Live centers of the series D are principally used for general lathe work. Unless otherwise specified on the order, all centers, except the model GF, have an angle of 60°. The loads and workpiece weights listed in the table are based on a working life of 2 000 hours and a speed of 1000 RPMs.

Type	Taper	Dimensions in mm					Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	C	D	d	max. kg	min -1 max.
D-2	Morse 2	24	44	68.5	49	19	320	5000	3.5602.101	●
D-3	Morse 3	29	48	86	57	25.5	700	4000	3.5603.101	●
D-3	Ø 25	29	48	54.5	57	25.5	700	4000	3.5603.110	●
D-3	Ø 25.4	29	48	54.5	57	25.5	700	4000	3.5603.111	●
D-3	Ø 32	29	48	86	57	25.5	700	4000	3.5603.107	●
D-4	Morse 4	38	60	108.5	70	34	1100	3000	3.5604.101	●
D-4	Ø 32	38	60	108.5	70	34	1100	3000	3.5604.107	●
D-5	Morse 5	52	77	135	96	50	1800	2000	3.5605.101	●
D-6	Morse 6	74	100	187.5	128	69	3000	1000	3.5606.101

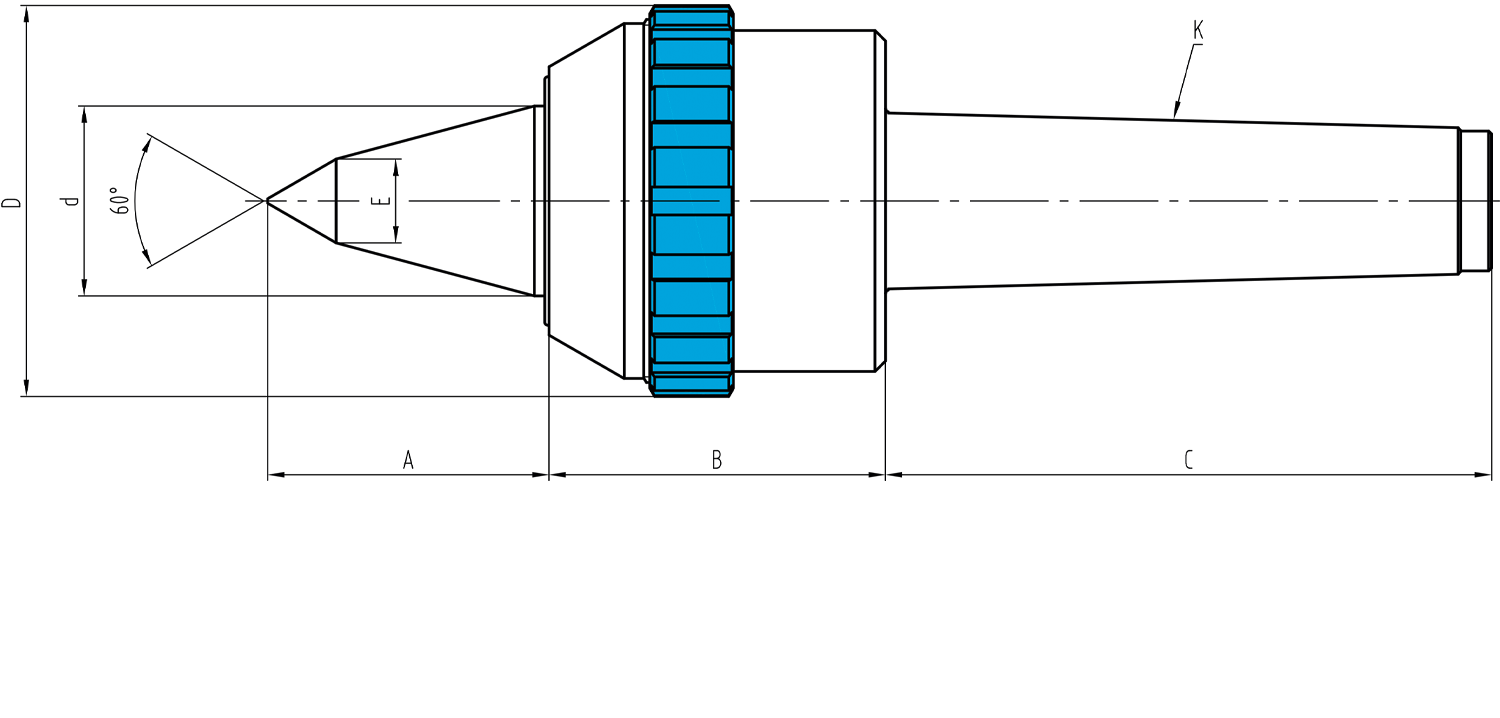

Type DV

DV-type centers are specifically designed for use on CNC machine tools and copying lathes.
Because of the extended point they can be used for work-pieces with smaller diameters. When machining eccentrical workpieces please note that the specifications concerning workpiece weight and speed must be correspondingly reduced.

Type	Taper	Dimensions in mm						Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	C	D	d	E	max. kg	min -1 max.
DV-2	Morse 2	28	44	68.5	49	19	9	280	5000	3.5702.101	●
DV-3	Morse 3	36	48	86	57	25.5	12.5	550	4000	3.5703.101	●
DV-3	Ø 32	36	48	86	57	25.5	12.5	550	4000	3.5703.107	●
DV-4	Morse 4	51	60	108.5	70	34	15	900	3000	3.5704.101	●
DV-4	Ø 32	51	60	108.5	70	34	15	900	3000	3.5704.107	●
DV-5	Morse 5	76	77	135	96	50	18.5	1400	2000	3.5705.101	●
DV-6	Morse 6	110	100	187.5	128	69	22	2400	1000	3.5706.101	●

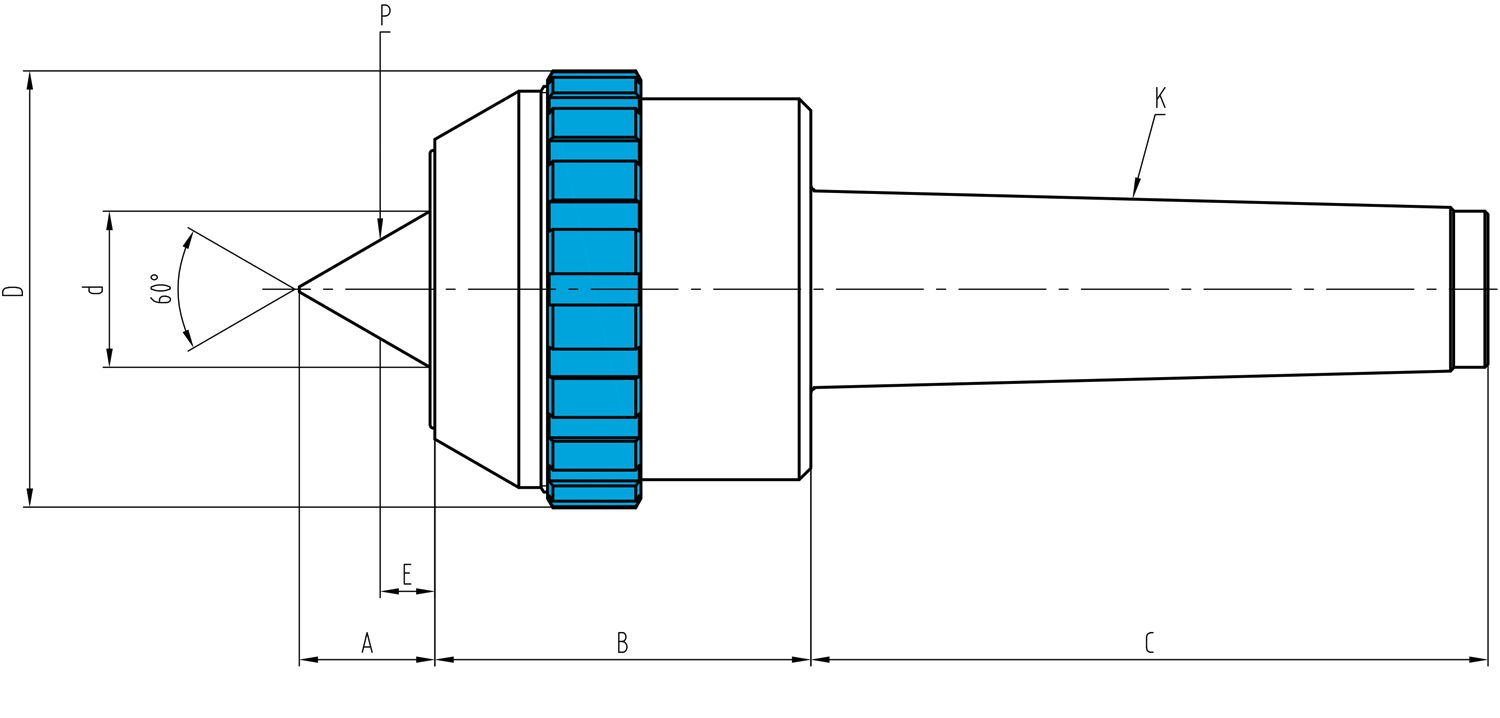

Type DM

DM-type centers are due to their short point designed for extra heavy workpiece. The load ratings listed in the table apply only if dimension E is maintained and a Z-type support disc is used. (Please order the Z-type support disc separately). If the speed is increased, the axial pressures must be correspondingly reduced.

Type	Taper	Dimensions in mm						Workpiece weight	Radial pressure P	Admissible speed	Article number	Availability*
	K	A	B	C	D	d	E	max. kg	max. daN	min -1 max.
DM-2	Morse 2	14	44	68.5	49	14	6	550	275	5000	3.5902.101	●
DM-3	Morse 3	17	48	86	57	18	7	1200	600	4000	3.5903.101	●
DM-4	Morse 4	23	60	108.5	70	25	8	2000	1000	3000	3.5904.101	●
DM-5	Morse 5	32	77	135	96	35	10	3000	1500	2000	3.5905.101	●
DM-6	Morse 6	45	100	187.5	128	50	14	5600	2800	1000	3.5906.101

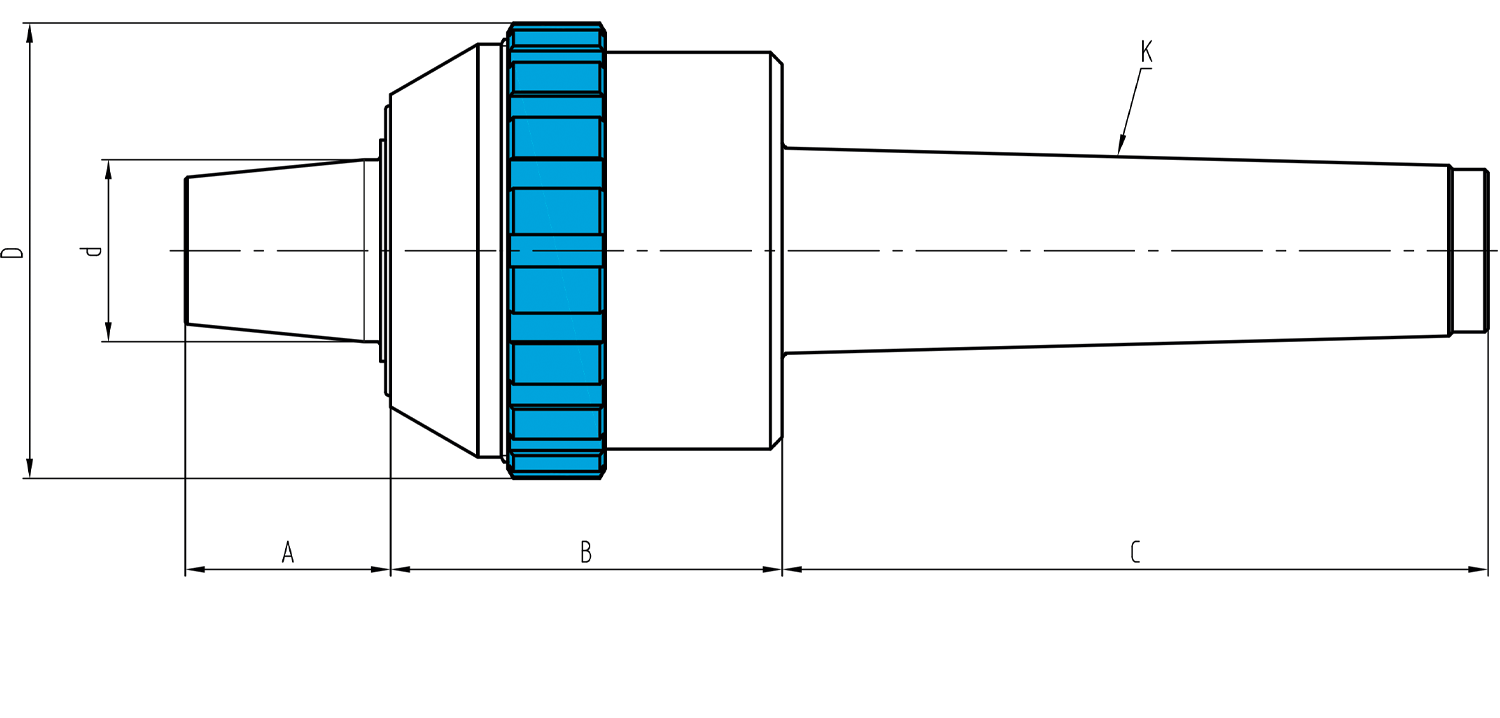

Type DA

DA-type centers are deliverable with interchangeable heads and are designed for tubular workpieces. The hardened heads, available in two sizes, can be easily extracted by an axtractor screw. Without the interchangeable head the model DA can also be used as a female center.

Type	Taper	Dimensions in mm		Workpiece	Admissible speed	Article number	Availability*
	K	B	C	max. kg	min -1 max.
DA-2	Morse 2	35	68.5	450	5000	3.6102.101	●
DA-3	Morse 3	38	86	1000	4000	3.6103.101	●
DA-4	Morse 4	50	108.5	1800	3000	3.6104.101	●
DA-5	Morse 5	64	135	2700	2000	3.6105.101	●
DA-6	Morse 6	81	187.5	5200	1000	3.6106.101

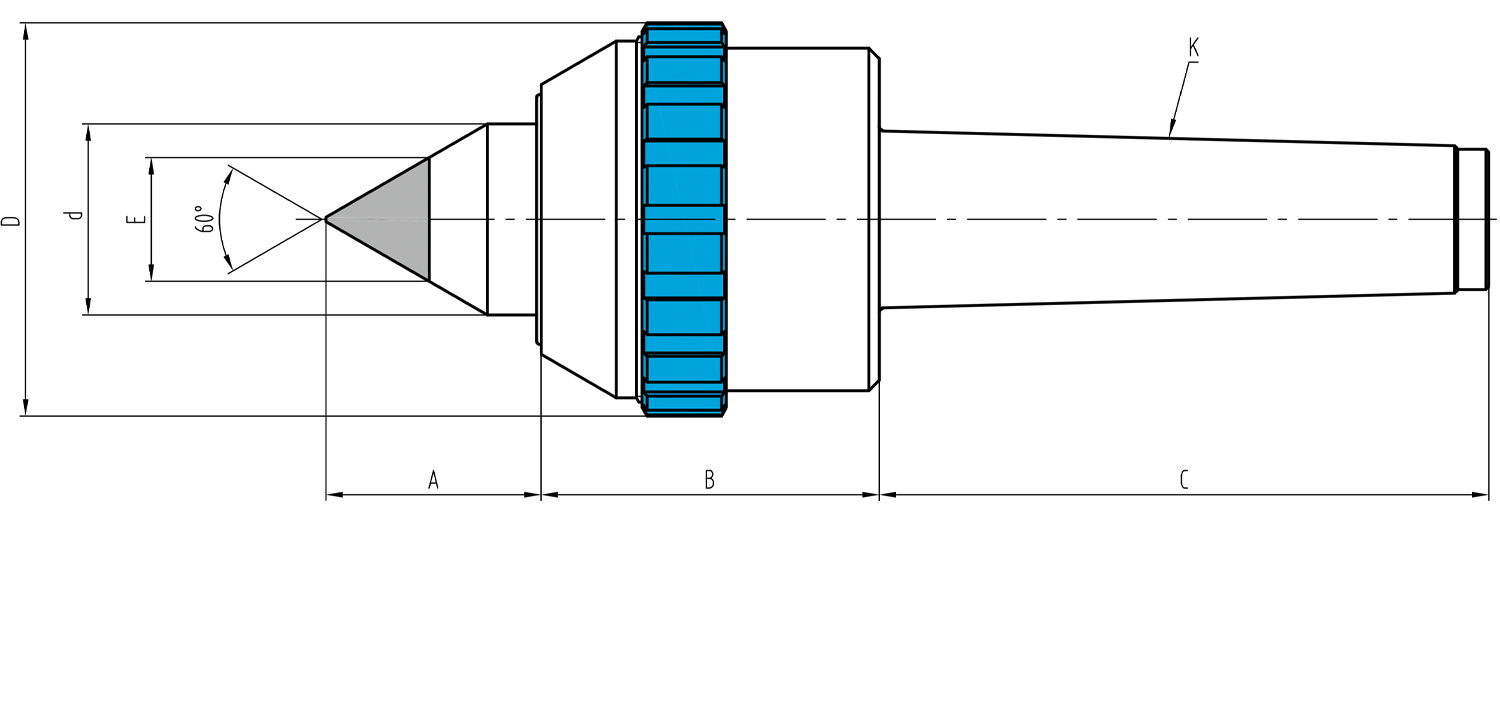

Type DH

DH-types are equipped with a carbide tipped point and are recommended for
machining operations where the live center is subject to frictional wear such as when workpieces are changed at full speed.

Type	Taper	Dimensions in mm						Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	C	D	d	E	max. kg	min -1 max.
DH-2	Morse 2	24	44	68.5	49	19	12	160	5000	3.6002.101	●
DH-3	Morse 3	30	48	86	57	25.5	12	350	4000	3.6003.101	●
DH-4	Morse 4	41	60	108.5	70	34	22	600	3000	3.6004.101	●
DH-5	Morse 5	54	77	135	96	50	22	1000	2000	3.6005.101	●
DH-6	Morse 6	75	100	187.5	128	69	22	2500	1000	3.6006.101

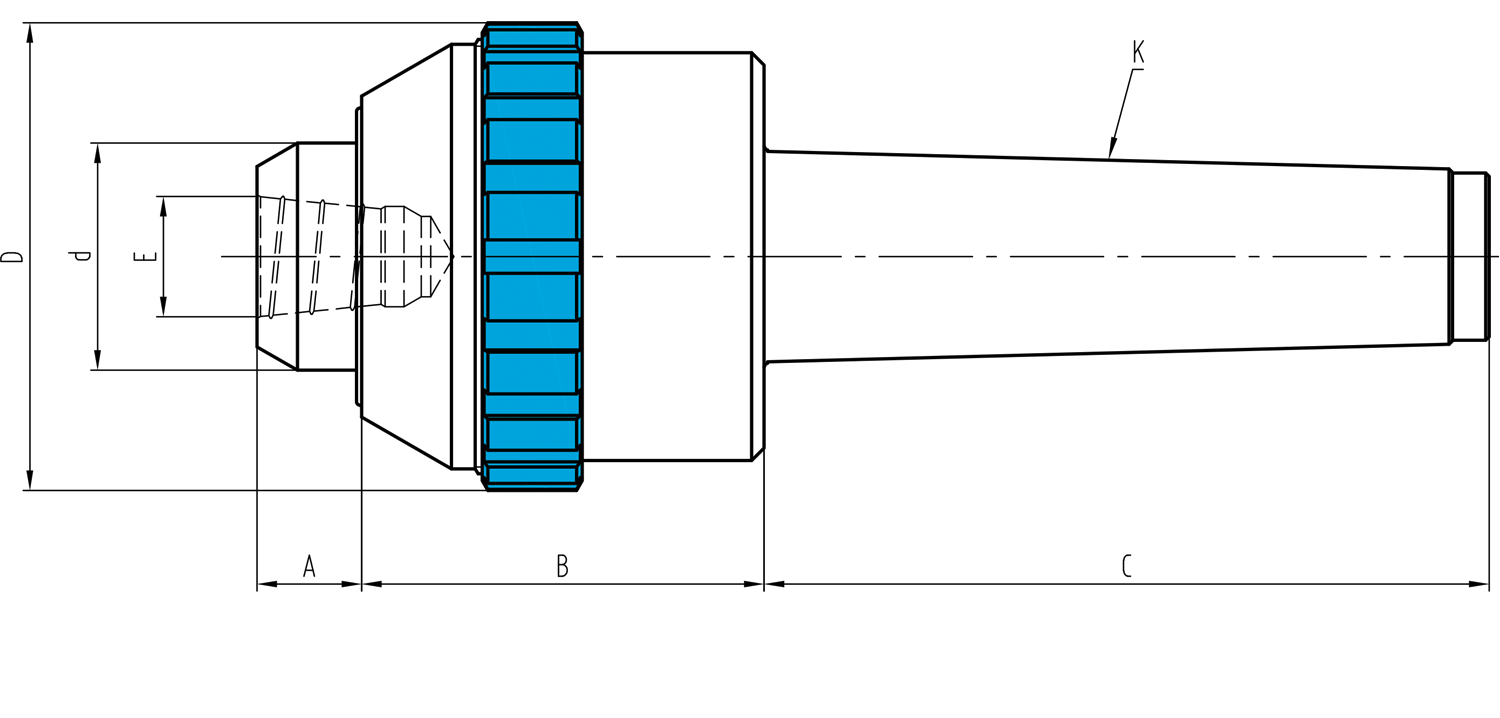

Type DK

DK-type centers have an inner taper that accepts various interchangeable inserts. The inserts can be removed with an ejection tool.

Type	Taper	Dimensions in mm						Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	C	D	d	E	max. kg	min -1 max.
DK-2	Morse 2	9	44	68.5	49	19	11	320	5000	3.5802.101	●
DK-3	Morse 3	14	48	86	57	25.5	14	700	4000	3.5803.101	●
DK-4	Morse 4	16	60	108.5	70	34	18	1100	3000	3.5804.101	●
DK-5	Morse 5	15	77	135	96	50	28	1800	2000	3.5805.101	●
DK-6	Morse 6	27	100	187.5	128	69	38	3000	1000	3.5806.101	●

Type GF

GF-type centers are special designs with fixed point and a bearing-mounted rotating head.
The radial and axial loads are absorbed by several heavy-duty, adjustable roller bearings.
They supplement the DA-series for workpieces with even larger bores. Unlike the other types, the GF center is only supplied with an angle of 75°.

Type	Taper	Dimensions in mm					Workpiece weight	Axial pressure	Admissible speed	Article number	Availability*
	K	B	C	D	d	L	max. kg	max. daN	min -1 max.
GF-2	Morse 2	6	67.5	125	40	60	1100	1200	3600	3.6202.201	●
GF-3	Morse 3	7	85.5	150	50	70	1700	1400	2800	3.6203.201	●
GF-4	Morse 4	7	107.5	190	60	91	2300	3000	2000	3.6204.201	●
GF-5	Morse 5	9	135	240	90	111	4000	4200	1400	3.6205.201

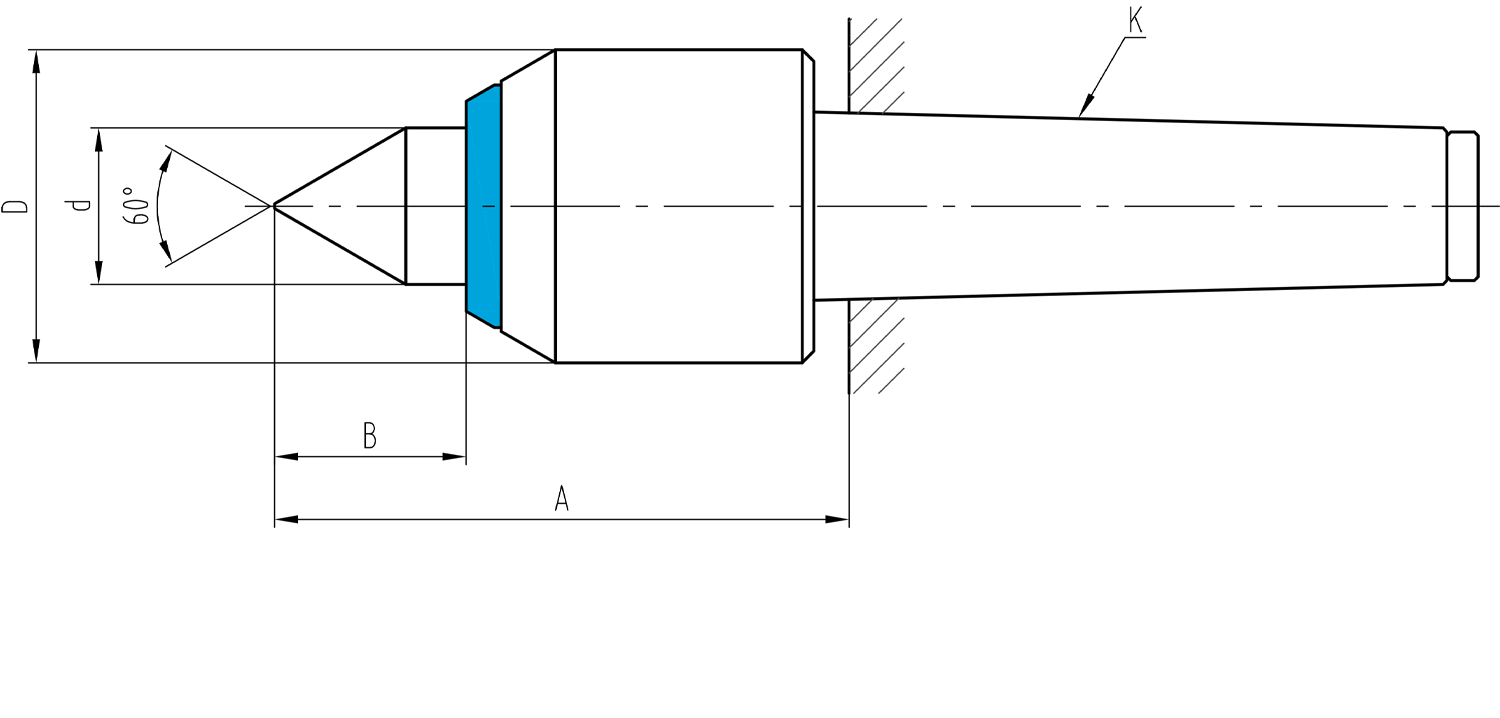

Type XN / Type XNP

Concentricity XN ≤ 0.003
Concentricity XNP ≤ 0.001

Type	Taper	Dimensions in mm				Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	D	d	max. kg	min -1 max.
XN-2	Morse 2	64	22.5	32	18	300	3300	3.0112.101	●
XN-3	Morse 3	73.5	23.5	40	20	450	3000	3.0113.101	●
XN-4	Morse 4	82	28	45	25	550	2500	3.0114.101	●
XNP-2	Morse 2	64	22.5	32	18	300	3300	3.0112.151	●
XNP-3	Morse 3	73.5	23.5	40	20	450	3000	3.0113.151	●
XNP-4	Morse 4	82	28	45	25	550	2500	3.0114.151	●

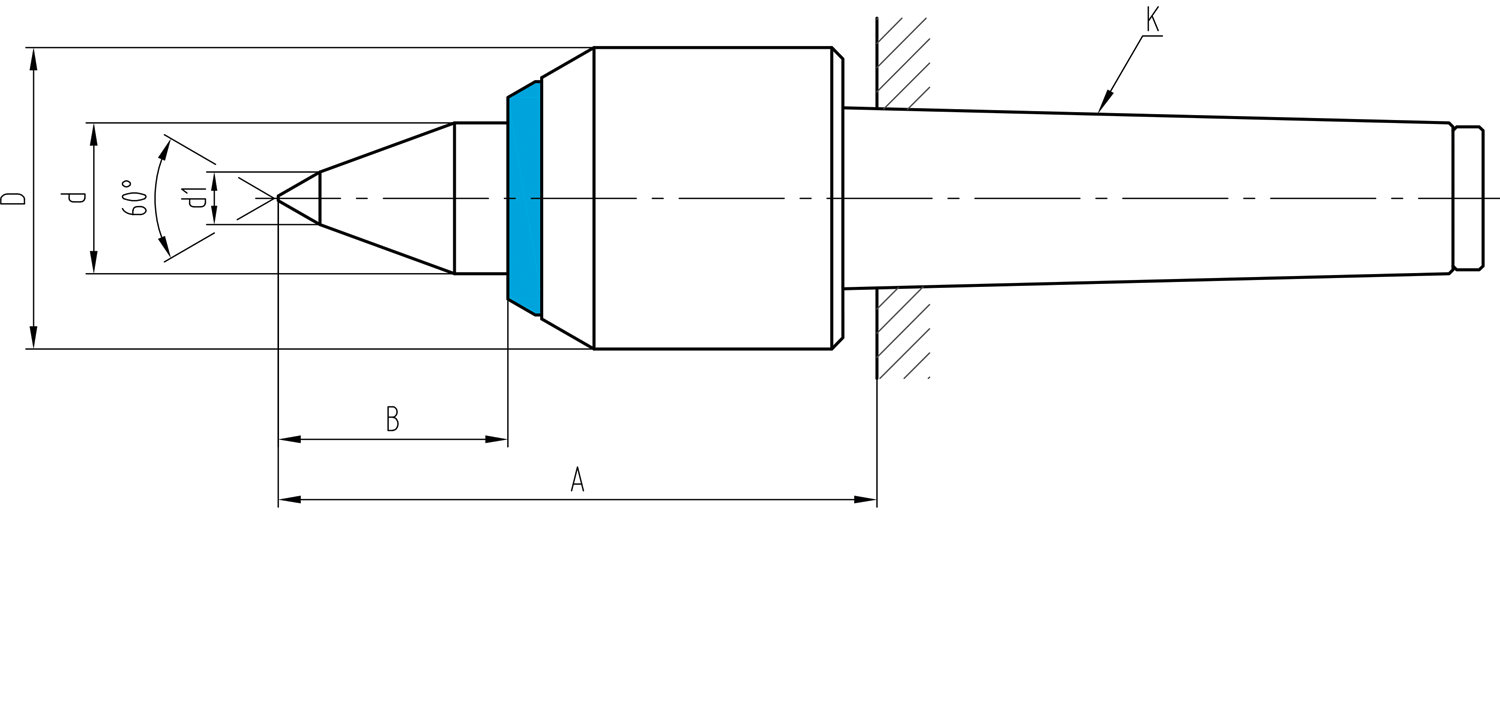

Type XV / Type XVP

Concentricity XV ≤ 0.003
Concentricity XVP ≤ 0.001

Type	Taper	Dimensions in mm					Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	D	d	d1	max. kg	min -1 max.
XV-2	Morse 2	69	27.5	32	18	7	300	3300	3.0212.101	●
XV-3	Morse 3	79.5	29.5	40	20	7	450	3000	3.0213.101	●
XV-4	Morse 4	89.5	35.5	45	25	9	550	2500	3.0214.101	●
XVP-2	Morse 2	69	27.5	32	18	7	300	3300	3.0212.151	●
XVP-3	Morse 3	79.5	29.5	40	20	7	450	3000	3.0213.151	●
XVP-4	Morse 4	89.5	35.5	45	25	9	550	2500	3.0214.151

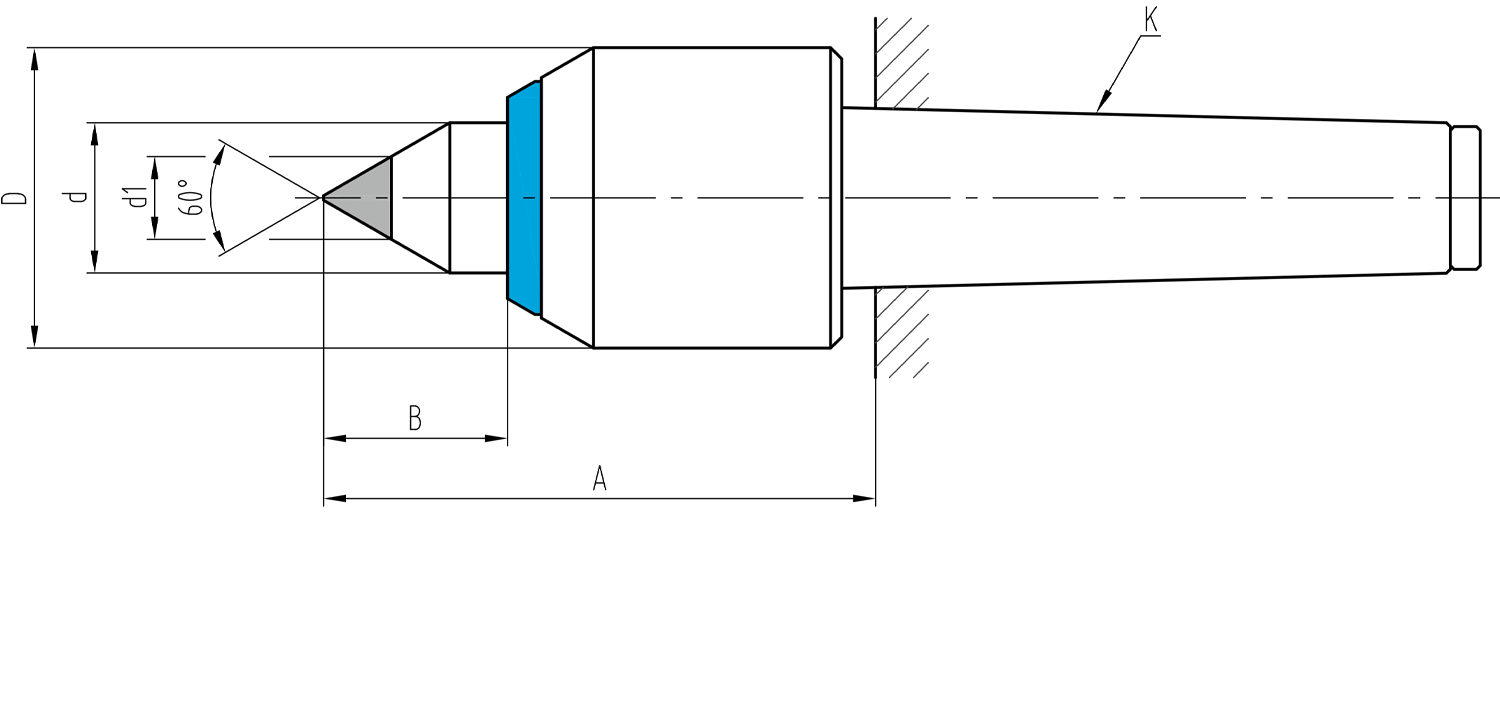

Typ XH / Typ XHP

Concentricity XHP XH ≤ 0.003
Concentricity XHP ≤ 0.001

Type	Taper	Dimensions in mm					Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	D	d	d1	max. kg	min -1 max.
XH-2	Morse 2	64	22.5	32	18	11	300	3300	3.0412.101	●
XH-3	Morse 3	73.5	23.5	40	20	11	450	3000	3.0413.101	●
XH-4	Morse 4	82	28	45	25	14	550	2500	3.0414.101	●
XHP-2	Morse 2	64	22.5	32	18	11	300	3300	3.0412.151	●
XHP-3	Morse 3	73.5	23.5	40	20	11	450	3000	3.0413.151	●
XHP-4	Morse 4	82	28	45	25	14	550	2500	3.0414.151

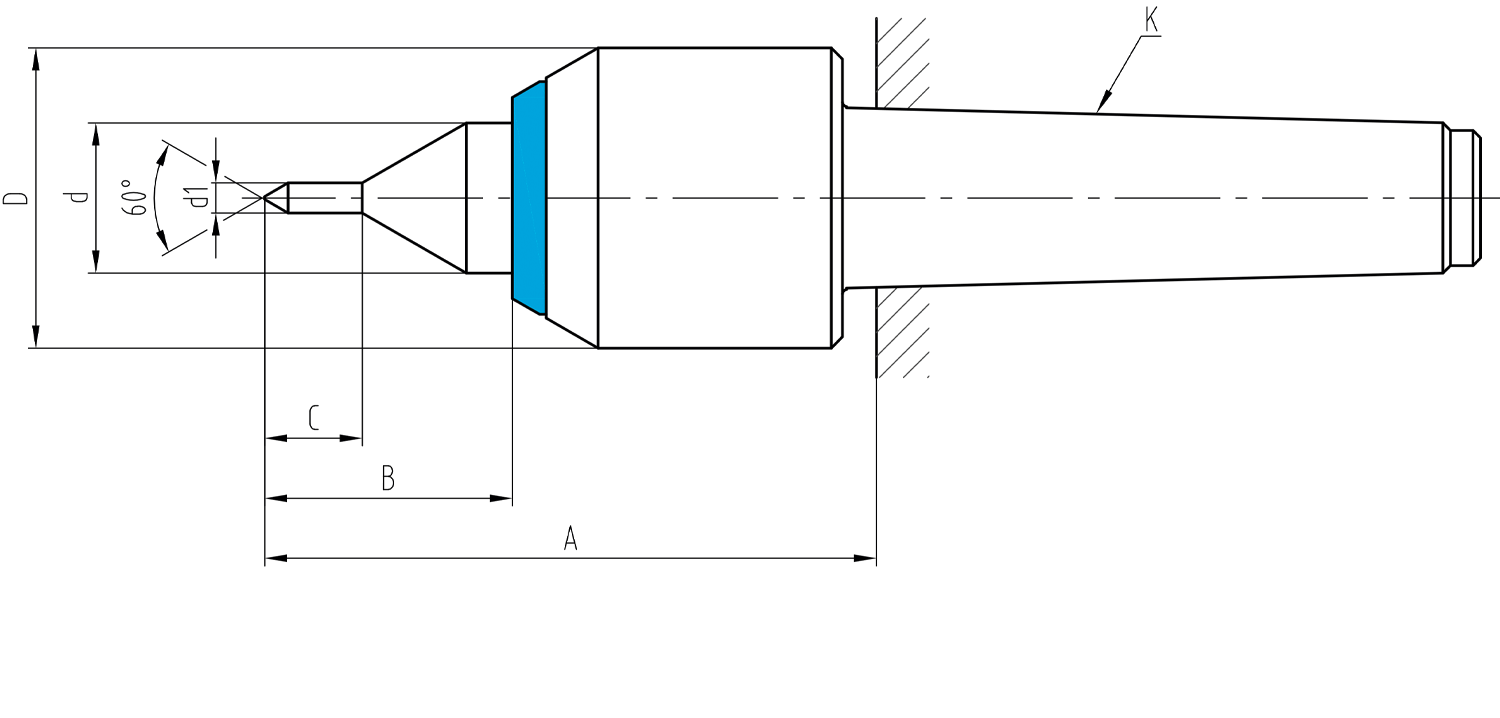

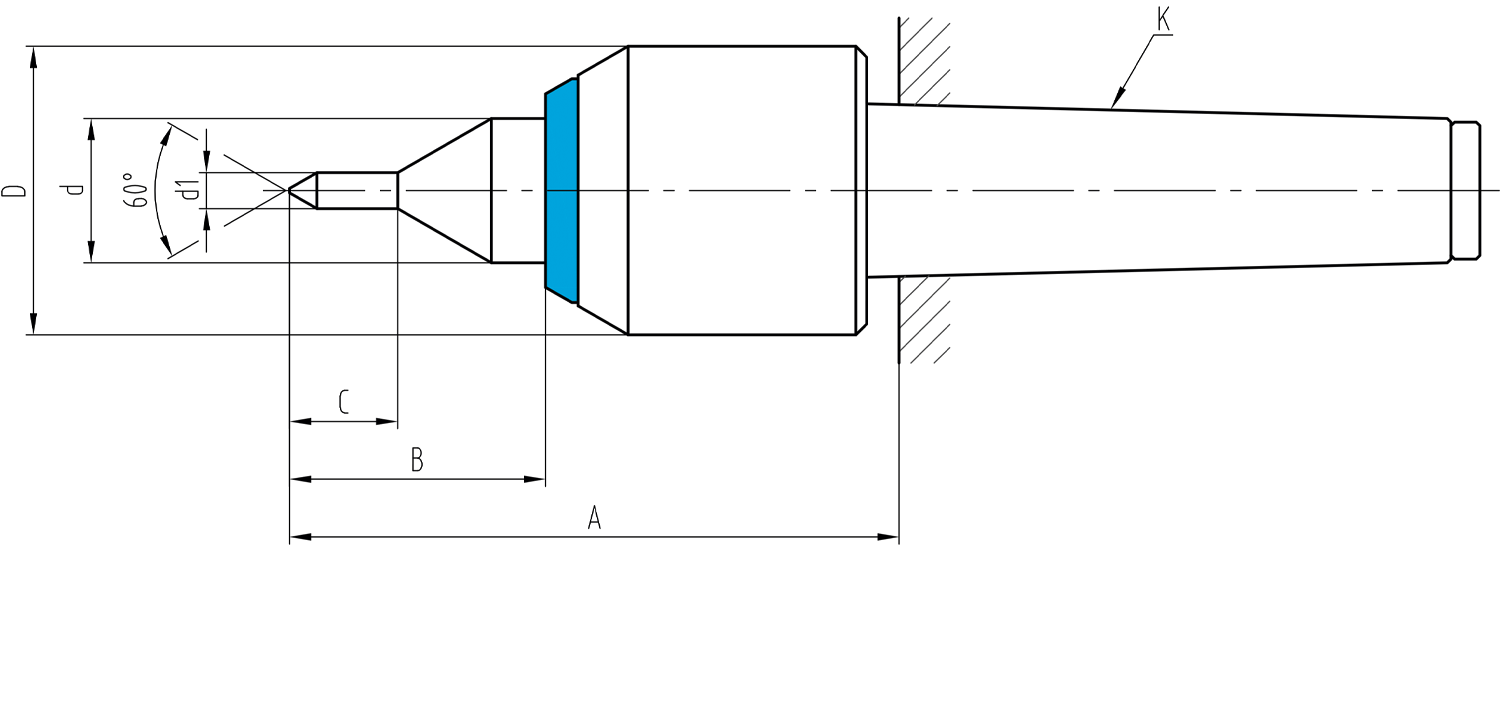

Typ XLK / Typ XLKP

Concentricity XLK ≤ 0.003
Concentricity XLKP ≤ 0.001

Type	Taper	Dimensions in mm						Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	C	D	d	d1	max. kg	min -1 max.
XLK-2	Morse 2	73	31.5	13	32	18	4	300	3300	3.0512.101	●
XLK-3	Morse 3	84.5	34.5	15	40	20	5	450	3000	3.0513.101	●
XLK-4	Morse 4	92.5	38.5	17	45	25	8	550	2500	3.0514.101	●
XLKP-2	Morse 2	73	31.5	13	32	18	4	300	3300	3.0512.151	●
XLKP-3	Morse 3	84.5	34.5	15	40	20	5	450	3000	3.0513.151	●
XLKP-4	Morse 4	92.5	38.5	17	45	25	8	550	2500	3.0514.151

Typ XLG / Typ XLGP

Concentricity XLG ≤ 0.003
Concentricity XLGP ≤ 0.001

Type	Taper	Dimensions in mm						Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	C	D	d	d1	max. kg	min -1 max.
XLG-2	Morse 2	74	32.5	17	32	18	8	300	3300	3.0612.101	●
XLG-3	Morse 3	84.5	34.5	19	40	20	9	450	3000	3.0613.101	●
XLG-4	Morse 4	93.5	39.5	22	45	25	12	550	2500	3.0614.101	●
XLGP-2	Morse 2	74	32.5	17	32	18	8	300	3300	3.0612.151	●
XLGP-3	Morse 3	84.5	34.5	19	40	20	9	450	3000	3.0613.151	●
XLGP-4	Morse 4	93.5	39.5	22	45	25	12	550	2500	3.0614.151

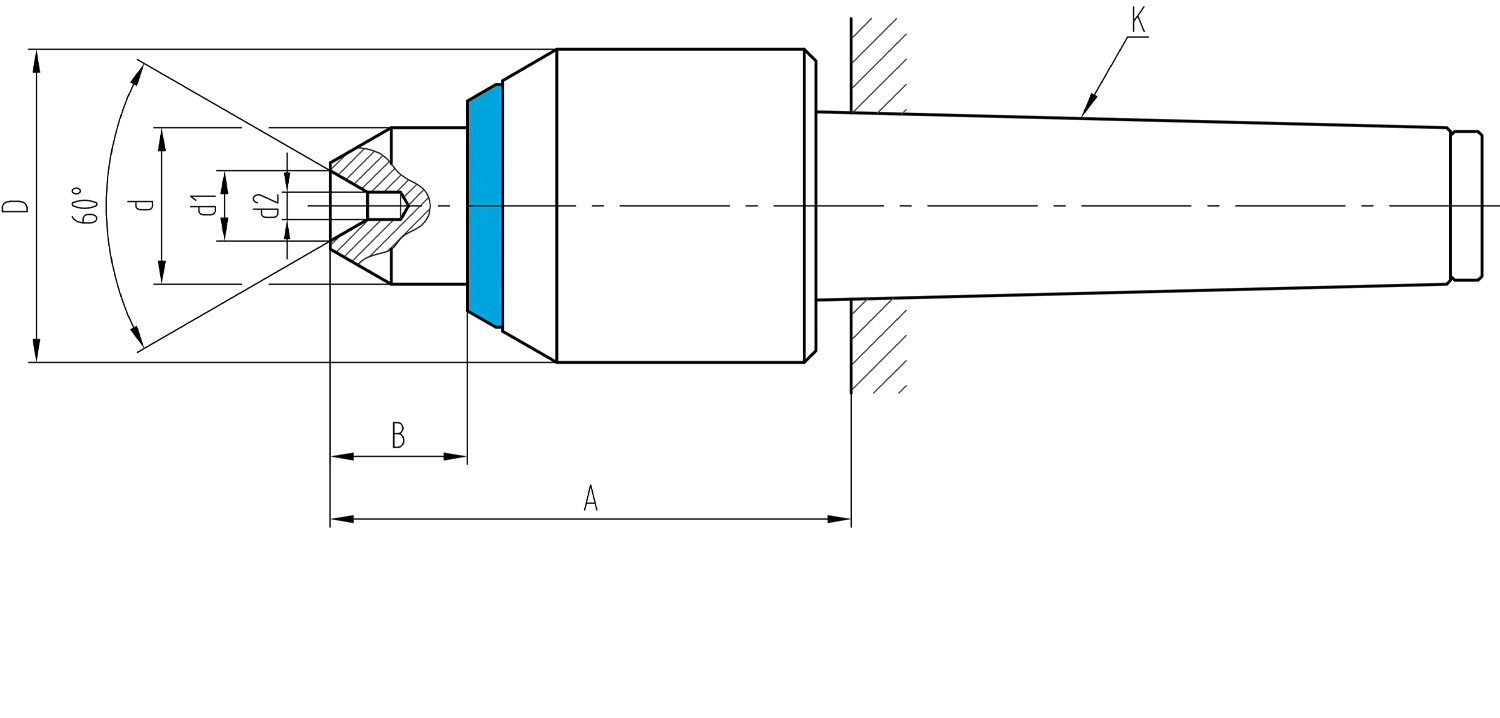

Typ XFK/ Typ XFKP

Concentricity XFK ≤ 0.003
Concentricity XFKP ≤ 0.001

Type	Taper	Dimensions in mm					Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	D	d	d1	max. kg	min -1 max.
XFK-2	Morse 2	58.5	17	32	18	4.5	300	3300	3.0712.101	●
XFK-3	Morse 3	66.5	16.5	40	20	6	450	3000	3.0713.101	●
XFK-4	Morse 4	72	18	45	25	9	550	2500	3.0714.101	●
XFKP-2	Morse 2	58.5	17	32	18	4.5	300	3300	3.0712.151	●
XFKP-3	Morse 3	66.5	16.5	40	20	6	450	3000	3.0713.151	●
XFKP-4	Morse 4	72	18	45	25	9	550	2500	3.0714.151

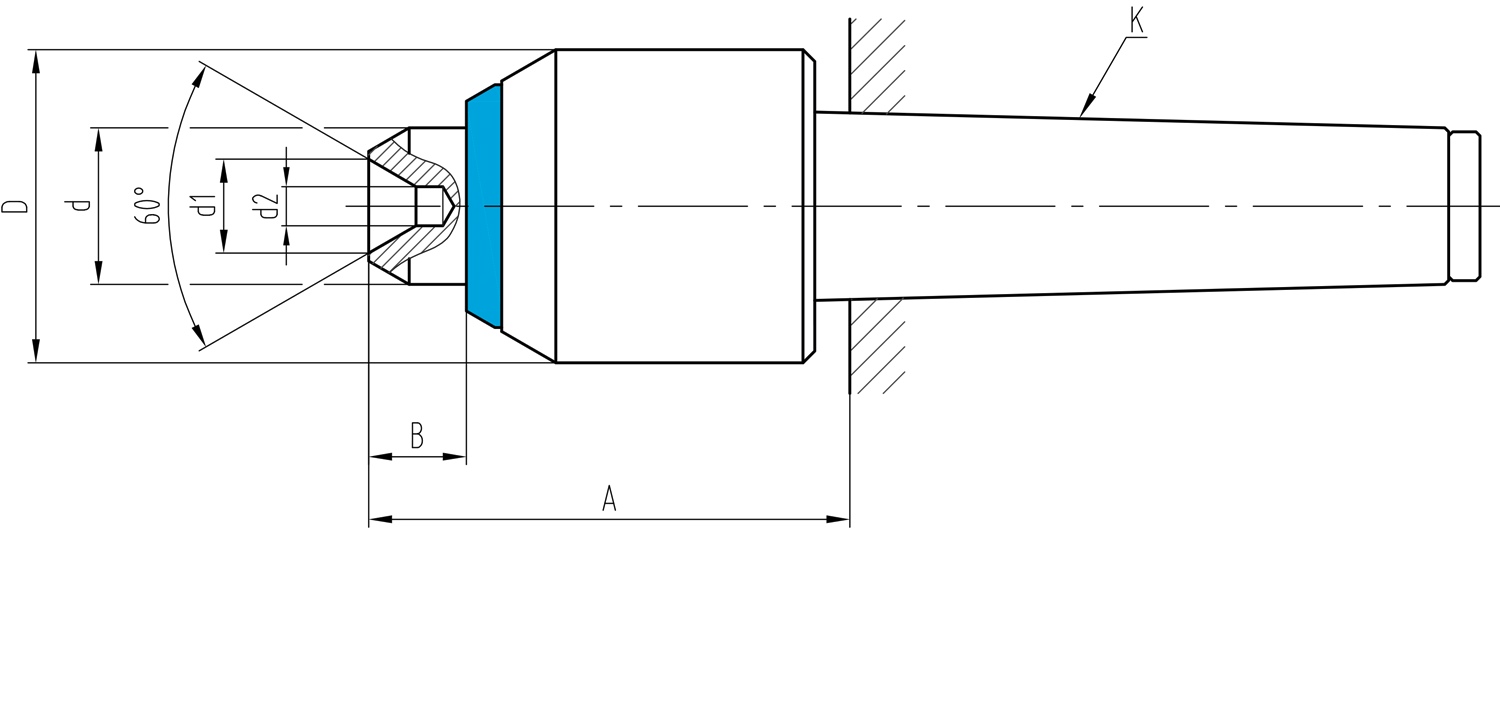

Type XFG / type XFGP

Concentricity XFK ≤ 0.003
Concentricity XFKP ≤ 0.001

Type	Taper	Dimensions in mm						Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	D	d	d1	d2	max. kg	min -1 max.
XFG-2	Morse 2	55	13.5	32	18	9	3.5	300	3300	3.0812.101	●
XFG-3	Morse 3	61.5	11.5	40	20	12	5	450	3000	3.0813.101	●
XFG-4	Morse 4	66.5	12.5	45	25	16	7	550	2500	3.0814.101	●
XFGP-2	Morse 2	55	13.5	32	18	9	3.5	300	3300	3.0812.151	●
XFGP-3	Morse 3	61.5	11.5	40	20	12	5	450	3000	3.0813.151	●
XFGP-4	Morse 4	66.5	12.5	45	25	16	7	550	2500	3.0814.151

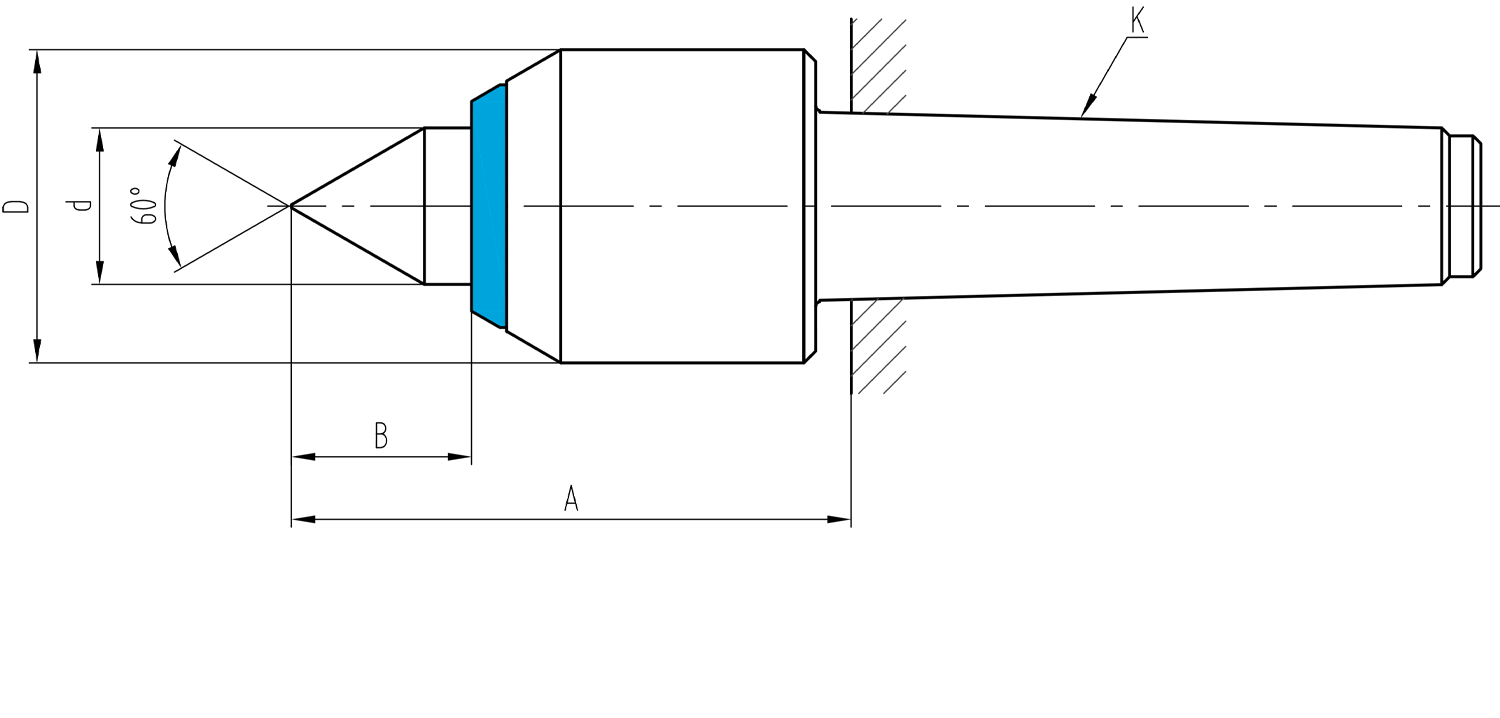

Type TN

Type	Taper	Dimensions in mm				Workpiece weight	Admissible speed	Article Number	Availability*
	K	A	B	D	d	max. kg	min -1 max.
TN-2/1	Morse 2	67.5	20.5	35	18	120	8000	3.0122.1101	●
TN-2	Morse 2	71	23	40	20	250	7500	3.0122.101	●
TN-3/2	Morse 3	71.5	23	40	20	250	7500	3.0123.2101	●
TN-3	Morse 3	80	27	45	25	420	6000	3.0123.101	●
TN-4/3	Morse 4	82	27	45	25	420	6000	3.0124.3101	●
TN-4	Morse 4	93.5	33	55	30	700	5000	3.0124.101	●
TN-5/4	Morse 5	93.5	33	55	30	700	5000	3.0125.4101	●

Type	Holding fixture	A	B	D	d	Article number	Availability*
TN-2 VDI-30	VDI-30	67	23	40	20	3.0122.171	●
TN-3 VDI-40	VDI-40	75.5	27	45	25	3.0123.172	●
TN-4 VDI-50	VDI-50	87	33	55	30	3.0124.173

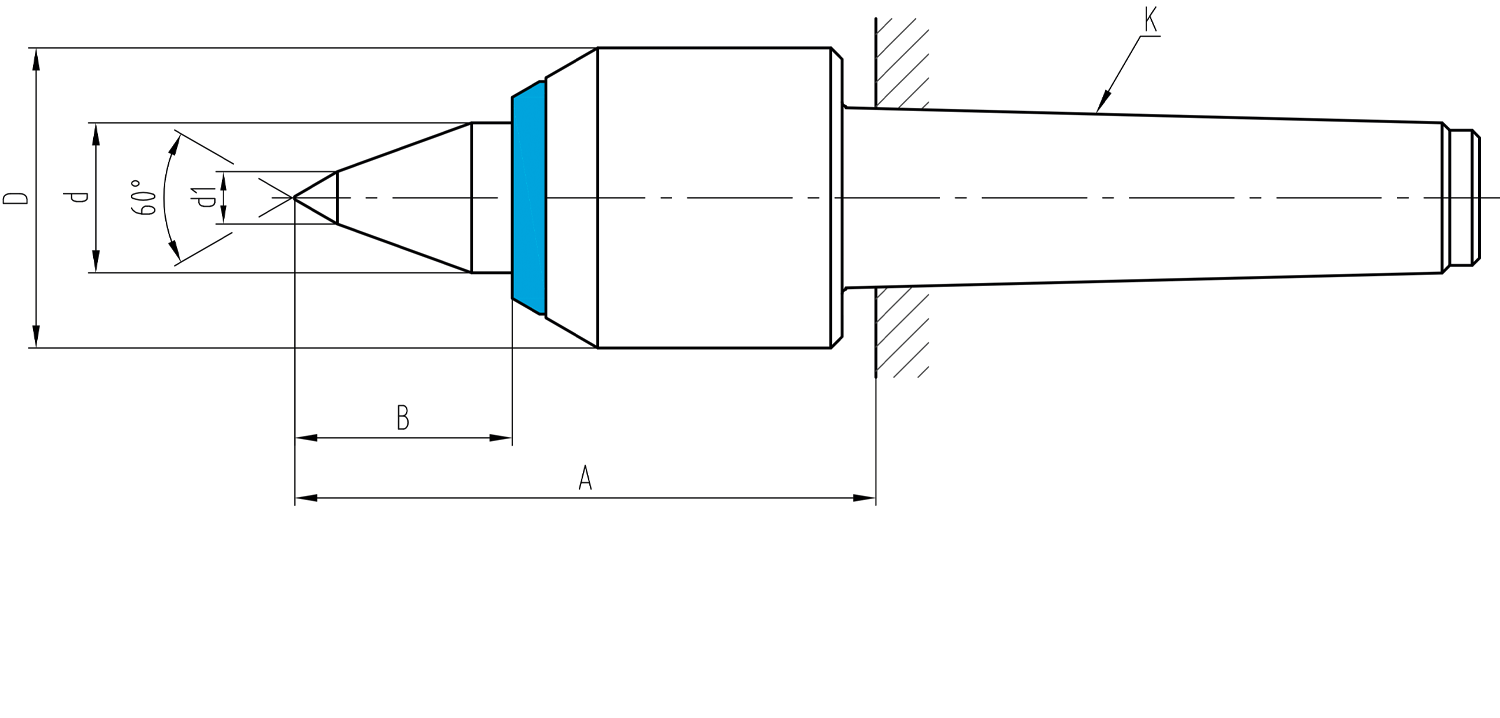

Type TV

Type	Taper	Dimensions in mm					Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	D	d	d1	max. kg	min -1 max.
TV-2/1	Morse 2	73	26	35	18	7	120	8000	3.0222.1101	●
TV-2	Morse 2	77	29	40	20	7	250	7500	3.0222.101	●
TV-3/2	Morse 3	77.5	29	40	20	7	250	7500	3.0223.2101	●
TV-3	Morse 3	87.5	34.5	45	25	9	420	6000	3.0223.101	●
TV-4/3	Morse 4	89.5	34.5	45	25	9	420	6000	3.0224.3101	●
TV-4	Morse 4	102.5	42	55	30	12	700	5000	3.0224.101	●
TV-5/4	Morse 5	102.5	42	55	30	12	700	5000	3.0225.4101	●

Type	Holding fixture	A	B	D	d	d1	Article number	Availability*
TV-2 VDI-30	VDI-30	73	29	40	20	7	3.0222.171	●
TV-3 VDI-40	VDI-40	83	34.5	45	25	9	3.0223.172	●
TV-4 VDI-50	VDI-50	96	42	55	30	12	3.0224.173

Type TLK

Type	Taper	Dimensions in mm						Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	C	D	d	d1	max. kg	min -1 max.
TLK-2/1	Morse 2	75.5	28.5	11	35	18	3.5	120	8000	3.0522.1101	●
TLK-2	Morse 2	81	33	13	40	20	4	250	7500	3.0522.101	●
TLK-3/2	Morse 3	81.5	33	13	40	20	4	250	7500	3.0523.2101	●
TLK-3	Morse 3	91.5	38.5	15	45	25	5	420	6000	3.0523.101	●
TLK-4/3	Morse 4	93.5	38.5	15	45	25	5	420	6000	3.0524.3101

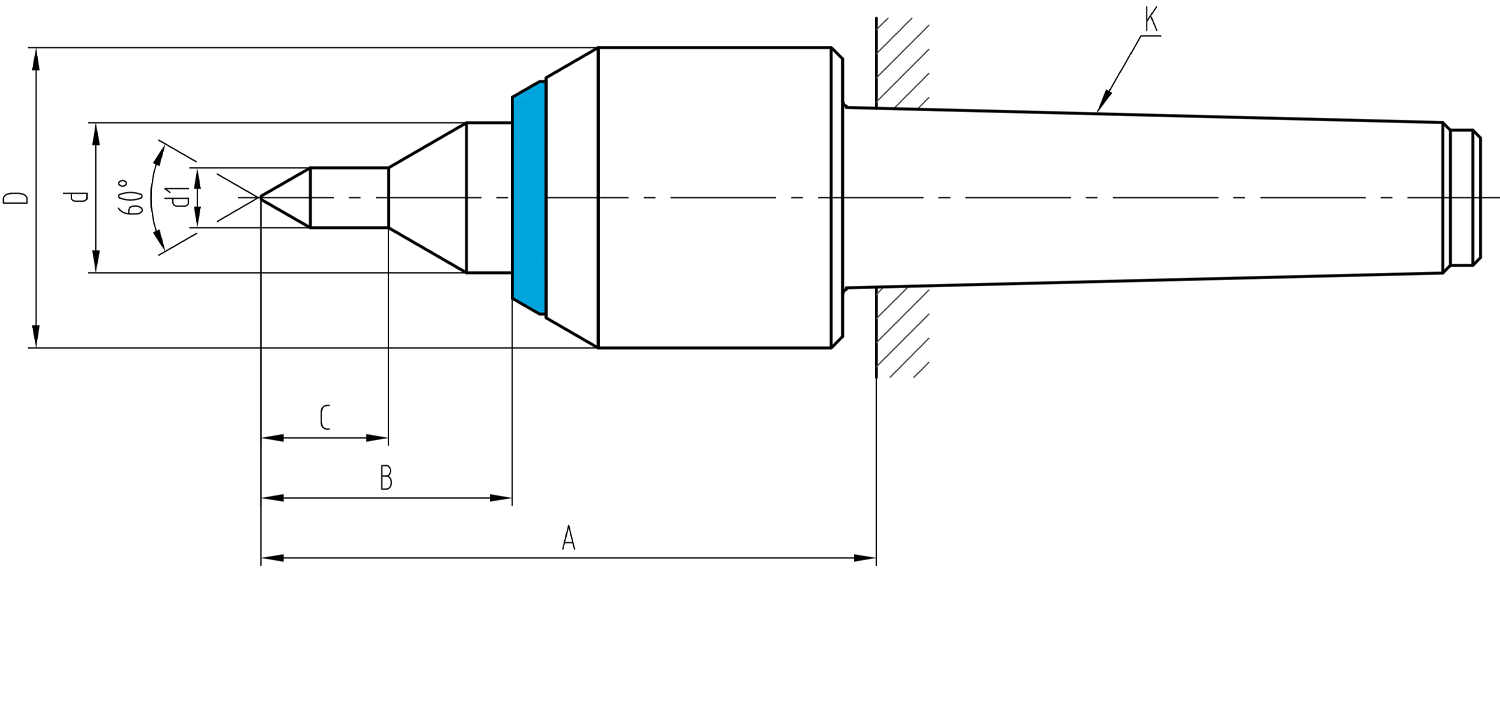

Typ TLG

Type	Taper	Dimensions in mm						Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	C	D	d	d1	max. kg	min -1 max.
TLG-2/1	Morse 2	76	29	15	35	18	7	120	8000	3.0622.1101	●
TLG-2	Morse 2	81.5	33.5	17	40	20	8	250	7500	3.0622.101	●
TLG-3/2	Morse 3	82	33.5	17	40	20	8	250	7500	3.0623.2101	●
TLG-3	Morse 3	92	39	19	45	25	9	420	6000	3.0623.101	●
TLG-4/3	Morse 4	94	39	19	45	25	9	420	6000	3.0624.3101

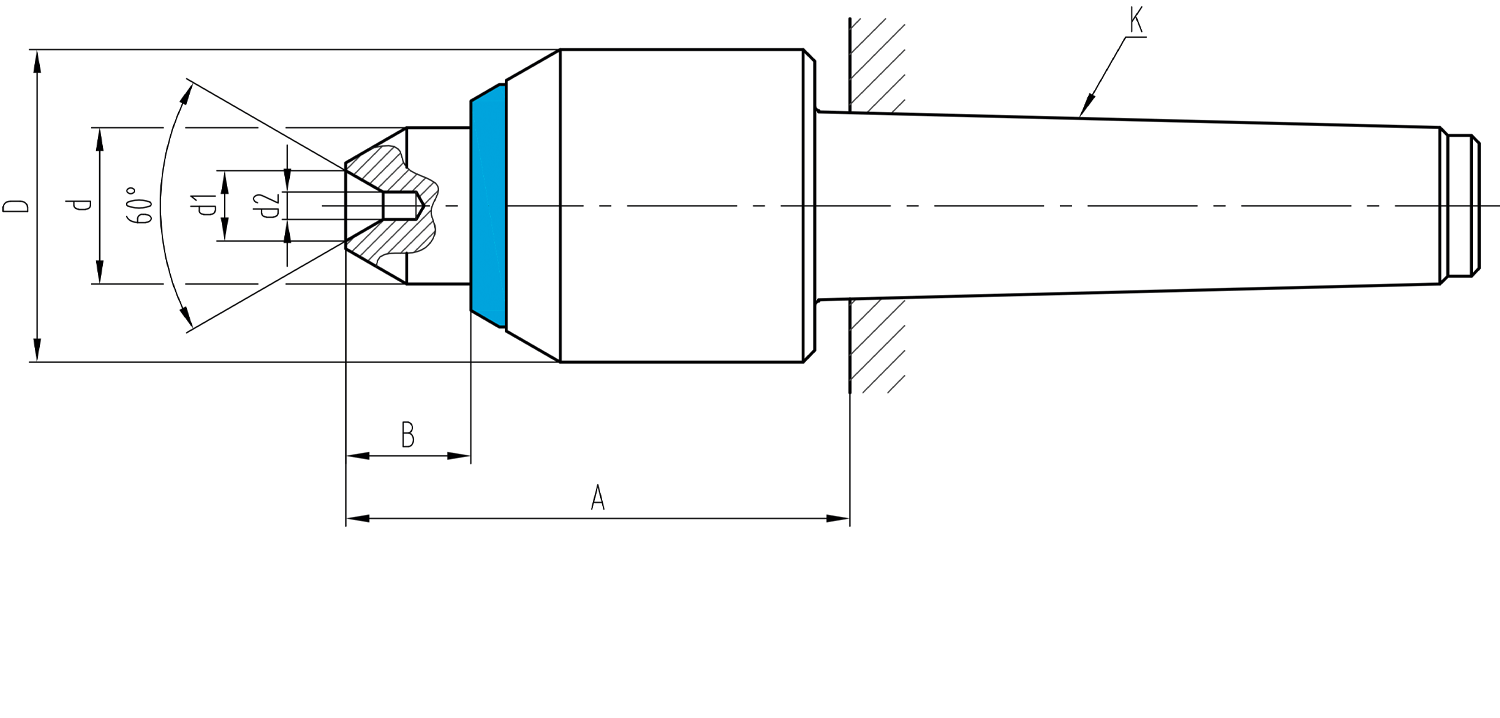

Type TFK

Type	Taper	Dimensions in mm						Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	D	d	d1	d2	max. kg	min -1 max.
TFK-2/1	Morse 2	62	15	35	18	4	1.5	120	8000	3.0722.1101	●
TFK-2	Morse 2	64	16	40	20	4.5	1.5	250	7500	3.0722.101	●
TFK-3/2	Morse 3	64.5	16	40	20	4.5	1.5	250	7500	3.0723.2101	●
TFK-3	Morse 3	71	18	45	25	6	2	420	6000	3.0723.101	●
TFK-4/3	Morse 4	73	18	45	25	6	2	420	6000	3.0724.3101

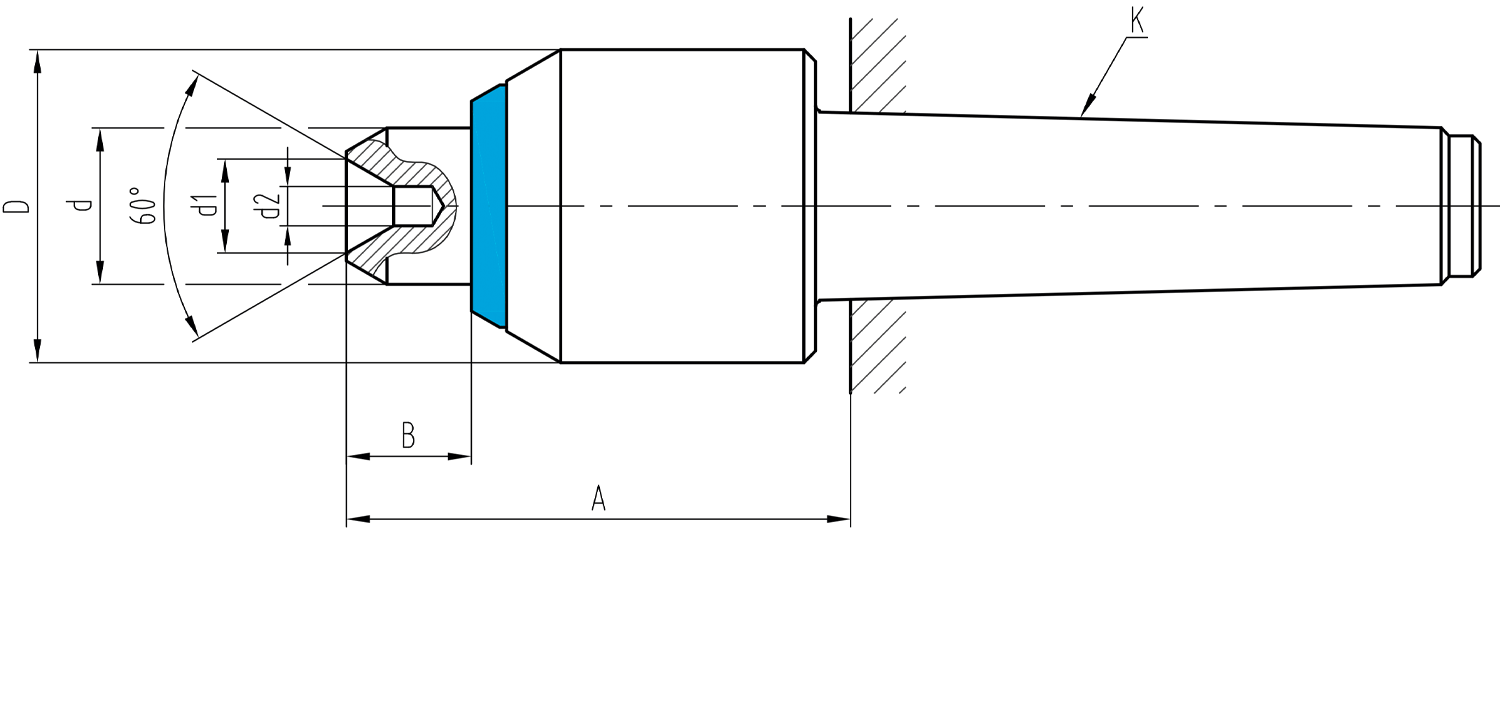

Typ TFM

Type	Taper	Dimensions in mm						Workpiece weight	Admissible speed	Article number	Availability*
	K	A	B	D	d	d1	d2	max. kg	min -1 max.
TFM-2/1	Morse 2	62	15	35	18	4.5	1.5	120	8000	3.1022.1101	●
TFM-2	Morse 2	64	16	40	20	6	2	250	7500	3.1022.101	●
TFM-3/2	Morse 3	64.5	16	40	20	6	2	250	7500	3.1023.2101	●
TFM-3	Morse 3	71	18	45	25	9	3.5	420	6000	3.1023.101	●
TFM-4/3	Morse 4	73	18	45	25	9	3.5	420	6000	3.1024.3101	●
TFM-4	Morse 4	82	21.5	55	30	12	5	700	5000	3.1024.101	●
TFM-5/4	Morse 5	82	21.5	55	30	12	5	700	5000	3.1025.4101

สินค้าที่คล้ายกัน

Series R ยันศูนย์เป็น (Live center)

Series R

คำอธิบายซีรี่ส์ R ต้องกำหนดแรงดันจับยึดที่เหมาะสมที่สุดสำหรับชิ้นงานแต่ละประเภท การเปลี่ยนแปลงแรงดันทำได้โดยการดันศูนย์กลางหมุนกลับเข้าไปในตัวเรือน ค่าที่อ่านได้จะแสดงด้วยแถบสีต่างๆ แผนภาพด้านล่างแสดงตำแหน่งเพลาที่สอดคล้องกันสำหรับขนาดศูนย์กลางแต่ละขนาดสำหรับแรงดันจับยึดตามแนวแกนที่กำหนด การขยายตัวเนื่องจากความร้อนของชิ้นงานระหว่างการตัดเฉือนจะได้รับการชดเชยโดยอัตโนมัติ <div

ยันศูนย์เป็น (Live center) SWISS MADE

ยันศูนย์เป็น (Live Centers) คืออุปกรณ์ที่ใช้ติดตั้งบนยันศูนย์ท้ายแท่น (Tailstock) ของเครื่องกลึง เพื่อประคองชิ้นงานที่มีขนาดยาว ป้องกันไม่ให้ชิ้นงานแกว่งหรือโก่งงอขณะกลึง <div id="series-c"

HOBS (dry/wet cutting)

จำหน่าย Lathe Collets, Swiss-Type Collets, and Carbide Guide Bushings

Enituice Enterprise บริษัทของเราทุ่มเทให้กับการผลิตคอลเล็ตที่มีความแม่นยำสูง บูชนำทางคาร์ไบด์ที่มีความแม่นยำสูง คอลเล็ตคาร์ไบด์ที่มีความแม่นยำสูง และคอลเล็ตพิเศษ พร้อมทั้งให้บริการปรับแต่งตามความต้องการของลูกค้า Enituice ได้ให้บริการแก่ผู้ผลิตเครื่องมือกล ผู้เชี่ยวชาญในอุตสาหกรรมการผลิต
