3.0mmx60°Standard Soft Jaws
Description

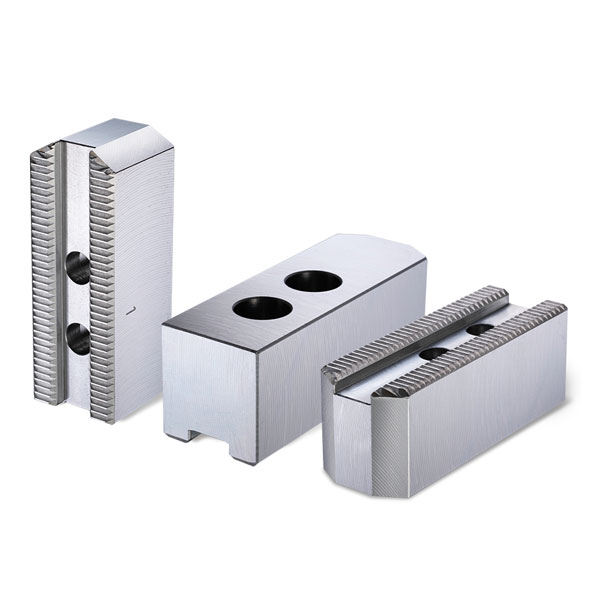

Standard soft jaws (3.0mm × 60°) are designed for use with CNC lathes. Depending on specific machining requirements, customers can select from diverse sizes and user options, reducing the need for unnecessary adjustments.
Feature
- Materials: S45C
- Serration Pitch：3.0mm×60°
- To conform to the chucks from Kitagawa and other global brands
- Angle type: Flat type, 120° Standard type
- For sizes not listed, please refer to the “Soft Jaw Customization Form” on page 22 of the catalog.
Dimensions
Specifications
UNIT: mm
3.0mmx60°Extra Height Soft Jaws
Description
Extra height soft jaws (3.0mm × 60°) are designed for use with CNC lathes. Depending on specific machining requirements, customers can select from diverse sizes and user options, reducing the need for unnecessary adjustments.
Feature
- Materials: S45C
- Serration Pitch：3.0mm×60°
- To conform to the chucks from Kitagawa and other global brands
- Angle type: Flat type only
- For sizes not listed, please refer to the “Soft Jaw Customization Form” on page 22 of the catalog.
Dimensions
Specifications
UNIT: mm
| Model | S-1 | S-2 | S-3 | S-4 | S-5 | S-6 | S-7 | S-8 | S-9 | S-10 | S-11 | Serration Pitch | Angle | Gross Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SJA21070A | 180 | 63 | 70 | 25 | 9 | 45 | 60 | 80 | M20 | 40 | N/A | 3.0mm×60° | Flat type | 15.8 |
| SJA21100A | 180 | 63 | 100 | 25 | 9 | 75 | 60 | 80 | M20 | 40 | N/A | 3.0mm×60° | Flat type | 24.8 |
| SJA21120A | 180 | 63 | 120 | 25 | 9 | 95 | 60 | 80 | M20 | 40 | N/A | 3.0mm×60° | Flat type | 26.5 |
| SJA21150A | 180 | 63 | 150 | 25 | 9 | 125 | 60 | 80 | M20 | 40 | N/A | 3.0mm×60° | Flat type | 36.8 |
| Model | S-1 | S-2 | S-3 | S-4 | S-5 | S-6 | S-7 | S-8 | S-9 | S-10 | S-11 | Serration Pitch | Angle | Gross Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SJA24070A | 180 | 63 | 70 | 25 | 9 | 45 | 60 | 80 | M20 | 40 | N/A | 3.0mm×60° | Flat type | 15.8 |
| SJA24100A | 180 | 63 | 100 | 25 | 9 | 75 | 60 | 80 | M20 | 40 | N/A | 3.0mm×60° | Flat type | 24.8 |
| SJA24120A | 180 | 63 | 120 | 25 | 9 | 95 | 60 | 80 | M20 | 40 | N/A | 3.0mm×60° | Flat type | 26.5 |
| SJA24150A | 180 | 63 | 150 | 25 | 9 | 125 | 60 | 80 | M20 | 40 | N/A | 3.0mm×60° | Flat type | 36.8 |
