Drop-forged shank made of hardened steel. Rotating point made of through-hardened, alloy steel. Four-point support for high axial and radial loads. Concentricity 0.005 mm or better. High speeds of 10 000 RPMs. Double labyrinth seal design. No maintenance up to 2000 hours and longer service life due to lifetime lubrication of the roller bearings. These live centers are designed for CNC machine tools and copying lathes with hydraulic tail -stocks as well as for machining workpieces with small center holes, and precision machining at ultrahigh speeds.

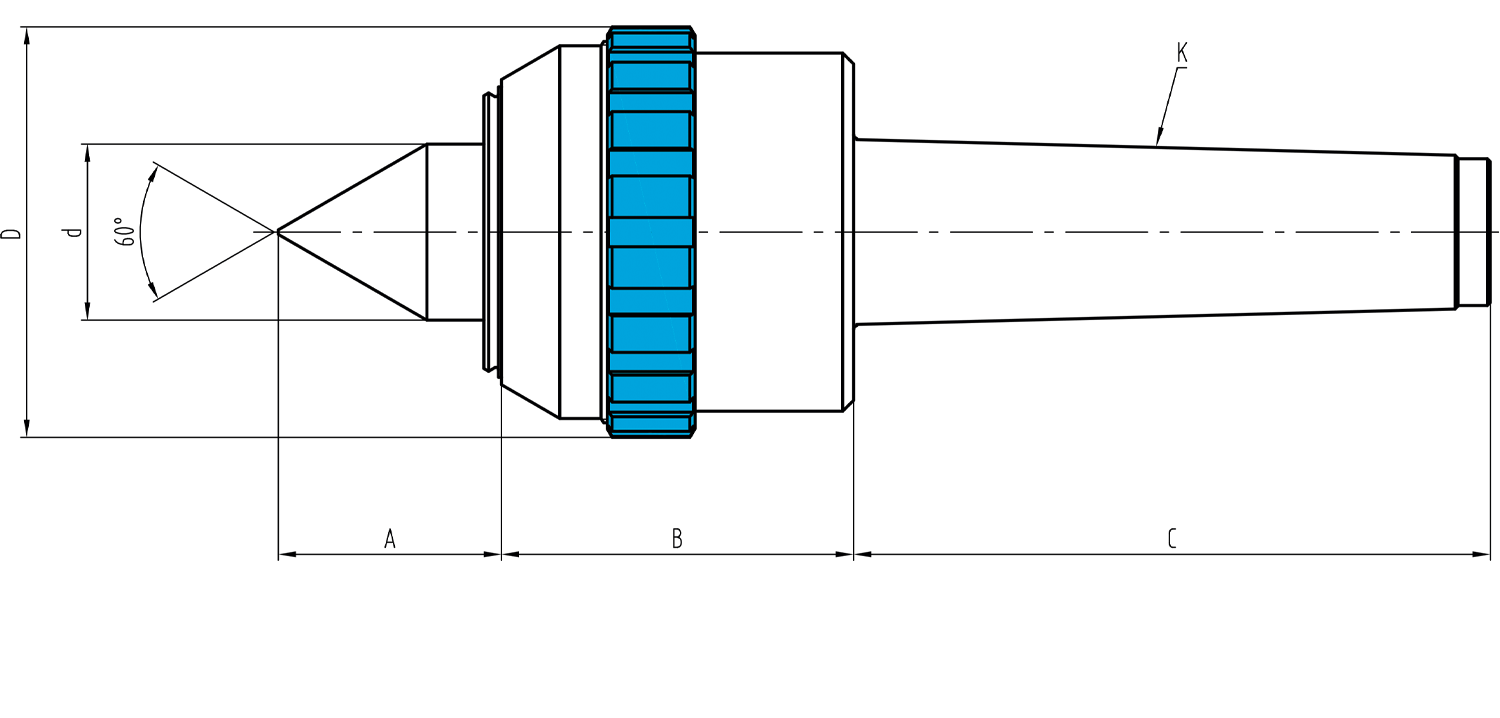

Type C
Live centers type C with 60° center for high speeds.
| Type | Taper | Dimensions in mm | Workpiece weight | Admissible speed | Article number | Availability* | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| K | A | B | C | D | d | max. kg | min-1 max. | |||
| C-3 | Morse 3 | 29 | 48 | 86 | 57 | 22 | 750 | 10000 | 3.5103.101 | ● |
| C-3 | Ø 25 | 29 | 48 | 54.5 | 57 | 22 | 750 | 10000 | 3.5103.110 | ● |
| C-3 | Ø 25.4 | 29 | 48 | 54.5 | 57 | 22 | 750 | 10000 | 3.5103.111 | ● |
| C-3 | Ø 32 | 29 | 48 | 86 | 57 | 22 | 750 | 10000 | 3.5103.107 | ● |
| C-4 | Morse 4 | 38 | 60 | 108.5 | 70 | 30 | 1400 | 1750 | 3.5104.101 | ● |
| C-4 | Ø 32 | 38 | 60 | 108.5 | 70 | 30 | 1400 | 1750 | 3.5104.107 | ● |
| C-5 | Morse 5 | 52 | 77 | 135 | 96 | 45 | 2500 | 3000 | 3.5105.101 | ● |
| C-6 | Morse 6 | 74 | 100 | 187.5 | 128 | 65 | 3800 | 4800 | 3.5106.101 | ● |

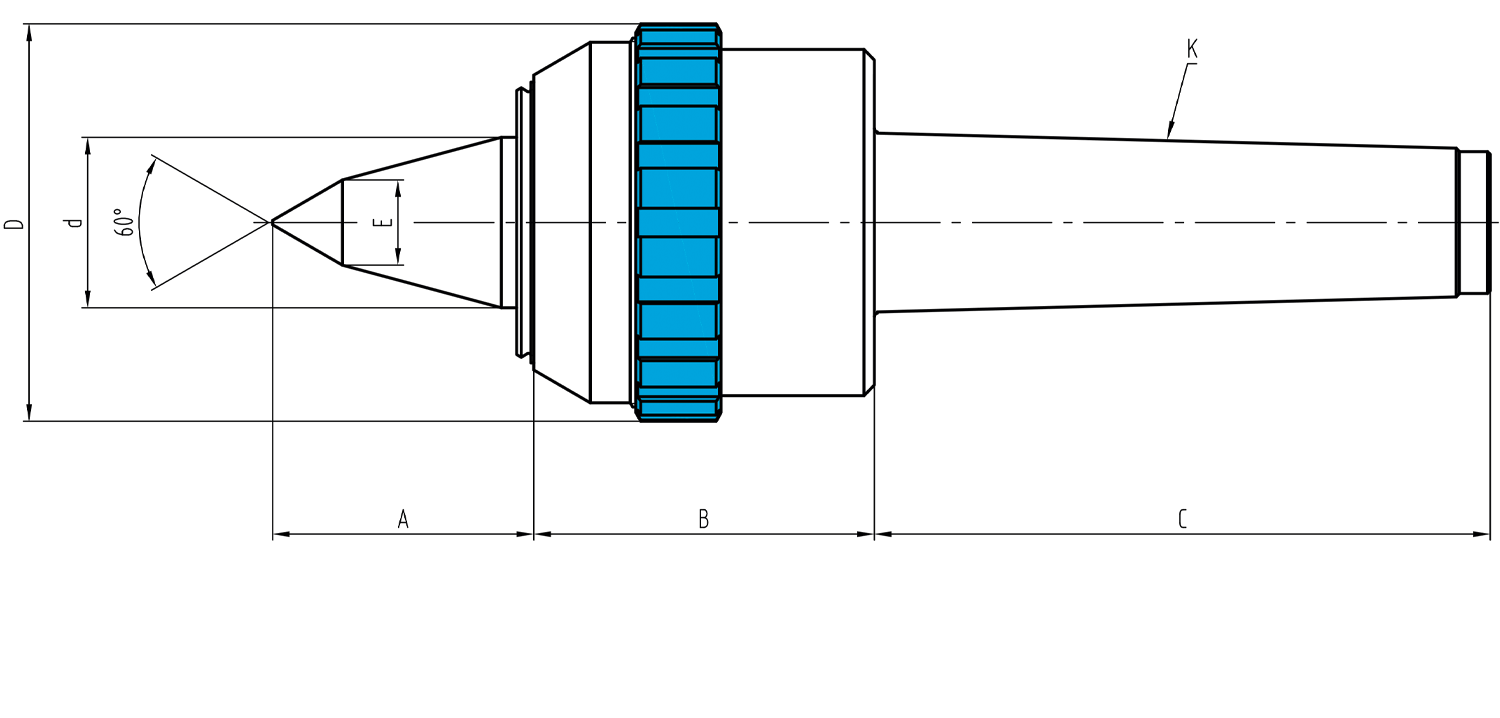

Type CV
Live centers type CV with extended point for high speeds.
| Type | Taper | Dimensions in mm | Workpiece weight | Admissible speed | Article number | Availability* | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| K | A | B | C | D | d | E | max. kg | min -1 max. | |||
| CV-3 | Morse 3 | 32 | 48 | 86 | 57 | 22 | 12 | 700 | 10000 | 3.5203.101 | ● |
| CV-3 | Ø 32 | 32 | 48 | 86 | 57 | 22 | 12 | 700 | 10000 | 3.5203.107 | ● |
| CV-4 | Morse 4 | 46 | 60 | 108.5 | 70 | 30 | 15 | 1300 | 8000 | 3.5204.101 | ● |
| CV-4 | Ø 32 | 46 | 60 | 108.5 | 70 | 30 | 15 | 1300 | 8000 | 3.5204.107 | ● |
| CV-5/4 | Morse 5 | 46 | 60 | 133.5 | 70 | 30 | 15 | 1300 | 8000 | 3.5205.4101 | ● |
| CV-5 | Morse 5 | 72 | 77 | 135 | 96 | 45 | 18.5 | 1900 | 6000 | 3.5205.101 | ● |
| CV-6 | Morse 6 | 105 | 100 | 187.5 | 128 | 65 | 22 | 2800 | 4000 | 3.5206.101 | |

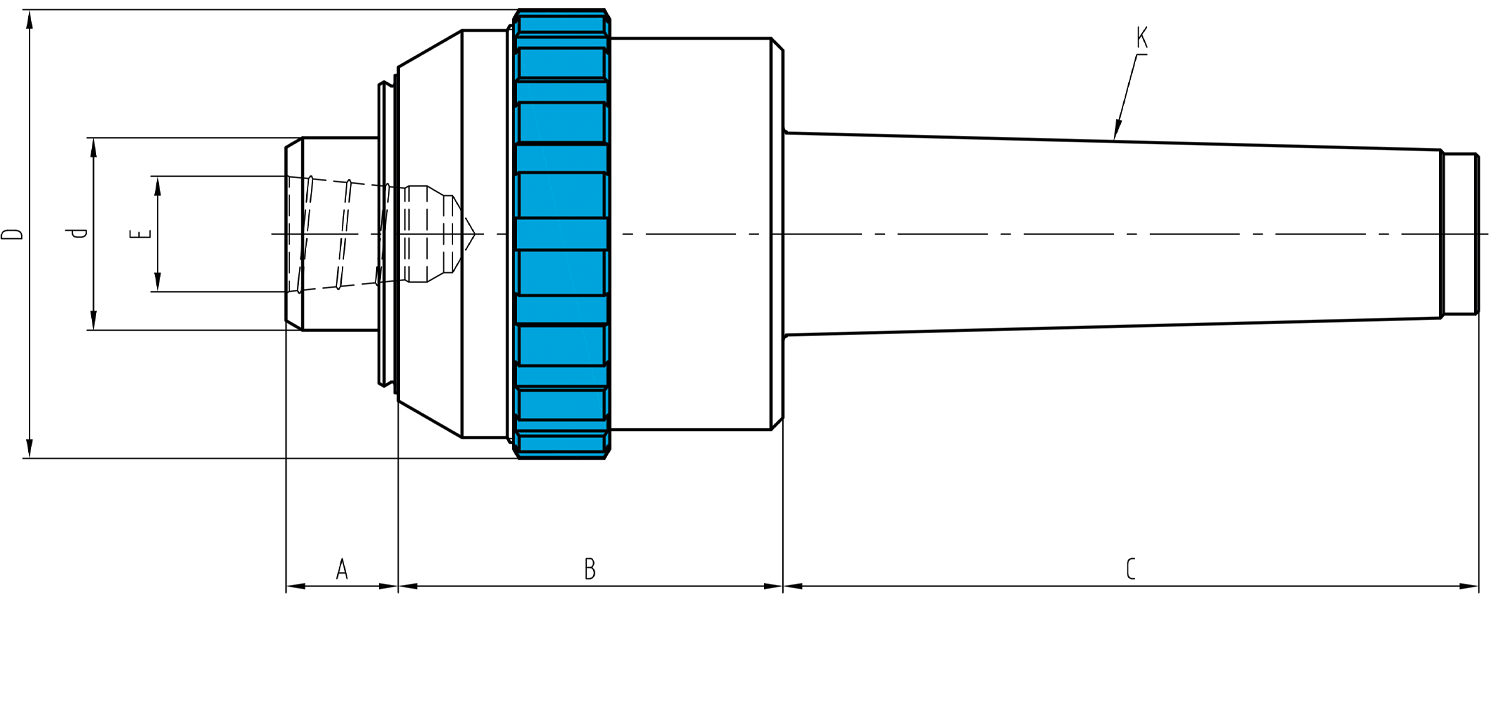

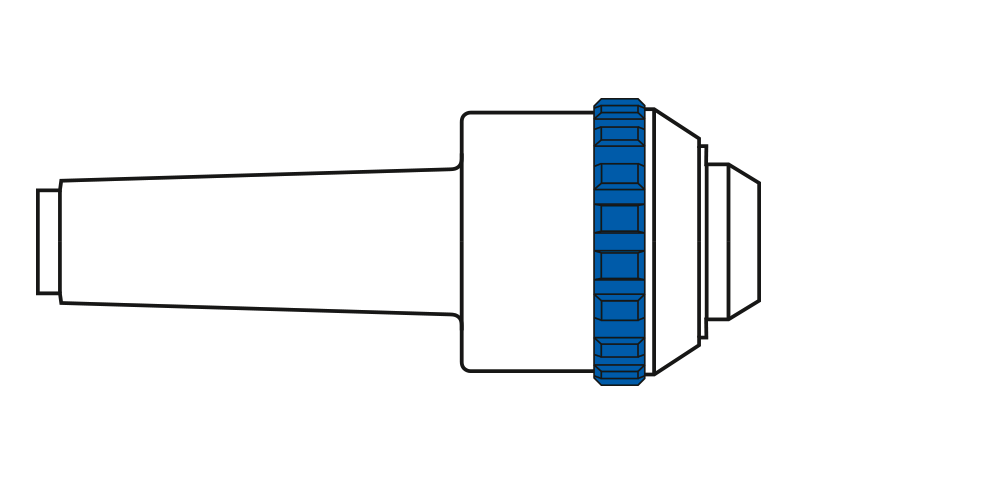

Type CK
The CK-types have an inner taper that accepts various interchangeable inserts. The inserts can be removed with an ejection tool.
| Type | Taper | Dimensions in mm | Workpiece weight | Axial pressure max. daN | Admissible speed | Article number | Availability* | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K | A | B | C | D | d | E | max. kg | min -1 max. | ||||
| CK-4 | MK 4 | 14.5 | 60 | 108.5 | 70 | 30 | 18 | 1400 | 1750 | 8000 | 3.6304.101 | ● |
| CK-5/4 | MK 5 | 14.5 | 60 | 135 | 70 | 30 | 18 | 1400 | 1750 | 8000 | 3.6305.4101 | |
