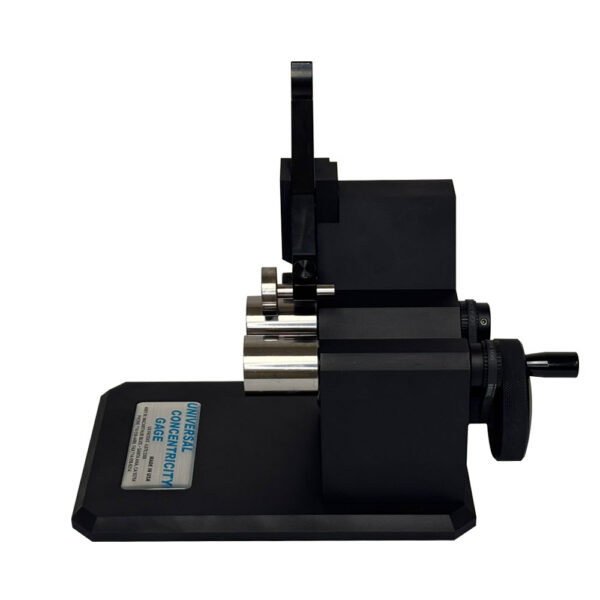

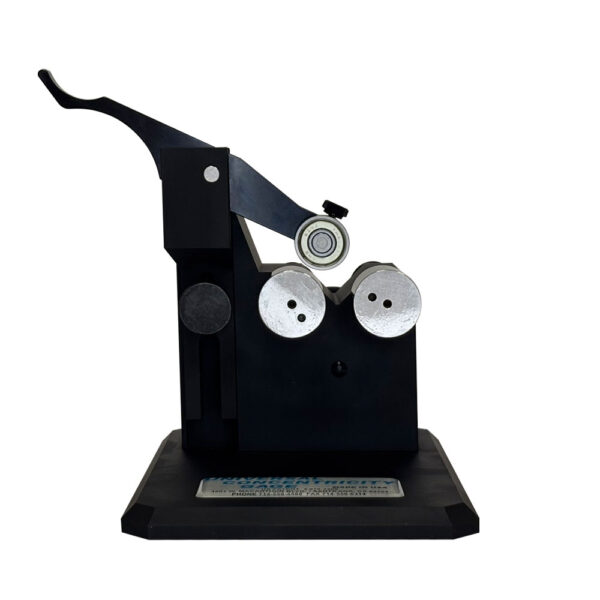

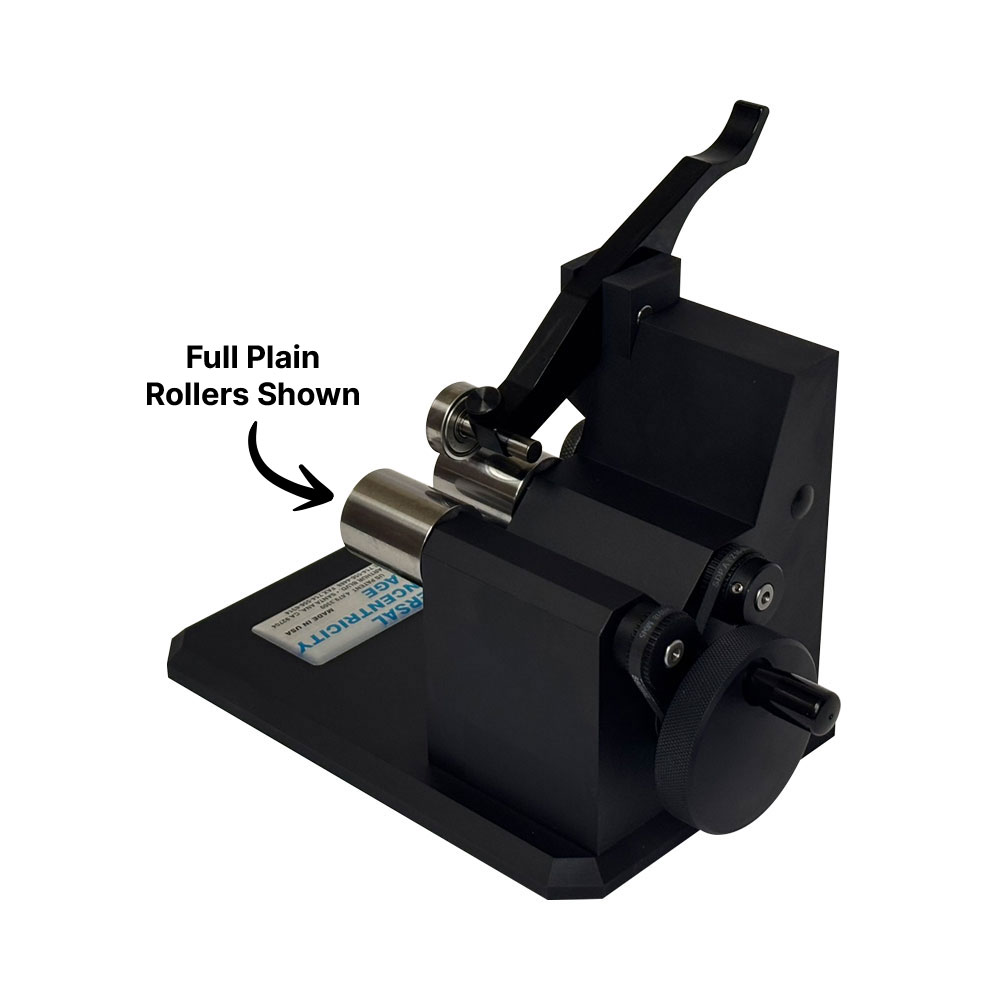

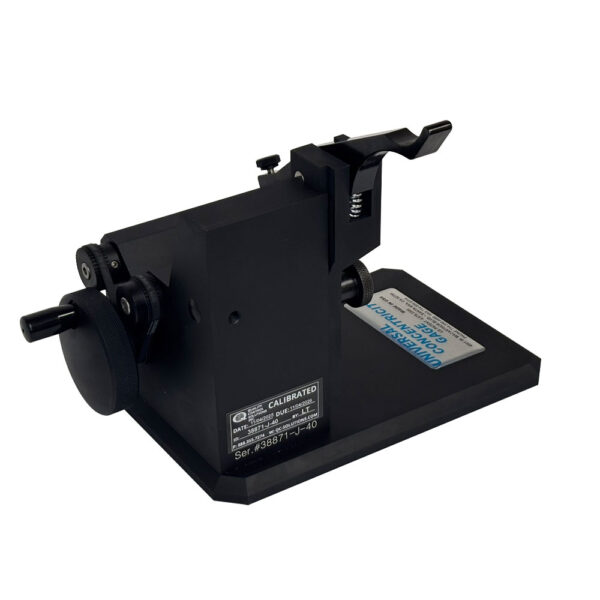

J-40 Universal Punch Concentricity Gage

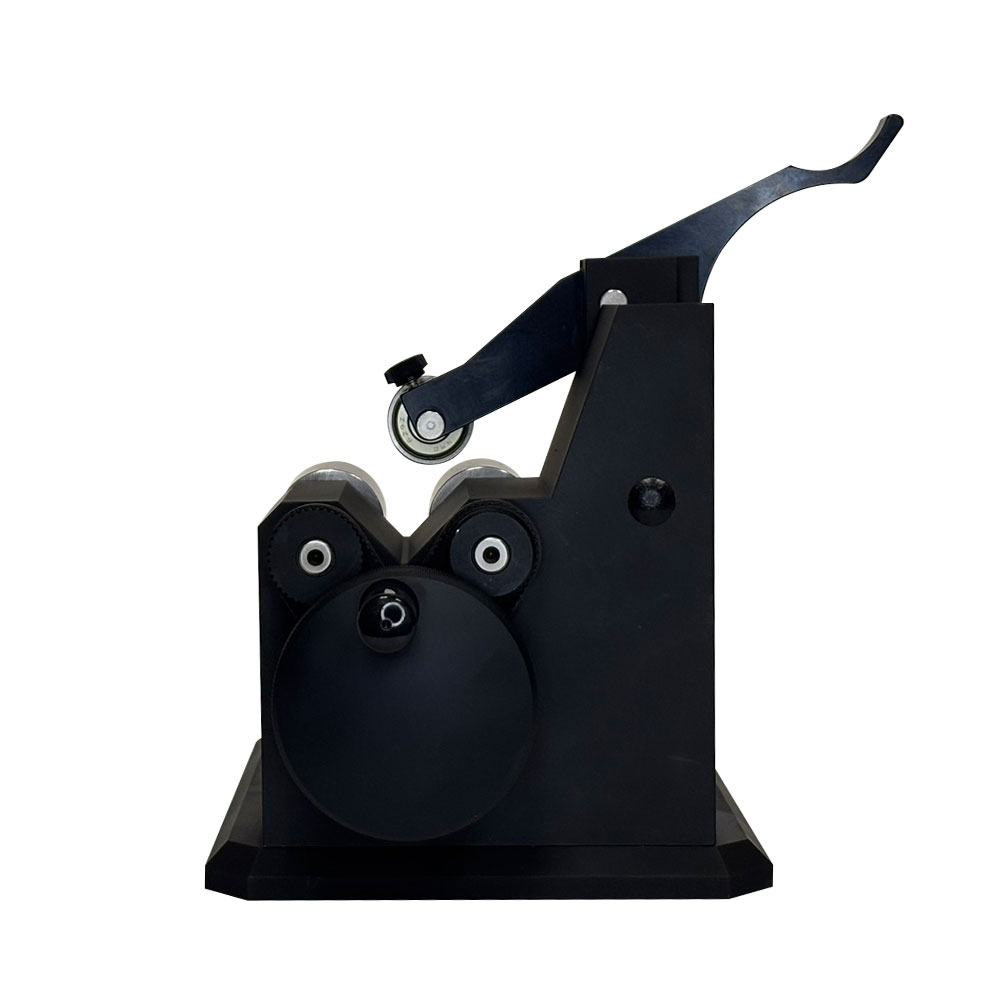

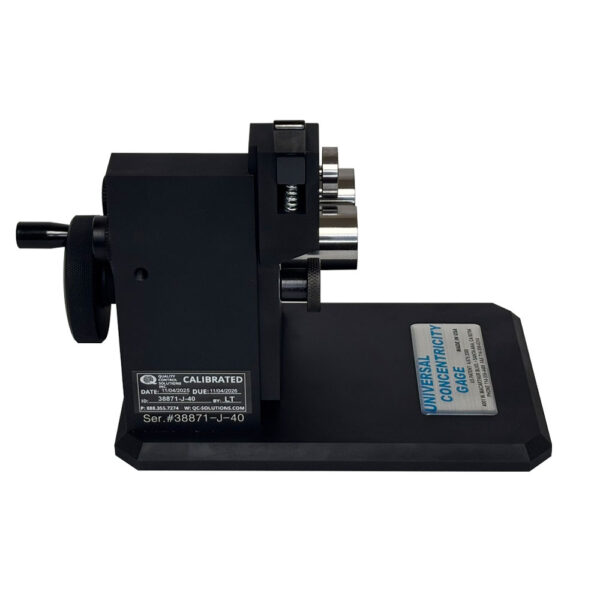

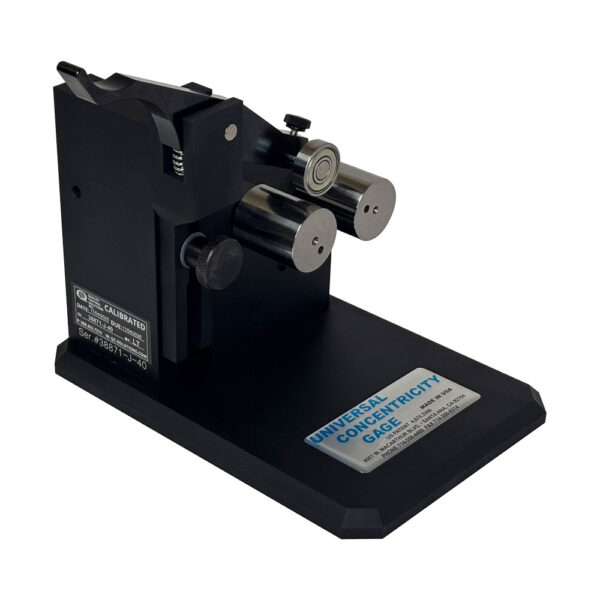

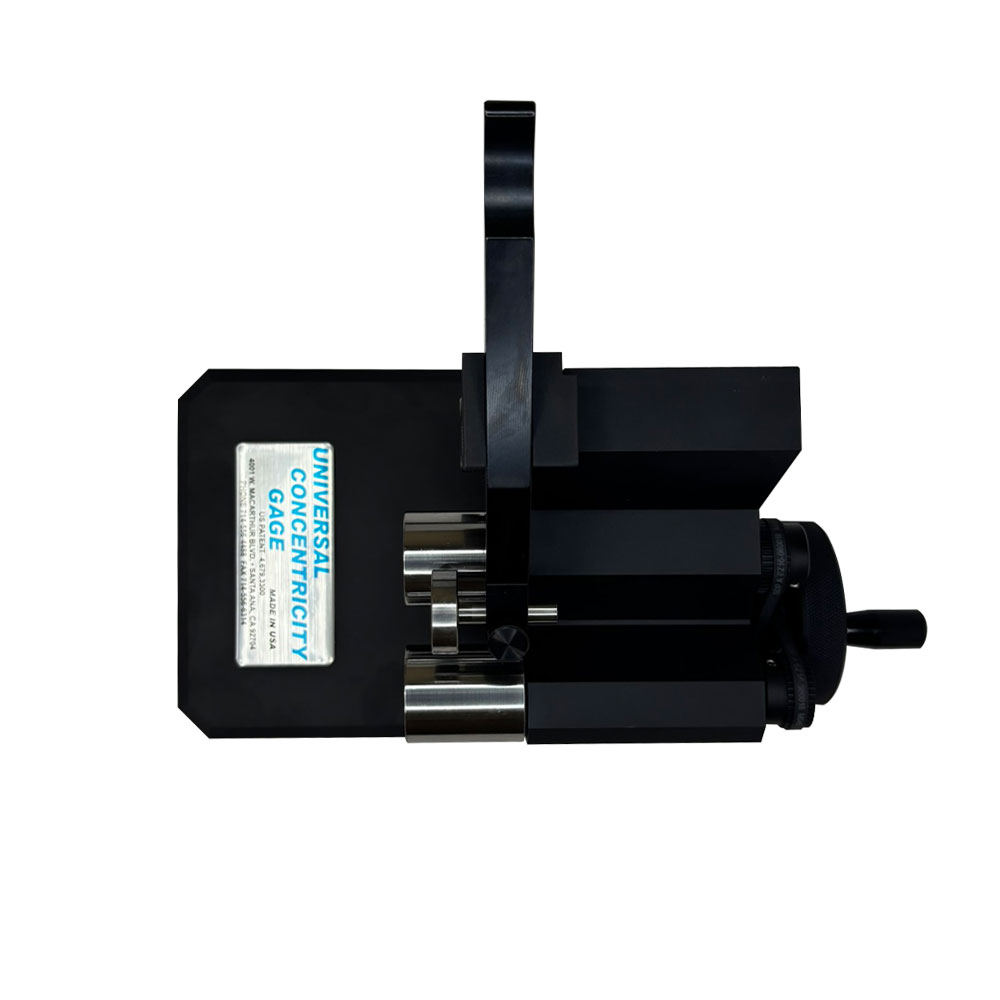

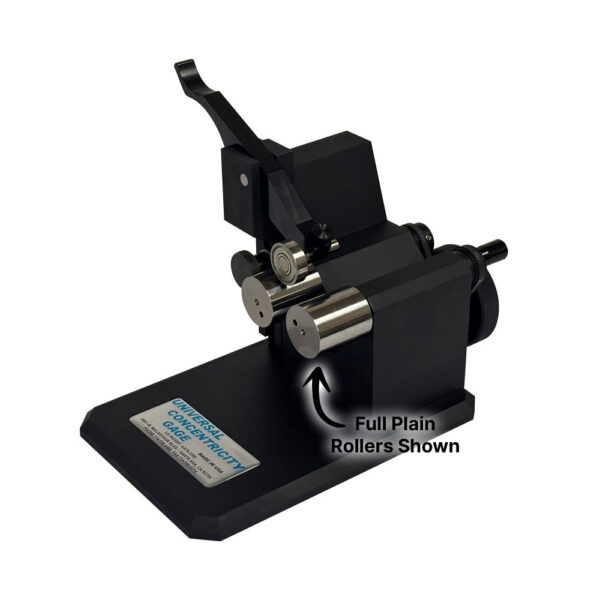

Model J-40 Concentricity Gage

Model Description: Surface Plate or Comparator Gage / 20-105mm

J-40 Standard Concentricity Gage, Accuracy ≤ 4µm (.00016”)

Specifications:
Part Diameter Capacity: 3/4” – 4” (20 – 102 mm)
Part Length Capacity: 0.25” – 8” (6.3 – 203 mm)
Gage Length: 8.5” (216mm)
Gage Width: 6.5” (114mm)
Gage Height: 9” appx. (229 mm)

Specifications:

Part Diameter Capacity: 3/4” – 4” (20 – 102 mm)

Part Length Capacity: 0.25” – 8” (6.3 – 203 mm)

Gage Length: 8.5” (216mm)

Gage Width: 6.5” (114mm)

Gage Height: 9” appx. (229 mm)

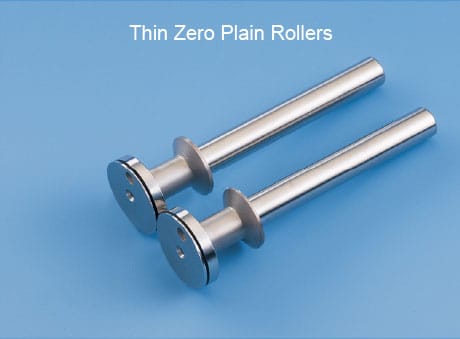

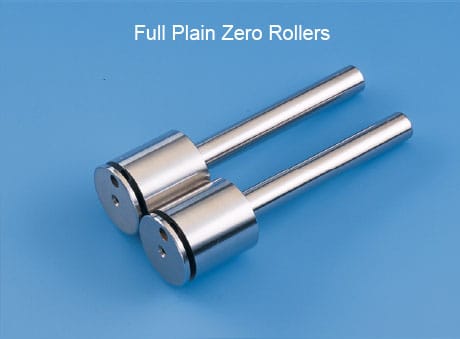

J-40 Universal Punch Concentricity Gages are comprised of three main components for assembly:
