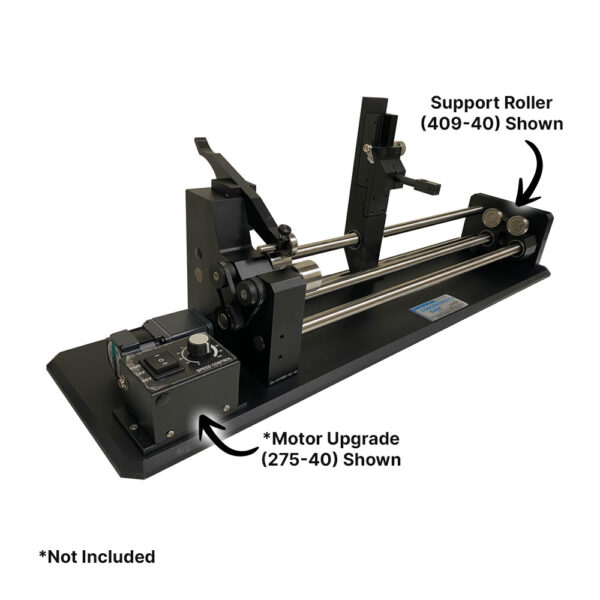

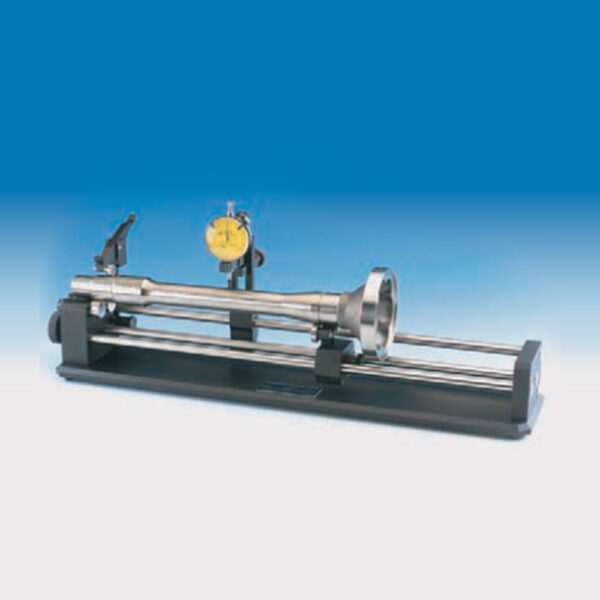

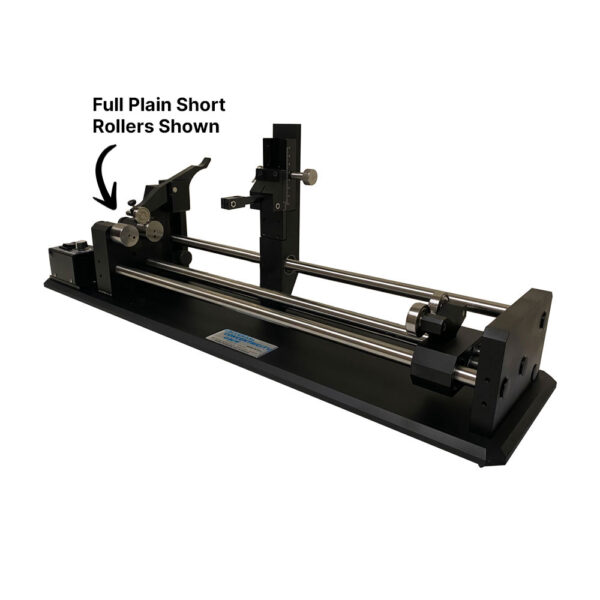

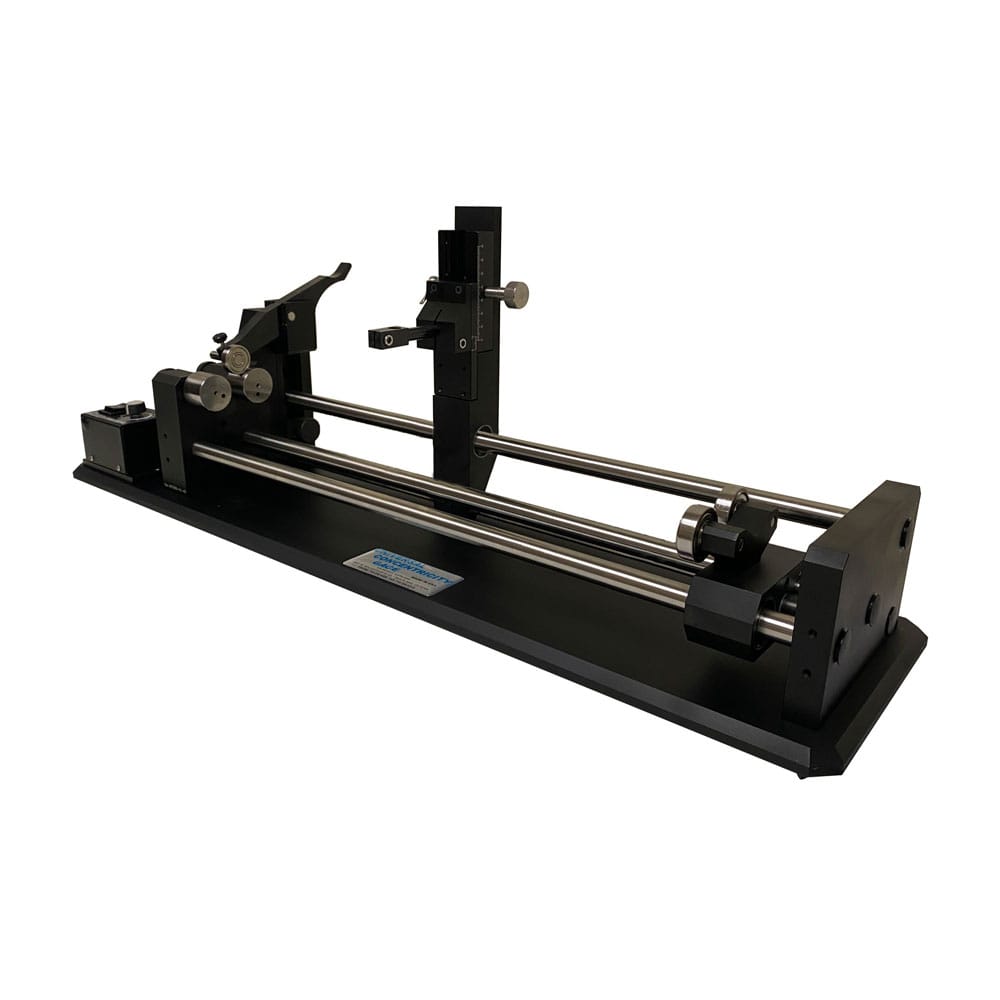

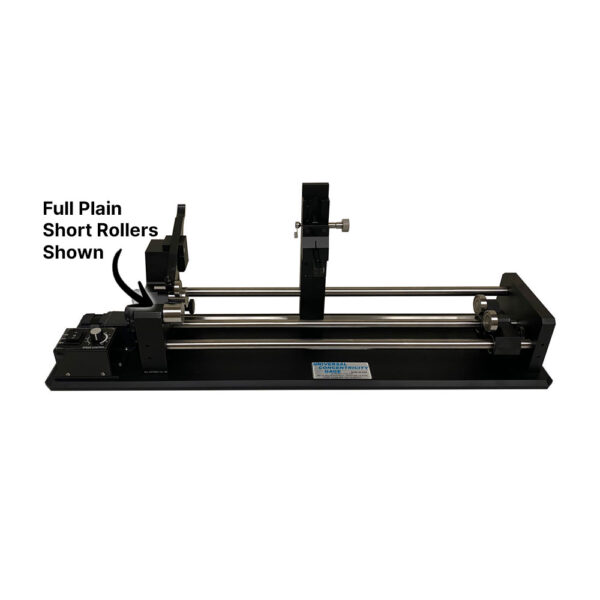

Model HL-40 Concentricity Gage
Model Description: Extended Shaft Gage / 20-105mm / Vertical Carrier
HL-40 Standard Concentricity Gage, Accuracy ≤ 4µm (.00016”)
Specifications:
Part Diameter Capacity: 0.75” to 4” (20mm to 102mm)
Part Length Capacity: Up to 24” (610mm)
Gage Length: 24.5” (622mm)
Gage Width: 5.5” (140mm)
Gage Height: 9” appx. (229 mm)
Accurate and reliable measurements are a key factor in today’s competitive manufacturing environment. Universal Punch’s patented Concentricity Gaging Systems offer less than 2 microns accuracy that has proven results in a variety of industrial applications. Continuous improvements to its modular design adapts to customer requirements and provides the flexibility necessary for maintaining quality. Standard Black Gages are guaranteed to be better than ≤ 4µm (.00016″) accuracy.
