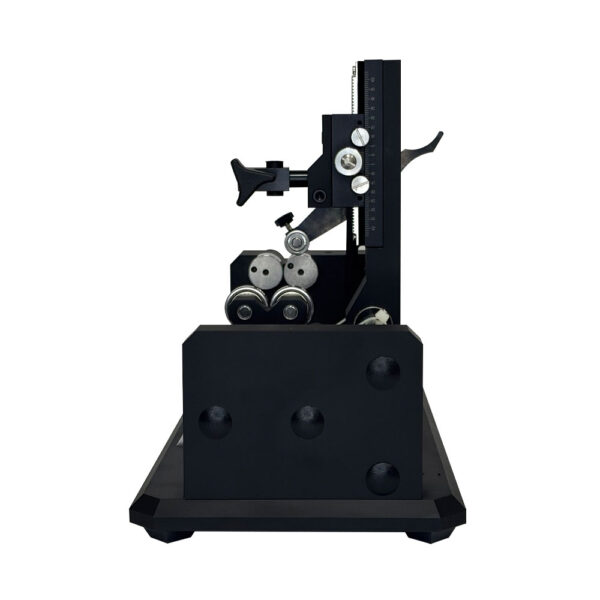

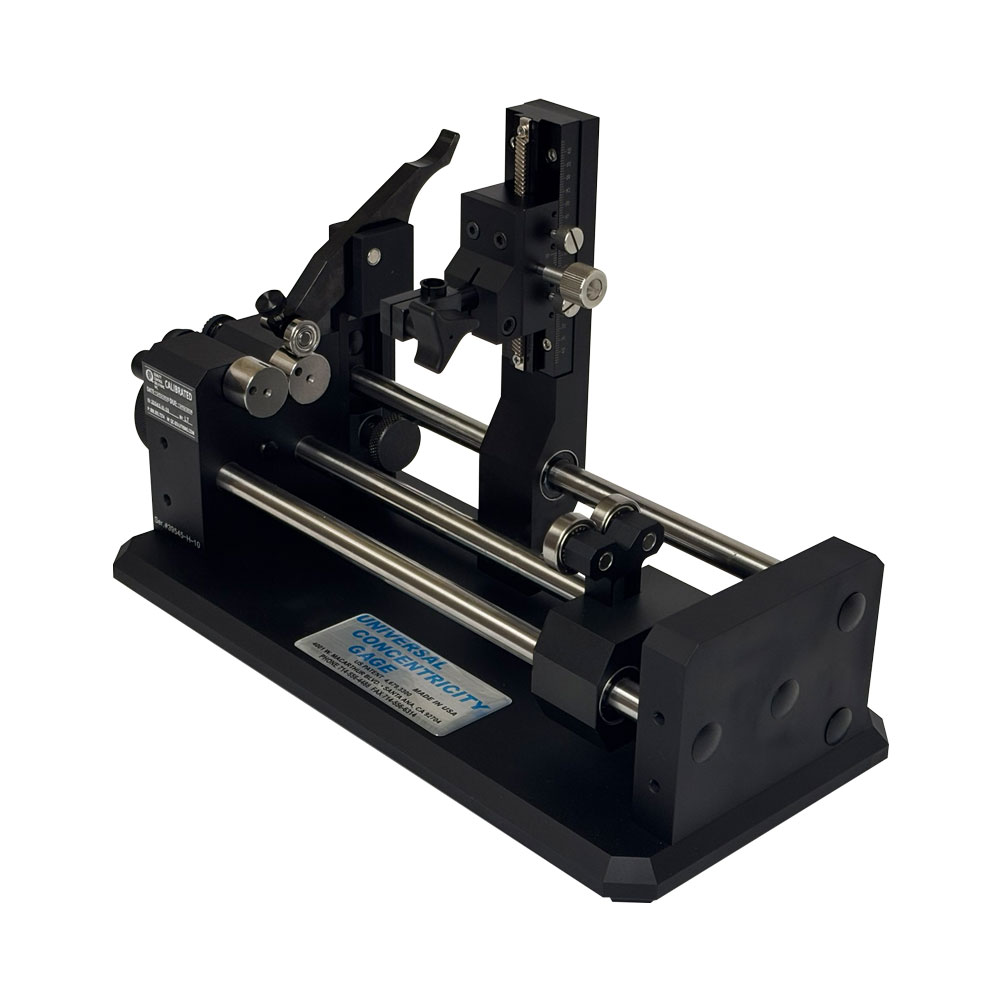

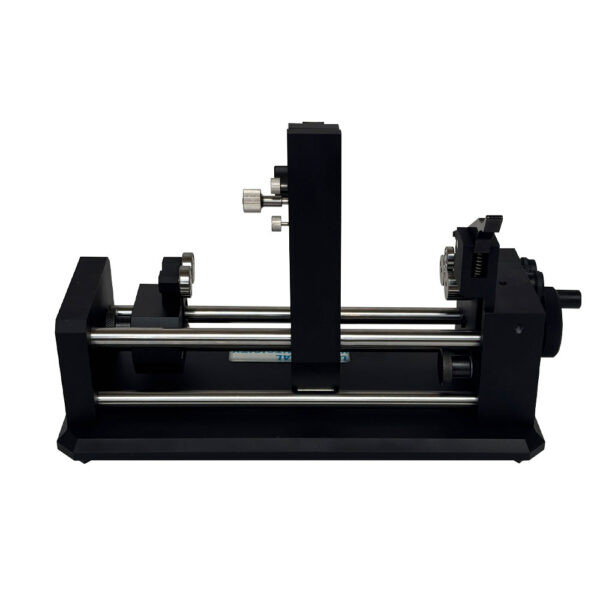

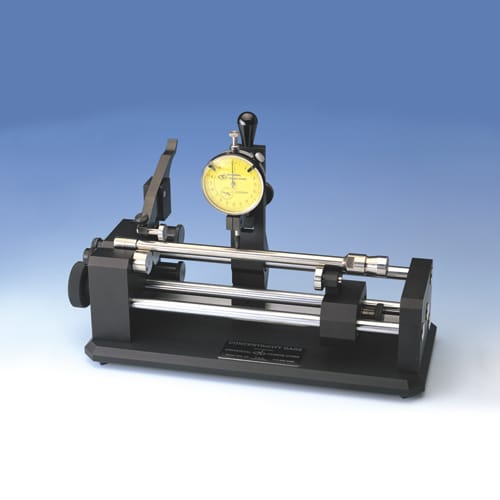

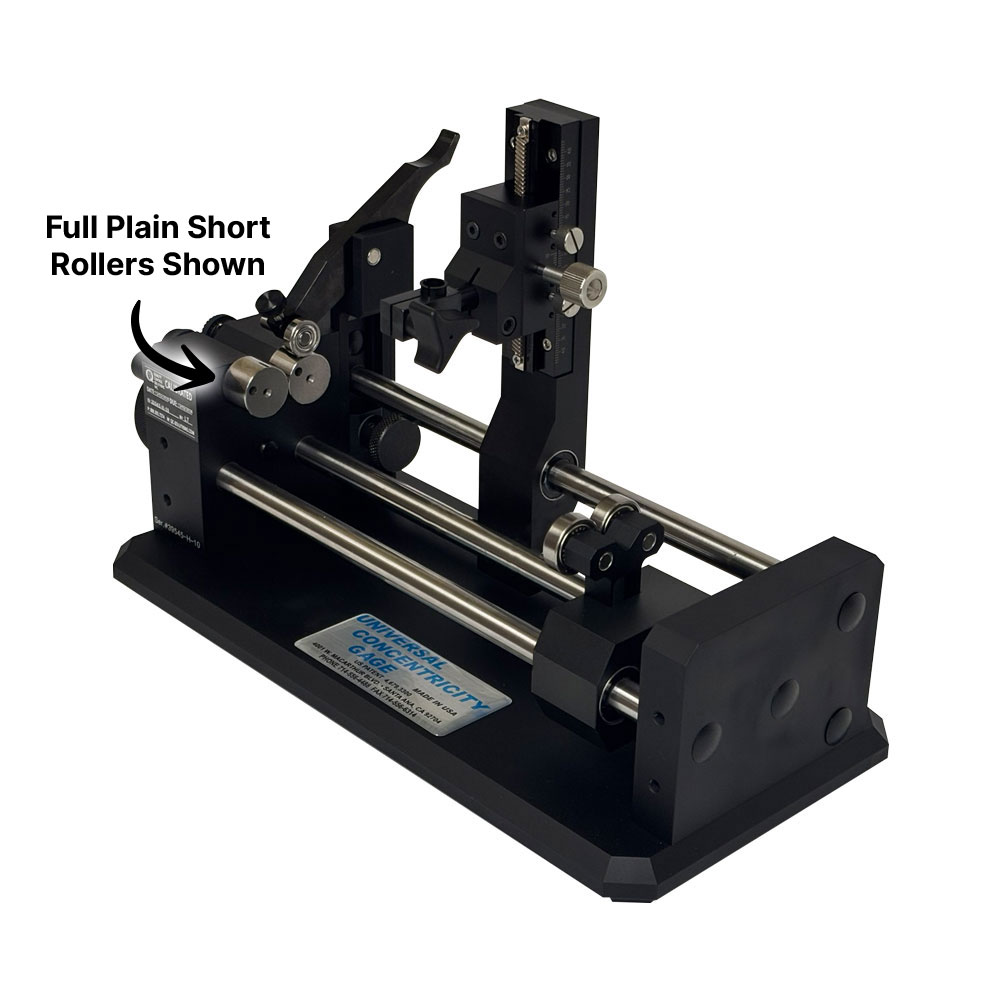

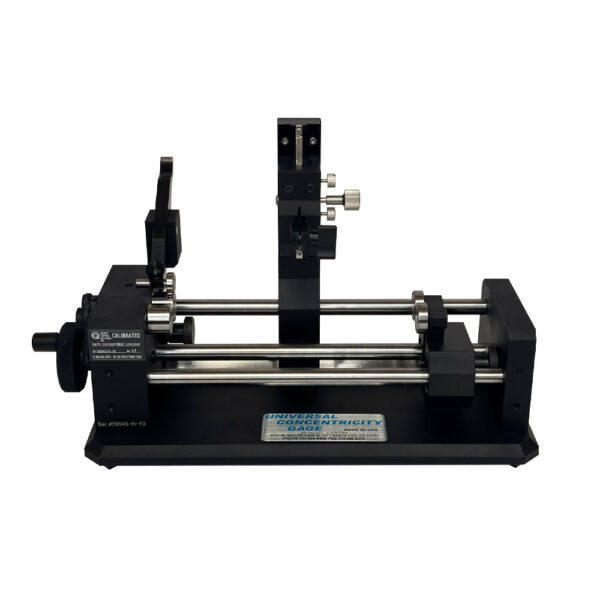

H-10 Universal Punch Concentricity Gage

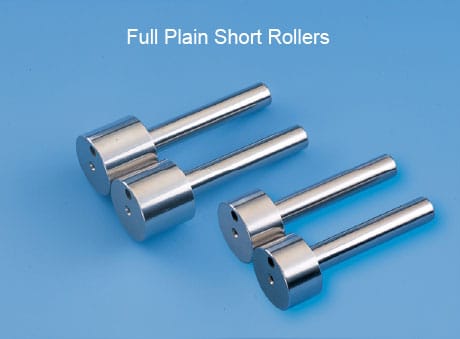

Model H-10 Concentricity Gage Features

Model Description: Standard Shaft Gage / 3-25mm / Vertical Carrier

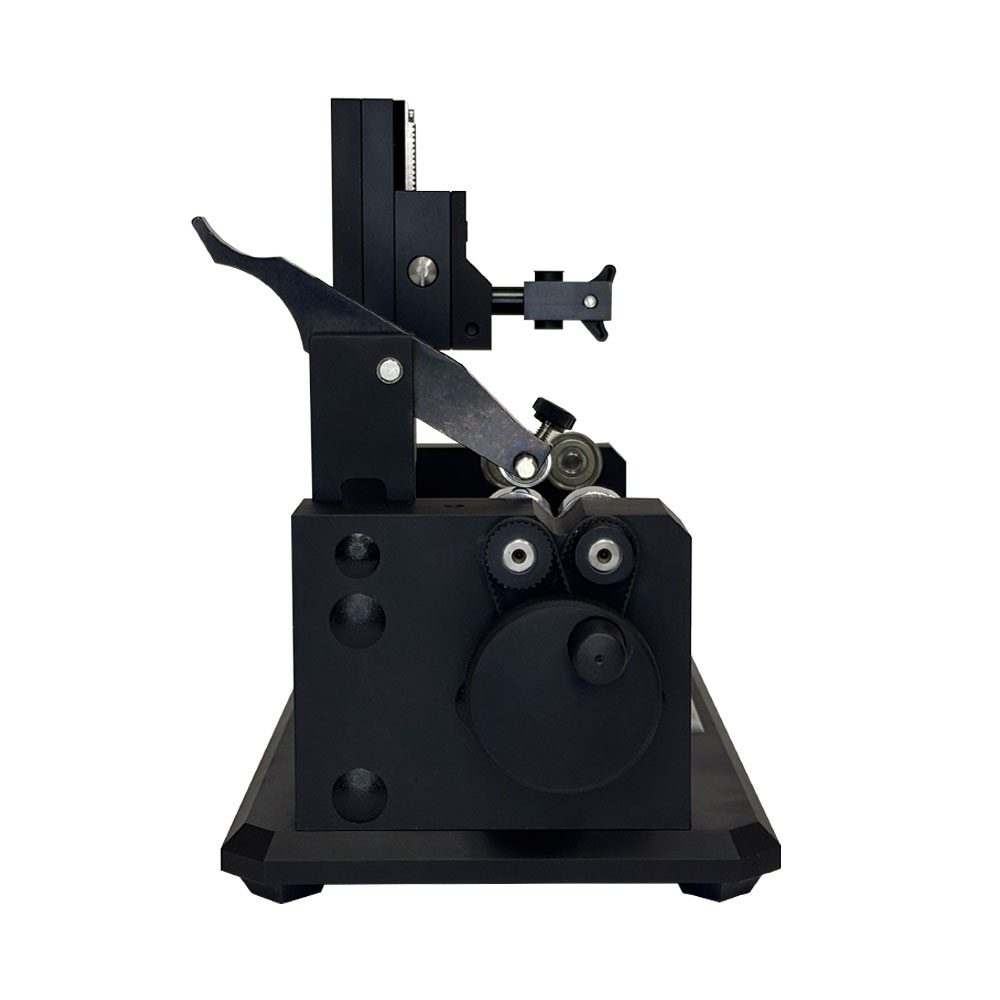

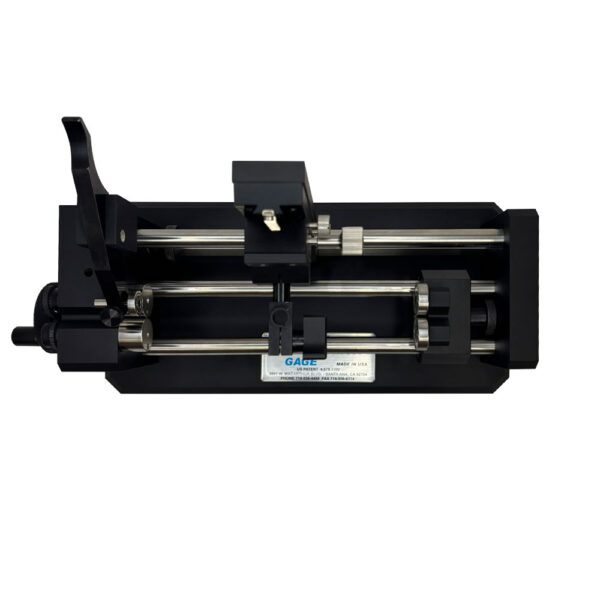

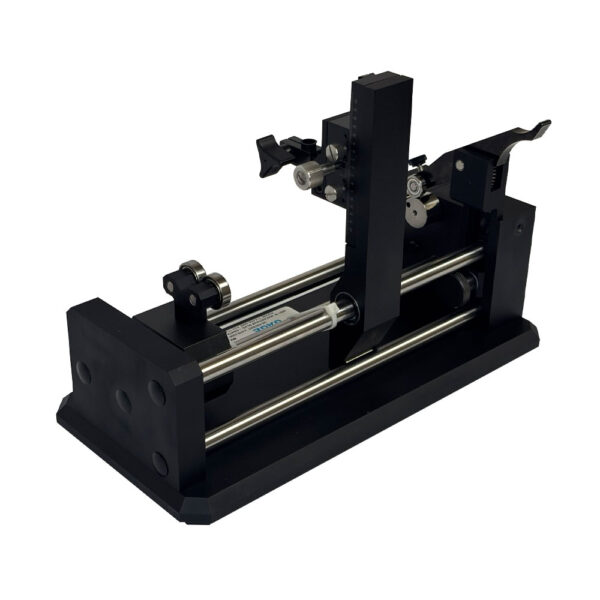

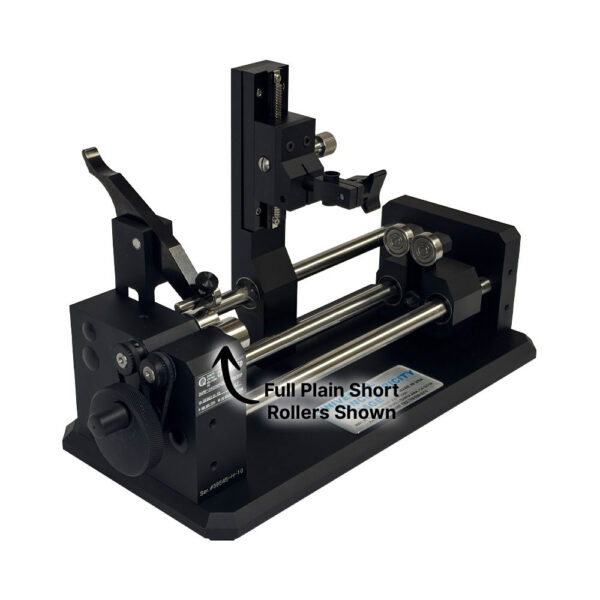

H-10 Standard Concentricity Gage, Accuracy ≤ 4µm (.00016”)

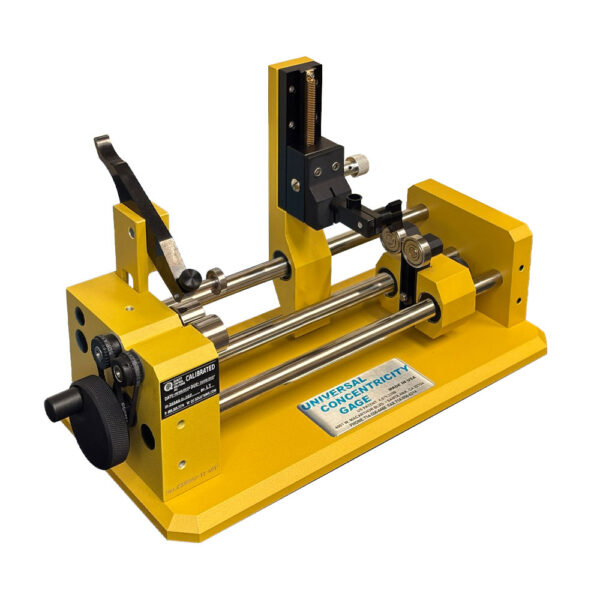

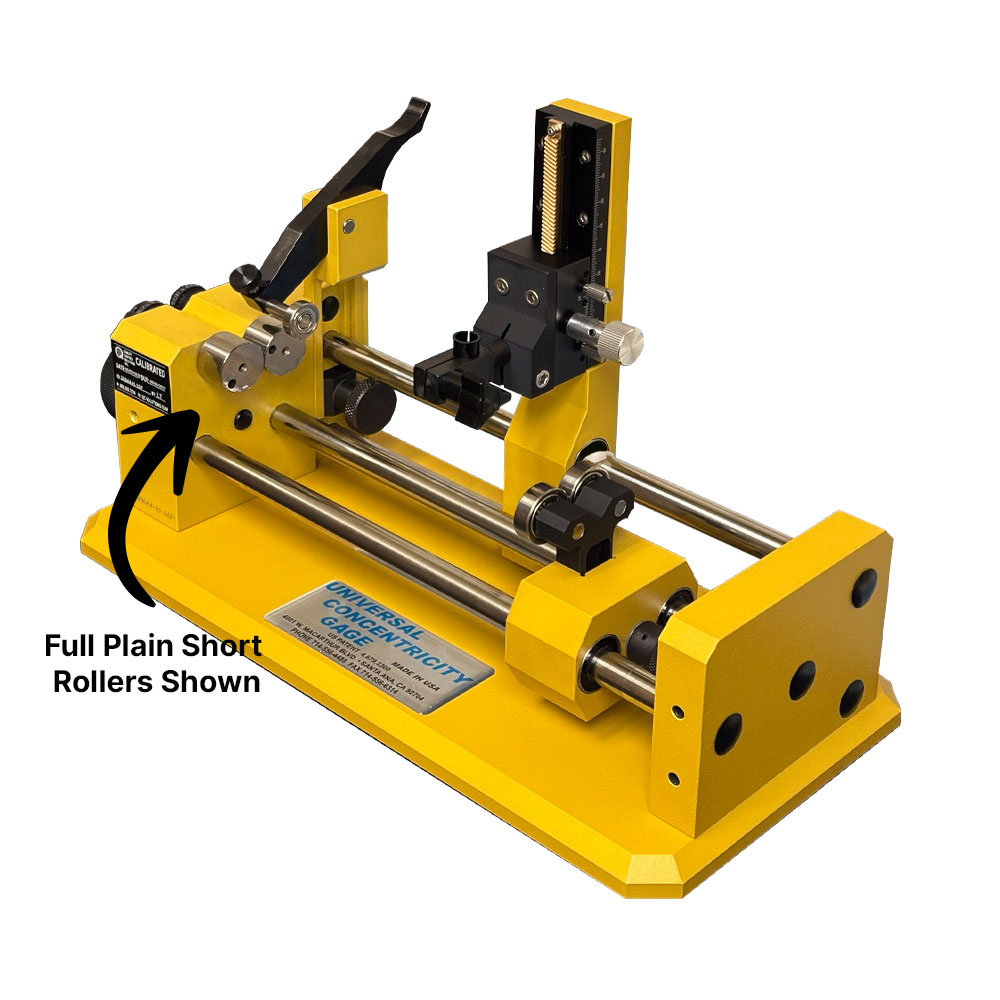

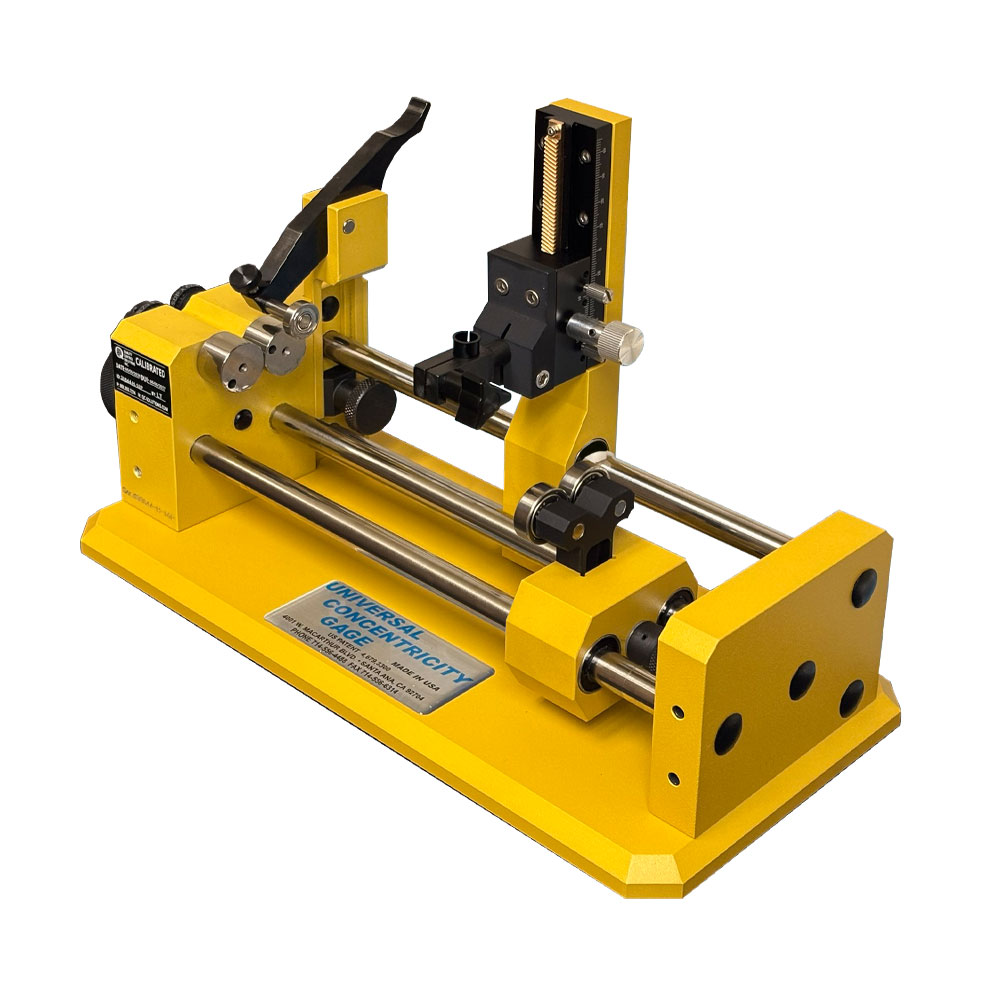

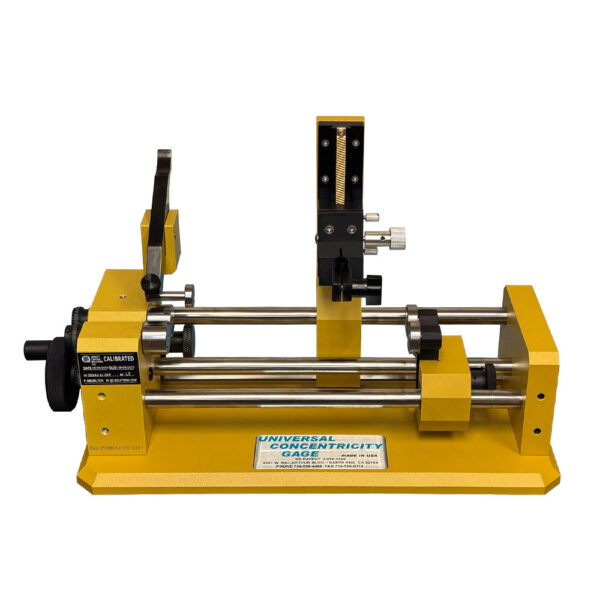

H-10P Precision Gold Concentricity Gage, Accuracy ≤ 2µm (.00008”)

Specifications:
Part Diameter Capacity: 1/8” to 1” (3mm to 25mm)
Part Length Capacity: Up to 12” (305mm)
Gage Length: 12.5” (318mm)
Gage Width: 5.5” (140mm)
Gage Height: 9” appx. (229 mm)

Accurate and reliable measurements are a key factor in today’s competitive manufacturing environment. Universal Punch’s patented Concentricity Gaging Systems offer less than 2 microns accuracy that has proven results in a variety of industrial applications. Continuous improvements to its modular design adapts to customer requirements and provides the flexibility necessary for maintaining quality.

There are two classifications calibrated and directly traceable to (N.I.S.T.). Standard Black Gages are guaranteed to be better than ≤ 4µm (.00016″) accuracy. Precision Gold Gages are guaranteed better than ≤ 2µm (.00008”) accuracy.
