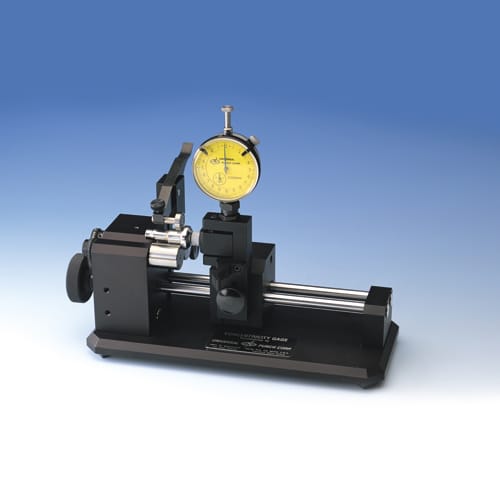

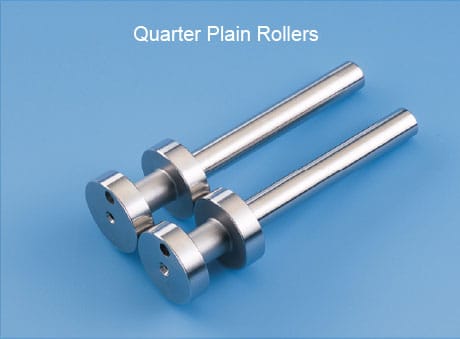

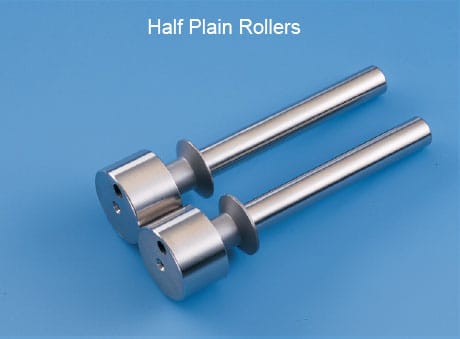

F-20 Universal Punch Concentricity Gage

Model F-20 Concentricity Gage

Model Description: Recess Fastener Checker Gage / 10-50mm / Recess Checking Carrier

F-20 Standard Concentricity Gage, Accuracy ≤ 4µm (.00016”)
F-20P Precision Gold Concentricity Gage, Accuracy ≤ 2µm (.00008”)

Specifications:
Part Diameter Capacity: 3/8″ to 2″ (10mm to 50mm)
Part Length Capacity: 0.18″ – 6″ (4.7 – 152 mm)
Gage Length: 12.5″ (318mm)
Gage Width: 4.5″ (114mm)
Gage Height: 6″ appx. (152 mm)

Accurate and reliable measurements are a key factor in today’s competitive manufacturing environment. Universal Punch’s patented Concentricity Gaging Systems offer less than 2 microns accuracy that has proven results in a variety of industrial applications. Continuous improvements to its modular design adapts to customer requirements and provides the flexibility necessary for maintaining quality.

There are two classifications calibrated and directly traceable to (N.I.S.T.). Standard Black Gages are guaranteed to be better than ≤ 4µm (.00016″) accuracy. Precision Gold Gages are guaranteed better than ≤ 2µm (.00008”) accuracy.
