สินค้า KOIKE Oil skimmer จากประเทศญี่ปุ่น

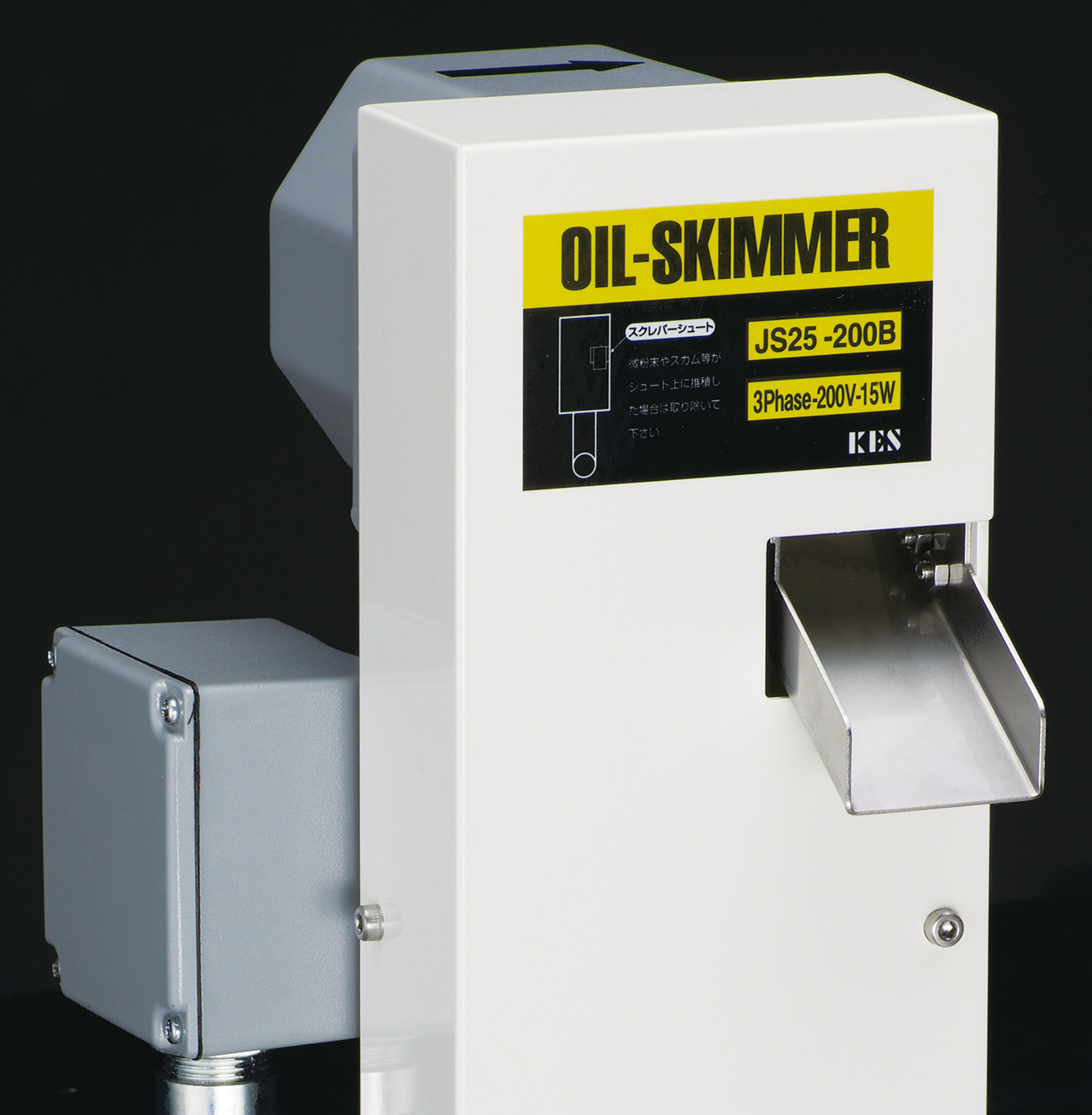

e-skimmertype JS25

e-SKIMMER イースキマー JS25型
Compact yet wide-range extraction capacity
Koike’s Oil Skimmers efficiently extract floating oil, scum and sludge from the coolant fluids and prevents the saprogenic bad odor, making them the industry standard for compact oil skimmers. Koike’s Oil Skimmers are optionally adopted by different equipment manufacturers.

ขนาดกะทัดรัดแต่มีประสิทธิภาพในการสกัดสูง
เครื่องแยกน้ำมันของ Koike สามารถแยกน้ำมันลอย คราบไขมัน และตะกอนออกจากของเหลวหล่อเย็นได้อย่างมีประสิทธิภาพ และป้องกันกลิ่นเหม็นเน่า ทำให้เป็นมาตรฐานอุตสาหกรรมสำหรับเครื่องแยกน้ำมันขนาดกะทัดรัด เครื่องแยกน้ำมันของ Koike เป็นตัวเลือกเสริมที่ผู้ผลิตอุปกรณ์ต่างๆ เลือกใช้

เบอร์โทรศัพท์
081-389-4990
Line ID
mechatronics09
ขอใบเสนอราคา

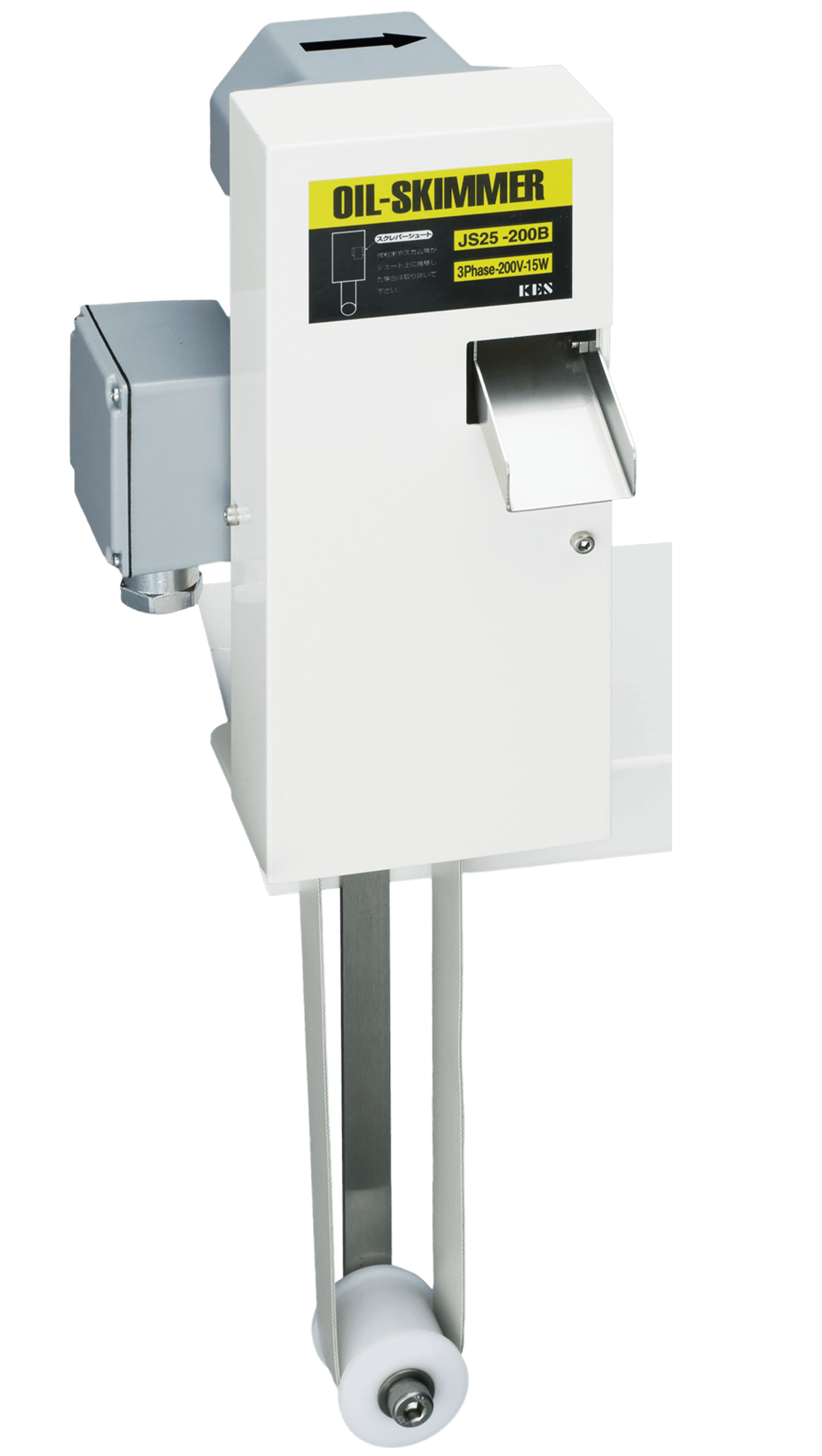

KOIKE’S PRODUCTSe-skimmertype JS25

e-SKIMMER イースキマー JS25型
Compact yet wide-range extraction capacity
Koike’s Oil Skimmers efficiently extract floating oil, scum and sludge from the coolant fluids and prevents the saprogenic bad odor, making them the industry standard for compact oil skimmers. Koike’s Oil Skimmers are optionally adopted by different equipment manufacturers.

FEATURE
Key features of Oil Skimmer type JS25

  1. Advanced belt specifications
    The special seamless belt (25mm) with outstanding lipophilic properties is used. Floating oil is efficiently collected and the product durability is excellent as well.
    01
  2. DURACON rollers adopted
    The rollers made of DURACON eliminate the rusting problems and the improvements including the weight reduction helped increase the durability.
    02
  3. Compact design
    With more freedom in the space to install, the Skimmer can be easily fastened with two bolts.
    03
  4. CE-compliant motor (standard)
    The motor can be made compliant to different standards, including UL and CCC.
    04
  5. Aluminum terminal box standardized
    Replaced from the plastic box, the aluminum terminal box has reduced the breakage risk.
    05
  6. Newly added inspection window
    Setting up an inspection window realized a structure for easier operation monitoring from the outside.
    06

DOWNLOAD
Drawings and brochures download

Koike Oil Skimmer, type JS25
（KOIKE OIL SKIMMER)
Oil Skimmers
Type JS25DOWNLOAD
Type SOCDOWNLOAD
Type KOCVDOWNLOAD

SPEC
Specifications

Details
Electrical specification 200V 3-phase, 15W, 0.13A rated amperage
Collection capacity Type SOC: 6 L/h (user equipment measurement)
Belt width Type SOC: 25mm



Note: An oil-water separation tank is available as an option.

Type JS25
Product code A dimension Belt length
JS25-115E 115mm 800mm
JS25-200E 200mm 970mm
JS25-300E 300mm 1170mm



Note: 200V/220V 50/60HZ．15W　4P　1/50　Rated amperage: 0.13A







For coolants Vertical type
Plastic belt JS25-115E
Plastic belt JS25-200E
Plastic belt JS25-300E
Product code convention

e-skimmertype KOCV

e-SKIMMER イースキマー KOCV型
Floating oil is efficiently removed to produce a better operating environment.
To avoid adhesives to the scraper, the vertical scraping method is adopted. In addition, the wide-width 40mm belt enables continuously stable collection performance.

FEATURE
Key features of Oil Skimmer type KOCV

  1. The wide-width belt
    Adopting the special seamless belt (40mm), the floating oil is efficiently collected. As long as the belt stays submerged in the fluid, the collection capacity will not change and be stable even when the fluid level fluctuates.
    01
  2. DURACON rollers adopted
    The rollers made of DURACON eliminate the rusting problems and the improvements including the weight reduction helped increase the durability.
    02
  3. CE-compliant motor (standard)
    The motor can be made compliant to different standards, including UL and CCC.
    03
  4. Aluminum terminal box standardized
    Replaced from the plastic box, the aluminum terminal box has reduced the breakage risk.
    04

DOWNLOAD
Drawings and brochures download

Koike Oil Skimmer, type KOCV
（KOIKE OIL SKIMMER)
Oil Skimmers
Type JS25DOWNLOAD
Type SOCDOWNLOAD
Type KOCVDOWNLOAD

SPEC
Specifications

Details
Electrical specification 200V 3-phase, 15W, 0.13A rated amperage
Collection capacity Type KOC: 18L/h (user equipment measurement)
Belt width Type KOC: 40mm



Note: An oil-water separation tank is available as an option.

Type KOCV
For coolants For cleaners/scrubbers A dimension
KOCV-130-A KOCV-130SR 130mm
KOCV-220-A KOCV-220SR 220mm
KOCV-320-A KOCV-320SR 320mm



Note: 200V/220V　50/60Hz. 15W　4P　1/50　Rated amperage: 0.13A







KOCV-130-A KOCV-220-A KOCV-320-A
Plastic belt Plastic belt Plastic belt
For cleaners/scrubbers For cleaners/scrubbers For cleaners/scrubbers
Angled type Angled type Angled type



Product code convention

e-skimmertype SOC

e-SKIMMER イースキマー SOC型
Compact yet wide-range extraction capacity
Koike’s Oil Skimmers efficiently extract floating oil, scum and sludge from the coolant fluids and prevents the saprogenic bad odor, making them the industry standard for compact oil skimmers. Koike’s Oil Skimmers are optionally adopted by different equipment manufacturers.

FEATURE
Key features of Oil Skimmer type SOC

  1. Advanced belt specifications
    The special seamless belt (25mm) with outstanding lipophilic properties is used. Floating oil is efficiently collected and the product durability is excellent as well.
    01
  2. DURACON rollers adopted
    The rollers made of DURACON eliminate the rusting problems and the improvements including the weight reduction helped increase the durability.
    02
  3. Compact design
    With more freedom in the space to install, the Skimmer can be easily fastened with two bolts.
    03
  4. CE-compliant motor (standard)
    The motor can be made compliant to different standards, including UL and CCC.
    04
  5. Aluminum terminal box standardized
    Replaced from the plastic box, the aluminum terminal box has reduced the breakage risk.
    05

DOWNLOAD
Drawings and brochures download

Koike Oil Skimmer, type SOC
（KOIKE OIL SKIMMER)
Oil Skimmers
Type JS25DOWNLOAD
Type SOCDOWNLOAD
Type KOCVDOWNLOAD

SPEC
Specifications

Details
Electrical specification 200V 3-phase, 15W, 0.13A rated amperage
Collection capacity Type SOC: 6 L/h (user equipment measurement)
Belt width Type SOC: 25mm



Note: An oil-water separation tank is available as an option.

Type SOC
Product code A dimension Belt length
SOC-165A 165mm 800mm
SOC-250A 250mm 970mm
SOC-350A 350mm 1170mm



Note: 200V/220V 50/60HZ．15W　4P　1/50　Rated amperage: 0.13A







For coolants Vertical type
Plastic belt SOC-165A
Plastic belt SOC-250A
Plastic belt SOC-350A
Product code convention

CLEAN LEVEL
TOWER

CLEAN LEVEL TOWER クリーンレベルタワー
Pursuing “robustness” and “durability” without compromising the excellent “visibility”
Koike’s aluminum flange type level gauges have achieved significant durability thanks to the flange made of aluminum with four outer tie rods, which prevent breakage of the body, allowing life-long secure use in the field of manufacturing.
The level gauges with outstanding benefits from “visible” and “failure-resistant” feature
Koike’s level gauges with Air Breezer allow installation of the gauge body on the top surface of the tank, facilitating remarkable improvement of the level visibility. Concerns about the operational errors by magnetic substances or leakage from the broken body in the field of production are history now. Moreover, installation of the sensors (auto/proximity switching) is quite easy, effectively helping the central level control.

FEATURE
Key Features of Clean Level Tower

  1. For hydraulic oils (CLT variants only)
    Standard and Special types are available. Good for hydraulic oils and lubricants.
    01
  2. For coolants
    With the enhanced oil and chemical resistance specifications, it can be used for different cutting oils.
    02
  3. For cleaners/scrubbers
    The float made of SUS316 is used. Good for heated cleaners/scrubbers.
    03
  4. For extra high buoyancy
    Best used in case the required buoyancy cannot be obtained with the regular float.
    04
  5. W/ telescopic cover (CLT variants only)
    The cover for breakage protection is attached to the plastic portion of the body (partially optional).
    05

DOWNLOAD
Drawings and brochures download

Koike’s Aluminum Flange Type Level Gauges
（KOIKE LEVEL GAUGE)
CLG variants (aluminum flange type)
CLG-1-S1-**-**-**C
(for coolants)DOWNLOAD
CLG-1-S1-**-**-**CL
(for coolants w/ extra high buoyancy)DOWNLOAD
CLG-1-S1-**-**-**S
(for cleaners/scrubbers)DOWNLOAD
CLG-1-S1-**-**-**SL
(for cleaners/scrubbers w/ extra high buoyancy)DOWNLOAD
CLG-1-S1-**-**-**EC
(for coolants)DOWNLOAD
CLG-1-S1-**-**-**ECL
(for coolants w/ extra high buoyancy)DOWNLOAD
CLG-1-S1-**-**-**ES
(for cleaners/scrubbers)DOWNLOAD
CLG-1-S1-**-**-**ESL
(for cleaners/scrubbers w/ extra high buoyancy)DOWNLOAD



Koike’s Level Gauge w/ Air Breezer
（KOIKE LEVEL GAUGE)
CLT variants
CLT-1-B1-**-**-**
(for hydraulic oils/standard)DOWNLOAD
CLT-1-B1-**-**-**
(for hydraulic oils)DOWNLOAD
CLT-1-B1-**-**-**GL
(for hydraulic oils w/ extra high buoyancy)DOWNLOAD
CLT-1-B1-**-**-**C-1
(for coolants)DOWNLOAD
CLT-1-B1-**-**-**CL-1
(for coolants w/ extra high buoyancy)DOWNLOAD
CLT-1-B1-**-**-**S-1
(for cleaners/scrubbers)DOWNLOAD
CLT-1-B1-**-**-**SL-1
(for cleaners/scrubbers w/ extra high buoyancy)DOWNLOAD
CLT-1-B1-**-**-**K-1
(for hydraulic oils)DOWNLOAD
CLT-1-B1-**-**-**KC-1
(for coolants)DOWNLOAD
CLT-1-B1-**-**-**KS-1
(for cleaners/scrubbers)DOWNLOAD
Telescopic coverDOWNLOAD

SPEC
Specifications

Made-to-order
The Clean Level Towers are all made to order. We will propose the best-suited product to our customers’ requirements in accordance with the specifications. Contact us now and let us be of the best help to you.
Air Breezer Function
Thanks to the Air Breezer function available in the Clean Level Towers (CLT variants), the hot air and vapor inside the tank will be dumped outside (except for the CLT variants for coolants and for cleaners/scrubbers as well as CLG variants). For hydraulic tanks, this feature works well for prevention of rusting inside the tank as the moisture will hardly remain there.
Float structure
Inside the tank, the structure only contains the float. As the detector block is installed on the top surface of the tank, such problems as switching errors caused by sludge of some magnetic substance will be eliminated.
Options
(representative ones)
Measurement target Hydraulic oils, coolants, cleansing fluids, lubricants
Switching type auto/proximity switching
Switching measurement position Detection of upper, lower, upper + lower, and multiple limits
Float material Polypropylene/stainless-steel
H – L dimension Special orders for customization (in 5mm orders) in accordance with the tank size/shape are acceptable.
Nominal length Special orders for customization (in 5mm orders) in accordance with the tank size/shape are acceptable.
CLG variants
Code-end element: Auto switching type Proximity switching type Float Application
C EC PP Coolants
S ES SUS Cleansing fluids/grease lubricants
CLT variants
Code-end element: Auto switching type Proximity switching type Float Application
None K-1 PP Hydraulic oils
C-1 KC-1 PP Coolants
S-1 KS-1 SUS Cleansing fluids/grease lubricants
Product code convention







 Precautions for Use
  • The Air Breezer function is limited to the CLT variants for hydraulic oils.
  • The level gauges can be customized in 5mm orders.
  • The float size can be larger depending on the dimensions. Please pay attention to the dimensions for deeper tanks.
    (PP float　　H – L dimension + nominal length is 500mm or greater　　GL or CL)
    (SUS float　　H – L dimension + nominal length is 800mm or greater　　SL)
  • To install multiple switches, please install them at 40mm intervals. As the customization to make the intervals smaller is available, contact us if necessary.
  • The switch lead lengths are 3m for auto switching and 2m for proximity switching. An optional 5m lead is also available.
  • For CLT variants, attaching the protection cover to prevent breakage is recommended. (The cover is attached as standard for proximity switching types.)
  • Check the switch specifications on the drawings.
