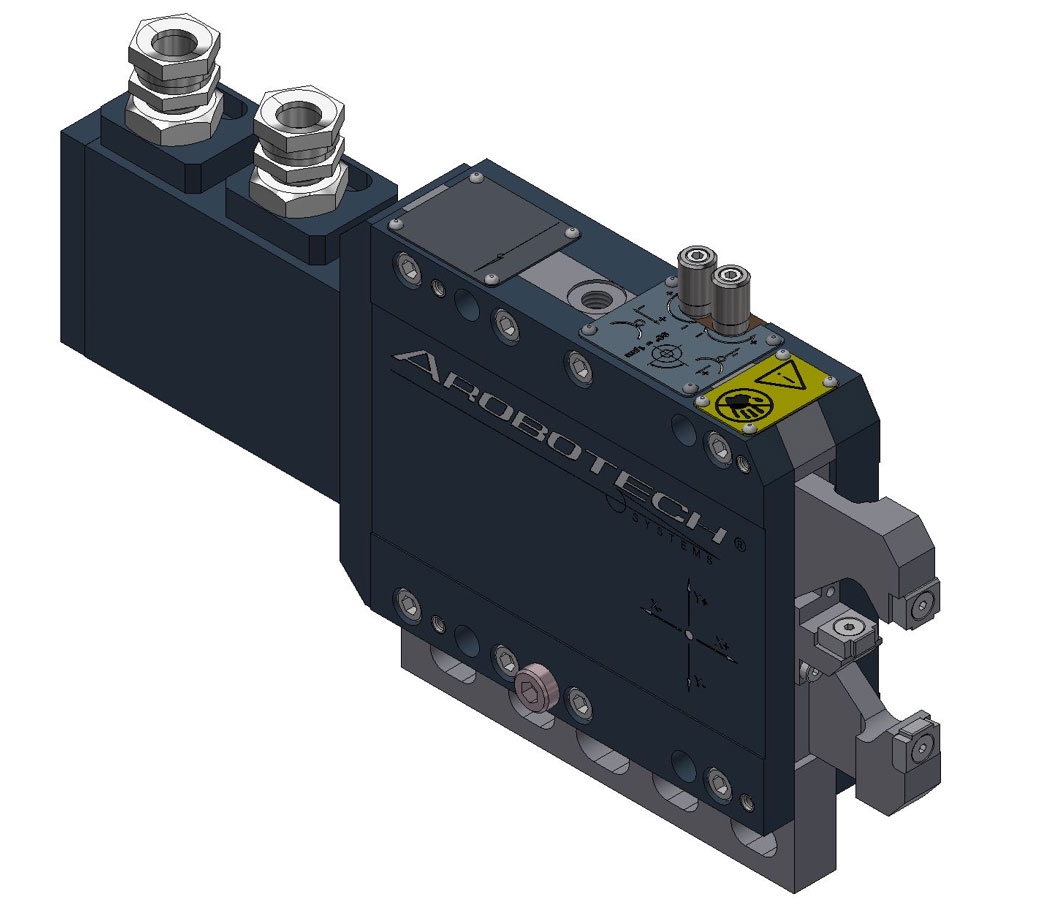

Arobotech pioneered the use of automatic, self-centering steady rests in crankshaft grinding. Models available up to 200mm journal diameter

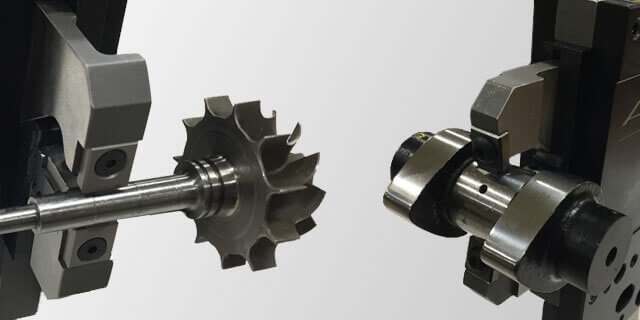

We offer a large variety of models for any type of O.D. Grinding. Models available up to 210mm diameter.
Arobotech offers Grinding AUTO REST models designed specifically for tool grinding.
Standard Turning AUTO REST models are available from 6 to 460mm diameter with specials available on request.
Standard Parallel and three-point self-centered gripper models available plus a large library of custom solutions for part support and locating.
Turning AUTO REST®’ three-roller contact and patented sliding wedge design assures prolonged operational accuracy and epeatability. This simplified design eliminates cams, bearings, gears, springs and pivot pins.
The roller/cam operating mechanism common to other steady rests is replaced by the sliding wedge. Machining forces are distributed over large hardened and ground surfaces instead of merely a line contact. As a result, wear is minimized, maintaining original accuracies and extending service life.
After initial set up Turning AUTO REST”‘ automatically and accurately positions each subsequent part. Adjustment and set up time for individual parts is virtually eliminated. Part quality and machine productivity are significantly improved. Higher operating speeds and and heavier cuts are possible resulting in reduced production cycle time.
There are a number of standard Turning AUTO REST”‘ models available to choose from. Each model has a large clamping range to handle a wide range of parts. If one of our standard models doesn’t offer the solution you need we offer many custom models or can have our full time engineering staff design a Turning AUTO REST®to fit your specific needs.
Arobotech offers options if you don’t see a suitable Turning AUTO REST® among our standard models. We have a large library of special designs and engineers available to investigate new solutions to meet your exact needs.
Model |
Replaces |
Crankshaft Grinding Data Sheets |
Max Journal Size |
| GR-6000-000 | GR-1150V-SDG | GR-6000-000 | 95mm |
| GR-6100-527 | GR-1350V-SDG | GR-6100-527 | 95mm |
| GR-6200-000 | GC29403A | GR-6200-000 | 130mm |
| GR-6300-000 | GC30916A | GR-6300-000 | 140mm |
Model |
Data Sheet |
| GC32907A | GC32907A |
| GC32907C | GC32907C |
| GC29372A | GC29372A |
| GC021042A | GC021042A |
| GC32790A | GC32790A |
| GR-081 | GR-081 |
| GC28601A | GC28601A |
| GC023632A | GC023632A |
| GC19722A | GC19722A |
| GC36551B | GC36551B |
| GC32676A | GC32676A |
| GC29222Y | GC29222Y |
| DP-090 | DP-090 |
| GR-4000-000 | GC29222Y | GR-4000-000 | 2-30mm |
Model |
Replaces |
O.D. Grinding Data Sheets |
Clamping Range |
| GR-4000-000 | GC29222Y | GR-4000-000 | 2-30mm |
| GR-4020-000 | GR-3520V | GR-4020-000 | 15-40mm |
| GR-4100-000 | GR-6030V | GR-4100-000 | 15-60mm |
| GR-4300-000 | GR-115V | GR-4300-000 | 10-60mm |
| GR-4400-000 | GR-320V | GR-4400-000 | 10-90mm |
AROBOTECH Grinding AUTO REST Precision Grinding with .001mm Repeatability สนใจหรือสอบถามได้ที่คุณภูรินทร์ 081-3894990
Model |
Replaces |
Crankshaft Grinding Data Sheets |
Max Journal Size |
| GR-6000-000 | GR-1150V-SDG | GR-6000-000 | 95mm |
| GR-6100-527 | GR-1350V-SDG | GR-6100-527 | 95mm |
| GR-6200-000 | GC29403A | GR-6200-000 | 130mm |
| GR-6300-000 | GC30916A | GR-6300-000 | 140mm |
Model |
Data Sheet |
| GC32907A | GC32907A |
| GC32907C | GC32907C |
| GC29372A | GC29372A |
| GC021042A | GC021042A |
| GC32790A | GC32790A |
| GR-081 | GR-081 |
| GC28601A | GC28601A |
| GC023632A | GC023632A |
| GC19722A | GC19722A |
| GC36551B | GC36551B |
| GC32676A | GC32676A |
| GC29222Y | GC29222Y |
| DP-090 | DP-090 |
Model |
Replaces |
O.D. Grinding Data Sheets |
Clamping Range |
| GR-4000-000 | GC29222Y | GR-4000-000 | 2-30mm |
| GR-4020-000 | GR-3520V | GR-4020-000 | 15-40mm |
| GR-4100-000 | GR-6030V | GR-4100-000 | 15-60mm |
| GR-4300-000 | GR-115V | GR-4300-000 | 10-60mm |
| GR-4400-000 | GR-320V | GR-4400-000 | 10-90mm |
Model |
Replaces |
Crankshaft Grinding Data Sheets |
Max Journal Size |
| GR-6000-000 | GR-1150V-SDG | GR-6000-000 | 95mm |
| GR-6100-527 | GR-1350V-SDG | GR-6100-527 | 95mm |
| GR-6200-000 | GC29403A | GR-6200-000 | 130mm |
| GR-6300-000 | GC30916A | GR-6300-000 | 140mm |
Model |
Data Sheet |
| GC32907A | GC32907A |
| GC32907C | GC32907C |
| GC29372A | GC29372A |
| GC021042A | GC021042A |
| GC32790A | GC32790A |
| GR-081 | GR-081 |
| GC28601A | GC28601A |
| GC023632A | GC023632A |
| GC19722A | GC19722A |
| GC36551B | GC36551B |
| GC32676A | GC32676A |
| GC29222Y | GC29222Y |
| DP-090 | DP-090 |
Model |
Replaces |
O.D. Grinding Data Sheets |
Clamping Range |
| GR-4000-000 | GC29222Y | GR-4000-000 | 2-30mm |
| GR-4020-000 | GR-3520V | GR-4020-000 | 15-40mm |
| GR-4100-000 | GR-6030V | GR-4100-000 | 15-60mm |
| GR-4300-000 | GR-115V | GR-4300-000 | 10-60mm |
| GR-4400-000 | GR-320V | GR-4400-000 | 10-90mm |
See why we are the world’s leading manufacture of workholding technology.
คุณภาพคือสิ่งที่เราให้ความสำคัญสูงสุด ชิ้นส่วนทั้งหมดได้รับการออกแบบ ผลิต และประกอบในโรงงานของเราโดยใช้เครื่องมือที่ทันสมัย ชิ้นส่วนทั้งหมด 100% ของเราได้รับการตรวจสอบอย่างละเอียดก่อนการประกอบ ความมุ่งมั่นของเราต่อคุณภาพนั้นเห็นได้ชัดจากการตรวจสอบขั้นสุดท้ายของผลิตภัณฑ์สำเร็จรูปแต่ละชิ้นก่อนจัดส่ง ขนาดและคุณสมบัติที่สำคัญทั้งหมดได้รับการวัดและยืนยันเทียบกับแบบร่างทางวิศวกรรมและข้อกำหนดของลูกค้า ประสิทธิภาพยังได้รับการทดสอบและรับรองเพื่อให้แน่ใจว่าแท่นรองชิ้นงานแต่ละชิ้นตรงตามมาตรฐานที่เข้มงวดของเราก่อนที่จะถึงเครื่องจักรของคุณ
