รายละเอียดสินค้า
PAFH

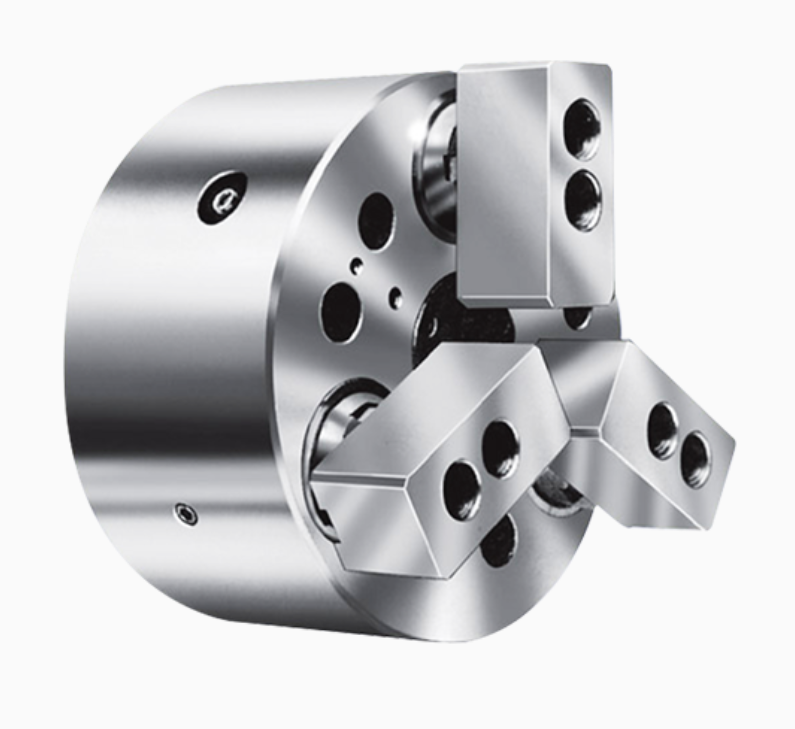

Hollow Power Chuck with 2&3 Jaws
2Jaw when Jaw and 3Jaw need to be used as one chuck
Chuck for machining round, square, and Irregular-shaped workpieces
Attachment method: using a chuck adapter
Serration pitch 8”, 10”, 12” = 1.5mm 15” = 3mm
사양 (Specifications)
| Spec type |
Jaw stroke (DIA. mm) |
Plunger stroke (mm) |
Gripping (DIA. mm) |
Max. draw bar pull(Kgf) |
Gripping force(Kgf) |
Max speed (r.p.m) |
Weight (Kg) |
GD² (Kgf·m) |
Recommanded cylinder |
|||
| Max. | Min. | 2Jaw | 3Jaw | 2Jaw | 3Jaw | |||||||
| PAFH-8 | 9.6 | 18 | 200 | 30 | 1500 | 2000 | 3300 | 4400 | 3000 | 20 | 0.44 | RCV-125 |
| PAFH-10 | 18.2 | 25 | 250 | 30 | 2300 | 3500 | 4100 | 6200 | 3000 | 32 | 1.05 | RCV-125 |
| PAFH-12 | 20.4 | 28 | 300 | 50 | 3000 | 4500 | 8000 | 8000 | 2500 | 55 | 2.54 | RCV-150 |
| PAFH-15 | 20.4 | 28 | 350 | 70 | 4000 | 6000 | 10500 | 10500 | 2000 | 99 | 7.5 | RCV-200 |
Size (Specifications)
| type Symbol |
8 | 10 | 12 | 15 | |
| A | 210 | 254 | 304 | 381 | |
| B | 73 | 85 | 97 | 122 | |
| C(H6) | 190 | 230 | 280 | 350 | |
| F | 5 | 7 | |||
| H | 133.35 | 171.45 | 200 | 250 | |
| J | 35 | 40 | 55 | 75 | |
| K | 6-M12 | 6-M16 | 6-M20 | ||
| L | 20 | 22 | 25 | 27 | |
| M | 20 | 25 | 30 | 40 | |
| N | Max. | 45.8 | 51.3 | 65.8 | 85.8 |
| Min. | 41.0 | 42.2 | 55.6 | 75.6 | |
| type Symbol |
8 | 10 | 12 | 15 | |
| O | Max. | 30 | 42 | 46.5 | 51 |
| Min. | 7.5 | 9.5 | 10.5 | 15 | |
| P | Max. | 21 | 25 | 25 | 28 |
| Min. | 3 | 0 | 0 | 0 | |
| Q | 30 | 35 | 40 | 50 | |
| R | 12 | 16 | 16 | 21 | |
| S | 27 | 28 | 30 | 40 | |
| T | M42 | M50 | M65 | M85 | |
| U | 5 | ||||
| V | 48 | 58 | 75 | 95 | |
| – | – | – | – | ||
PAFK
Solid Power Chuck with 2&3 Jaws
A chuck used for machining square or rectangle workpieces
Powerful cutting is possible because of the large gripping force
Attachment method: using a chuck adapter
Serration pitch 10”, 12”, 15” = 3mm

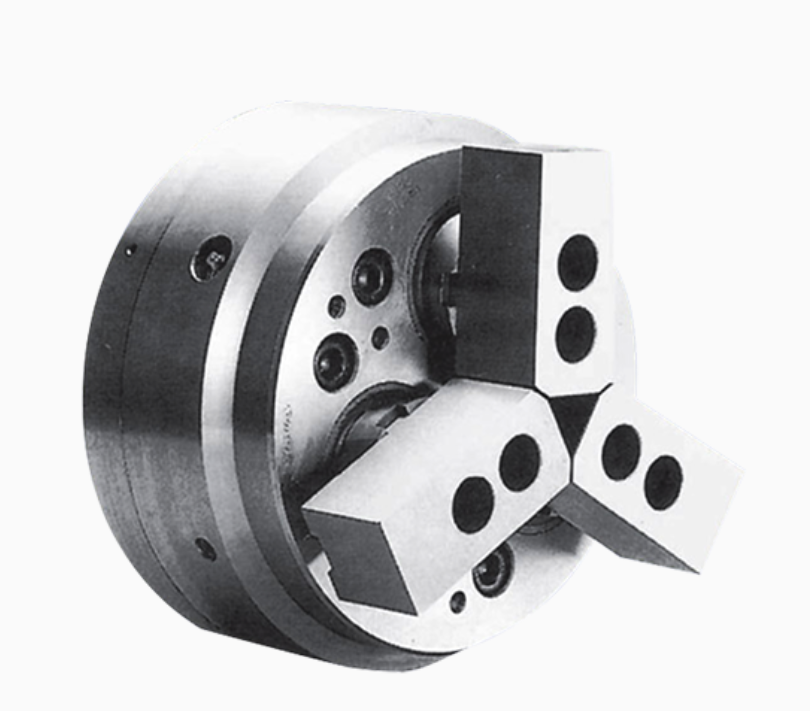

VBL
Universal Ball Lock Power Chuck
For chucking castings or forgings, chucking is possible even on a 10′ graded surface
because the workpiece is pulled and chucked
The jaw is automatically oriented 5′ to the left and right, so the grip is strong
A special type in which the chuck jaw is compensated based on the center
of the axis of the forging
Attachment method: Direct attachment to ASA and JIS standard short taper spindle,
method using chuck adapter
All dimension of centering type compensating type.
3-jaw and 2-jaw are the same.

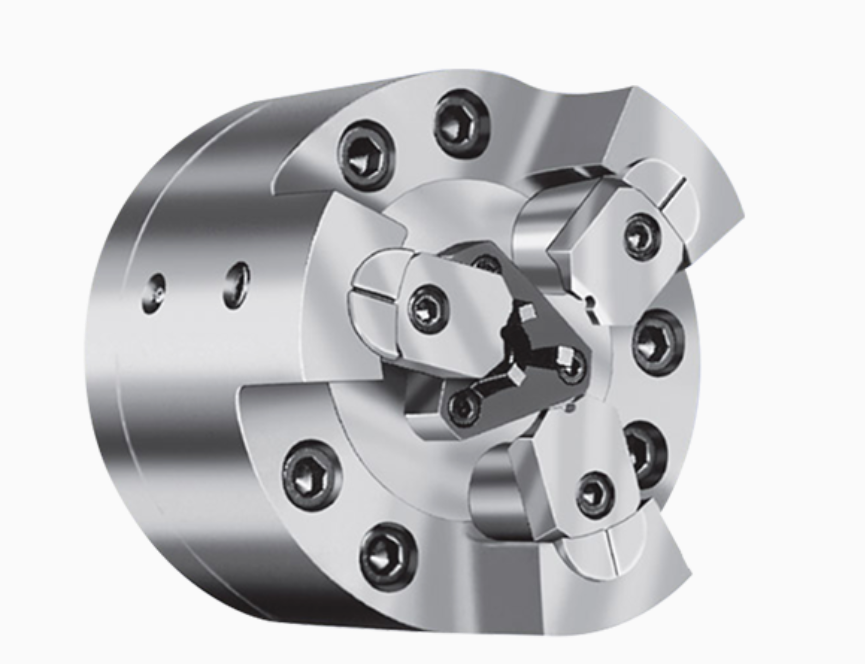

PDD
3 Jaw Strong Drawdown Power Chuck
Features that pull and chuck the workpiece
Used when squareness and parallelism are important
Because the chucking range is large,
various models can be processed only by replacing the top jaw
Attachment method: using a chuck adapter
PDI
Drawdown Power Chuck for 3-Jaw Internal Chucking
Features that pull the inner diameter and chuck it
Used when squareness and parallelism are important
Because the chucking range is large,
various models can be processed only by replacing the top jaw
Attachment method: using a chuck adapter
PDT
2 Jaw Strong Drawdown Power Chuck
Suitable for chucking deformed workpieces
Used when squareness and parallelism are important
Attachment method: using a chuck adapter
OPA
Pin arbor power chuck for precision outer diameter chucking
Features to chuck and pull the workpiece
Suitable for machining precision products where squareness
and parallelism are important
Attachment method: using a chuck adapter

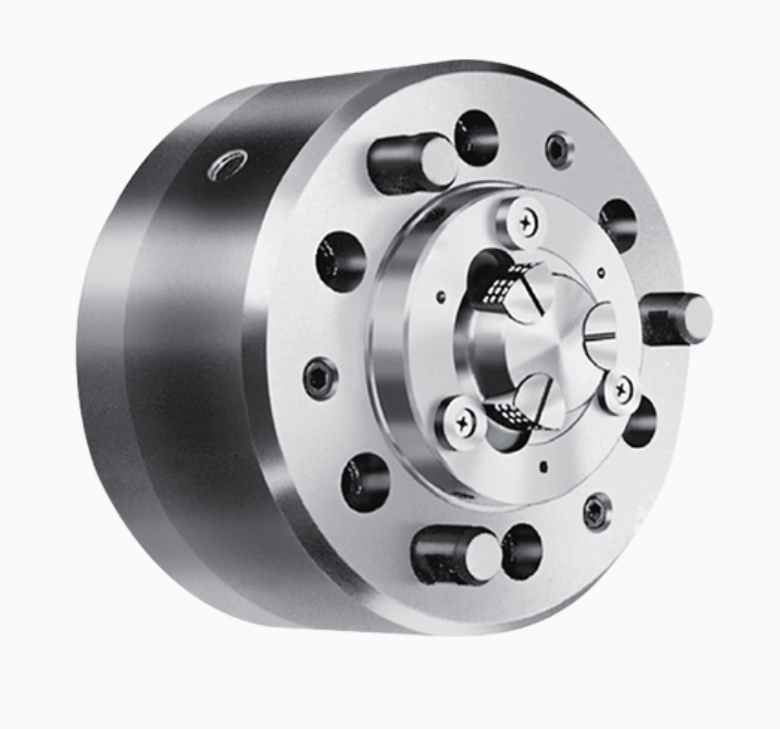

IPA
Pin arbor power chuck for precision inner diameter chucking
Features to chuck and pull the workpiece
Suitable for machining precision products where squareness
and parallelism are important
Attachment method: using a chuck adapter

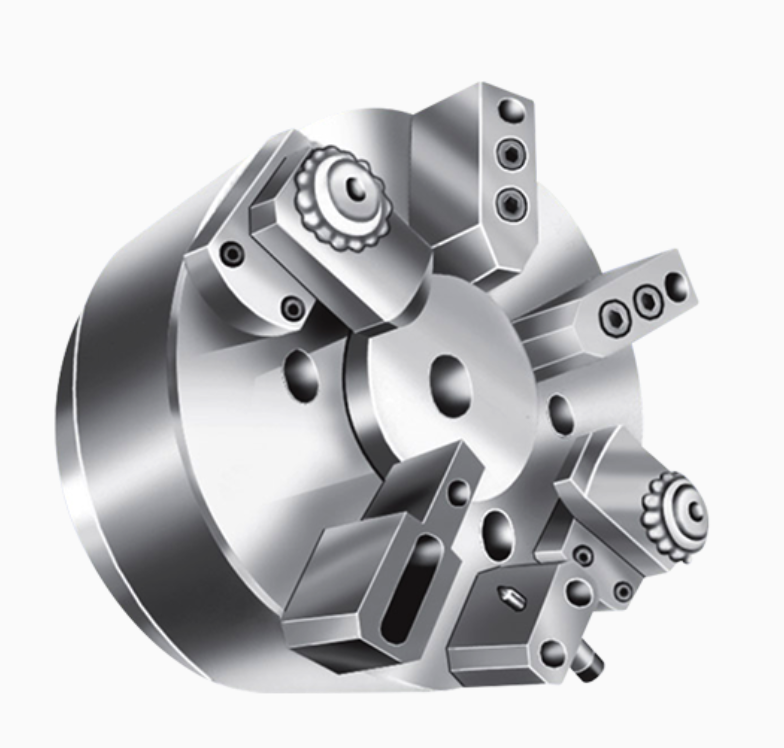

DF
Finger power chuck
Chucking by pulling the end face of the workpiece
Adjustment function is given according to the difference in thickness of the workpiece
Optimal for clamping of work where inner and outer diameter chucking is impossible
or where inner and outer diameter chucking is concerned about deformation
Chuck type: 2-jaw chuck, 3-jaw chuck
All size of 2-jaw, and 3-jaw are the same.

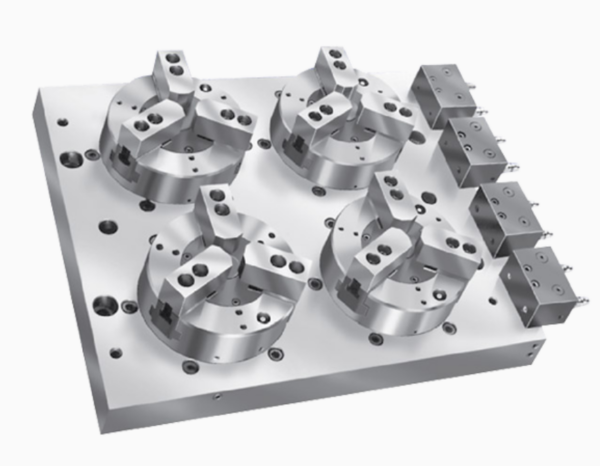

DMC
Work clamping jigs for machining centers
Mainly used for machining centers
Set one, two, four, or six chucks in composite configuration
on the base plate as a jig
Reduced machining time
Easy to use because it uses air
It is designed to be compact and lightweight,
and at the same time as the cylinder is built-in, installation is easy
Also available hydraulically
There is also a 2Jaw model with the same structure
