Build-in hydraulic cylinder; it can also work with a lock valve and be driven by air pressure.
Radial clamp and axial pull down at the same time, keep the workpiece attaching close to the base surface of the chuck.
Almost no workpiece uplifting displacement.

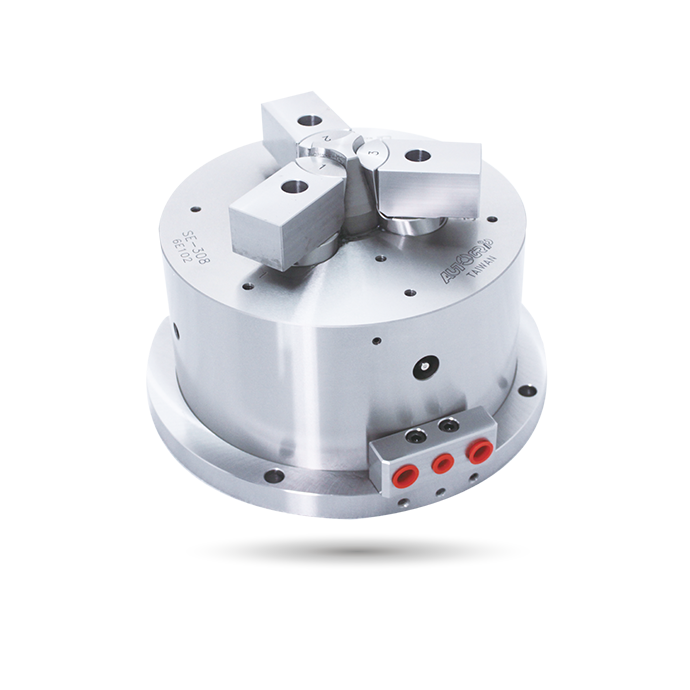

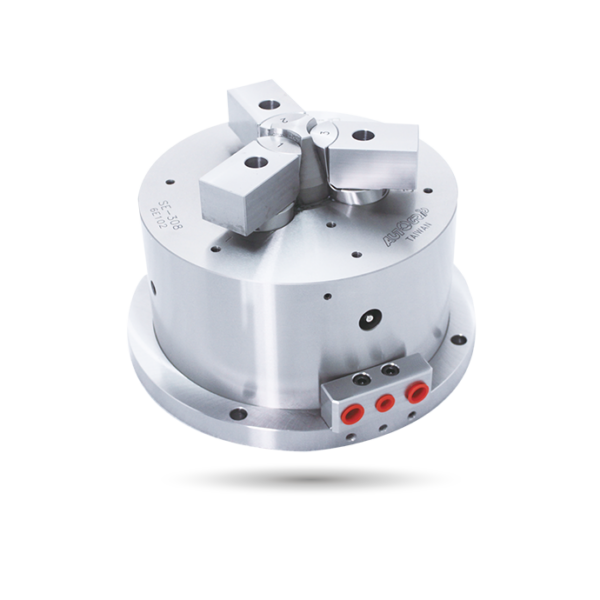

3 jaw drill chuck which the body with heat treatment and the organization of cylinder pull-down, and fine boring, which guarantee the high clamping precision and durableness, it’s suitable for heavy duty machining.
3 jaw chucks are suitable for drilling, milling, and other machines.

Can work together with multi-plate.

SE

Build-in hydraulic cylinder; it can also work with a lock valve and be driven by air pressure.
Radial clamp and axial pull down at the same time, keep the workpiece attaching close to the base surface of the chuck.
Almost no workpiece uplifting displacement.
3 jaw drill chuck which the body with heat treatment and the organization of cylinder pull-down, and fine boring, which guarantee the high clamping precision and durableness, it’s suitable for heavy duty machining.
3 jaw chucks are suitable for drilling, milling, and other machines.

Can work together with multi-plate.

Equipped with Airtight pressure detection function.

Model	Jaw stroke (Dia.) (mm)	Chucking Dia. Max.(mm)	Chucking Dia. Min.(mm)	Max. clamping force Pneumatic kN(kgf)	Max. clamping force Hydraulic kN(kgf)	Max. pressure Pneumatic MPa (kgf/cm²)	Max. pressure Hydraulic MPa (kgf/cm²)	Min. pressure kgf/cm²	Air consumption lit(at 6.0 kgf/cm²)	Weight (kg)
SE-305	3	83	29	14.3 (1459)	41.0 (4181)	0.7 (7)	1.3 (13)	2	0.46	14.6
SE-306	5	110	44	20.0 (2040)	57.0 (5812)	0.7 (7)	1.3 (13)	2	0.58	20
SE-308	5	150	50	32.0 (3263)	78.0 (7954)	0.7 (7)	1.3 (13)	2	1.02	33

Model	A(h7)	A1	B	B1	C	D	E	E1	Fmax.	Fmin	G	TypeA H max.	TypeA H min.	TypeB H max.	TypeB H min.	H1max.	H1min.	J	K	L	M	N	P	Q	R
SE-305	173	135	126	100	155	15	20	5	3	-3	25	68	50	83	67	50	29	25	9	88	123	27.5	27.5	3~M6	M8x1.25
SE-306	206	168	140	108	188	18	23	7	5	-5	40	90	70	110	89	70	44	31	11	104.5	139.5	38	29	3~M6	M10x1.5
SE-308	248	210	164	119	230	18	30	9	5	-5	49	110	90	150	108	90	50	35	11	125.5	160.5	50	35	3~M8	M10x1.5
