USC

Pneumatic static cylinder

Stationary cylinder + chuck unit Ø 140 – 260 mm

• Can be equipped with different types of chucks
• With stroke control

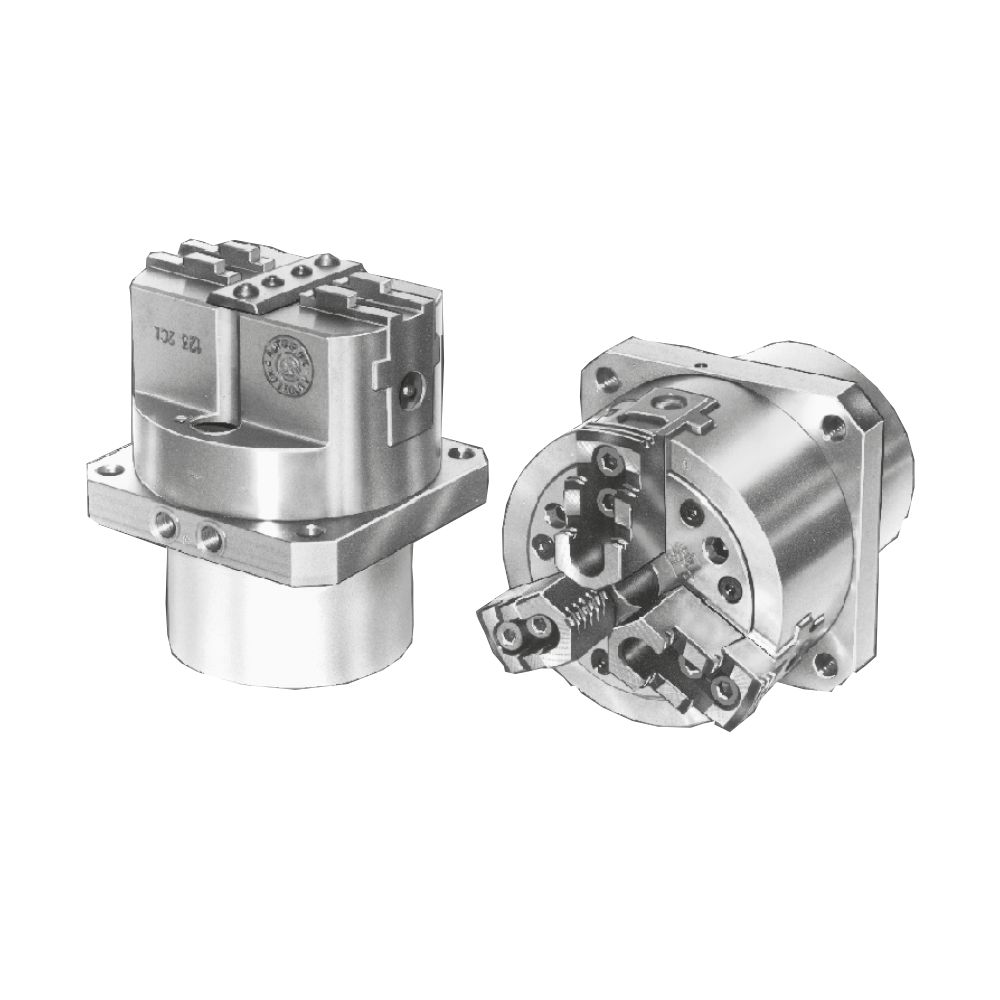

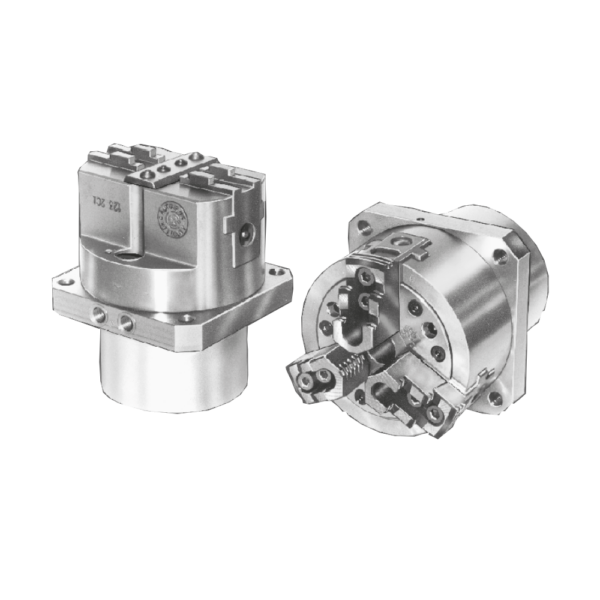

US-CL

With 2 jaw

Long stroke chuck

US-A

With 3 jaw long or normal stroke chuck

Stationary cylinder + chuck unit Ø 80 – 315 mm

• Hydraulic cylinder module+chuck
• Closed center chucks type CL/AN/AL

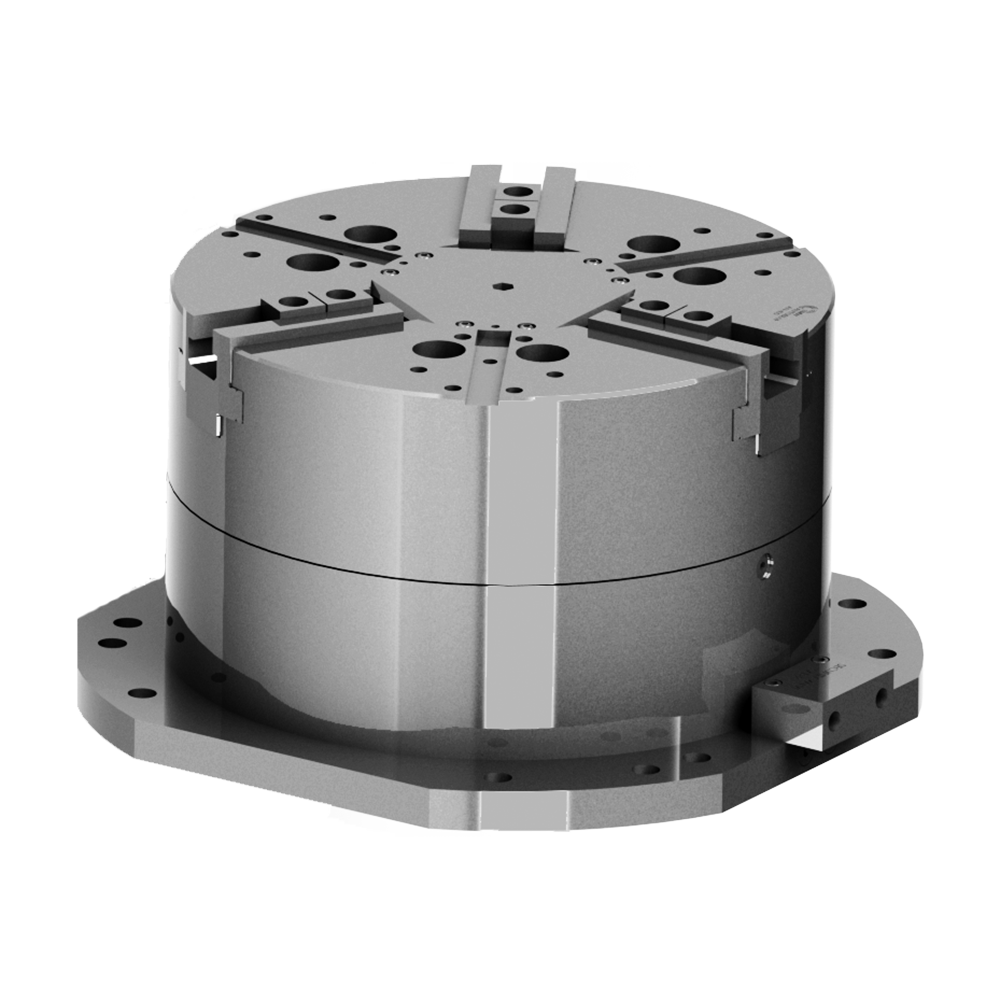

US-BIG DIAMETERS

Pneumatic static cylinder for 2 or 3 or 4 jaws

Stationary cylinder + chuck unit Ø 400 – 800 mm

• Option for serrated or Tongue & Groove jaws
• Option of sealed or not sealed chucks
• Option of 2/3/4 jaws depending on chuck size and model
• Option of long or normal stroke depending on chuck size & model

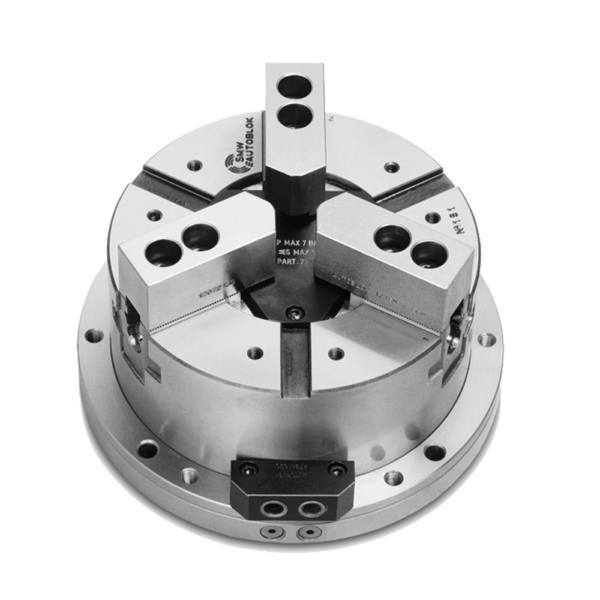

HB-D

INCH serration

2 or 3 jaws

HB-C

Tongue & groove

Stationary chuck, hydraulic Ø 130 – 315 mm

• Built-in hydraulic cylinder
• 2 and 3 jaws

PB-D

INCH serration

2 or 3 jaws

PB-C

Tongue & groove

Stationary chuck, pneumatic Ø 130 – 315 mm

• Built-in cylinder
• 2 and 3 jaws

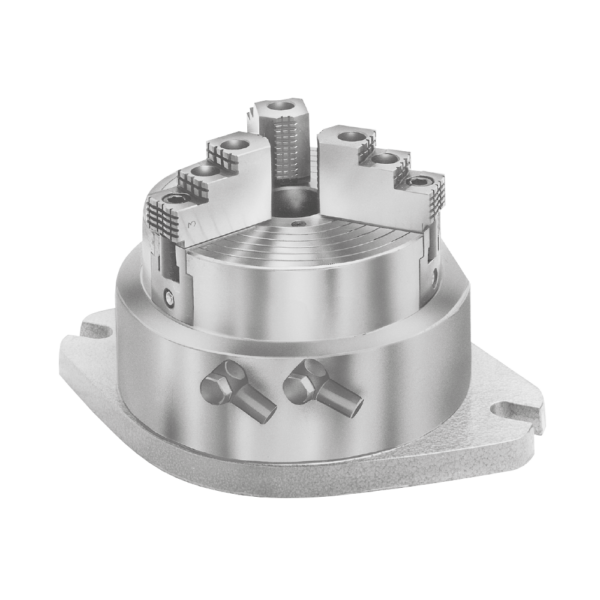

STP

INCH serration

3 jaws

Stationary chuck, pneumatic Ø 125 – 280 mm

• Built-in cylinder
• With through hole
