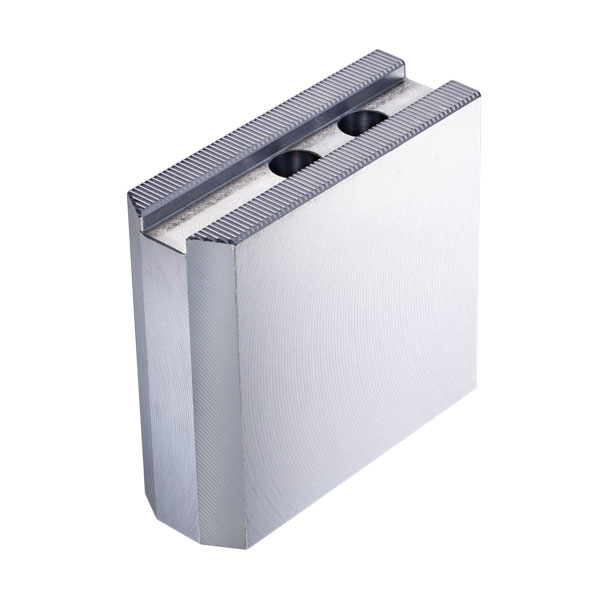

4 inchExtra Height Soft Jaws
Description
The 4-inch extra height soft jaws are designed for workpieces that require a higher gripping height, improving stability and accuracy in CNC lathes.
Customers can choose from various sizes and configurations to meet specific machining needs, minimizing unnecessary adjustments.
Feature
- Materials: S45C
- Serration Pitch：1.5mm×60°
- To conform to the chucks from Kitagawa and other global brands
- Angle type: 120° Pointed type
- For sizes not listed, please refer to the “Soft Jaw Customization Form” on page 22 of the catalog.
Dimensions
Specifications
UNIT: mm
5 inchSoft Jaws -Extra Height Type
Description
The 5-inch extra height soft jaws are designed for CNC lathe applications, particularly for longer workpieces.
For example, a 100mm-long workpiece typically requires jaws over 70mm in height to ensure greater machining stability and accuracy.
Models with heights over 100mm are also available to meet advanced clamping requirements.
Feature
- Materials: S45C
- Serration Pitch：1.5mm×60°
- To conform to the chucks from Kitagawa and other global brands
- Angle type: 120° Pointed type
- For sizes not listed, please refer to the “Soft Jaw Customization Form” on page 22 of the catalog.
Dimensions
Specifications
UNIT: mm
6 inchExtra Height Soft Jaws
Description
The 6-inch extra height soft jaws are designed for workpieces that require a higher gripping height, improving stability and accuracy in CNC lathes.
Customers can choose from various sizes and configurations to meet specific machining needs, minimizing unnecessary adjustments.
Feature
- Materials: S45C
- Serration Pitch：1.5mm×60°
- To conform to the chucks from Kitagawa and other global brands
- Angle type: Flat type, 120° Standard type, 120° Pointed type
- For sizes not listed, please refer to the “Soft Jaw Customization Form” on page 22 of the catalog.
Dimensions
Specifications
UNIT: mm
8 inchExtra Height Soft Jaws
Description
The 8-inch of extra height soft jaws are designed for workpieces that require a higher gripping height, improving stability and accuracy in CNC lathes.
Customers can choose from various sizes and configurations to meet specific machining needs, minimizing unnecessary adjustments.
Feature
- Materials: S45C
- Serration Pitch：1.5mm×60°
- To conform to the chucks from Kitagawa and other global brands
- Angle type: Flat type, 120° Standard type, 120° Pointed type
- For sizes not listed, please refer to the “Soft Jaw Customization Form” on page 22 of the catalog.
Dimensions
Specifications
UNIT: mm
10 inchExtra Height Soft Jaws
Description
The 10-inch extra height soft jaws are designed for workpieces that require a higher gripping height, improving stability and accuracy in CNC lathes.
Customers can choose from various sizes and configurations to meet specific machining needs, minimizing unnecessary adjustments.
Feature
- Materials: S45C
- Serration Pitch：1.5mm×60°
- To conform to the chucks from Kitagawa and other global brands
- Angle type: Flat type, 120° Standard type, 120° Pointed type
- For sizes not listed, please refer to the “Soft Jaw Customization Form” on page 22 of the catalog.
Dimensions
Specifications
UNIT: mm
12 inchExtra Height Soft Jaws
Description
The 12-inch extra height soft jaws are designed for workpieces that require a higher gripping height, improving stability and accuracy in CNC lathes.
Customers can choose from various sizes and configurations to meet specific machining needs, minimizing unnecessary adjustments.
Feature
- Materials: S45C
- Serration Pitch：1.5mm×60°
- To conform to the chucks from Kitagawa and other global brands
- Angle type: Flat type, 120° Standard type, 120° Pointed type
- For sizes not listed, please refer to the “Soft Jaw Customization Form” on page 22 of the catalog.
Dimensions
Specifications
UNIT: mm
15 inchExtra Height Soft Jaws
Description
The 15-inch extra height soft jaws are designed for workpieces that require a higher gripping height, improving stability and accuracy in CNC lathes.
Customers can choose from various sizes and configurations to meet specific machining needs, minimizing unnecessary adjustments.
Feature
- Materials: S45C
- Serration Pitch：1.5mm×60°
- To conform to the chucks from Kitagawa and other global brands
- Angle type: Flat type
- For sizes not listed, please refer to the “Soft Jaw Customization Form” on page 22 of the catalog.
Dimensions
Specifications
UNIT: mm
