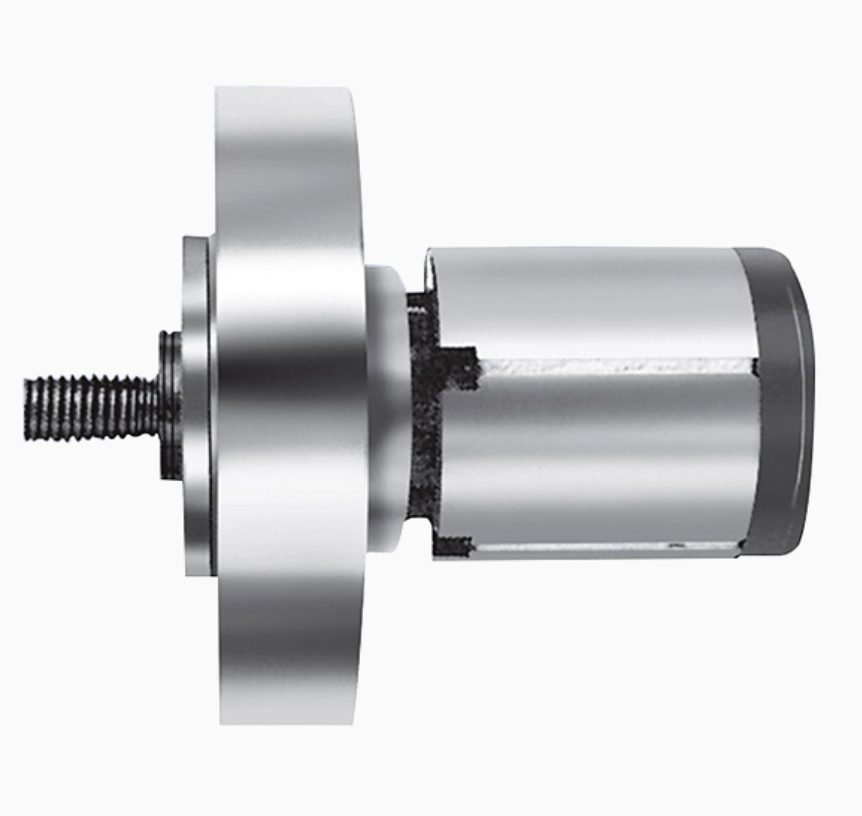

MDI
Small Collet Chuck for Inner diameter Chucking
Used for light cutting of chucks or machining products requiring high precision
Easy replacement of collets and stoppers according to the size
of the inner diameter of the material
Conveniently used when processing while replacing various types of workpieces
Attachment method: using a chuck adapter

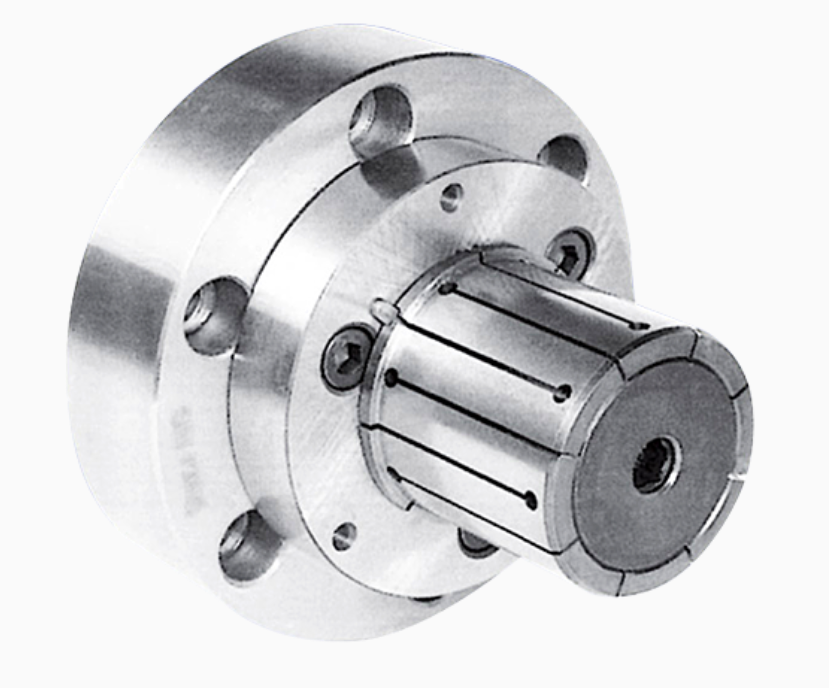

MIT
Sole Rubber Collet Chuck for Inner diameter Chucking
Connect the collet piece with silicone rubber
so that the collet piece can move independently
Chucking with the collet extension parallel to the front
Used when high precision (TIR 0.005mm) and long life
(double that of general collets) are required
Attachment method: using a chuck adapter

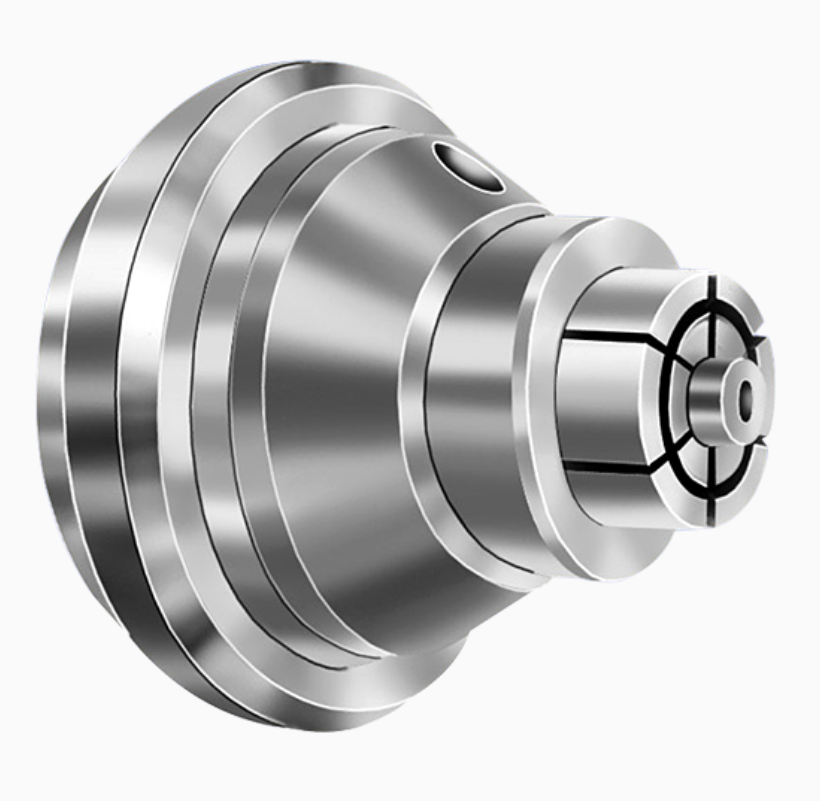

DIC
Collet Chuck for Inner diameter Chucking
Strong inner diameter Chucking Collet Chuck
Stable during cutting as it adheres accurately to the locating surface
It clamps while pulling, so it is used when the squareness
and parallelism of the clamping part are precisely required

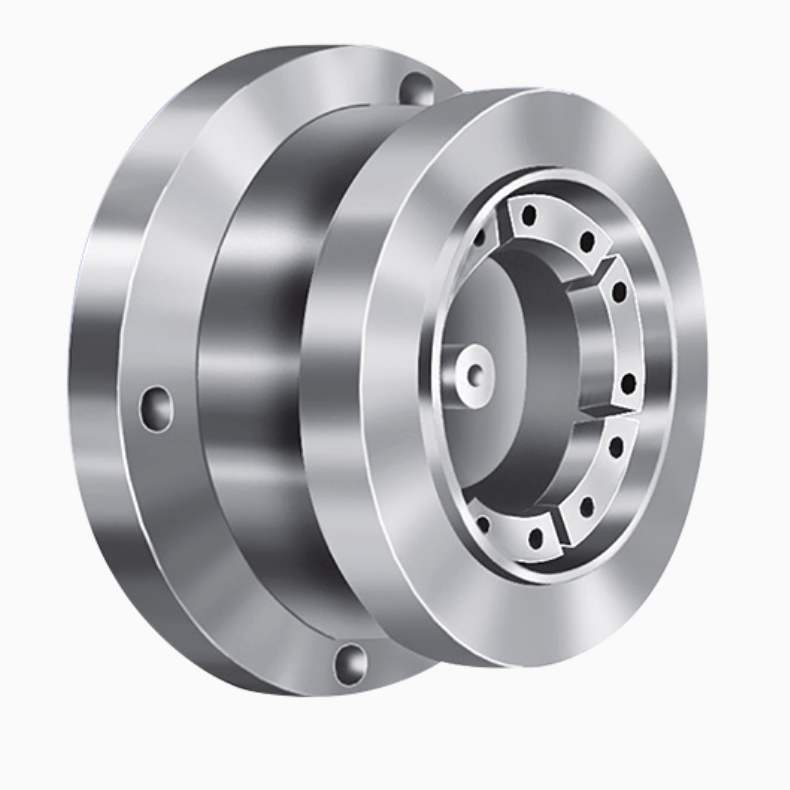

DOC
Collet Chuck for Outer Diameter Chucking
Strong Outer Diameter Chucking Collet Chuck
It is a jaw exchange type, and only the jaw
is exchanged according to the size of the workpiece
There is also a collet integrated type that is not a jaw interchangeable type
