All tools available in different lengths and diameters!
| HSK-A sizes | Execution / Notice | Representation | |
|---|---|---|---|
| i-tec® shrink fit chuck Standard version |
HSK-A 63 / 100 | The clamping diameter is designed for a shank tolerance h6. For further fine balancing of the chucks, threaded holes are provided on the circumference (up to HSK 63 from Ø 6). Can be rebalanced by grub screws. |
 |
| i-tec® shrink fit chuck with CoolStream |
HSK-A 63 | The clamping diameter is designed for a shaft tolerance h6. With closable Cool- Stream bores. For further fine balancing of the chucks, threaded holes are provided on the circumference (up to HSK 63 from Ø 6). Can be rebalanced by grub screws. |
 |
| i-tec® shrink fit chuck with slim design |
HSK-A 63 / 100 | The clamping diameter is designed for a shaft tolerance h6. |
 |
| i-tec® shrink fit chuck with ultra short version |
HSK-A 63 | The clamping diameter is designed for a shaft tolerance h6. With closable Cool- Stream holes. |
 |
Your optimal choice in KELCH quality
All tools available in different lengths and diameters!
| HSK-A sizes | Execution / Notice | Representation | |
|---|---|---|---|
| i-tec® shrink fit chuck Standard version |
HSK-A 63 / 100 | The clamping diameter is designed for a shank tolerance h6. For further fine balancing of the chucks, threaded holes are provided on the circumference (up to HSK 63 from Ø 6). Can be rebalanced by grub screws. |
|
| i-tec® shrink fit chuck with CoolStream |
HSK-A 63 | The clamping diameter is designed for a shaft tolerance h6. With closable Cool- Stream bores. For further fine balancing of the chucks, threaded holes are provided on the circumference (up to HSK 63 from Ø 6). Can be rebalanced by grub screws. |
|
| i-tec® shrink fit chuck with slim design |
HSK-A 63 / 100 | The clamping diameter is designed for a shaft tolerance h6. |
|
| i-tec® shrink fit chuck with ultra short version |
HSK-A 63 | The clamping diameter is designed for a shaft tolerance h6. With closable Cool- Stream holes. |
|
| HSK-A sizes | Execution / Notice | Representation | |
|---|---|---|---|

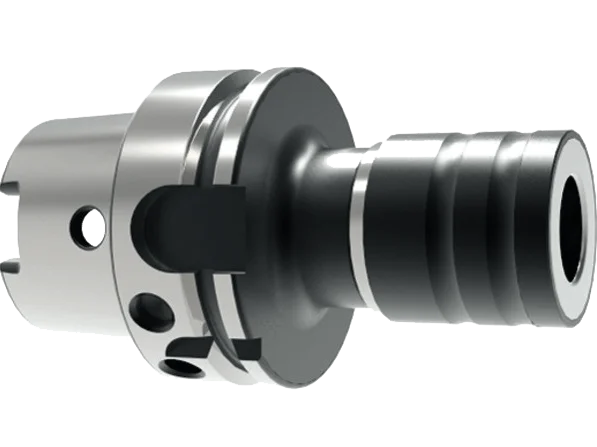

| Quick change tapping chuck | HSK-A 63 / 100 | For thread cutting on machining centers with synchronous control. |
 |
| HSK-A-sizes | Execution / Notice | Representation | |
|---|---|---|---|

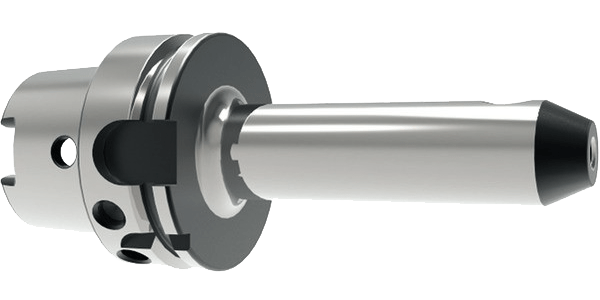

| Intermediate sleeves for cylindrical shafts with lateral driving surface (Weldon) | HSK-A 63 / 100 | For holding shank tools with lateral driving surface, DIN 1835 Form B and DIN 6535 Form HB. |
 |

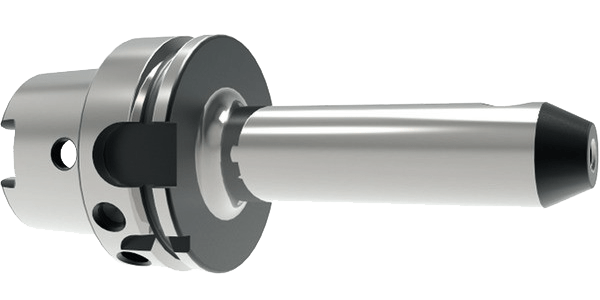

| Intermediate sleeves for cylindrical shanks with lateral driving surface and CoolStream (Weldon) |
HSK-A 63 | For holding shank tools with lateral driving surface, DIN 1835 Form B and DIN 6535 Form HB. With lockable Cool-Stream bores. |
 |

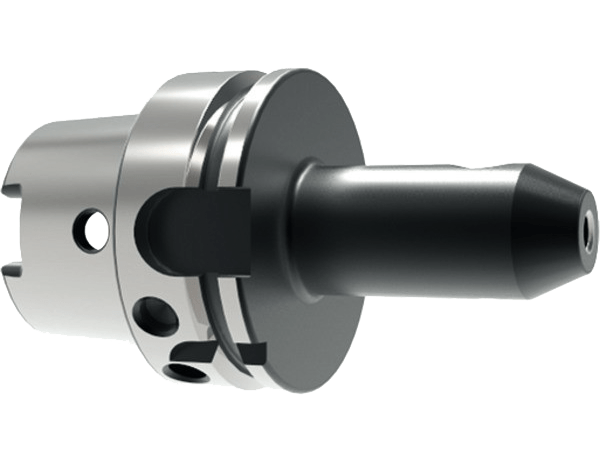

| Adapter sleeves for cylindrical shafts with inclined clamping surface (Whistle Notch) |
HSK-A 63 / 100 | For holding shank tools with inclined clamping surface (2°), DIN 1835 Form E and DIN 6535 Form HE. Adjusting screw drilled through for coolant. |
 |

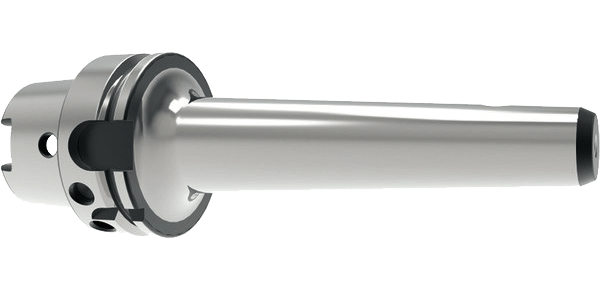

| Intermediate sleeves for cylindrical shafts slim design | HSK-A 63 | For holding shank tools with lateral driving surface, DIN 1835-1 Form B and inclined clamping surface (2°), DIN 1835-1 Form E, or DIN 6535 Form HB and HE. Adjusting screw drilled through for coolant. |
 |
| HSK-A-sizes | Execution / Notice | Representation | |
|---|---|---|---|
| Solid drill holder | HSK-A 63 / 100 | To accommodate solid drills with shank to DIN 6595 and ISO 9766. The position of the front set screw is offset by 0.4 mm relative to the taper countersink in the cylindrical shank according to DIN 6595. The offset causes the collar of the solid drill to be clamped against the contact surface of the tool holder when the set screw is tightened. |
 |
| HSK-A-sizes | Execution / Notice | Representation | |
|---|---|---|---|
| Hydraulic expansion chuck | HSK-A 63 / 100 | For tools with shanks to DIN 1835 Form A and B and DIN 6535 Form HA and HB. Shanks to DIN 6535 Form HE can only be used in conjunction with reducing bushes. Shank quality h 6, Ra min = 0.3. For Ø 25 and Ø 32 only form A or form HA can be used. |
 |
| HSK-A-sizes | Execution / Notice | Representation | |
|---|---|---|---|
| Chuck for ER/ESX 16 collets with female thread | HSK-A 63 / 100 | For clamping tools with straight shank according to DIN 1835 form A, B and E and DIN 6535 form HA, HB and HE. Chuck with internal thread for adjusting screws. |
 |
| Chuck for collets ER/ESX 16 without internal thread | HSK-A 63 / 100 | For clamping tools with cylindrical shank according to DIN 1835 form A, B and E and DIN 6535 form HA, HB and HE. |
 |
| Chuck for collets ER/ESX 25/32/40 with female thread | HSK-A 63 / 100 | For clamping tools with straight shank according to DIN 1835 form A, B and E and DIN 6535 form HA, HB and HE. Chuck with internal thread for adjusting screws. |
 |
| Chuck for collets ER/ESX 25/32/40 without female thread | HSK-A 63 / 100 | For clamping tools with cylindrical shank according to DIN 1835 form A, B and E and DIN 6535 form HA, HB and HE. |
 |
| HSK-A-sizes | Execution / Notice | Representation | |
|---|---|---|---|
| Shell cutter arbors for Milling cutter with longitudinal or transverse flute |
HSK-A 63 / 100 | For clamping end mills and cutter heads with longitudinal or transverse flutes. Centrally drilled through as preparation for coolant supply. Cutter driver according to DIN 138. |
 |

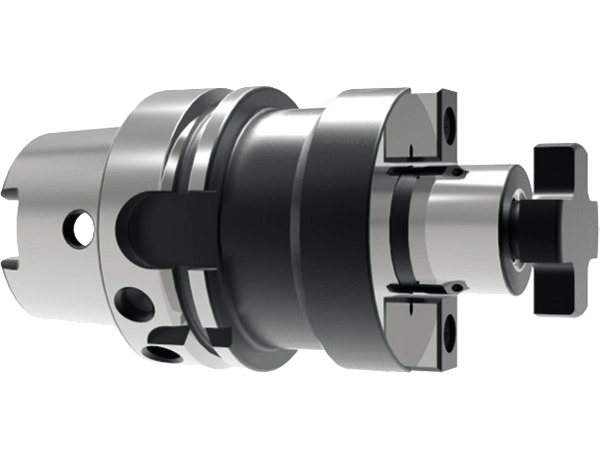

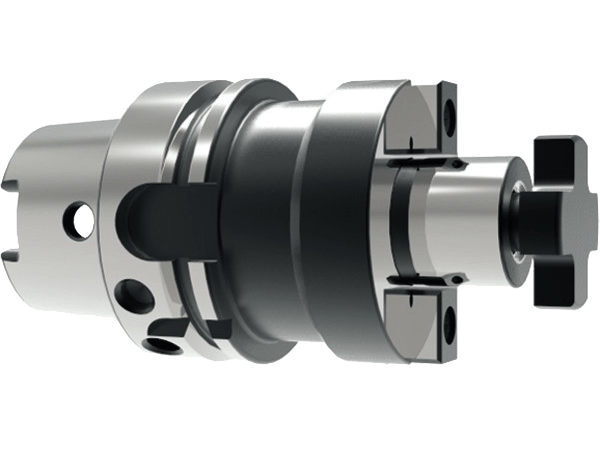

| Shell milling cutter arbors with enlarged contact diameter | HSK-A 100 | Centrally drilled through as preparation for coolant supply. Clamping Ø 40 and 60 with 4 threaded holes to accommodate cutterheads with tool mounting according to DIN 2079. |
 |
| Shell mill arbors with enlarged contact diameter and KKB | HSK-A 63 | For clamping shell end mills and cutter heads with cross groove. Centrally drilled through and cooling channel holes to the face Clamping Ø 40 and 60 with 4 threaded holes to accommodate cutter heads with tool mounting according to DIN 2079. |
 |
| HSK-A-sizes | Execution / Notice | Representation | |
|---|---|---|---|

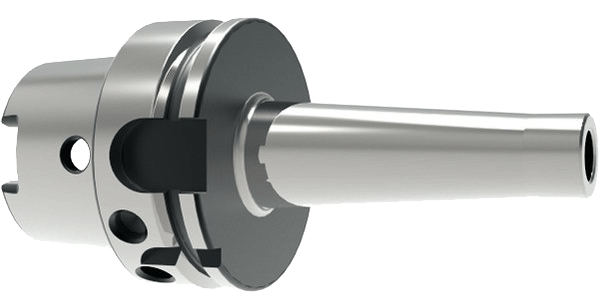

| Tool holder for screw-in milling cutter | HSK-A 63 / 100 | For clamping screw-in cutters with thread. |
 |
| HSK-A-sizes | Execution / Notice | Representation | |
|---|---|---|---|

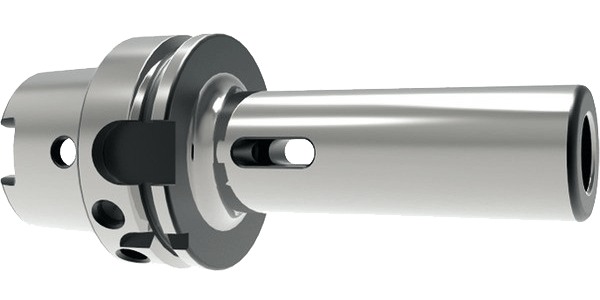

| Intermediate sleeves for Morse taper with expulsion tabs | HSK-A 63 / 100 |
 |
|

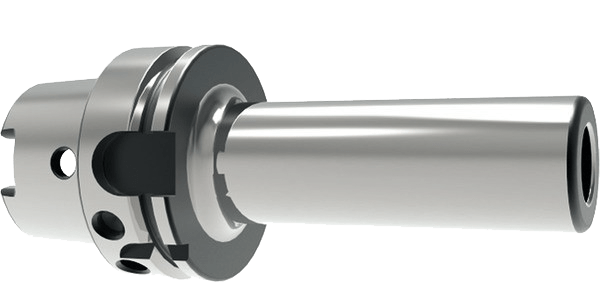

| Intermediate sleeves for Morse taper with tightening thread | HSK-A 63 / 100 |
 |
| HSK-A-sizes | Execution / Notice | Representation | |
|---|---|---|---|
| Drill chuck | HSK-A 63 / 100 | For holding tools with cylindrical shanks for use on machining centers and NC machines. High precision and concentricity. Holding torque at clamping diameter 12mm ≥ 70 Nm. Left-right rotation. Easy operation, clamping and releasing via supplied hexagonal pin wrench. |
 |
| HSK-A-sizes | Execution / Notice | Representation | |
|---|---|---|---|
| Basic holder Tooling system ABS® License KOMET® | HSK-A 63 / 100 | Distribution is limited to Germany. Original equipment and replacement deliveries are possible worldwide for machines manufactured in Germany. |
 |
| HSK-A-sizes | Execution / Notice | Representation | |
|---|---|---|---|

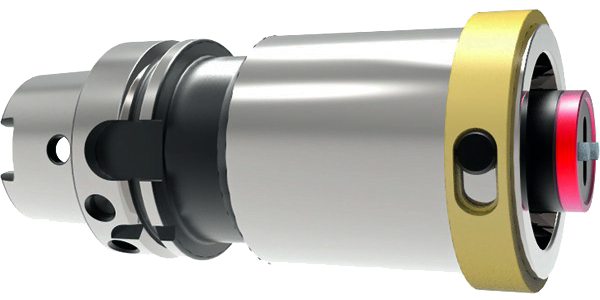

| Extensions | HSK-A 63 / 100 | To accommodate HSK tools ISO 12164-1/ DIN 69 893-1 form A and C, d1 = nominal size HSK. |
 |
| HSK-A-sizes | Execution / Notice | Representation | |
|---|---|---|---|
| Reductions | HSK-A 63 / 100 | To accommodate HSK tools ISO 12164-1/ DIN 69 893-1 form A and C, d1 = nominal size HSK. |
 |
| HSK-A-sizes | Execution / Notice | Representation | |
|---|---|---|---|
| Adapter HSK / PSC axial clamping | HSK-A 63 / 100 | To accommodate PSC tools according to ISO 26623-1, d1 = nominal size PSC. |
 |
| HSK-A-sizes | Execution / Notice | Representation | |
|---|---|---|---|
| Closure plug | HSK 25 / 32 / 40 / 50 / 63 / 80 / 100 | For sealing machine spindles, multi-spindle heads, etc. As protection for HSK spindles against contamination by chips, coolant, etc. |
 |
| HSK-A-sizes | Execution / Notice | Representation | |
|---|---|---|---|
| Tool blanks | HSK 63 / 100 | For self-production of special tools. Taper including collar hardened. Vickers hardness min. HV 670 kp/mm2 (min. HRC 58). Taper ground. Shank with center unhardened for further processing. |
 |
