รายละเอียดสินค้า

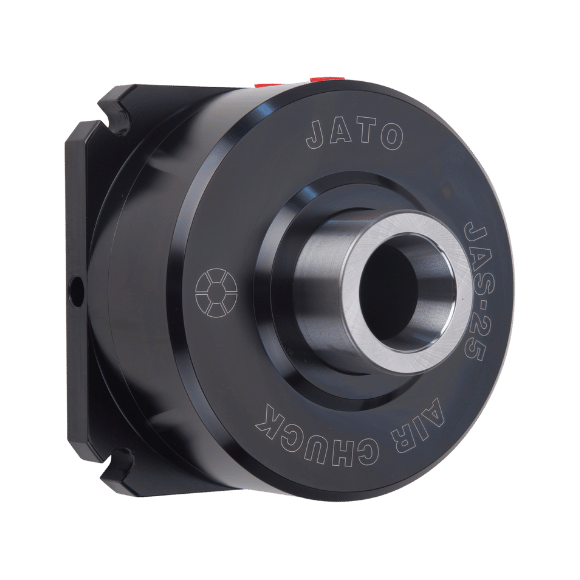

- Cost-effective stationary collet chuck.
- Dead length design: no axial movement.
- High accuracy.High rigidity. Long product life.
- High resistance to cutting chips, fluid, or dust.
- Chuck force-opening design ensures no workpart jamming

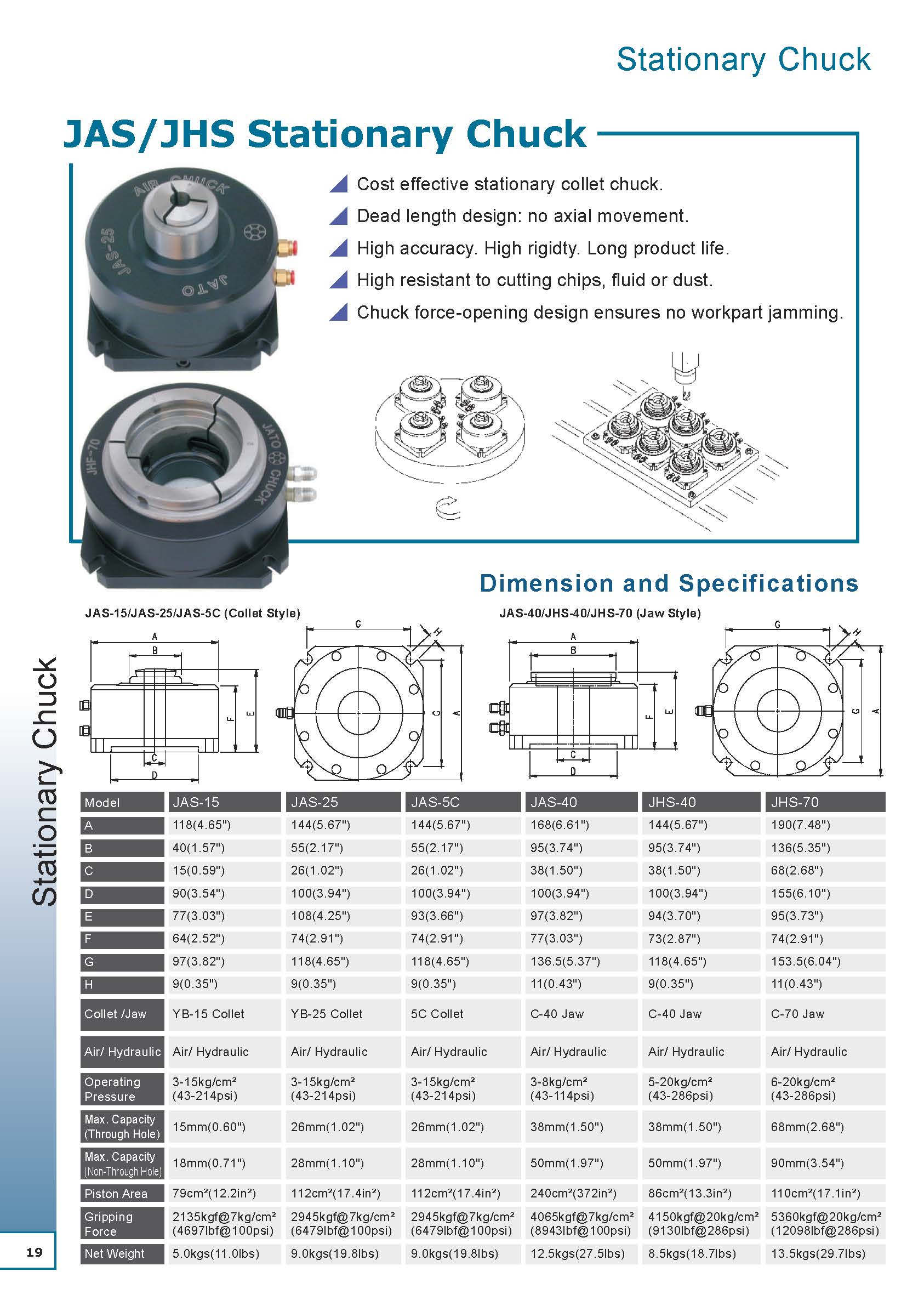

| JAS-15 | JAS-25 | JAS-5C | |
|---|---|---|---|
| A | 118 ( 4.65″ ) | 144(5.67″) | 144(5.67″) |
| B | 40(1.57″) | 55(2.17″) | 55(2.17″) |
| C | 15(0.59″) | 26(1.02″) | 26(1.02″) |
| D | 77(3.03″) | 105(4.13″) | 90(3.54″) |
| E | 64(2.52″) | 74(2.91″) | 74(2.91″) |
| F | 97(3.82″) | 118(4.65″) | 118(4.65″) |
| G | 9(0.35″) | 9(0.35″) | 9(0.35″) |
| Collet / Jaw | YB-15 Collet | YB-25 Collet | 5C Collet |
| Air/Hydraulic | Air/Hydraulic | Air/Hydraulic | Air/Hydraulic |
| Operating Pressure | 3-15kg/cm² ( 43-214psi ) | 3-15kg/cm² ( 43-214psi ) | 3-15kg/cm² ( 43-214psi ) |
| Max. Capacity (Through/ None) | 15mm/18mm | 26mm/28mm | 26mm/28mm |
| Piston Area | 79cm² | 112cm² | 112cm² |
| Gripping Force | 2135 kgf@7kg/cm² ( 4706 lbf@100psi ) | 2945 kgf@7kg/cm² ( 6493 lbf@100psi ) | 2945 kgf@7kg/cm² ( 6493 lbf@100psi ) |
| Net Weight | 4.7 kgs ( 10.4 lbs ) | 8.5 kgs ( 18.7 lbs ) | 8.4 kgs ( 18.5 lbs ) |
