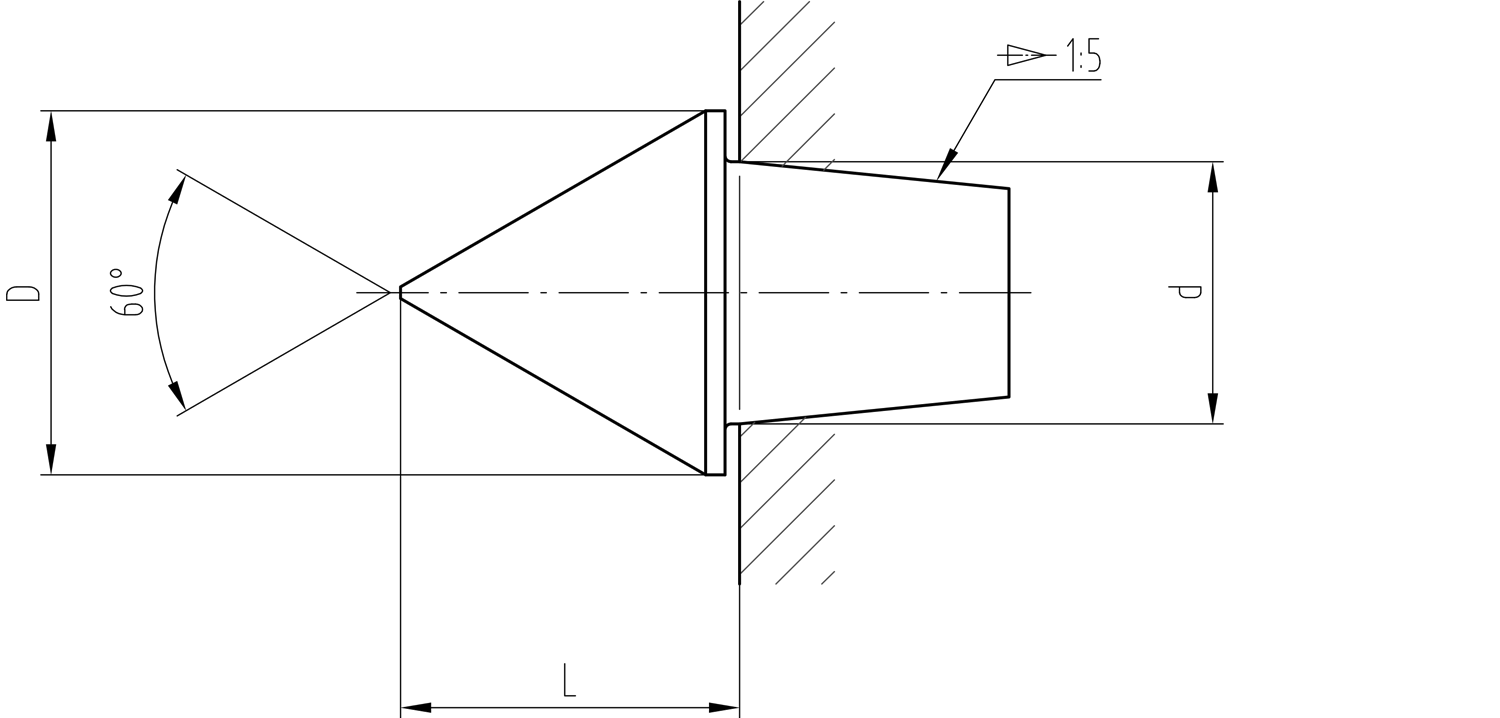

Full male center insert KS
| Type | D | d | L | Article number | Insert for | Availability* |
|---|---|---|---|---|---|---|
| KS-2 | 16 | 11 | 15 | 4.5802.002 | DK-2, TK-2, TK-3/2, TK–2/1, Set DK-2 | ● |
| KS-3 | 20 | 14 | 18.5 | 4.5803.002 | RK-3, DK-3, TK-3, TK-4/3, Set RK-3, Set DK-3 | ● |
| KS-4 | 25 | 18 | 23.3 | 4.5804.003 | CK-4, CK-5/4, RK-4, DK-4, TK-4, TK-5/4, Set CK-4, Set RK-4, Set DK-4 | ● |
| KS-5 | 40 | 28 | 36.2 | 4.5805.003 | RK-5, DK-5 | ● |
| KS-6 | 50 | 38 | 45.5 | 4.5806.003 | DK-6 | ● |
*Availability legend: ● ex stock ● 2–3 weeks ● 6 weeks / on request

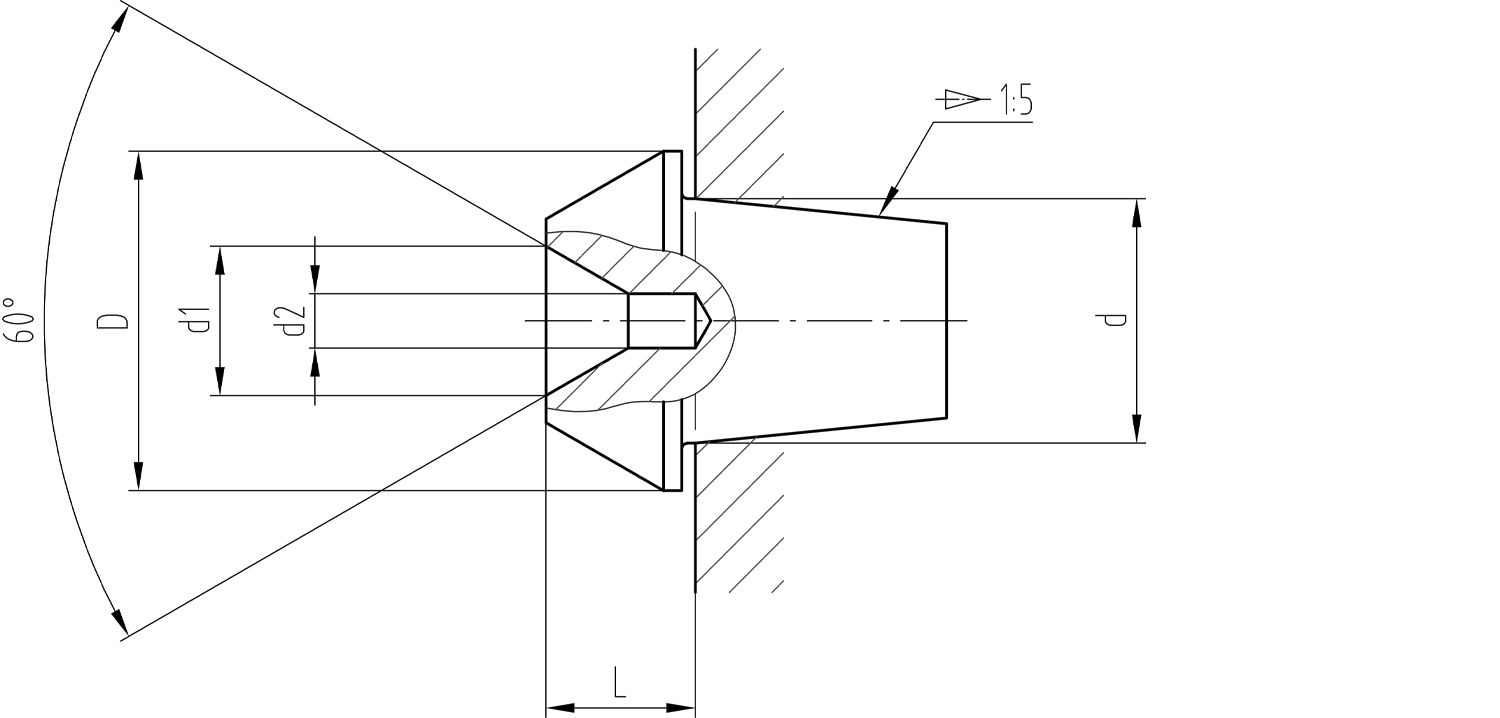

Female center insert KH
| Type | D | d | d1 | d2 | L | Article number | Insert for | Availability* |
|---|---|---|---|---|---|---|---|---|
| KH-2 | 16 | 11 | 8 | 3 | 6 | 4.5802.001 | DK-2, TK-2, TK-3/2, TK–2/1, Set DK-2 | ● |
| KH-3 | 20 | 14 | 9 | 4 | 7.5 | 4.5803.001 | RK-3, DK-3, TK-3, TK-4/3, Set RK-3, Set DK-3 | ● |
| KH-4 | 25 | 18 | 11 | 4 | 11 | 4.5804.002 | CK-4, CK-5/4, RK-4, DK-4, TK-4, TK-5/4, Set CK-4, Set RK-4, Set DK-4 | ● |
| KH-5 | 40 | 28 | 18 | 7 | 14.5 | 4.5805.002 | RK-5, DK-5 | ● |
| KH-6 | 50 | 38 | 24 | 8 | 18.5 | 4.5806.002 | DK-6 | ● |
*Availability legend: ● ex stock ● 2–3 weeks ● 6 weeks / on request
Extended full male center insert KV
| Type | D | d | d1 | L | Article number | Insert for | Availability* |
|---|---|---|---|---|---|---|---|
| KV-2 | 16 | 11 | 5 | 21 | 4.5802.009 | DK-2, TK-2, TK-3/2, TK–2/1, Set DK-2 | ● |
| KV-3 | 20 | 14 | 7 | 25 | 4.5803.008 | RK-3, DK-3, TK-3, TK-4/3, Set RK-3, Set DK-3 | ● |
| KV-4 | 25 | 18 | 9 | 31 | 4.5804.009 | CK-4, CK-5/4, RK-4, DK-4, TK-4, TK-5/4, Set CK-4, Set RK-4, Set DK-4 | ● |
| KV-5 | 40 | 28 | 12 | 50.5 | 4.5805.009 | RK-5, DK-5 | ● |
*Availability legend: ● ex stock ● 2–3 weeks ● 6 weeks / on request

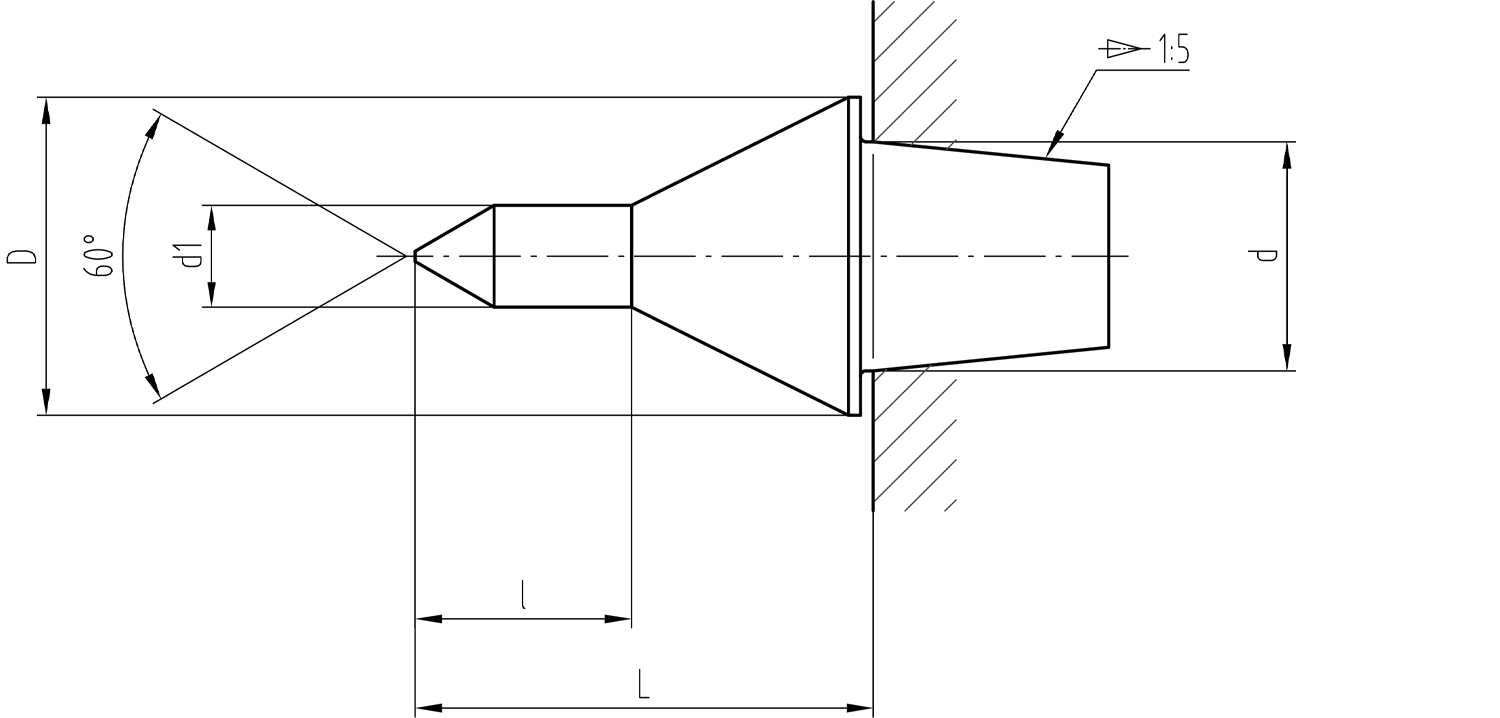

Cylindrical extended full male center insert KLK und KLG
| Type | D | d | d1 | L | l | Article number | Insert for | Availability* |
|---|---|---|---|---|---|---|---|---|
| KLK-2 | 16 | 11 | 4 | 25 | 10 | 4.5802.010 | DK-2, TK-2, TK-3/2, TK-2/1, Set DK-2 | ● |
| KLG-2 | 16 | 11 | 5 | 26 | 12 | 4.5802.011 | DK-2, TK-2, TK-3/2, TK-2/1, Set DK-2 | ● |
| KLK-3 | 20 | 14 | 5 | 30 | 12 | 4.5803.009 | RK-3, DK-3, TK-3, TK-4/3, Set RK-3, Set DK-3 | ● |
| KLG-3 | 20 | 14 | 8 | 30 | 17 | 4.5803.010 | RK-3, DK-3, TK-3, TK-4/3, Set RK-3, Set DK-3 | ● |
| KLK-4 | 25 | 18 | 8 | 36 | 17 | 4.5804.010 | CK-4, CK-5/4, RK-4, DK-4, TK-4, TK-5/4, Set CK-4, Set RK-4, Set DK-4 | ● |
| KLG-4 | 25 | 18 | 9 | 36 | 19 | 4.5804.011 | CK-4, CK-5/4, RK-4, DK-4, TK-4, TK-5/4, Set CK-4, Set RK-4, Set DK-4 | ● |
| KLK-5 | 40 | 28 | 9 | 56.5 | 19 | 4.5805.010 | RK-5, DK-5 | ● |
| KLG-5 | 40 | 28 | 12 | 56.5 | 22 | 4.5805.011 | RK-5, DK-5 | ● |
*Availability legend: ● ex stock ● 2–3 weeks ● 6 weeks / on request

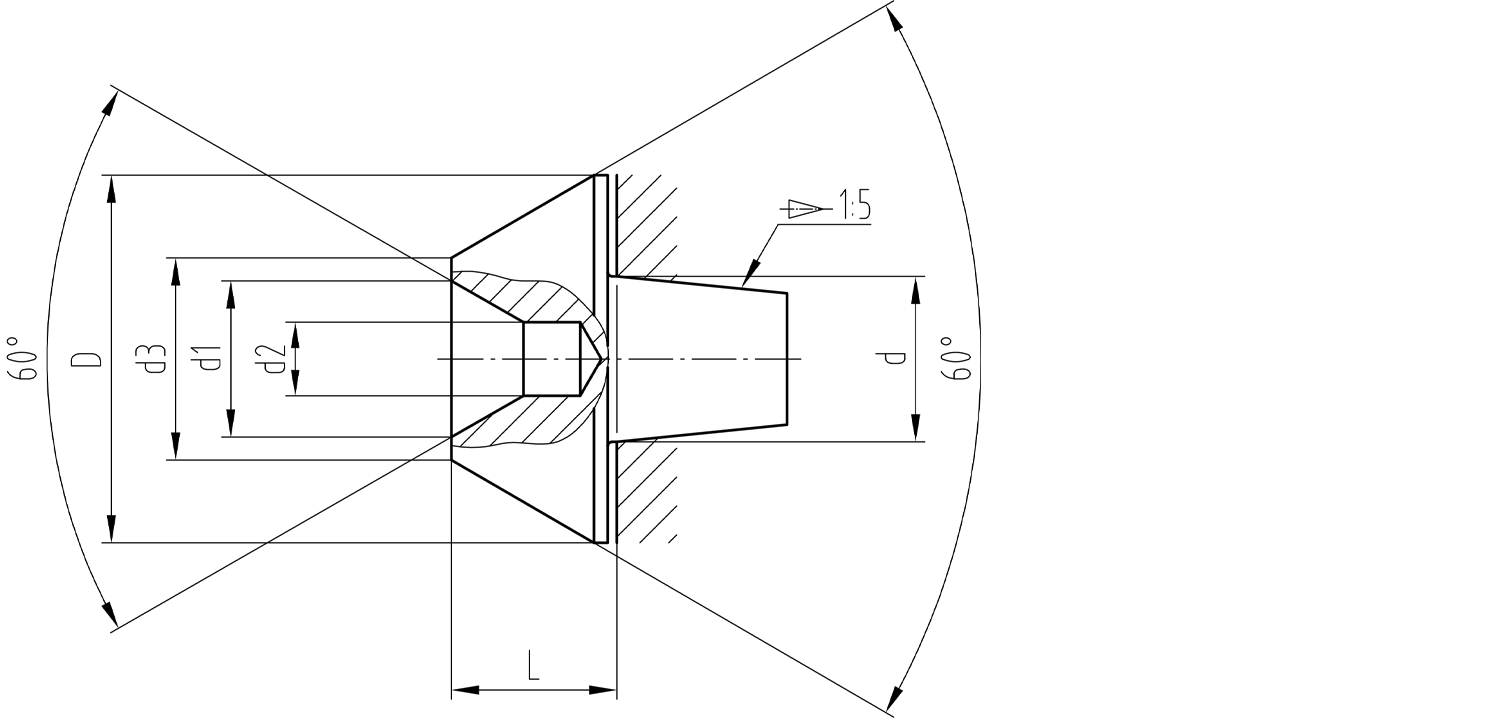

Blunt male center insert/female center KKH
| Type | D | d | L | d1 | d2 | d3 | Article number | Insert for | Availability* |
|---|---|---|---|---|---|---|---|---|---|
| KKH-2 | 25 | 11 | 11.5 | 11 | 5 | 14 | 4.5802.012 | DK-2, TK-2, TK-3/2, TK-2/1, Set DK-2 | ● |
| KKH-3 | 30 | 14 | 13 | 13 | 6 | 17 | 4.5803.011 | RK-3, DK-3, TK-3, TK-4/3, Set RK-3, Set DK-3 |
● |
| KKH-4 | 40 | 18 | 18 | 17 | 8 | 22 | 4.5804.012 | CK-4, CK-5/4, RK-4, DK-4, TK-4, TK-5/4, Set CK-4, Set RK-4, Set DK-4 |
● |
| KKH-5 | 50 | 28 | 23.5 | 32 | 15 | 35 | 4.5805.012 | RK-5, DK-5 | ● |
*Availability legend: ● ex stock ● 2–3 weeks ● 6 weeks / on request

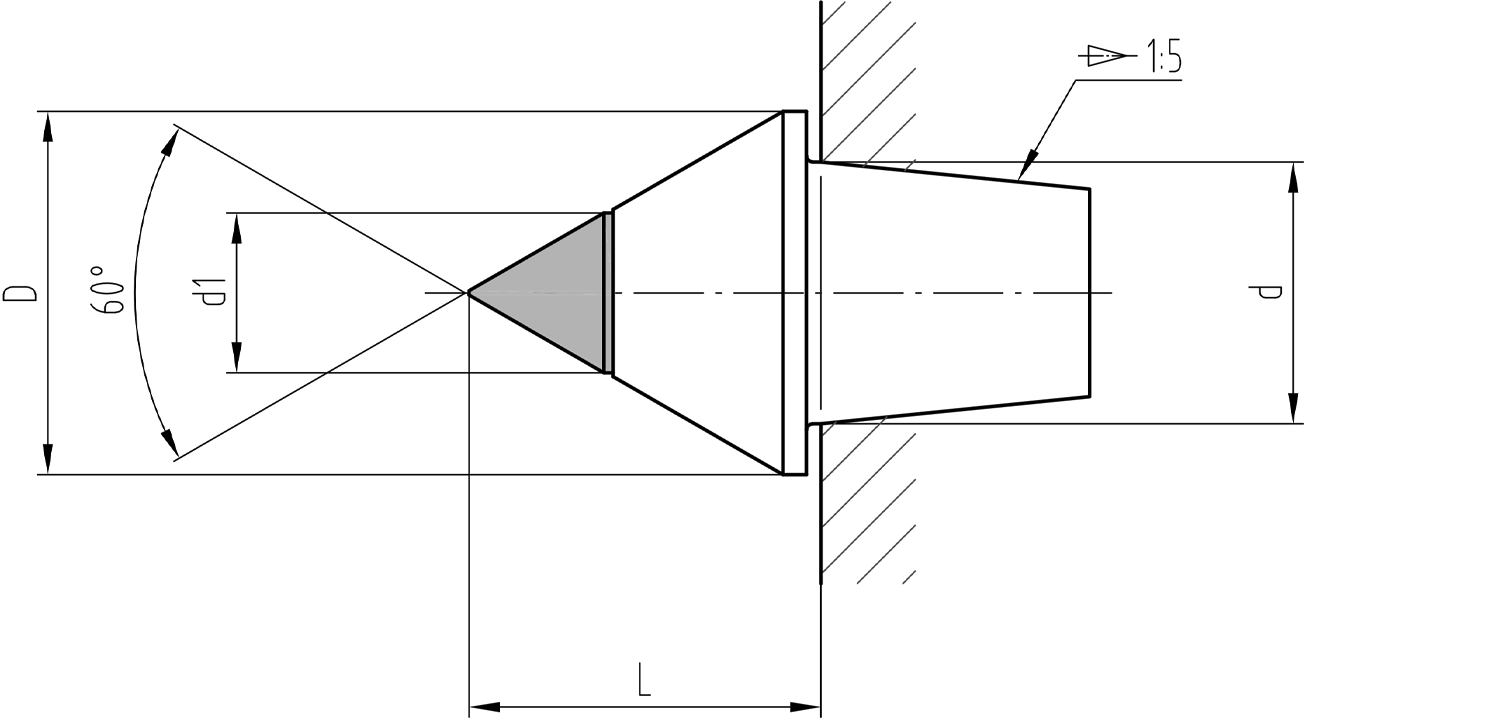

Full male center insert with carbide KSH
| Type | D | d | d1 | L | Article number | Insert for | Availability* |
|---|---|---|---|---|---|---|---|
| KSH-2 | 16 | 11 | 7 | 15.6 | 4.5802.013 | DK-2, TK-2, TK-3/2, TK-2/1 | ● |
| KSH-3 | 20 | 14 | 7 | 19.2 | 4.5803.013 | RK-3, DK-3, TK-3, TK-4/3 | ● |
| KSH-4 | 25 | 18 | 11 | 24.2 | 4.5804.015 | CK-4, CK-5/4, RK-4, DK-4, TK-4, TK-5/4 | ● |
| KSH-5 | 40 | 28 | 14 | 37.3 | 4.5805.013 | RK-5, DK-5 | ● |
*Availability legend: ● ex stock ● 2–3 weeks ● 6 weeks / on request
Set
Set CK
Set RK
Set DK
