AUTOGRIP Rotary Cylinders

หมวดหมู่,
สภาพสินค้าใหม่ / New
เบอร์โทรศัพท์
081-389-4990
Line ID
mechatronics09
ขอใบเสนอราคา

รายละเอียดสินค้า

Rotary Cylinders

Looking for a reliable supplier of rotary cylinders to enhance your automation processes? AUTOGRIP® has got you covered. Our rotating hydraulic cylinders are specifically designed to work with high-speed rotation of the spindle to drive the clamping and loosening of the chuck, making them an essential component in the automatic clamping configuration.

We offer two types of rotary cylinders, including rotary hydraulic cylinders and rotary air cylinders. Our hydraulic rotary cylinders come equipped with a built-in non-return valve self-locking mechanism, providing the function of central air injection or water injection, depending on the model. They can also be used with a stroke detection mechanism to ensure accurate positioning of the workpiece clamping.

RC
RC
Rotating Joint

New!

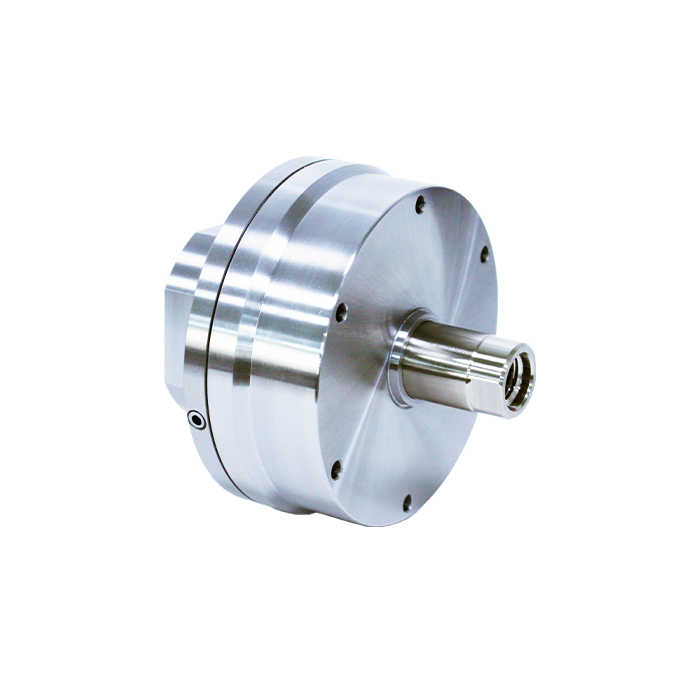

RID
RID
Designed for 4th-axis and 5th-axis rotary tables

New!
TK
TK
Thru-Hole
TS
TS
Thru-Hole
TH
TH
Thru-Hole | Hydraulic
TR
TR
Thru-Hole
RA
RA
Non-Thru-Hole | air
RH
RH
Non-Thru-Hole | Hydraulic
RK
RK
Non-Thru-Hole | Hydraulic
RK-N
RK-N
Non-Thru-Hole | Hydraulic

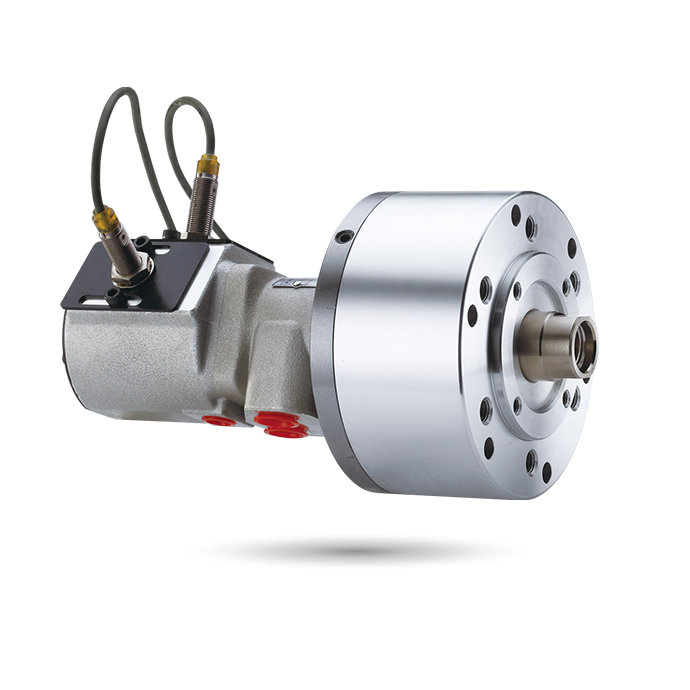

RS
RS
Stroke Control
RS-N
RS-N
Stroke Control
RL
RL
Non-Thru-Hole
RL-N
RL-N
Non-Thru-Hole
RL-AN
RL-AN
Air Connection Rotary Cylinder
RE
RE
Compact Style Rotary Cylinder
RE-A
RE-A
Compact Style Rotary Cylinder

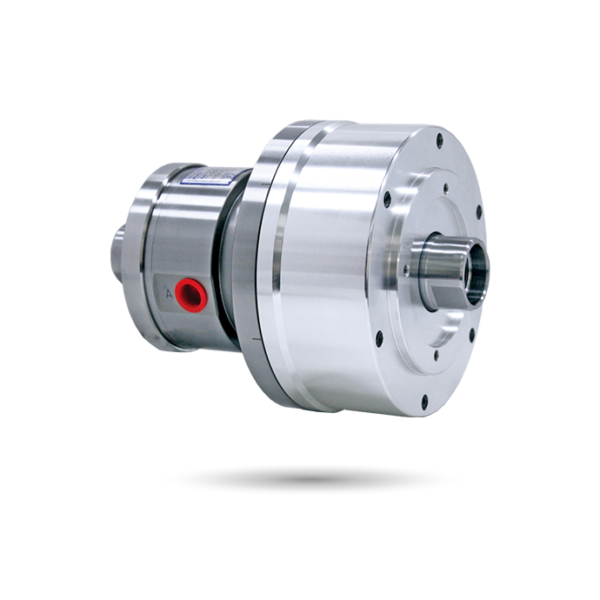

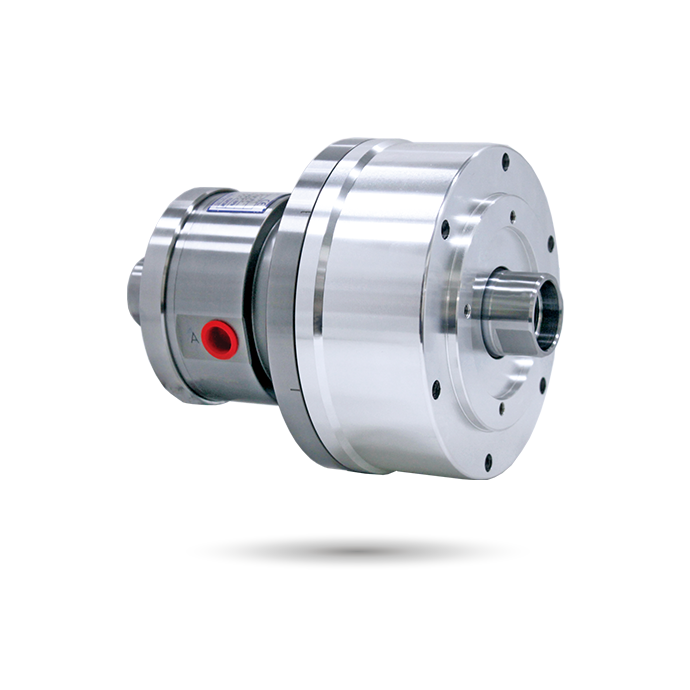

RC

Hydraulic Cylinder with Rotating Joint

Rotating Joint
  • Center through-hole hydraulic cylinder, suitable for horizontal CNC lathes.
  • Can choose an external rotary joint with either single or double paths.
  • It meets the demand for coolant through spindle and airtight pressure detect function.
  • Has a buil-in check valve for safety.
  • Stroke control via proximity switch or linear positioning system.

The proximity switch and single or double paths rotating joint are optional.

Please contact AUTOGRIP for more detailed drawing.

Specifications

Model Eff. piston area cm2
Extend		 Eff. piston area cm2
Retract		 Piston stroke
(mm)		 Max. speed
min-1(r.p.m.)		 Max. pressure
MPa(kgf/cm2)		 I
kg‧m2		 Weight
(kg)
RC-85 43.8 48.1 20 5000 3.5(35) 0.01 6.8
RC-100 65.6 64.4 20 5000 3.5(35) 0.02 9.2
RC-125 109.8 108.5 25 5000 3.5(35) 0.03 11.1
RC-145 152.2 143.9 30 5000 3.5(35) 0.03 14.6
RC-200 279.3 273.6 35 4000 4.0(40) 0.26 35.5
RC-250 451.1 436 60 2000 5.0(50) 0.57 57.3



Dimensions



MODEL A B C1 C2 D E(h7) F G1max. G1min. G2max. G2min. H J K L1 L2 M H8 M1 N P P1 Q Q1 R S H6 T U V1 V2 W1 W2
RC-85 85 20 120 116 100 65 32 45 25 28 8 76.5 156.5 M24x1.5 6~M8x80 12.5 25.4 10 40 23.5 14 4 3 38 56 110 RC3/8 31 M4x10 48 M5x9
RC-100 100 20 135 131 115 80 40 45 25 28 8 72 158.5 M30x1.5 6~M8x75 12.5 32 10 50 23.5 14 4 3 38 56 110 RC3/8 31 M4x10 48 M5x9
RC-125 125 25 160 156 140 110 40 50 25 33 8 78 164 M30x1.5 6~M8x80 11 32 10 50 23.5 14 4 3 38 56 110 RC3/8 31 M4x10 48 M5x9
RC-145 145 30 187 183 165 110 50 55 25 38 8 83 169.5 M40x1.5 6~M10x90 16.5 42 12 57 23.5 14 4 3 38 56 110 RC3/8 31 M4x10 48 M5x9
RC-200 195 35 257 257 225 120 55 73 38 51.5 16.5 120.5 222.5 M36x4.0 6~M16x130 26 38 12 65 35 15 6.5 4 48 74 135 RC1/2 35 M4x10 60 M5x11
RC-250 245 60 307 305 275 160 65 85 25 76.5 16.6 171.5 268.5 M42x3.0 6~M16x180 26 45 12 65 35 15 6.5 4 48 74 135 RC1/2 35 M4x10 60 M5x11

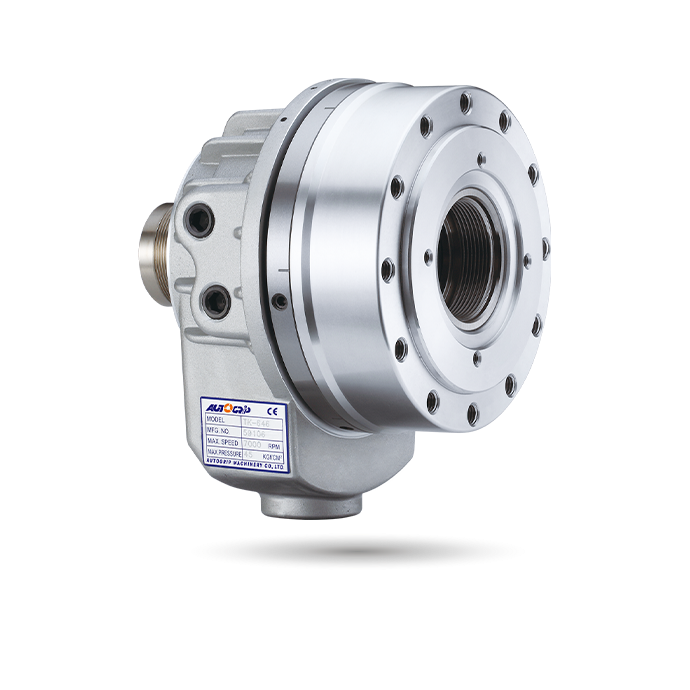

TK

Short type Thru-Hole Hydraulic Rotary Cylinder with Safety Device

Short Type Thru-hole | Hydraulic

The AUTOGRIP Compact Thru-Hole Hydraulic Rotary Cylinder features an ultra-short body measuring only approximately two-thirds the length of conventional models, making it ideal for CNC lathes and automated machines with limited installation space.

Its large thru-hole design accommodates bar stock and long workpieces, while the built-in check valve locking mechanism and pressure relief valve enhance operational safety and clamping reliability. An optional linear position sensing system is available to support automation and smart manufacturing applications.

Features

  • Ultra-compact design, only approximately 2/3 the length of conventional cylinders.
  • Large thru-hole for bar feeding and long workpieces.
  • Built-in check valve locking mechanism and pressure relief valve.
  • Rear mounting design for easy installation.
  • Optional linear position sensing system available

Specifications

Model Eff. piston area
cm2
Extend		 Eff. piston area
cm2
Retract		 Piston stroke
(mm)		 Max. speed
min-1(r.p.m.)		 Max. pressure
MPa(kgf/cm2)		 I
kg‧m2		 Weight
(kg)		 Total oil leakage
lit./min
TK-A528 73 69.7 12 8000 4.5 (45) 0.012 6.2 3
TK-A533 73 69.7 12 8000 4.5 (45) 0.012 6 3
TK-C643 99.1 88.0 15 7000 4.5 (45) 0.018 7.5 3
TK-A646 105.0 93.9 15 7000 4.5 (45) 0.018 7.3 3
TK-B646 105.0 93.9 15 7000 4.5 (45) 0.018 8.6 3
TK-C646 99.1 88.0 15 7000 4.5 (45) 0.018 7.5 3
TK-B846 135.3 125.0 20 6300 4.5 (45) 0.032 12.4 3.9
TK-A853 135.3 125.0 20 6300 4.5 (45) 0.032 11.8 3.9
TK-B853 135.3 125.0 20 6300 4.5(45) 0.032 11.7 3.9
TK-A1068 170.1 155.3 25 5500 4.5(45) 0.065 19.2 4.2
TK-A1075 170.1 155.0 25 5500 4.5(45) 0.065 18.8 4.2
TK-A1078 170.1 155.3 25 5500 4.5(45) 0.065 17.4 4.2
TK-A1287 234 217.5 30 3800 4.0 (40) 0.092 24.8 4.5
TK-A1291 234 217.5 30 3800 4.0 (40) 0.092 24.8 4.5
TK-A1511 336.4 315.2 30 3000 3.5(35) 0.38 57.9 7
TK-A1512 336.4 315.2 30 3000 3.5(35) 0.38 53.8 7
TK-A1512-35 336.4 315.2 35 3000 3.5(35) 0.38 53.8 7
TK-2114 373.2 336.1 35 2500 3.0 (30) 0.54 58.2 8
TK-2416 418.4 375.4 35 2000 3.0 (30) 1.12 78 9
TK-2416L 418.4 375.4 51 2000 3.0 (30) 1.31 79.2 9
TK-2820 526.2 472.6 51 1600 3.0 (30) 2.4 134 10

Dimensions

Model A
I.D.		 B C D E
h7		 F G1max. G1min G2max. G2min H J K L L1 L2 M1 M2 M3 N1 N2 N3 O1
H8		 O2
H8		 P Q1 Q2 Q3 R
g7		 S
H7		 T U V W1 W2 X1 X2 Y1 Y2 Z
TK-A528 105 141 125 125 110 45 12 0 38 26 49 77.5 123 6~M10x20 M8x55 14 M38x1.5 25 13 M39x1.5 25 8 35 28 79 8.5 30 RC1/4 37 62 70 98 6 62 110 49 M6x6 83 M5x6 5
TK-A533 105 141 125 125 110 45 12 0 38 26 49 77.5 123 6~M10x20 M8x55 14 M38x1.5 25 13 M39x1.5 25 8 35 33 79 8.5 30 RC1/4 37 62 70 98 6 62 110 49 M6x6 83 M5x6 5
TK-C643 128 156 140 140 120 65 15 0 44 29 56 85 125 12~M10x20 M8x60 12 M50x2 25 13 M52x1.5 29 9 45 43 87 8.5 36 RC3/8 50 76 85 116 9.5 74 120 64 M6x10 98 M5x6 5
TK-A646 128 162 147 147 130 65 15 0 44 29 56 85 125 12~M10x20 M8x60 12 M55x2 25 13 M52x1.5 29 9 50 46 87 8.5 36 RC3/8 50 76 85 116 9.5 74 120 64 M6x10 98 M5x6 5
TK-B646 128 162 130 147 100 65 15 0 44 29 66 95 135 12~M10x20 M8x70 12 M55x2 30 15 M52x1.5 29 9 50 46 97 8.5 36 RC3/8 50 76 85 116 9.5 74 120 64 M6x10 98 M5x6 5
TK-C646 125 156 140 140 120 65 15 0 44 29 56 85 125 12~M10x20 M8x60 12 M55x2 25 13 M52x1.5 29 9 50 46 87 8.5 36 RC3/8 50 76 85 116 9.5 74 120 64 M6x10 98 M5x6 5
TK-B846 145 185 170 165 130 70 20 0 48 28 66 95 135 12~M10x20 M8x70 12 M55x2 30 15 M58x1.5 30 8 50 46 97 8.5 36 RC3/8 56 85 96 128 11.5 79 130 73 M6x12 110 M6x6 5
TK-A853 145 185 170 165 140 70 20 0 48 28 66 95 135 12~M10x20 M8x70 12 M60x2 30 15 M58x1.5 30 8 55 53 97 8.5 36 RC3/8 56 85 96 128 11.5 79 130 73 M6x12 110 M6x6 5
TK-B853 145 185 170 165 130 70 20 0 48 28 66 95 135 12~M10x20 M8x70 12 M60x2 30 15 M58x1.5 30 8 55 53 97 8.5 36 RC3/8 56 85 96 128 11.5 79 130 73 M6x12 110 M6x6 5
TK-A1068 170 212 190 190 160 95 25 0 50 25 74 108 158 12~M10x20 M10x80 16 M75x2 35 15 M84x2 34 9 70 68 110 12 40 RC1/2 81 108 121 164 10 98 160 98 M6x12 155 M6x8 5
TK-A1075 170 212 190 190 160 95 25 0 50 25 74 108 158 12~M10x20 M10x80 16 M85x2 35 15 M84x2 34 9 80 75 110 12 40 RC1/2 81 108 121 164 10 98 160 98 M6x12 155 M6x8 5
TK-A1078 170 212 190 190 160 95 25 0 50 25 74 108 158 12~M10x20 M10x80 16 M87x2 35 15 M84x2 34 9 82 78 110 12 40 RC1/2 81 108 121 164 10 98 160 98 M6x12 155 M6x8 5
TK-A1287 200 245 215 225 180 110 30 0 59 29 86 126 184 M12x24 M10x90 14.5 M95x2 35 15 M99x2 38 9 90 87 127.5 15 45 RC1/2 96 120 138 180 7 110 185 108 M6x10 165 M6x10 5
TK-A1291 200 245 215 225 180 110 30 0 59 29 86 126 184 M12X24 M10x90 14.5 M100x2 35 15 M99x2 38 9 95 91 127.5 15 45 RC1/2 96 120 138 180 7 110 185 108 M6x10 165 M6x10 5
TK-A1511 250 300 275 275 230 140 30 0 58 28 102 156 226 M16X36 M12x110 21 M120x2 45 15 M129x2 38 9 115 110 153.75 17 50 RC1/2 126 150 170 227 7 134 210 138 M6x10 210 M6x9 6
TK-A1512 250 300 275 275 230 140 30 0 58 28 102 156 226 M16X36 M12x110 21 M130x2 45 15 M129x2 38 9 125 120 153.75 17 50 RC1/2 126 150 170 227 7 134 210 138 M6x10 210 M6x9 6
TK-A1512-35 250 300 275 275 230 140 35 0 63 28 102 161 231 M16x36 M12x115 21 M130x2 45 15 M129x2 38 9 125 120 158.75 17 50 RC1/2 126 150 170 227 7 134 210 138 M6x10 210 M6x9 6
TK-2114 265 320 295 295 240 165 35 0 60 25 115 173.5 247.5 M16X36 M12x120 17.5 M155x2 45 20 M149x2 38 9 145 140 170 17 50 RC1/2 146 170 190 250 7 145 210 160 M6x10 230 M6x10 6
TK-2416 290 340 300 – 260 190 35 0 60 25 129 185.5 275 M16x32 – – M180x3 45 20 M174x2 38 – 170 166 186.5 20 50 RC1/2 171 202 220 292 7 167 250 188 M6x11 260 M6x12 5
TK-2416L 290 340 300 – 260 190 51 0 76 25 145 201.5 291 M16x32 – – M180x3 45 20 M174x2 52 – 170 166 202.5 20 50 RC1/2 171 202 220 292 7 167 250 188 M6x11 260 M6x12 6
TK-2820 340 395 360 – 320 235 51 0 76 25 152 212.5 316 M20x40 – – M220x3 45 20 M218x2 52 – 210 205 216 21 50 RC1/2 215 262 285 360 7 202.5 300 240 M6x12 320 M6x12 6

Model 2D pdf 2D dwg 3D step
TK-A528
TK-A533
TK-C643
TK-A646
TK-B646
TK-C646
TK-B846
TK-A853
TK-B853
TK-A1068
TK-A1075
TK-A1078
TK-A1287
TK-A1291
TK-A1511
TK-A1512
TK-A1512-35
TK-2114
TK-2416
TK-2416L
TK-2820



TS

Short Type Rotary Hydraulic Cylinder with Big-bore Thru-Hole and Safety Device

Thru-Hole | Super large Through-Hole
  • Bigger bore through-hole design.
  • Super short form, light weighted.
  • Built-in safety check valves and pressure relief valves.
  • Front/Rear end mounting.
  • Diameter of coolant collector’s drain port is optional. Default : Ø33 ; optional : Ø40, Ø60.

Diameter of coolant collector’s drain port is optional. Default : Ø33 ; optional : Ø40, Ø60.

 Specifications

Model Eff. piston area cm2
Extend		 Eff. piston area cm2
Retract		 Piston stroke
(mm)		 Max. speed
min-1 (r.p.m.)		 Max. pressure
MPa (kgf/cm2)		 I
kg‧m 2		 Weight
(kg)		 Total oil leakage
lit./min.
TS-539 72.4 67.1 15 8000 4.5(45) 0.012 6.9 3.0
TS-866 168 155.5 25 5600 4.5(45) 0.056 16.3 4.0
TS-1081 189.2 174.3 25 4800 4.5(45) 0.085 21.2 4.3
TS-1210 231.7 222.0 30 3500 3.5(35) 0.193 35.6 6.0

Dimensions

* Subject to technical changes.

Model A
(I.D.)		 B B1 C D E
(h7)		 F G1
max.		 G1
min.		 G2
max		 G2
min.		 H J K L L1 L2 M1 M2 M3 N1 N2 N3 O1
(H8)		 O2
(H8)		 P Q1 Q2 Q3 R
(g7)		 S
(H7)		 T U V W1 W2 X1 X2 Y1 Y2 Z
TS-539 107 143 141 125 125 110 52 15 0 42.5 27.5 57 91 124 6~M10x20 M8x60 12 M45x1.5 25 12 M44x1.5 26 8 42 39 85 8.5 30 RC1/4 42 69 72 103 10 62.5 100 54 M6x10 90 M5x12 5
TS-866 165 211 207 190 190 168 85 25 0 55 30 72.5 107 149 12~M10x20 M10x80 17.5 M75x2 35 15 M74x1.5 37 8 72 66.5 105 12 45 RC1/2 72 100 111 154 12 95 140 88 M6x12 140 M6x10 5
TS-1081 180 226 222 205 205 168 100 25 0 58 33 74 115 166 12~M10x20 M10x90 18 M90x2 35 15 M89X2.0 38 9 85 81 109 15 45 RC1/2 86 113 123 175 16 103 160 103 M6x12 160 M6x10 5
TS-1210 210 263 260 240 240 200 125 30 0 64 34 93.5 136.5 193.5 12~M10x20 M12x100 20 M115x2 35 15 M118x2.0 47 9 110 106 131 16 46 RC1/2 115 145 151 210 16 103 160 133 M6x12 195 M6x11 5

Download

Model 2D pdf 2D dwg 3D step
TS-539
TS-866
 TS-1081
TS-1210

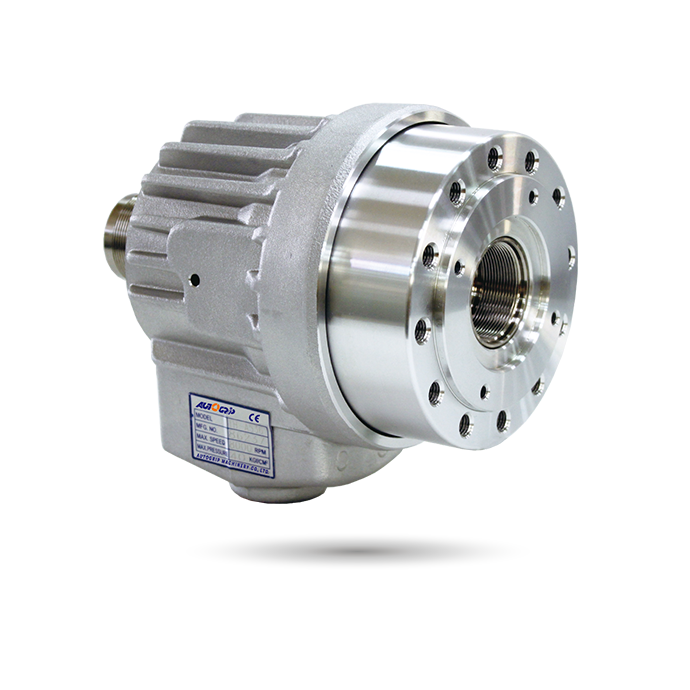

TH

Thru-Hole Rotary Hydraulic Cylinder with Safety Device

Thru-Hole | Hydraulic
  • Super high speed, light weight large Through-Hole.
  • Built-in check valve which prevents the internal pressure from sudden declining so that the workpiece will not fly out and cause a serious accident.

Specifications

Model Eff. piston area
Extend
cm2		 Eff. piston area
Retract
cm2		 Piston stroke
(mm)		 Max. speed
min-1 (r.p.m.)		 Max. pressure
MPa (kgf/cm2)		 I
kg‧m 2		 Weight
(kg)		 Total oil leakage
lit./min.
TH-428
 53.2 50.5 10 8000 4.0(40) 0.008 5.8 3.0
TH-A536
 69.8 67.5 15 8000 4.0(40) 0.05 8.3 3.0

Dimensions

* Subject to technical changes.

Model A(I.D.) B C D E(h7) F G1 Max. G1 Min. G2 Max. G2 Min. H J K L M1 M2 M3 N1 N2 O1(H8) O2(H8) P Q1 Q2 Q3 R(g7) S T U V W1 W2 X1 X2
TH-428 90 130 120 100 80 40 10 0 35 25 45 127.5 155 6-M8x15 M33x1.5 25 12 M34x1.5 26 30 28 101.5 11 24 RC1/4 32 45 65 86 4 72 105 76 M4x7
TH-A536 105 150 135 115 100 48 15 0 40 25 40 118 166 6-M10x20 M42x1.5 25 15 M44x1.5 28 38 36 111.5 10 24 RC1/4 42 55 73 98 4 80 110 83 M5x10

Download

Model 2D pdf 2D dwg 3D step
TH-428
TH-A536



TR

Short type Thru-Hole Rotary Hydraulic Cylinder with Safety Device

Short Type Thruhole | Hydraulic
  • Compact short-length design with lightweight construction for space-saving installation.
  • Built-in check valve and pressure relief valve ensure enhanced operational safety.
  • Large oil inlet and drain ports provide high oil flow and smooth drainage.
  • Supports both front-end and rear-end mounting for flexible installation options.
  • Suitable for use with both vertical and horizontal spindles.
  • Linear sensor can be attached.(optional)

Specifications

Model Eff. piston area
Extend
cm2		 Eff. piston area
Retract
cm2		 Piston stroke
(mm)		 Max. speed
min-1 (r.p.m.)		 Max. pressure
MPa (kgf/cm2)		 I
kg‧m 2		 Weight
(kg)		 Total oil leakage
lit./min.
TR-433
 49.5 45.4 10 8000 4.0(40) 0.010 6.8 3.0
TR-536
 56.4 54.2 15 8000 4.0(40) 0.011 6.4 3.0
TR-539
 72.4 67.1 15 8000 4.0(40) 0.010 6.8 3.0
TR-A646
 105 93.9 15 7000 4.0(40) 0.015 9.5 3.0
TR-B646
 105 93.9 15 7000 4.0(40) 0.015 10 3.0
TR-853
 135.3 125 20 6300 4.0(40) 0.032 11.5 3.9
TR-1075
 170 155 25 4500 4.0(40) 0.065 18 4.2
TR-1291
 234 217.5 30 3500 4.0(40) 0.092 29.5 4.5



Dimensions

* Subject to technical changes.

Model A
(I.D.)		 B C D E
(h7)		 F G1
(max.)		 G1
(min.)		 G2
(max.)		 G2
(min.)		 H J K L L1 L2 M1 M2 M3 N1 N2 N3 O1(H8) O2(H8) P Q1 Q2 Q3 R(g7) S T U1 U2 V1 V2 W1 W2 Z Z1
TR-433
 90 120 106 100 80 46 10 0 30 20 3.5 97 133 6~M8x15 M8x60 12 M40x1.5 25 10 M39x1.5 8 25 36 33 92.5 6.5 26 RC1/4 37 40 98 52.5 55 50 M5x8 83 M5x9 RC1/2 5
TR-536
 97 133 115 115 100 48 15 0 34 19 3.5 97 133 6~M10x20 M6x60 12 M42x1.5 25 15 M44x1.5 6 28 38 36 92.5 6.5 26 RC1/4 42 43 98 52.5 55 53 M5x8 83 M5x7 RC1/2 5
TR-539
 107 143 125 125 110 52 15 0 34 19 4 97 133
6~M10x20
 M8x60 12 M45x1.5 25 12 M44x1.5 8 25 42 39 92.5 6.5 26 RC1/4 42 40 103 52.5 55 53 M5x8 90 M5x9 RC1/2 5
TR-A646
 128 165 147 147 130 65 15 0 34 19 3.5 97 135
12~M10x20
 M8x60 11.5 M55x2 25 13 M52x1.5 8 25 50 46 95 5 32 RC3/8 50 50 116 59 62 61.5 M5x9 98 M5x9 RC1/2 5
TR-B646
 128 162 147 130 100 65 15 0 34 19 3.5 107.5 145 12~M10x20 M8x70 11.5 M55x2 30 15 M52x1.5 8 30 50 46 105 5 32 RC3/8 50 50 116 59 62 61.5 M5x8 98 M5x9 RC1/2 5
TR-853
 145 185 165 170 130 70 20 0 47 27 4.5 118.5 160
12-M10x20
 M8x75 12 M60x2 30 15 M58x1.5 8 30 55 53 114 8 34 RC3/8 56 50 128 65 67 70 M5x10 110 M6x11 RC1/2 5
TR-1075
 170 212 190 190 160 95 25 0 52 27 4.5 129.5 181
12-M10x20
 M10x85 16 M85x2 35 15 M84x2 9 33 80 75 123.5 12 40 RC1/2 81 50 164 83 86 95 M5x10 155 M6x11 RC3/4 5
TR-1291
 200 248 225 215 180 110 30 0 59 29 5 146 240.5
12~M12x24
 M10x95 16 M100x2 35 15 M99x2 9 38 95 91 139 14 45 RC1/2 96 50 180 91.5 93 110.5 M6x12 165 M6x12 RC3/4 5

RA

Rotary Hydraulic Cylinder

Non-Thru-Hole | Air
  • The rotary valve and cylinder body, all made of special light alloy, are light-weight.
  • Through unique design, the rotary valve can considerably reduce the waste in compressing air and efficiently increase its utilization.

When used, a little oil mist should be contained.

Catalog Download
SpecificationsDimensionsDownloadRelated Accessories

Specifications

Model Eff. piston area cm2
Extend		 Eff. piston area cm2
Retract		 Piston stroke
(mm)		 Max. speed
min-1 (r.p.m.)		 Max. pressure
MPa (kgf/cm2)		 I
kg‧m 2
Moment of inertia		 Air Leakage
cc/sec
(at 6kgf/cm2)		 Weight
(kg)
RA-100 77.0 74.4 15 6000 0.8(8) 0.03 400 3.9
RA-130 131.2 124.7 15 5000 0.8(8) 0.05 400 5.2
RA-170 225.4 219.0 20 5000 0.8(8) 0.18 400 8.5
RA-220 378.6 369.3 25 4000 0.8(8) 0.36 400 14.5
RA-270 571.0 562.9 30 3000 0.8(8) 0.75 400 18.4

​

Dimensions

* Subject to technical changes.

Model A B C D E
(h7)		 F G max. G min. H J K L M
(H8)		 N
RA-100 100 130 – 80 60 22 50 35 65 160 M12x1.75 6-M8x16 13 25
RA-130 130 160 120 90 65 25 45 30 70 165 M16x2.0 6-M8x16 17 30
RA-170 170 200 140 100 80 25 45 25 85 180 M16x2.0
6-M10x18
 17 30
RA-220 220 255 170 130 110 30 50 25 91 186 M20x2.5
6-M12x20
 21 35
RA-270 270 305 190 130 110 35 55 25 105 200 M24x3.0
6-M12x20
 25 40
  1. Home
  2.  Products
  3.  Rotary Cylinders
  4.  RK

RK

Short type Rotary Hydraulic Cylinder with Safety Device

Non-Thru-Hole | Hydraulic
  • For short form, light weight and high speed rotary cylinder.
  • Built-in safety check valves and pressure relief valves.
  • Can screw it from the rear end of the cylinder when mounting.

The drain port should be independently connected to oil tank to avoid back pressure.

Catalog Download
SpecificationsDimensionsDownloadRelated Accessories

Specifications

Model Eff. piston area cm2
Extend		 Eff. piston area cm2
Retract		 Piston stroke
(mm)		 Max. speed
min-1 (r.p.m.)		 Max. pressure
MPa (kgf/cm2)		 I
kg‧m 2		 Weight
(kg)
RK-75 44.2 37.1 15 6000 4.0 (40) 0.01 2.9
RK-100 78.5 71.5 20 6000 4.0 (40) 0.03 4.4
RK-125 122.7 113.1 25 6000 4.0 (40) 0.05 6.9
RK-150 176.7 160.8 30 5500 4.0 (40) 0.09 9.5
RK-200 314.1 290.4 35 5500 4.0 (40) 0.28 15.4
RK-250 469.1 436.0 60 2000 5.0(50) 0.40 45.2

​

Dimensions

* Subject to technical changes.

Model A B C D1 D2 E
(h7)		 F G max. G min. H J K L L1 L2 M
(H8)		 N N1 P Q R S
RK-75 75 15 107 90 90 65 30 45 30 57 148 M20x2.5
6-M8x16
 M8x60 12 21 35 5 41.5 10 27.5 26
RK-100 100 20 132 115 100 80 30 45 25 72 163 M20x2.5
6-M10x20
 M8x75 12 21 35 5 39.5 10 28.5 32
RK-125 125 25 160 140 130 110 35 50 25 82 172 M24x3.0
6-M12x20
 M8x85 12 25 45 5 38.5 10 28.5 32
RK-150 150 30 190 170 130 110 45 55 25 95 184 M30x3.5
12-M12x24
 M10x100 15.5 32 45 5 37 10 28.5 32
RK-200 200 35 245 220 145 120 55 70 35 115 201 M36x4.0
12-M16x30
 M10x125 21 38 60 5 38 6 28.5 28
RK-250 245 60 307 275 220 160 65 85 25 165 255 M42x3.0
12-M20x35
 M16x175 28 45 65 12 33 18 6
  1. Home
  2.  Products
  3.  Rotary Cylinders
  4.  RL-N

RL-N

Short type Rotary Hydraulic Cylinder with Coolant Connection

Non-Thru-Hole | Hydraulic
  • To allow coolant to be feed from the rear end of the distributor through the rotating union.
  • Can screw it from the rear end of the cylinder when mounting.

The drain port should be independently connected to oil tank to avoid back pressure.

The rotary cylinder should not run without liquid through coolant port.

Catalog Download
SpecificationsDimensionsDownloadRelated Accessories

Specifications

Model Eff. piston area cm2
Extend		 Eff. piston area cm2
Retract		 Piston stroke
(mm)		 Max. speed
min-1 (r.p.m.)		 Max. pressure
MPa (kgf/cm2)		 Coolant connection
max. pressure
MPa (kgf/cm2)		 I
kg‧m 2		 Weight
(kg)
RL-75N 42.6 37.1 15 6000 4.0 (40) 3.5(35) 0.01 3.0
RL-100N 77.0 71.5 20 6000 4.0 (40) 3.5(35) 0.04 4.5
RL-125N 121.2 113.1 25 6000 4.0 (40) 3.5(35) 0.06 7.0
RL-150N 175.2 160.8 30 5500 4.0 (40) 3.5(35) 0.10 9.6
RL-200N 312.5 290.4 35 5500 4.0 (40) 3.5(35) 0.29 15.5

​

Dimensions

* Subject to technical changes.

型號 A B C D1 D2 E (h7) F G max. G min. H J K L L1 L2 M (H8) N
RL-75N 75 15 107 90 90 65 30 45 30 57 180 M20x2.5 6-M8x16 M8x60 12 21 35
RL-100N 100 20 132 115 100 80 30 45 25 72 195 M20x2.5 6-M10x20 M8x75 12 21 35
RL-125N 125 25 160 140 130 110 35 50 25 82 205 M24x3.0 6-M12x20 M8x85 12 25 45
RL-150N 150 30 190 170 130 110 45 55 25 95 218 M30x3.5 12-M12x24 M10x100 15.5 32 45
RL-200N 200 35 245 220 145 120 55 70 35 115 240 M36x4.0 12-M16x 30 M10x125 21 38 60
  1. Home
  2.  Products
  3.  Rotary Cylinders
  4.  RL

RL

Short type Rotary Hydraulic Cylinder with Coolant Connection and Safety Device

Non-Thru-Hole
  • To allow coolant to be feed from the rear end of the distributor through the rotating union
  • Built-in safety check valves and pressure relief valves.
Catalog Download
 SpecificationsDimensionsDownloadRelated Accessories

 Specifications

Model Eff. piston area cm2
Extend		 Eff. piston area cm2
Retract		 Piston stroke
(mm)		 Max. speed
min-1 (r.p.m.)		 Max. pressure
MPa (kgf/cm2)		 Coolant connection
max. pressure
MPa (kgf/cm2)		 I
kg‧m 2		 Weight
(kg)
RL-75 42.6 37.1 15 6000 4.0(40) 3.5(35) 0.01 3.1
 RL-100 77.0 71.5 20 6000  4.0(40) 3.5(35) 0.04 4.6
 RL-125 121.2 113.1 25 6000  4.0(40) 3.5(35) 0.06 7.1
RL-150 175.2 160.8 30 5500  4.0(40) 3.5(35) 0.10 9.7
RL-200 312.5 290.4 35 5500 4.0(40) 3.5(35) 0.30 15.6

Dimensions

* Subject to technical changes.

Model A B C D1 D2 E
(h7)		 F G max. G min. H H1 H2 K L L1 L2 M
(H8)		 N
RL-75 75 15 107 90 90 65 30 45 30 57 42 137 M20x2.5 6~M8x16 M8x60 12 21 35
RL-100 100 20 132 115 100 80 30 45 25 72 42 137 M20x2.5 6~M10x20 M8x75 12 21 35
RL-125 125 25 160 140 130 110 35 50 25 82 41 136 M24x3.0 6~M12x20 M8x85 12 25 45
RL-150 150 30 190 170 130 110 45 55 25 95 39 134 M30x3.5 12~M12x24 M10x100 15.5 32 45
RL-200 200 35 245 220 145 120 55 70 35 115 36 132 M36x4.0 12~M16x30 M10x125 21 3
  1. Home
  2.  Products
  3.  Rotary Cylinders
  4.  RL-AN

RL-AN

Rotary Hydraulic Cylinder with Air Connection

Short type | air
  • To allow compressed air to be feed from the rear end of the distributor through the rotating union.
  • Can screw it from the rear end of the cylinder when mounting.

When used, a little oil mist should be contained.

The rotary cylinder should not run without air passing through the air port.

Catalog Download
SpecificationsDimensionsDownloadRelated Accessories

Specifications

Model Eff. piston area cm2
Extend		 Eff. piston area cm2
Retract		 Piston stroke
(mm)		 Max. speed
min-1 (r.p.m.)		 Max. pressure
MPa (kgf/cm2)		 Air connection
max. pressure
MPa (kgf/cm2)		 I
kg‧m 2		 Weight
(kg)
RL-A75N 42.6 37.1 15 6000 4.0(40) 0.8(8) 0.01 3.0
RL-A100N 77.0 71.5 20 6000 4.0(40) 0.8(8) 0.04 4.5
RL-A125N 121.2 113.1 25 6000 4.0(40) 0.8(8) 0.06 7.0
RL-A150N 175.2 160.8 30 5500 4.0(40) 0.8(8) 0.10 9.6
RL-A200N 312.5 290.4 35 5500 4.0(40) 0.8(8) 0.29 15.5

​

Dimensions

* Subject to technical changes.

Model A B C D1 D2 E
(h7)		 F G max. G min. H J K L L1 L2 M
(H8)		 N
RL-A75N 75 15 107 90 90 65 30 45 30 57 166 M20x2.5 6~M8x 16 M8x60 12 21 35
RL-A100N 100 20 132 115 100 80 30 45 25 72 181 M20x2.5 6~M10x20 M8x75 12 21 35
RL-A125N 125 25 160 140 130 110 35 50 25 82 191 M24x3.0 6~M12x20 M8x85 12 25 45
RL-A150N 150 30 190 170 130 110 45 55 25 95 204 M30x3.5 12~M12x24 M10x100 15.5 32 45
RL-A200N 200 35 245 220 145 120 55 70 35 115 225 M36x4.0 12~M16x30 M10x125 21 38 60
  1. Home
  2.  Products
  3.  Rotary Cylinders
  4.  RE

RE

Compact style Rotary Hydraulic Cylinder with Stroke Control and Safety Device

Non-Thru-Hole
  • For short form, light weight and high speed rotary cylinder, suitable for vertical lathe.
  • Built-in safety check valves, pressure relief valves and proximity sensor.
  • Can screw it from the rear end of the cylinder when mounting.

The drain port should be independently connected to oil tank to avoid back pressure.

Stroke Detection Type can be customized to Linear Positioning System.

Proximity sensor : DC 10-30V 100mA NPN .

Catalog Download
SpecificationsDimensionsDownloadRelated Accessories

Specifications

Model Eff. piston area cm2
Extend		 Eff. piston area cm2
Retract		 Piston stroke
(mm)		 Max. speed
min-1 (r.p.m.)		 Max. pressure
MPa (kgf/cm2)		 I
kg‧m 2		 Weight
(kg)
RE-110 92.7 87.9 20 6000 3.5(35) 0.02 6.9
RE-120 110.8 106 21 6000 4.0(40) 0.03 8.8
RE-130 130.4 123.1 30 6000 4.0(40) 0.03 9.1
RE-150 174.4 160.8 30 5500 4.0 (40) 0.06 14.9
RE-200K 292.4 274.9 35 4000 4.0 (40) 0.19 29.1
RE-200L 292.4 265.4 50 4000 5.0 (50) 0.21 30.4
RE-250 465.2 438.2 60 2000 5.0 (50) 0.43 47.2

​

Dimensions

Model A B C
(h7)		 D D1 D2 E F G max. G min. H J K L L1 L2 M
(H8)		 M1 N P Q
RE-110 110 20 145 128 – – 42 29 60 40 66 146 M20x2.5 6~M8x70 12 – 22 – 35 – –
RE-120 120 21 168 145 – – 42 29 60 39 69.5 148 M20x2.5 6~M10x75 17 – 22 – 35 – –
RE-130 130 30 168 150 – – 50 33 60 30 79.5 158 M24x3.0 6~M10x85 17 – 27 – 40 – –
RE-150 150 30 205 – 180 130 110 45 60 30 99 177.5 M30x3.5 M12x24 M12x105 18.5 32 10 50 12.5 114
RE-200K 195 35 257 – 225 145 120 55 73 38 120 239 M36x4.0 M16x30 M16x130 27 38 12 65 15 150
RE-200L 195 50 257 – 225 170 125 65 80 30 135 254 M42x3.0 M16x30 M16x145 27 45 12 65 15 150
RE-250 245 60 307 – 275 220 160 65 85 25 165 280 M42x3.0 M20x35 M16x175 28 45 12 65 15 150







สินค้าที่คล้ายกัน

Related products

PRODUCT INFORMATION

Buyer information
