SINTERGRIP
The new choice

Our new product SinterGrip is born to satisfy the current need to clamp a workpiece for very few millimeters (with SinterGrip 3,5 mm clamping surface), and this for the following reasons:
1) In order to machine the workpiece completely in a single operation (especially for 5 axis machines);
2) In order to save money for the raw materials, especially when they have a big impact on the price (aluminum, titanium, etc.)

Indirectly to these reasons, and in order to improve the performance of the machine tool and the tools

higher cutting speed + higher feed rate
= bigger volume of metal removed
= less time to machine the workpiece

The market requires safe clamping, which could at the same time possibly avoid the deformations of the piece itself.

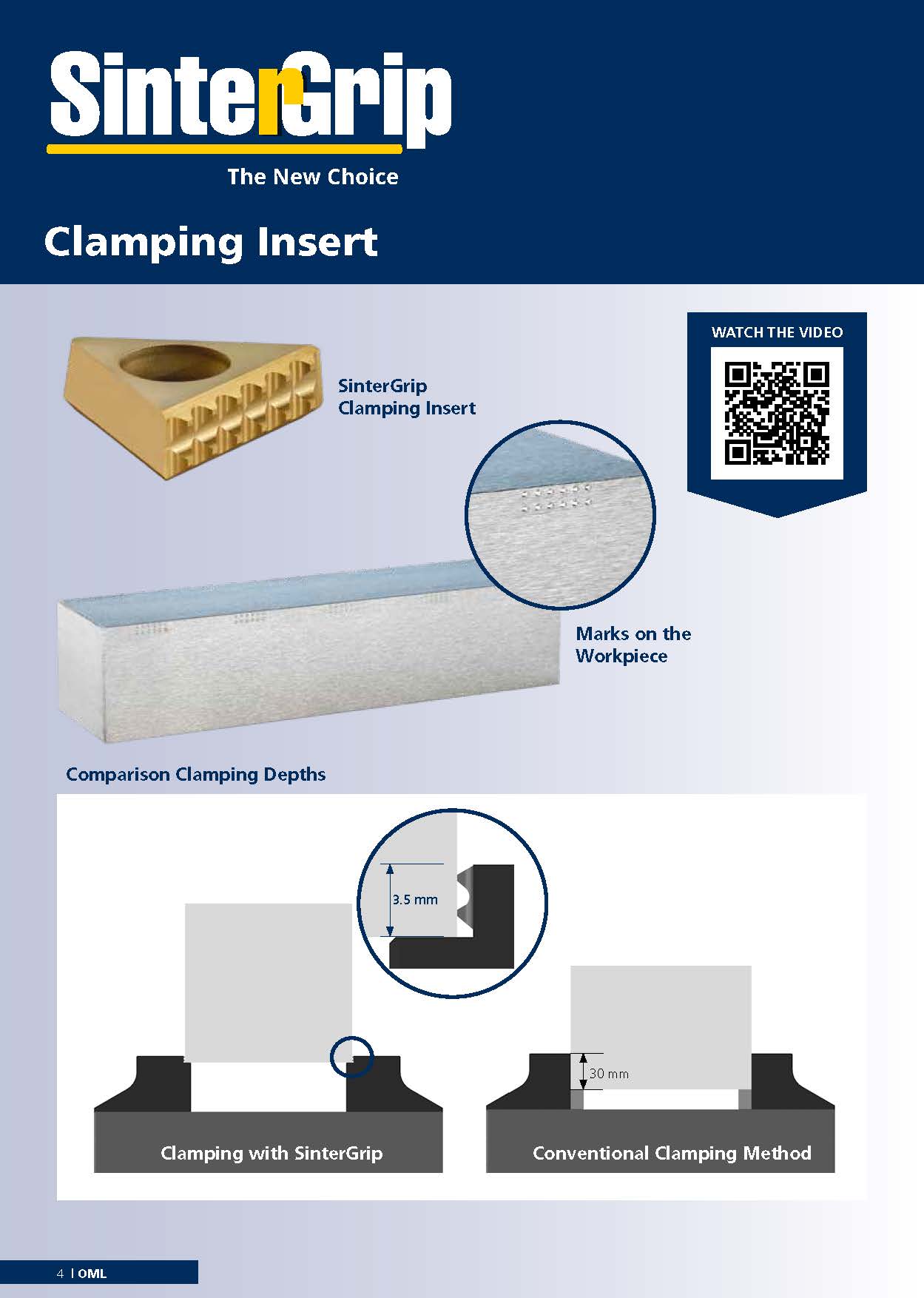

Comparison Clamping Depths

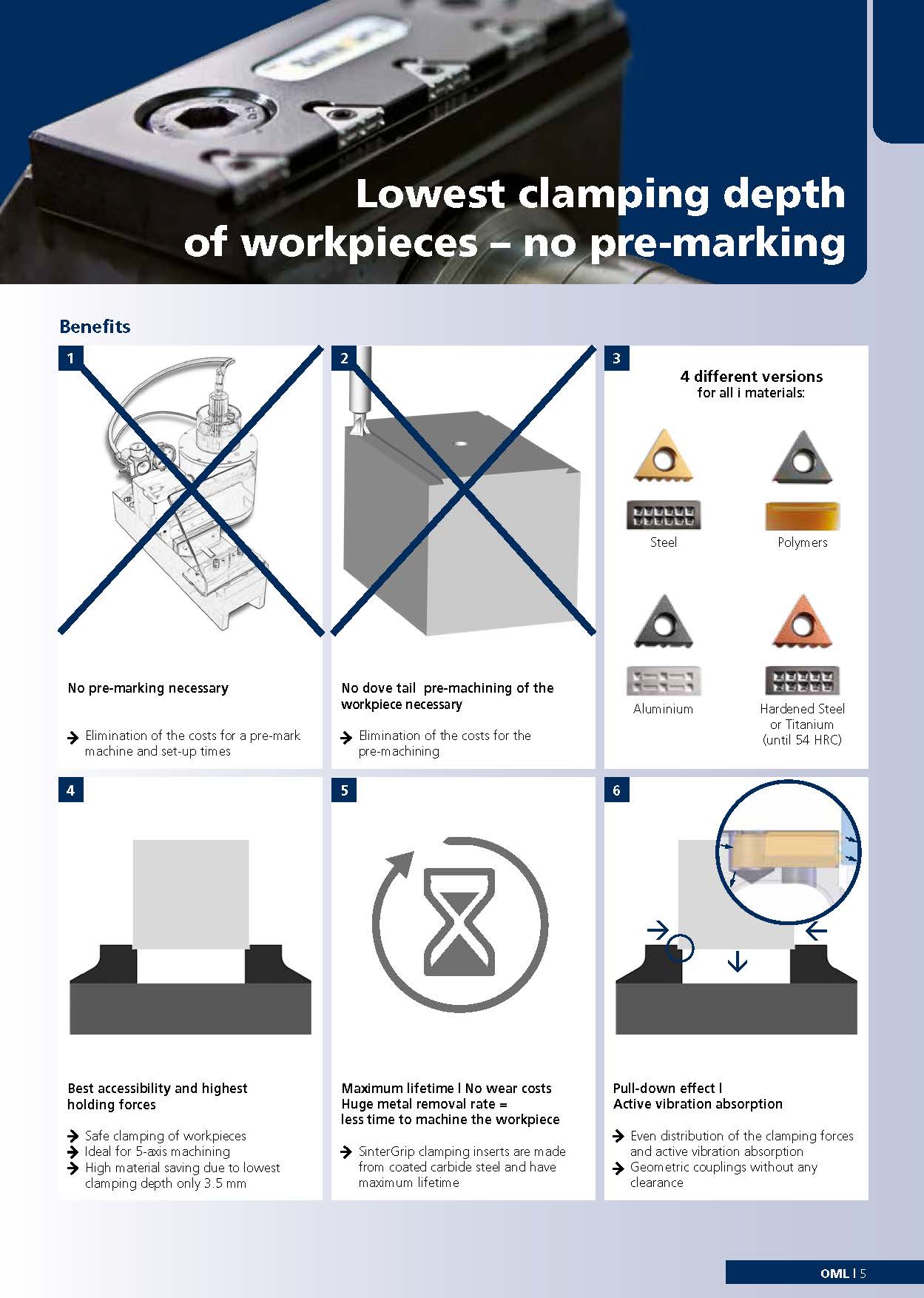

Benefits

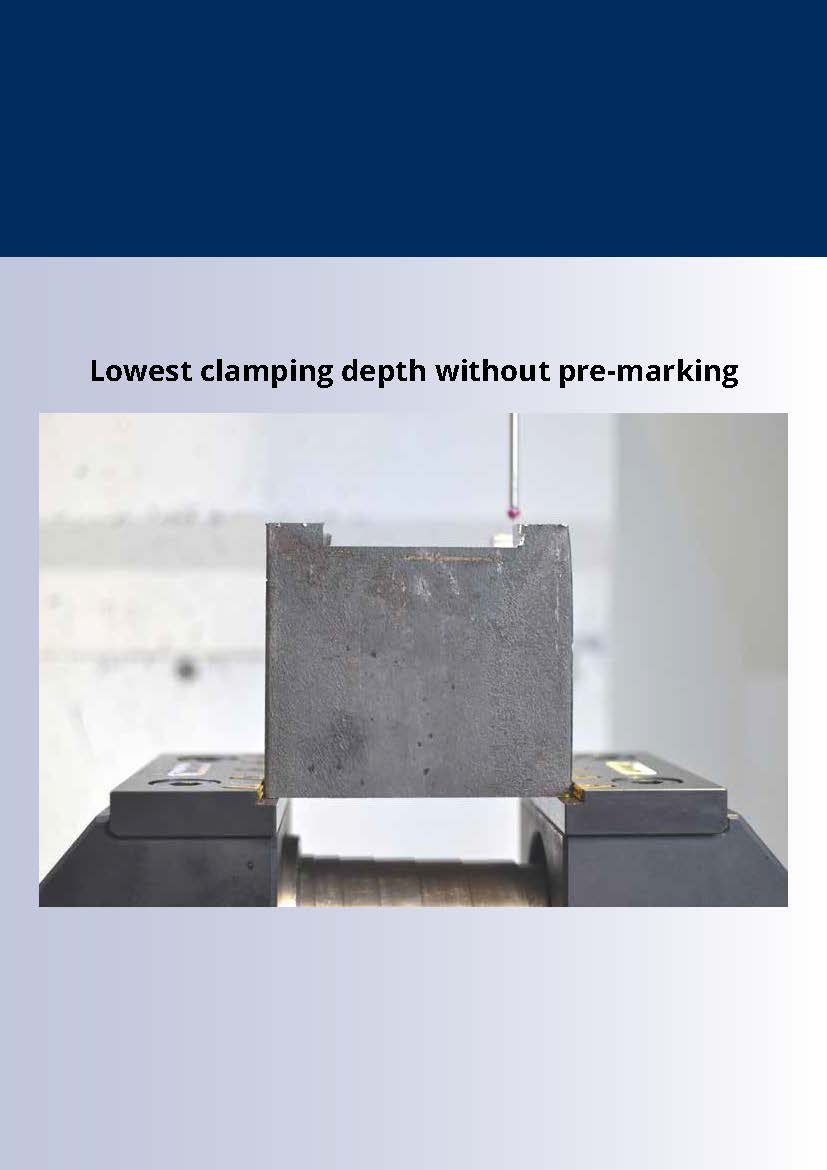

No pre-marking necessary

Elimination of the costs for a pre-mark machine and set-up times

No dove tail pre-machining of the workpiece necessary

Elimination of the costs for the pre-machining

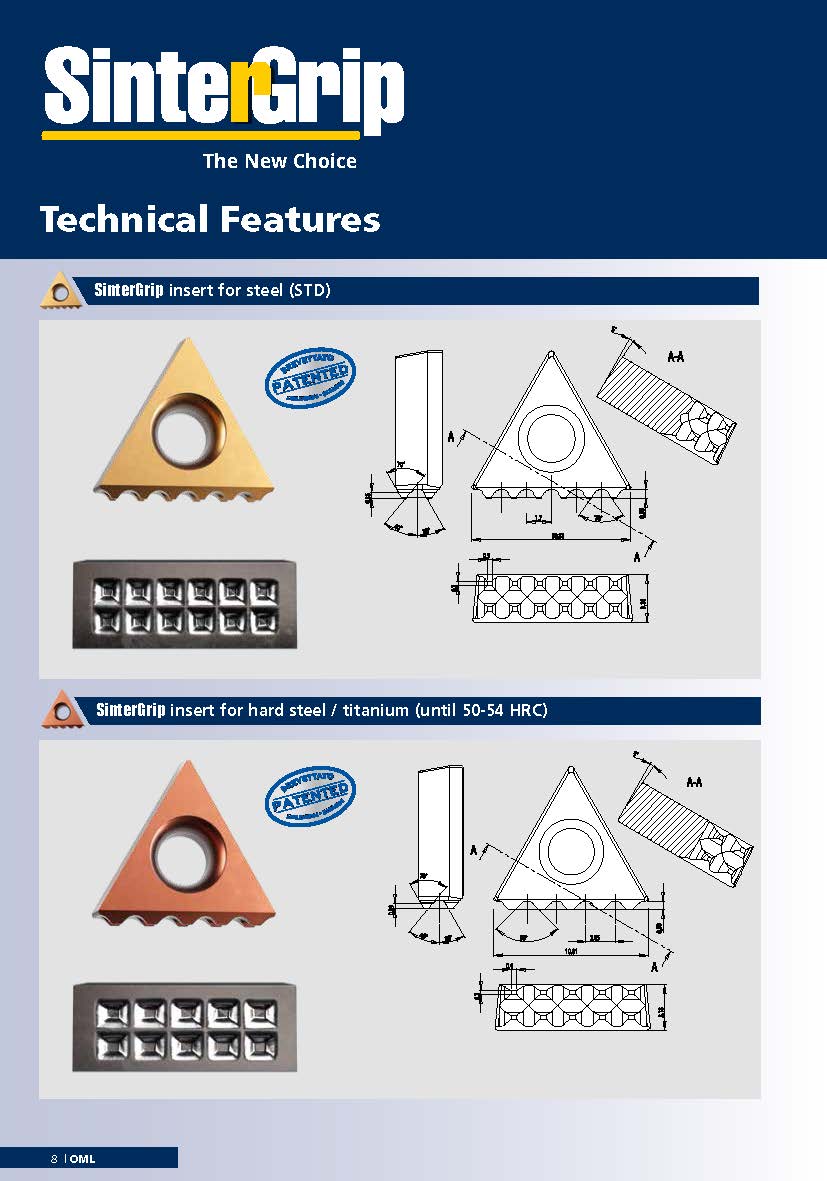

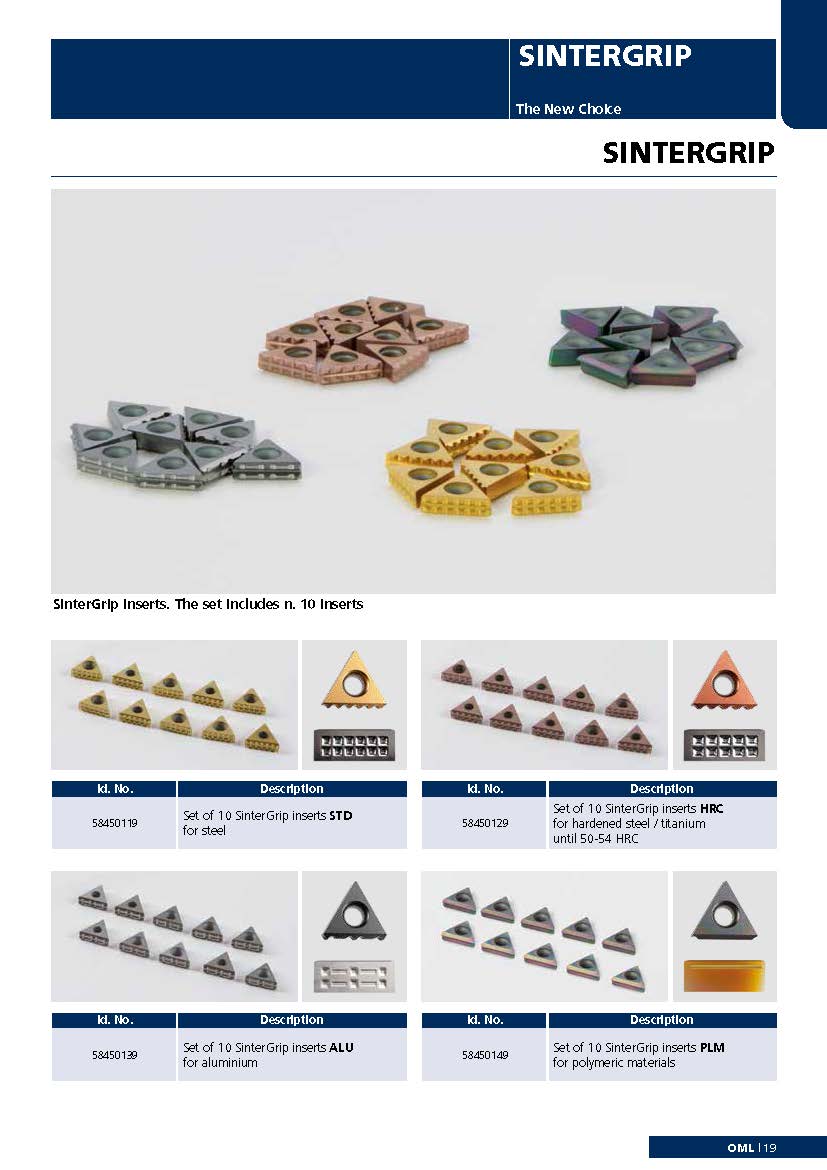

3 different versions for all materials

• Steel
• Hardened Steel | Titanium (until 54 HRC)
• Aluminium | Plastic

Best accessibility and highest holding forces

• Safe clamping of workpieces

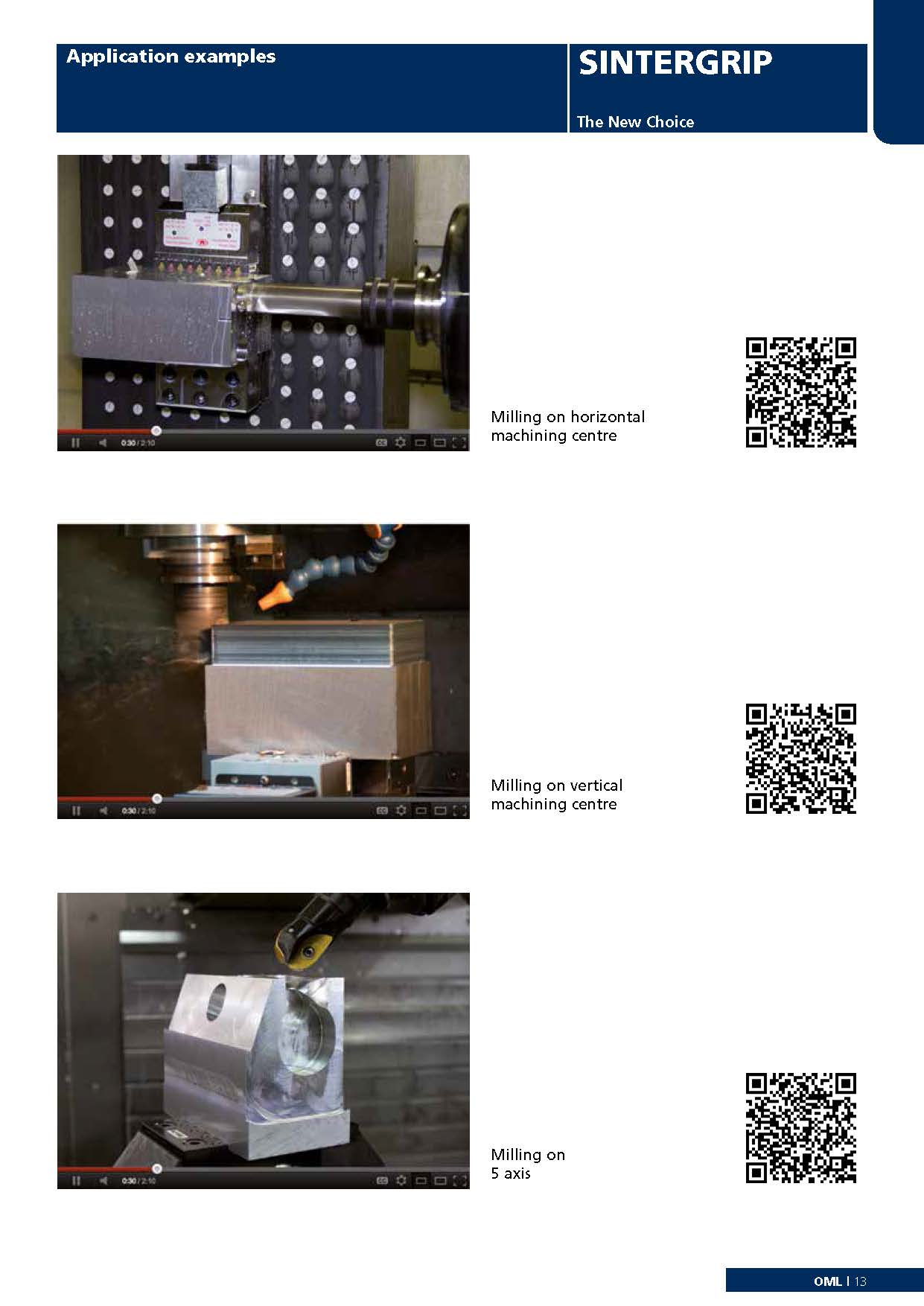

• Ideal for 5-axis machining
• High material saving due to lowest clamping depth only 3.5 mm

Maximum lifetime

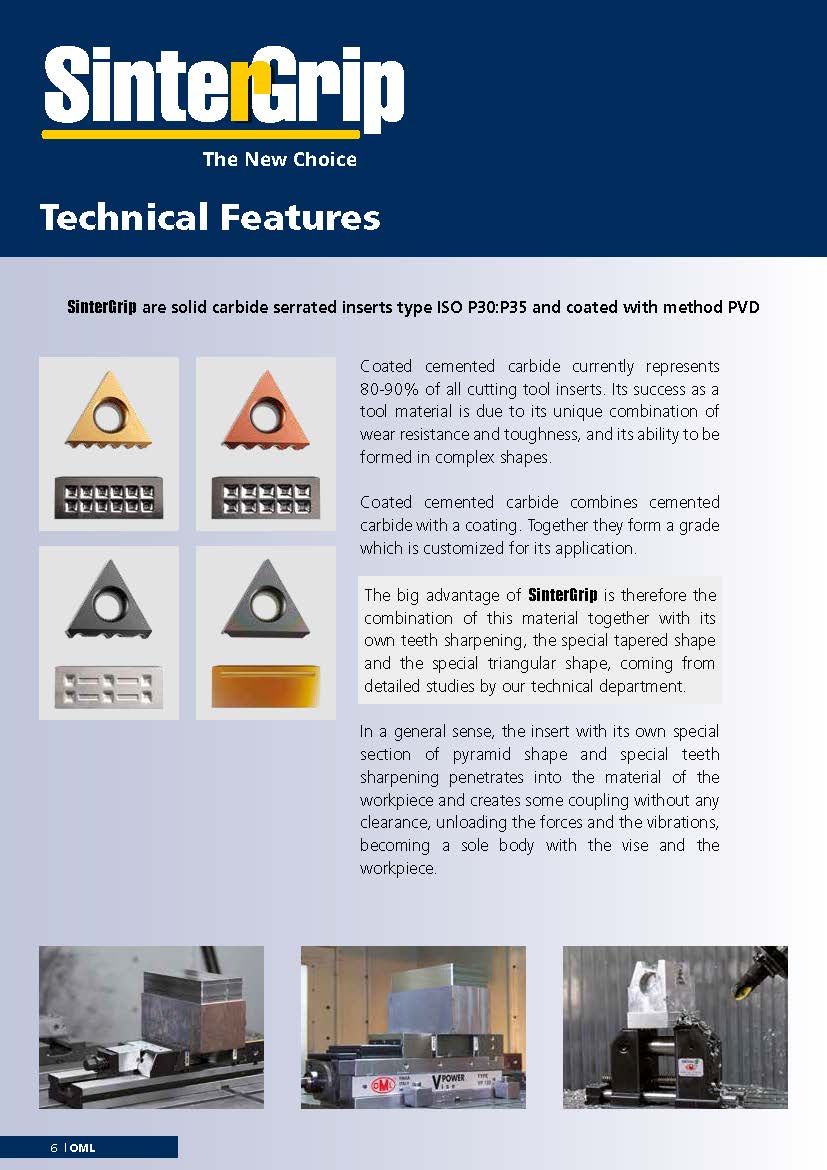

SinterGrip clamping inserts are made from coated carbide steel and have maximum lifetime

• Huge metal removal rate
• Less time to machine the workpiece

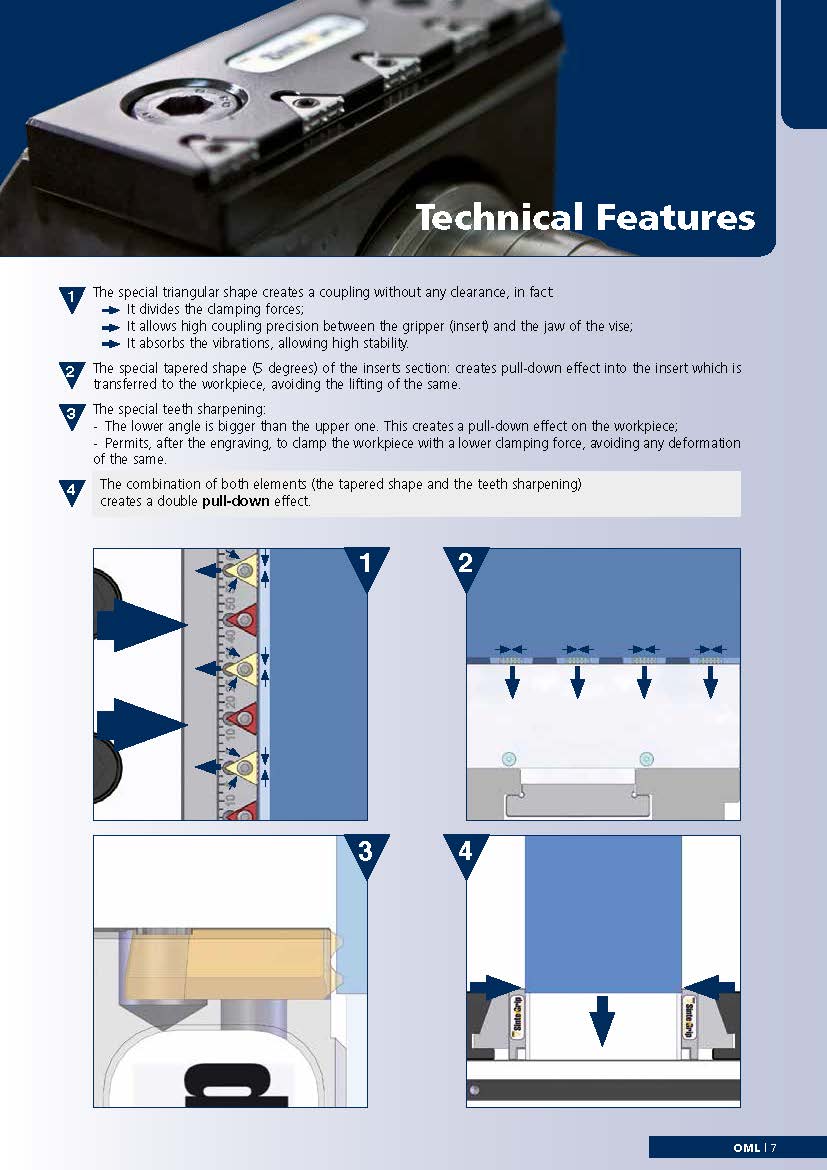

Pull-down effect | Active vibration absorption

• Even distribution of the clamping forces and active vibration absorption
• Geometric couplings without any clearance
