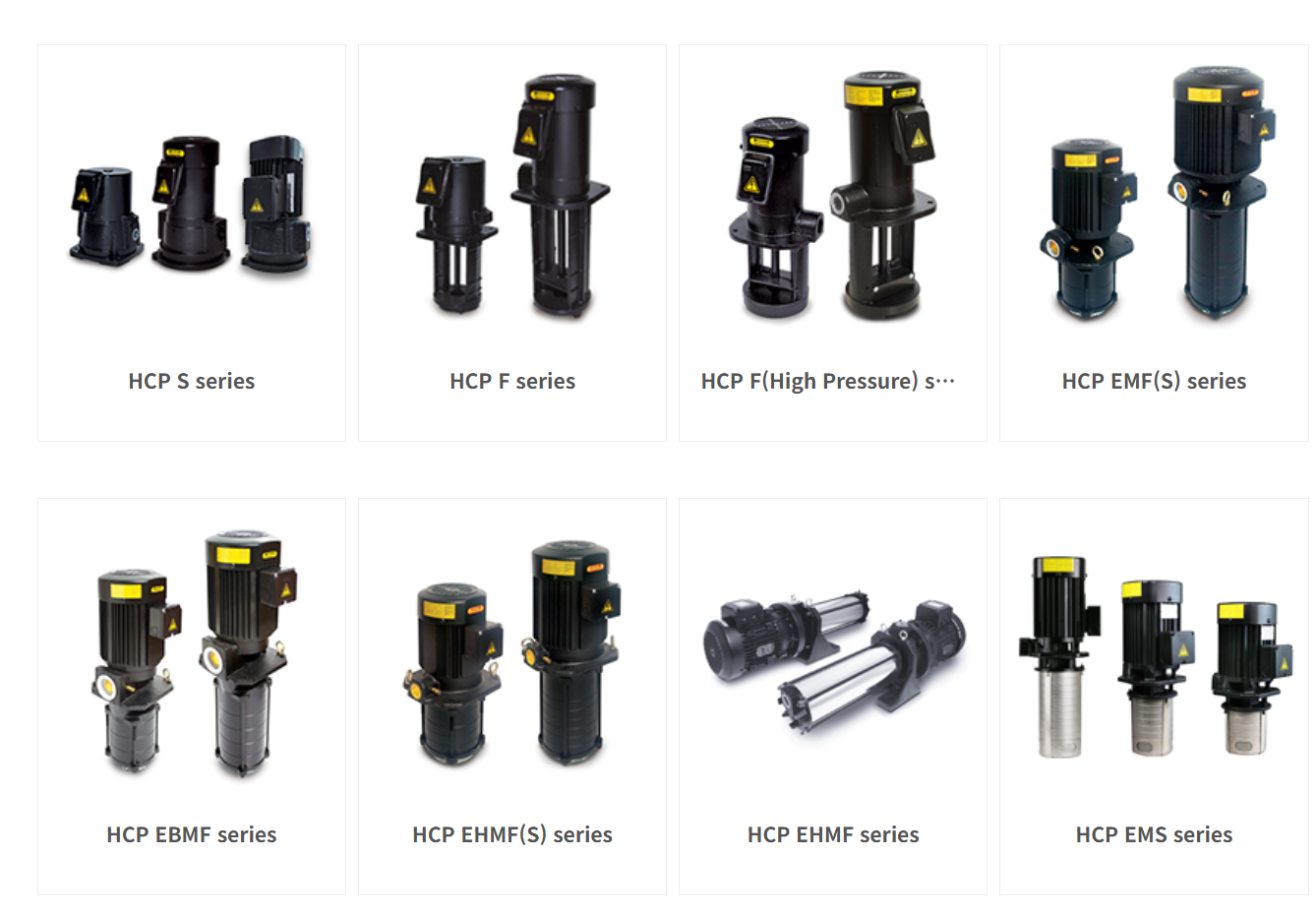

Screenshot 2026 06 11 140141

HCP EHMF(S) series

HCP EHMF series

HCP EMS series

HCP EMSF series

HCS Suction Filter series

เบอร์โทรศัพท์
081-389-4990
Line ID
mechatronics09
ขอใบเสนอราคา

HCP S series

ปั๊มหล่อเย็น (Coolant Pump)

Model

Structure

· A single-unit small self-priming pump

· A pipe is connected to the suction part to suck in oil.

Feature

  • A compact, lightweight single-unit pump.
  • The small, design means less installation limitations
  • Prolonged idling is prohibited due to the installed mechanical seal. (Idling for more than 30 seconds is prohibited)
  • Sufficient quantities of oil need to be supplied to the self priming compartment before use.
  • The motor frame of HCP-410S is made of aluminum die-casting with a heat sink, enabling efficient internal heat dissipation through the heat sink.
  • Waterproof/Dustproof rating: HCP-410S ⇒ IP55, HCP-400S ⇒ IP44

Pump Spec

MOTOR PUMP
OUTPUT(W) FREQUENCY(Hz) VOLTAGE(V) CURRENT(A) PHASE POLES TOTAL HEAD(m) DIS. VOL( l /min) PIPE SIZE(PT)
HCP-60S 60 50 200
380		 0.42
0.24		 3 2 2 20 3/8″
60 200/220
380		 0.45
0.26		 25
HCP-100S 100 50 200
380		 0.51
0.3		 3 2 2 30 3/8″
60 200/220
380		 0.55
0.32		 36
HCP-120S 120 50 200
380		 0.56
0.33		 3 2 2 35 3/8″
60 200/220
380		 0.6
0.35		 42
HCP-180S 180 50 200
380		 0.93
0.53		 3 2 3 58 1/2″
60 200/220
380		 1.0
0.57		 70
HCP-250S 250 50 200
380		 1.4
0.8		 3 2 4 95 3/4″
60 200/220
380		 1.5
0.86		 130
HCP-400S 400 50 200
380		 2.4
1.4		 3 2 5 140 1″
60 200/220
380		 2.5
1.5		 200
HCP-410S 400 50 200
380		 2.4
1.4		 3 2 5 140 1″
60 200/220
380		 2.5
1.5		 200

Packing Spec

MODEL NAME PACKING SIZE(cm) WEIGHT(kg)
PUMP PACKING
HCP-60S 18(W) x 16(L) x 26(D) 8 9
HCP-100S
HCP-120S
HCP-180S 26(W) x 21(L) x 21(D) 11 12
HCP-250S 26(W) x 22(L) x 23(D) 12 13
HCP-400S 34(W) x 22(L) x 23(D) 16 17
HCP-410S 34(W) x 22(L) x 23(D) 16 17

Performance Curve

* When using non water-soluble cutting fluid, Viscosity must be under 32cSt. Pump performance (pressure and quantity) will decrease compared to water-solube cutting fluid.

External Figure



Dimension

※ LA, LB ( ) are products for export

ØD L1 L2 L3 L4 PE(PT) TL LA LB N-ØB PA M PL1 PL2
HCP-60S 95 56 55.5 88 68 3/8″ 200.5 132(132) 150(130) 4-7 130 130 95 65
HCP-100S 95 15 55.5 88 67.6 3/8″ 200.5 132(132) 150(150) 4-7 130 130 95 65
HCP-120S 95 15 55.5 88 67.6 3/8″ 200.5 132(132) 150(150) 4-7 130 130 95 65
HCP-180S 121 15 66 81 67.6 1/2″ 218.5 167(160) 170(164) 4-10 162 160 110 80
HCP-250S 121 20 71 81 67.6 3/4″ 224.5 167(160) 170(170) 4-10 162 160 110 80
HCP-400S 137 14.5 83 133 67.6 1″ 307 180(180) – 2-10 180 – 110 88

HCP F series

Model

Structure

· A pump that operates with the pump part submerged in the tank.

· Different pumps can be selected according to tank depths, and can be used without separate oil priming.

Feature

  • The motor and the pump have the same shaft but are separated.
  • Various selections can be made according to the depths of the compact low-set tanks
  • A structure with no additional seals such as a mechanical seal
  • Can be applied to a wide range of parts including grinding machine with mixed abrasive grain.

Pump Spec

MOTOR PUMP
OUTPUT(W) FREQUENCY(Hz) VOLTAGE(V) CURRENT(A) PHASE POLES TOTAL HEAD(m) DIS. VOL( l /min) PIPE SIZE(PT)
HCP-60F 60 50 200
380		 0.42
0.24		 3 2 2 25 3/8″
60 200/220
380		 0.45
0.26		 32
HCP-100F 100 50 200
380		 0.51
0.3		 3 2 2 37 3/8″
60 200/220
380		 0.55
0.32		 47
HCP-180F 180 50 200
380		 0.93
0.53		 3 2 3 75 1/2″
60 200/220
380		 1.0
0.57		 90
HCP-250F 250 50 200
380		 0.93
0.53		 3 2 4 125 3/4″
60 200/220
380		 1.5
0.86		 150
HCP-400F 400 50 200
380		 2.4
1.4		 3 2 5 160 1″
60 200/220
380		 2.5
1.5		 200

Packing Spec

MODEL NAME PACKING SIZE(cm) WEIGHT(kg)
PUMP PACKING
HCP-60F 34(W) x 20(L) x 17(D) 7 8
HCP-100F
HCP-180F 40(W) x 22(L) x 21(D) 11 12
HCP-250F 48(W) x 22(L) x 22(D) 15 16
HCP-400F 58(W) x 22(L) x 22(D) 17 18

HCP F(High Pressure) series

Model

Structure

· A submerged-type pump with the same structure as the HCP-F type.

· There are various pump forms according to the different tank depths.

Feature

  • It has the same separate motor & pump structure as the HCP-F
  • It is used when more pressure than HCP-F is required.
  • There is an anti-vortex part at the top of the pump, which allows smooth suction.
  • The pump is divided into top section suction or bottom section Suction according to the type of the applied tank.
  • HCP-419F,420F are bottom section suction products that have a wide range of suction oil levels.

Pump Spec

MOTOR PUMP
OUTPUT(W) FREQUENCY(Hz) VOLTAGE(V) CURRENT(A) PHASE POLES TOTAL HEAD(m) DIS. VOL( l /min) PIPE SIZE(PT)
HCP-418F,428F,419F 400 50 200
380		 2.4
1.4		 3 2 12 40 1″
60 200/220
380		 2.5
1.5		 16
HCP-618F,628F 600 50 200
380		 2.79
1.61		 3 2 12 80 1″
60 200/220
380		 3.0
1.73		 16
MOTOR PACKING SIZE(cm) WEIGHT(kg)
PUMP PUMP
HCP-418F 46(W) x 23(L) x 24(D) 17 18
HCP-419F 50(W) x 24(L) x 24(D) 18 19
HCP-428F 58(W) x 22(L) x 23(D) 18 19
HCP-618F 46(W) x 23(L) x 24(D) 17 18
HCP-628F 58(W) x 22(L) x 23(D) 18 19

HCP EMF(S) series

Model

Feature

  • HCP-□MF(S)· It can be applied when large quantities of oil are required· The motor part is detached to reduce the transfer of heat

    · A submerged bottom section suction pump that must be kept at least 30mm above the tank floor.

    · The pump part is detached to reduce the entry of oil into the motor.

  • HCP-□EMF(S)· High efficiency motor is installed in HCP-MF(S) Type· Excellent electricity savings and high economic return on investment through optimized efficiency

    · Increase in life-time use through slow temperature increase and use of highly energy-efficient energy materials

    · Acquired high efficiency energy equipment mark (IE3)

Pump Spec

MOTOR PUMP
OUTPUT(W) FREQUENCY(Hz) VOLTAGE(V) CURRENT(A) PHASE POLES TOTAL HEAD(m) DIS. VOL( l /min) PIPE SIZE(PT)
HCP-1100EMF(S) 1100 50 200
380		 4.2
2.5		 3 2 6.5 200 1¼”(1½”)
60 200/220
380		 4.8
2.8		 10
HCP-1800EMF 1800 50 200
380		 6.6
3.8		 3 2 20 100 1½”
60 200/220
380		 7.0
4.1		 30
HCP-2500EMF 2500 50 200
380		 8.8
5.2		 3 2 30 100 1½”
60 200/220
380		 10.0
5.6		 45
HCP-4000EMF 4000 50 200
380		 16.0
8.5		 3 2 50 100 1½”
60 200/220
380		 18.0
10.7		 70

Packing Spec

MODEL NAME PACKING SIZE(cm) WEIGHT(kg)
PUMP PACKING
HCP-1100EMF 59(W) x 25(L) x 29(D) 28 29
HCP-1100EMFS 27 28
HCP-1800EMF 63(W) x 29(L) x 30(D) 31 32
HCP-2500EMF 35 36
HCP-4000EMF 80(W) x 27(L) x 31(D) 45 46

HCP EBMF series

Model

Structure

· Attachment area is same for all HCP-EBMF equipment and therefore flexible in terms of moving.

· Must maintain 30mm distance from the tank’s bottomm in the lower part of the pump.

Feature

  • A large capacity multi-level pump of large machine tools suitable for cutting oil pump used for washing and shower.
  • The motor and the pump have the same shaft but are separated to decrease the flow of oil into the motor

Pump Spec

MOTOR PUMP
OUTPUT(W) FREQUENCY(Hz) VOLTAGE(V) CURRENT(A) PHASE POLES TOTAL HEAD(m) DIS. VOL( l /min) PIPE SIZE(PT)
HCP-1800EBMF 1800 50 200
380		 7.5
4.1		 3 2 10 300 2″
60 200/220
380		 8.5/8.0
4.6		 12 400
HCP-2500EBMF 2500 50 200
380		 9.0
5.5		 3 2 10 400 2″
60 200/220
380		 12.0/11.0
6.4		 20
HCP-4000EBMF 4000 50 200
380		 16.0
8.5		 3 2 10 450 2″
60 200/220
380		 18.0/17.0
10.7		 20 500

Packing Spec

MODEL NAME PACKING SIZE(cm) WEIGHT(kg)
PUMP PACKING
HCP-1800EBMF 63(W) x 29(L) x 30(D) 35 36
HCP-2500EBMF 40 40
HCP-4000EBMF 80(W) x 27(L) x 31(D) 45 46

HCP EHMF(S) series

Model

Feature

  • HCP-□HMF(S)· Identical pump spray areas make exchanges easy.· Prolonged idling is prohibited due to the installed mechnical seal. (Idling for more than 10 seconds is prohibited)

    · It is produced with a single-unit shaft, which increases durability and makes management easy.

  • HCP-□EHMF(S)· High efficiency motor is installed in HCP-HMF(S) Type· Excellent electricity savings and high economic return on investment through optimized efficiency

    · Increase in life-time use through slow temperature increase and use of highly energy-efficient energy materials.

    · Acquired high efficiency energy equipment mark.

Pump Spec

MOTOR PUMP
OUTPUT(W) FREQUENCY(Hz) VOLTAGE(V) CURRENT(A) PHASE POLES TOTAL HEAD(m) DIS. VOL( l /min) PIPE SIZE(PT)
HCP-1100EHMF(S) 1100 50 220
380		 4.3
2.5		 3 2 30 30 3/4″
60 200/220
380		 5.1
3.0		 45
HCP-1800EHMF(S) 1800 50 200
380		 6.5
3.8		 3 2 50 30 3/4″
60 200/220
380		 7.0
4.1		 70
HCP-2500EHMF(S) 2500 50 200
380		 8.7
5.2		 3 2 70 30 3/4″
60 200/220
380		 9.7
5.6		 100
HCP-4000EHMF(S) 4000 50 200
380		 16.0
8.5		 3 2 90 20 3/4″
60 200/220
380		 18.0
10.7		 130

Packing Spec

MODEL NAME PACKING SIZE(cm) WEIGHT(kg)
PUMP PACKING
HCP-1100EHMF 50(W) x 30(L) x 27(D) 26 27
HCP-1100EHMFS 25 27
HCP-1800EHMFS 28 29
HCP-1800EHMF 63(W) x 29(L) x 30(D) 29 30
HCP-2500EHMF 39 40
HCP-2500EHMFS 38 39
HCP-4000EHMF 45 46
HCP-4000EHMFS 44 45

HCP EHMF series

Model

Structure

· Either vertical or horizontal type possible depending on manufacturing environment.

· Easily replaced to the area in the same pump

· Unlike existing pump, HCP-4000HMF280S has IN and OUT the other way round and therefore minimizes oil leakage as pressure is formed inside mechanical seal.

Feature

  • Multi-step centrifugal pump that is identical with HCP-HMF(S) Type.
  • Used as cooling and cleaning pump for large scale / high precision manufacturing machine via discharge of high pressure cutting oil.
  • Prolonged idling is prohibited due to the installed mechnical seal. (Idling for more than 30 seconds is prohibited)
  • It is produced with a single-unit shaft, which increases durability and makes management easy.

Pump Spec

MOTOR PUMP
OUTPUT(W) FREQUENCY(Hz) VOLTAGE(V) CURRENT(A) PHASE POLES TOTAL HEAD(m) DIS. VOL( l /min) PIPE SIZE(PT)
HCP-4000EHMF130 4000 50 200
380		 16.0
8.5		 3 2 90 20 3/4″
60 200/220
380		 18.0/17.0
10.7		 130
HCP-4000EHMF200 4000 50 200
380		 16.0
8.5		 3 2 125 20 3/4″
60 200/220
380		 18.0/17.0
10.7		 200
HCP-4000EHMF280S 4000 50 200
380		 15.0
9.0		 3 2 195 20 3/4″
60 200/220
380		 18.0
10.7		 280
HCP-5500EHMF200 5500 50 200
380		 17
10.5		 3 2 145 20 3/4″
60 220
380		 25
14.5		 200
HCP-5500EHMF220 5500 50 200
380		 17
10.5		 3 2 155 20 3/4″
60 220
380		 25
14.5		 220
HCP-5500EHMF240 5500 50 200
380		 17
10.5		 3 2 165 20 3/4″
60 220
380		 25
14.5		 240
HCP-5500EHMF260 5500 50 200
380		 17
10.5		 3 2 175 20 3/4″
60 220
380		 25
14.5		 260
HCP-5500EHMF280 5500 50 200
380		 17
10.5		 3 2 185 20 3/4″
60 220
380		 25
14.5		 280

Packing Spec

MODEL NAME PACKING SIZE(cm) WEIGHT(kg)
PUMP PACKING
HCP-4000EHMF130 80(W) x 27(L) x 31(D) 44(A, C), 54(B, D) 45(A, C), 55(B, D)
HCP-4000EHMF200 49(A, C), 59(B, D) 50(A, C), 60(B, D)
HCP-4000EHMF280S 59(A, C), 69(B, D) 60(A, C), 70(B, D)
HCP-5500EHMF200 100(W) x 28(L) x 33(D) 59(A, C), 69(B, D) 60(A, C), 70(B, D)
HCP-5500EHMF220 62(A, C), 72(B, D) 63(A, C), 73(B, D)
HCP-5500EHMF240 64(A, C), 74(B, D) 65(A, C), 75(B, D)
HCP-5500EHMF260 67(A, C), 77(B, D) 68(A, C), 78(B, D)
HCP-5500EHMF280 69(A, C), 79(B, D) 70(A, C), 80(B, D)

HCP EMS series

Model

Structure

· Easy to replace it with identical pump attachment area.

· Depending on tank depth, it can be manufactured with various immersion depth.

· A multi-stage pump capable of a wide range of performances.

Feature

  • The main drive parts are made with stainless materials, which increase durability and corrosion resistance.
  • It is compact, and can be used when there are limitations on instillation space.
  • It is separated into a pressure type and a oil quantity type, and has a wide range of performances.

Pump Spec

MOTOR PUMP
OUTPUT(W) FREQUENCY(Hz) VOLTAGE(V) CURRENT(A) PHASE POLES TOTAL HEAD(m) DIS. VOL( l /min) PIPE SIZE(PT)
HCP-750EMS-4/4 750 50 220
380		 3.2
2.0		 3 2 30 35 3/4″
60 220
380		 3.4
2.2		 45
HCP-1100EMS-6/6 1100 50 220
380		 4.2
2.5		 3 2 45 30 3/4″
60 220
380		 4.6
3.0		 70
HCP-1100EMS-10/8 1100 50 220
380		 5.4
3.0		 3 2 75 20 3/4″
60 220
380		 6.1
5.5		 100

Packing Spec

MODEL NAME PACKING SIZE(cm) WEIGHT(kg)
PUMP PACKING
HCP-750EMS-4/4 45(W) x 29(L) x 28(D) 12 12.8
HCP-1100EMS-6/6 58(W) x 29(L) x 28(D) 15.6 16.4
HCP-1100EMS-10/8 58(W) x 29(L) x 28(D) 17.5 18.5

HCP EMSF series

Model

Structure

· The main drive is made of stainless steel, so durability and corrosion resistance are excellent

· Easy to apply by assembling and using casing according to tank depth

· Designed to be optimized for high flow pumps

Feature

  • Perfect appearance design for great space use
  • Minimize used energy relative to flow performance
  • Lightweight pump makes installation and maintenance convenient

Pump Spec

Specification MOTOR PUMP
Type OUTPUT(W) FREQUENCY(Hz) VOLTAGE(V) CURRENT(A) PHASE POLES TOTAL HEAD(m) DIS. VOL( l /min) PIPE SIZE(PT)
750EMSF 750 50 220 4.2 3 2 6.5 200 1 1/4″
380 2.5
60 220 4.8 10
380 3.2
1100EMSF 1100 50 220 5.4 3 2 20 100 1 1/2″
380 3.7
60 220 6.1 30
380 4.6
Model Name Packing size Weight(Kgf)
Pump Packing
HCP-750EMSF-4/2 45(w)x29(L)x28(D) 14 14.8
HCP-1100EMSF-6/3 58(w)x29(L)x28(D) 16.5 17.5

http://www.halslube.com/en/halspdf/HALS_coolant_pump.pdf



สินค้าที่คล้ายกัน

Mitlaufende Spitzen

Products Greber AG SWISS MADE Lathe Centers ยันศูนย์เครื่องกลึง

<div class="et_pb_column et_pb_column_4_4
เลือกรูปแบบสินค้า
6ab9b76861d04aeb278ea0d80bc64d38

Future Life Technology

Future Life Technology Co., Ltd. was founded in 1997. With
เลือกรูปแบบสินค้า
Safecontrol 4.0 User2

KELCH Force Gauge Check เครื่องทดสอบแรงดึง Machining Center BT HSK TYPE

Tac Rockford

TAC Rockford

TAC Rockford Innovative products for machine tools TAC Rockford นำเสนอเกจวัดและเครื่องมือบำรุงรักษาเชิงป้องกันที่หลากหลายที่สุดในโลก
เลือกรูปแบบสินค้า

PRODUCT INFORMATION

Buyer information
