Manual Chucks

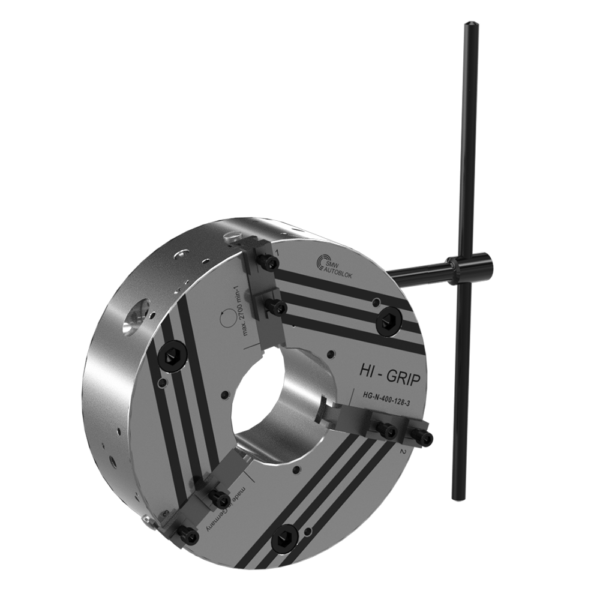

HG-N
QUICK JAW CHANGE
Jaw system original SMW
Quick jaw change manual chucks Ø 160 – 630 mm
- Tongue & Groove
- with through hole
- quick jaw change system original SMW
- 3 jaws
SHARE ON:
HG-N
QUICK JAW CHANGE
Jaw system original SMW
Quick jaw change manual chucks Ø 160 – 630 mm
- Tongue & Groove
- with through hole
- quick jaw change system original SMW
- 3 jaws
SHARE ON:
HG-NB
QUICK JAW CHANGE
Jaw system original SMW
Quick jaw change manual chucks Ø 800 – 1000 mm
- Tongue & Groove
- with extra large through hole
- quick jaw change
- all existing top jaws can be used
- 3 jaws
SHARE ON:
HG-2G
QUICK JAW CHANGE
Jaw system original SMW
Quick jaw change manual chucks Ø 400 – 630 mm
- Tongue & Groove
- with through hole
- quick jaw change
- 3 jaws
- Lubrication channels in the jaw guide ways
- Mechanic sealed-low maintenance
SHARE ON:
HG-B-2G
QUICK JAW CHANGE
Jaw system original SMW
Quick jaw change manual chucks Ø 800 – 1000 mm
- Tongue & Groove
- with extra large through hole
- quick jaw change
- all existing top jaws can be used
- 3 jaws
- Mechanic sealed-low maintenance
SHARE ON:
HG-F
QUICK JAW CHANGE
Jaw system Forkardt
Quick jaw change manual chucks Ø 160 – 400 mm
- Tongue & Groove
- with through hole
- quick jaw change-jaw system Forkardt
- 3 jaws
SHARE ON:
PTF
Tongue & groove
Manual clamping and radial setting of jaws
High precision 4 jaws independent manual chucks Ø 530- 2000 mm
- Closed center
- 4 jaws (all diameters)
SHARE ON:
JBX
Manual jaw box
SMW-AUTOBLOK standard
JBX-2G
Manual jaw box with semi-finished body
High precision, resistance and power manual jaw box
- Accessory for faceplates, 4 jaws independent manual or other chucks
- Internal or external clamping
SHARE ON:
Centco4-MLW
Centco4MLW
4 jaws chucks Ø 315 – 1400 mm
- Indipendent self centering clamping in 2 axis
- Weight-optimized chuck body
- 4 jaws
Open Center Power Chucks
BH-D
INCH serration
High precision power chucks Ø 130 – 450 mm
- Large through hole
- 2, 3 and 4 jaws
SHARE ON:
BH-M
METRIC serration
High precision power chucks Ø 130 – 450 mm
- Large trough-hole
- 2, 3 and 4 jaws
SHARE ON:
BH-D BIG DIAMETERS
INCH serration
High precision power chucks Ø 500-800 mm
- EXTRA large through hole
- 3 jaws
SHARE ON:
BHD-FC
INCH serration
BHM-FC
Metric serration
High precision power chucks Ø 165 – 630 mm
- Large through hole
- 3 jaws
SHARE ON:
BX-D
High precision power chuck with lightweight body
BX-M
High precision power chuck with lightweight body Ø 175 – 315 mm
- EXTRA large through-hole
- 3 jaws
- Gripping force transmission via wedge hook
- Case hardened body to assure greatest precision and long chuck life
- Weight-optimised and outer geometry of the chuck body between the base jaws to allow accessibility with live tools
SHARE ON:
BP-D
INCH serration
BP-M
Metric serration
High precision power chucks Ø 220 – 320 mm
- large through hole
- 3 jaws
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
BP-C
Tongue & groove
High precision power chucks Ø 220 – 320 mm
- Wedge-bar design
- 3 jaws
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
BB-D
INCH serration
BB-M
Metric serration
High precision power chucks Ø 140 – 435 mm
- 3 jaws
SHARE ON:
HFKN-D/-M
INCH/ METRIC Serration
HFKN-C
TONGUE & GROOVE
High precision power chucks Ø 110 – 500 mm
- Large through hole
- 3 jaws
SHARE ON:
HFKS-2G
INCH/ METRIC Serration
Wedge-hook design with centrifugal force compensation
High precision power chucks Ø 165 – 320 mm
- Large through hole
- 3 jaws
- Reduced weight
SHARE ON:
Centco4
INCH Serration
4-Jaw chucks Ø 210 – 400 mm
- Independent self centering clamping in 2 axis
- Centrifugal force compensation
- 4 jaws
- Large through hole
Quick jaw change power chucks
KNCS-N Ø 140 – 630 mm
QUICK JAW CHANGE
Quick jaw change power chucks Ø 140 – 630 mm
- Large through hole
- High speed
- High flexibility: jaws radially adjustable/reversible
- 3 Jaws
SHARE ON:
KNCS-N Ø 210 – 325 mm
QUICK JAW CHANGE
Quick jaw change power chucks Ø 210 – 325 mm
- 2 Jaws
- Large through hole
- High speed
- High flexibility: jaws radially adjustable/reversible
SHARE ON:
KNCS-NB
QUICK JAW CHANGE
Wide master jaws
Quick jaw change power chucks Ø 210 – 800 mm
- Large through hole
- High flexibility: jaws radially adjustable/reversible
- 3 Jaws
- Suitable to take any type of existing top jaws
SHARE ON:
KNCS-NBX
QUICK JAW CHANGE
Wide master jaws
Quick jaw change power chucks Ø 425 – 1000 mm
- EXTRA large through hole
- EXTRA long piston guide
- High flexibility: jaws radially adjustable/reversible
- 3 Jaws
- Suitable to take any type of existing top jaws
SHARE ON:
KNCS-2G
QUICK JAW CHANGE
Fully sealed
Quick jaw change power chucks Ø 170 – 630 mm
- Large through hole
- Protection against dust and swarf
- High flexibility: jaws radially adjustable/reversible
- 3 Jaws
SHARE ON:

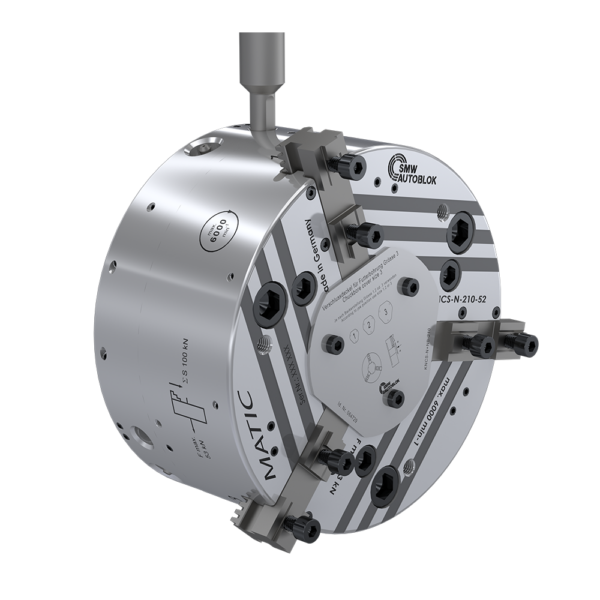

KNCS-matic
AUTOMATED QUCK JAW CHANGE
3-jaws-chuck
Backenschnellwechsel-Kraftspannfutter Ø 210 – 630 mm
- Ready for automated jaw change utilizing handling robot systems
- High repeatability when changing jaws and high speed
- High fl exibility: jaws radially adjustable / reversible
- High centering accuracy
- 3 jaws
- Proofline: fully sealed – low maintenance
SHARE ON:
KNCS-NB-CL
CENTER LINE
Wide master jaws
High precision power chucks Ø 630
- Quick jaw change
- Large through hole
- Radial fine adjustment
- High flexibility: jaws radially adjustable / reversible
SHARE ON:
AP-RC
Quick jaw change
Tongue & groove
AP-RD
Quick jaw change
Serration
Quick jaw change high precision power chucks Ø 170 – 400 mm
- Closed center
- 3 jaws
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
NT-RC
Quick jaw change
Tongue & groove
NT-RD
Quick jaw change
Serration
Quick jaw change high precision power chucks Ø 170 – 400 mm
- Centrifugal force compensation
- 3 jaws, closed center
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
KIT-RR
Converts a standard chuck into a quick jaw change chuck
Available from 210 to 400
Available for inch or metric serration master jaws
- For AP-BH-NT SMW-Autoblok’s power chucks
- Easy coupling and uncoupling with spring-loaded button
- Safety against accidental release
- Suitable for manual and/or robotic use
- Ready for a robotized change
SHARE ON:
NTL-RR
Quick jaw change
Long jaw stroke
proofline® chucks = fully sealed – low maintenance
High precision 3 jaw sealed power chuck Ø 260 – 400 mm
- Costant gripping force with permanent grease lubrication
- Long jaw stroke
- Chuck body and internal parts case hardened
- Center bore for coolant and/or air
SHARE ON:
APL-RR
quick jaw change
proofline® chucks = fully sealed – low maintenance
High precision 3 jaw sealed power chuck Ø 215 – 400 mm
- Extra long jaw stroke
- Costant gripping force with permanent grease lubrication
- Center bore for coolant and/or air
- Chuck body and internal parts case hardened
- proofline® chucks = fully sealed – low maintenance
SHARE ON:
TMS-2G
Quick change workholding system
Quick change workholding system
- Highest repeatability and change over accuracy less than 7 ?
- Very simple system for quick change chucks less than 1 mn
- Available for any ASA spindle turning machine
- Central actuation for locking and unlocking
- Available for any clamping device (automatic or manual clamping)
- Very large through hole
Closed Center Power Chucks
AN-D
INCH serration
AN-M
METRIC serration
High precision power chucks Ø 125 – 400 mm
- Closed center
- 2 and 3 jaws (4 jaws only Ø 400 mm)
SHARE ON:
AL-D
INCH serration
AL-M
METRIC serration
High precision power chucks Ø 125 – 400 mm
- Closed center
- Long stroke
- 2 and 3 jaws (4 jaws only Ø 400 mm)
SHARE ON:
AN-C
Tongue & groove
High precision power chucks Ø 165 – 400 mm
- Closed center
- 3 and 3 jaws (4 jaws only Ø 400 mm)
SHARE ON:
AP-D
INCH serration
AP-M
METRIC serration
High precision fully sealed power chucks Ø 170 – 400 mm
- Closed center
- 2 jaws (only Ø 215-260) and 3 jaws
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
AP-C
Tongue & groove
High precision fully sealed power chucks Ø 170 – 400 mm
- Closed center
- 2 jaws (only Ø 215-260) and 3 jaws
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
APL-D
INCH serration
APL-M
METRIC serration
High precision fully sealed power chucks Ø 215 – 400 mm
- Closed center
- Longstroke
- 3 jaws
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
APL-D
INCH serration
APL-C
Tongue & groove
High precision fully sealed power chucks Ø 500 – 1000 mm
- Closed center
- Long stroke
- 3 jaws
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
APL-C
Tongue & groove
High precision power chucks Ø 215 – 400 mm
- Long stroke
- Closed center
- 3 jaws
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
NT-C
Tongue & groove
High precision fully sealed power chucks Ø 170 – 400 mm
- Centrifugal force compensation
- Closed center
- 3 jaws
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
NT-D
INCH serration
NT-M
METRIC serration
High precision fully sealed power chucks Ø 170 – 400 mm
- Centrifugal force compensation
- Closed center
- 3 jaws
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
NTL-D
INCH serration
NTL-M
METRIC serration
High precision fully sealed power chucks Ø 260 – 400 mm
- Centrifugal force compensation
- Closed center – 3 jaws
- Long stroke
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
NTL-C
LONG STROKE
Tongue & groove
High precision fully sealed power chucks Ø 260 – 400 mm
- Centrifugal force compensation
- Closed center – 3 jaws
- Long stroke
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
NTL-D
INCH serration
NTL-C
Tongue & groove
High precision fully sealed power chucks Ø 500 – 1000 mm
- Centrifugal force compensation
- Closed center – 3 jaws
- Long stroke
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
IN-D 500-800
INCH serration
IN-C 500-800
Tongue & groove
High precision power chucks Ø 500 – 800 mm
- Closed center
- 3 and 4 jaws
SHARE ON:
IL-D 500-800
INCH serration
IL-C 500-800
Tongue & groove
High precision power chucks Ø 500 – 800 mm
- Closed center
- Long stroke
- 3 and 4jaws
SHARE ON:
IND-CP
INCH serration
MODULE 2 serration
High precision power chucks Ø 500 – 1250 mm
- Closed center
- Closed center
- 3 jaws
SHARE ON:
IN-D 3-6 JAWS
MODULE 2 serration
IL-D
Long jaw stroke
High precision power chucks Ø 660 – 2500 mm
- Radial setting of jaws
- Long jaw stroke
- 3 and 6 jaws (all diameters)
SHARE ON:
IN-D 4 JAWS
MODULE 2 serration
IL-D
Long jaw stroke
High precision power chucks Ø 1000 – 1600 mm
- Long jaw stroke
- 4 jaws (all diameters)
SHARE ON:
IR-C Ø 660 – 2500 mm
Tongue & groove
High precision pull-down chucks Ø 160 – 400 mm
- Pull-down effect of inclined master jaws
- Closed center
- 3 and 6 jaws (all diameters)
SHARE ON:
IR-C Ø 660 – 2000 mm
Tongue & groove
High precision power chucks Ø 80 – 315 mm
- Long stroke
- Closed center
- 4 jaws (all diameters)
SHARE ON:
RAN
Tongue & groove
High precision power chucks Ø 160 – 400 mm
- Large through hole
- Tongue & groove master jaws
- 3 jaws
SHARE ON:
CL-C
Tongue & groove
CL-D
INCH serration
High precision power chucks Ø 80 – 315 mm
- Large through hole
- Closed center
- 2 jaws
Pull-down chucks / Compensating chucks / Indexing chucks / Shaft chucks / Column chucks / 6 jaw 2+2+2 chucks
TSF-C
Self centering
Floating jaws
TSR-C
Self centering
Rigid jaws
High precision pull-down chucks Ø 135 – 650 mm
- Active pull-down
- Tongue & groove
- 3 jaws
SHARE ON:
TSF-C
Self centering
Floating jaws
High precision pull-down chucks Ø 170 – 315 mm
- Active pull-down
- Tongue & groove
- 2 jaws
SHARE ON:
TSF-RM
Self centering
Floating jaws
TSR-RM
Self centering
Rigid jaws
Quick jaw change pull-down chucks Ø 170 – 530 mm
- Active pull-down
- Quick jaw change with pallets
- Tongue & groove pallets – 3 jaws
SHARE ON:
TSF-CP
Compensating
Floating jaws
TSR-CP
Compensating
Rigid jaws
Compensating pull-down chucks Ø 135 – 650 mm
- Active pull-down
- Tongue & groove
- 3 jaws
SHARE ON:
TSF-CP
Compensating
Floating jaws
Compensating pull-down chucks Ø 170 – 315 mm
- Active pull-down
- Tongue & groove
- 2 jaws
SHARE ON:
TSBF-C
Self centering
Floating jaws
TSBR-C
Self centering
Rigid jaws
High precision pull-down chucks Ø 220 – 330 mm
- Active pull-down
- Tongue & groove
- Large through hole
- 3 jaws
SHARE ON:
TSBF-CP
Compensating
Floating jaws
TSBR-CP
Compensating
Rigid jaws
Compensating pull-down chucks Ø 220 – 330 mm
- Active pull-down
- Tongue & groove
- Large through hole
- 3 jaws
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
FRC-N
Compensating clamping
Tongue & groove
Lever chuck Ø 215 – 365 mm
- Pull-down to axial datum
- Spring loaded or fixed center
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
FRS
Self centering clamping
Tongue & groove
Lever chuck Ø 215 – 365 mm
- Self centering clamping
- Large through hole
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
TPT-C Ø 210 – 400 mm
2+2 independent jaw movement
Tongue & groove
High precision 2+2 jaw power chuck with self-centering independent jaw movement Ø 210 – 400 mm
- Closed center
- Tongue & groove
SHARE ON:
TPT-C Ø 500 – 800 mm
2+2 independent jaw movement
Tongue & groove
High precision 2+2 jaw power chuck with self-centering independent jaw movement Ø 500 – 800 mm
- Closed center
- Tongue & groove
SHARE ON:
TPT-RC
2+2 independent jaw movement
Tongue & groove
High precision 2+2 jaw power chuck with self-centering independent jaw movement Ø 1000 – 2000 mm
- Closed center
- Tongue & groove
SHARE ON:
TX-C
Self centering
Rigid jaws
High precision pull-down chucks Ø 170 – 530 mm
- Active pull-down
- Tongue & groove
- 3 jaws
SHARE ON:
TX-RV
Self centering
Rigid jaws
Quick jaw change, high precision pull-down chucks Ø 170 – 530 mm
- Active pull-down
- Quick jaw change (internal / external)
- 3 jaws
SHARE ON:
TSX-C 2+2
Pull down chuck
4 jaws 2+2
High precision pull-down chucks Ø 265 – 315 mm
- Active pull-down
- 2+2 jaws
- Tongue & groove
SHARE ON:
TEF-C
2+2+2 equalising
6 floating jaws
TER-C
2+2+2 equalising
6 rigid jaws
High precision pull-down 2+2+2 equalising Ø 260 – 850 mm
- Active pull-down
- Tongue & groove
- 6 jaws 2+2+2
SHARE ON:
SJL-C
Self centering
Tongue & groove
SJL-M
Self centering
Metric serration
High precision 6 jaw chucks (2+2+2) equalising Ø 225 – 400 mm
- Jaws equalising as pair
- Equalising mechanism lockable
SHARE ON:
SJL-C
6 jaws (2+2+2) equalising
Self centering
High precision power chucks Ø 500 – 800 mm
- For thin walled or deformation sensitive components
- Tongue & groove / metric serration
- Centrifugal force compensation
- Jaws equalising as a pair / mechanism lockable
- proofline® chucks = fully sealed – low maintenance
SHARE ON:
SJLS-C
6 jaws (2+2+2) equalising -Self centering
Tongue & groove
SJLS-M
Self centering
Metric serration
High precision power chucks Ø 225 – 400 mm
- For thin walled or deformation sensitive components
- Tongue & groove / metric serration
- Low height
- Jaws equalising as a pair / mechanism lockable
- proofline® chucks = fully sealed – low maintenance
SHARE ON:
IEP-D
2+2+2 movement
INCH serration
IEP-C
2+2+2 movement
Tongue & groove
High precision 6 jaw chucks 2+2+2 equalising Ø 400 – 800 mm
- Closed center
- Equalising mechanism lockable
- Centrifugal force compensation
SHARE ON:
IEP-D
2+2+2 movement
MODULE 2 serration
High precision 6 jaw chucks 2+2+2 equalising Ø 1000 – 1600 mm
- Closed center
- Equalising mechanism lockable
- Centrifugal force compensation
SHARE ON:
AXN
Automatic indexing chuck
standard body
AXN-R
Automatic indexing chucks
reinforced Ø 210 – 315 mm
AXN Automatic indexing chucks Ø 210 – 1250 mm
- Divisions: 4×90° / 8×45° / 3×120° / 6×60° or specials
SHARE ON:
W
Shaft chuck with face driver
Shaft chuck Ø 215 – 460 mm to a complete machining of shafts in one setup
- Compensating or self centerting clamping
- Quick change of jaws and face driver
- Retractable jaws via retractable jaw carrier
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
CSC
Crank shaft chuck with retractable jaws
Crank shaft chuck Ø 260 – 325 mm
- Axially movable and lockable center point
- Retractable jaws via retractable jaw carrier
- Balancing chambers for fine balancing on the machine
- proofline® chucks = fully sealed – low maintenance
SHARE ON:
GSA
Shaft chuck with retractable jaw
Face driver
Shaft turning chuck Ø 200 – 480 mm
- Compensating jaw clamping
- Face driver with fixed or spring loaded center
- proofline® chucks = fully sealed–low maintenance
SHARE ON:
SCG
Compensating chucks
4 jaw (2+2)
Compensating chucks Ø 206 mm
- For grinding
- Centerpoint quick change or adjustable centers
- Hydraulic actuation
- 2+2 jaw independently operated in pairs
- Fully sealed, oil bath lubricated and low maintenance
SHARE ON:
ACS-E 3
Self centering
column chuck
Self-centering column chucks with pull down Ø 110 – 350 mm
- Pull down
- Power operated via standard cylinders
- O.D.clamping
SHARE ON:
ACS-E 6
Self centering
column chuck
Self-centering column chucks with pull down Ø 200 – 450 mm
- Pull down
- Power operated via standard cylinders
- O.D.clamping
SHARE ON:
ACS-E 5
Self centering
column chuck
Self-centering column chucks with pull down Ø 145-210- 520 mm
- Pull down
- Power operated via standard cylinders
- O.D. clamping
SHARE ON:
ACS-I 3/6
Self centering
column chuck
Self-centering column chucks with pull down Ø 130 – 300 mm
- Pull down
- Power operated via standard cylinders
- I.D.clamping
Diaphragm chucks
D
Diaphragm chuck
Quick jaw change systems
Diaphragm clamping technology with quick jaw change at its best for hard turning, grinding and high precision turning
- Ø 160-400 mm
- O.D. or pitch line clamping
- Centrifugal force compensation
- Proofline® chucks = fully sealed–low maintenance
SHARE ON:
SIN-DFR
Cylinder for Diaphragm chuck type D D-PLUS D-VARIO
Closed center rotating hydraulic cylinder
- Special cylinder to actuate diaphragm chuck
- Up to 70 bar
- Large piston area for opening small piston area for clamping
- Central bore for air/coolant, 1 or 2 media
- Stroke control via LPS
SHARE ON:
D-KOMBI
Radial-axial clamping
Quick jaw change systems
Diaphragm clamping technology with pull-down fingers jaw/pull-down finger quick change
- Ø 210-400 mm
- Radial and axial clamping
- Flat gripping force curve
- Proofline® chucks = fully sealed–low maintenance
SHARE ON:
ZHVD-DFR
Cylinder for Diaphragm chuck type D-KOMBI
Double piston rotating hydraulic cylinder
- Special cylinder to actuate diaphragm chuck D-KOMBI
- Up to 60 bar
- 1 piston for actuating diaphragm
- 1 piston for actuating axial clamping
- Central bore for air/coolant, 1 or 2 media
- Stroke control via 2 per LPS
SHARE ON:
D-PLUS
Diaphragm chuck – open center
Quick jaw change systems
Open center diaphragm chuck with quick jaw change systems
- Ø 260-315 mm
- Radial O.D. or pitch line clamping
- With central bore
- Centrifugal force compensation
- Proofline® chucks = fully sealed–low maintenance
SHARE ON:
D-VARIO
Diaphragm chuck
Flexible modular system
Diaphragm chuck with radial fine adjustment of the center line
- Ø 215 mm
- Radial fine adjustment of the center line
- Key Lock System=Quick positioning of jaws for gears with different number of teeth
- Modular System with jaws for pitch line or outside clamping
- Proofline® chucks = fully sealed–low maintenance
SHARE ON:
RU-2-20
Rotary union
Rotary union for 2 media
- For double piston cylinder ZHVD-DFR for D-chucks
Collet chucks / Bar pulling chucks
COMOT-AZ
Flexible collet chuck
Flexible collet chuck
- Use of vulcanized standard collet
- Optional premium adapter for the use of slotted high-precision collets
- Optional use of expanding mandrels of the “connect” series
- Preparation for air sensing
- Radial fine adjustment
SHARE ON:
COMOT-DZ
Flexible collet chuck
Flexible collet chuck
- Use of vulcanized standard collet
- Clamping of thin walled work pieces
- Long service life due to case hardened componenets and lubrication
- Ideal for bar loader machines and Best tool accessability
- Seal against contamination of the collet
- Low weight = low inertia
SHARE ON:
COMOT-NZ
Flexible collet chuck
Flexible collet chuck
- Use of vulcanized standard collet
- Optional use of expanding mandrels of the connect series EMX-F-CO-NZ
- Optional use of expanding mandrels of the “connect” series
- Preparation for air sensing
- Radial fine adjustment
SHARE ON:
KSZ-MB
Collet chuck
Collet chuck for bar machining
- Bar Ø 3-80
- Collets DIN 6343
SHARE ON:
GF 80
INCH serration
Bar pulling chuck
Spring actuated bar pulling chuck
- For stationary outside clamping
Manual or power operated expanding mandrels / Adapter flanges
EMX-P
Expanding mandrel
Power operated
Power operated sleeve expanding mandrels Ø 14.7 – 131.7 mm
- Highest repeatability
- Size 1 – 11
- Large expansibility
- Preparation for air sensing
- Segment sleeves vulcanized (option)
SHARE ON:
EMX-F/FP
Expanding mandrel
Power operated
Power operated sleeve expanding mandrels Ø 19.7 – 132.9 mm
- Highest repeatability
- Size 1 – 6
- Large expansibility
- Preparation for air sensing
- FP: with pull-down
- Segment sleeves vulcanized (option)
SHARE ON:
EMX-C
Segment sleeve mandrel
Power operated
Power operated segment expanding mandrels Ø 25 – 121 mm
- Highest repeatability
- Size 1 – 5
- Large expansibility
- Preparation for air sensing
- Case hardened / wear resistant segment sleeves
SHARE ON:
Adapter Flanges EMX
ISO-A for sleeve expanding mandrels
- The sleeve expanding mandrels have a cylindrical admission
- Flanges for machine spindle DIN 55026 / ISO-A 702/1
SHARE ON:
EMX-S
Power operated expanding mandrels Ø 18 – 105 mm
- For turning, grinding and milling
- Size 1 – 4
- Case hardened / wear resistant segment sleeves
- Large expansibility
- Very rigid design
SHARE ON:
Adapter Flanges EMX-S
ISO-A for sleeve expanding mandrels
- The expanding mandrels have a cylindrical mounting
- Flanges for machine spindle DIN 55026 / ISO-A 702/1
SHARE ON:
EM-A
Expanding mandrel
Manual or power operated
EM-AL
Expanding mandrels Ø 14.7 – 129.7 mm (size 11) 160max (size 12) 200 max (size 13)
- Size 1-13
- Large expansibility
- EM-AL: body lengthened
SHARE ON:
EM-B
Expanding mandrel
Manual or power operated
Expanding mandrel
- Size 0-4
- Large expansibility
SHARE ON:
Flange for EM-A EM-B
ISO-A for expanding mandrels
ISO-A Flange for Expanding mandrels
- Mandrels EM-A and EM-B have cylindrical mounting
- Adapters for DIN55026 / ISO-A702 / 1 spindlenoses
SHARE ON:
Special expanding mandrel
Special solutions for your applications
SHARE ON:
Special Clamping Solutions
Application examples
- Sliding jaw collet chuck
- Special sleeve mandrels
- Sliding jaw mandrels
- Combination chuck
Closed center cylinders / Open center cylinders / Double piston cylinders
SIN-S
Closed center
rotating hydraulic cylinder
Closed center rotating hydraulic cylinders
- Up to 70 bar
- Central bore for media supply
- Stroke control via proximity switch or linear positioning system
SHARE ON:
VNK-T2
Open center
rotating hydraulic cylinder
Open center rotating hydraulic cylinders
- Up to 45 bar
- Through-hole Ø37.5-127.5mm
- Short design / low mass
- Stroke control via proximity switch or linear positioning system
SHARE ON:
VSG
Open center
rotating hydraulic cylinder
Open center rotating hydraulic cylinder with extra large through hole
- Up to 30 bar
- EXTRA large through hole Ø 165-204 mm
- Stroke control via proximity switch
SHARE ON:
SIN-HL
Closed center
rotating hydraulic cylinder
Closed center rotating hydraulic cylinders
- High-low clamping
- Up to 70 bar
- Central bore for media supply
- Stroke control via proximity switch or linear positioning system
SHARE ON:
SIN-L
Closed center
rotating cylinder
Closed center rotating hydraulic cylinders
- EXTRA long stroke
- Up to 70 bar
- Central bore for air, coolant or oil
- Stroke control via proximity switch or linear positioning system
SHARE ON:
DCN DCU DCR
Rotating hydraulic cylinder with 2 independent pistons
Double piston rotating hydraulic cylinders
- Modular system for different piston strokes
- Up to 70 bar
- Central bore for air / coolant / oil
- Stroke control via proximity switch or linear positioning system
SHARE ON:
ZHVD-SZ
Rotating hydraulic cylinder with 2 independent pistons
Double piston rotating hydraulic cylinders
- Up to 80 bar
- Central bore for air / coolant / oil
- Stroke control via proximity switch or linear positioning system
SHARE ON:
DCE
Equal piston area and stroke
2 independent pistons
Double piston rotating hydraulic cylinders
- Double piston rotating hydraulic cylinder
- Up to 70 bar
- Central bore for air / coolant / oil
- Stroke control via proximity switch or linear positioning system
SHARE ON:
CSN
Closed center
pneumatic cylinders
Closed center rotating pneumatic cylinders
- Up to 7 bar
- Stroke control
- Safety valve (optional)
SHARE ON:
LPS 4.0
Linear Position Sensor
Sensore di posizione Lineare
- per cilindri idraulici SMW-AUTOBLOK
- campo di misura: 14 mm
- campo di misura 48 mm
- campo di misura 120 mm
SHARE ON:
Binary Box 4,0
Binary Interface Box
- Binary output signal
- Suitable to LPS 4.0 series
- Easy setup – Plug & Play
- Binary signal backward compatible to LPS 4.0
SHARE ON:
RU-1-10
Rotary union for 1 medium
RU-1-16
Rotary union for 1 medium
Rotary union for 1 medium for closed and open center cylinders
- Media: air, oil or coolant
SHARE ON:
RU-2-22
Rotary union for 2 media
Rotary union for 2 media for closed and open center cylinders (not for ZHVD-DFR)
- Media: air, oil or coolant
Pneumatic/hydraulic front-end chucks / Control units
SP + SP-ES + SP-L
INCH serration
Front-end pneumatic power chucks extra large through hole Ø 26 – 115 mm
- EXTRA large through hole
- 3 jaws, chuck size 125-350
- SP-ES: chuck with rapid and clamping stroke
- SP-L: chuck with long jaw stroke
SHARE ON:
BIG BORE BB-N
INCH serration
Front-end pneumatic power chucks extra large through hole Ø 140 – 410 mm
- Chuck size 400-800
- Standard jaw stroke
- 3 jaws
SHARE ON:
BIG BORE BB-N-ES
INCH serration
Front-end pneumatic power chucks
- extra large through hole Ø 140 – 560 mm
- Chuck size 400-1000
- Extended jaw stroke
- 3 jaws
SHARE ON:
BIG BORE BB-SC
INCH serration
Front-end spring clamp power chucks
- EXTRA large through hole Ø 275 – 565 mm
- Chuck size 600-1020
- Clamping with spring packs
- Rapid and clamping stroke
SHARE ON:
BIG BORE BB-EXL2G
INCH serration
Front-end pneumatic power chucks
- extra large through hole Ø 191 – 390 mm
- Chuck size 510-900
- 3 jaws
- Extended jaw stroke
SHARE ON:
BIG BORE BB-AZ2G
INCH serration
Front-end pneumatic power chucks
- extra large through hole Ø 275 – 560 mm
- Chuck size 685-1000
- Self centering or compensating clamping
- Chuck with extra long rapid and clamping stroke – 3 jaws
SHARE ON:
BIG BORE BB-FZA2G
INCH serration
Front-end pneumatic 6-jaw sequence chucks
- EXTRA large through hole Ø 275 – 390 mm
- Chuck size 740-920
- 3 integrated centering jaws and 3 compensating jaws
SHARE ON:
BIG BORE BB-EXL-SC2G
INCH serration
Front-end spring clamp power chucks
- EXTRA large through hole Ø 191 – 390 mm
- Chuck size 510-900
- Clamping with gas spring
- Extra long rapid and clamping stroke
SHARE ON:
CC
INCH serration
Stationary centering and dampening chuck, pneumatic Ø 240 – 470 mm
- With integrated dampener
SHARE ON:
AC-BB
Control unit for SP and Big Bore chucks
1/2“ Design – 3/4“ Design
Electronic safety control unit for pneumatic chucks basic version
- Pneumatic diagram
- Wiring diagram
- Electronic safety control unit
- For SP and Big Bore chucks
- Without pressure control
- Without stroke control
SHARE ON:
AC-XN
Control unit for pneumatic chucks
1/2“ Design – 3/4“ Design
Electronic safety control unit for pneumatic chucks for all commen voltages
- Pneumatic diagram
- Electric diagram
SHARE ON:
SF-RZ
Tongue & groove
2 Position hydraulic ring indexing chuck
- 3 self-centering jaws
- Large evacuation windows for easy chip flow
- Fullyautomaticandcontrolledindexing
SHARE ON:
SF-RAZ2G
Tongue & groove
2 Position hydraulic ring indexing chuck
- 3 self centering and 3 compensating jaws
- Very compact design
- Fully automatic and controlled indexing
- Hydraulic actuation
SHARE ON:
HYND-S
INCH serration
Hydraulic front end chuck Ø 180 – 400 mm
- Oil feed through spindle wall
- 3 and 4 jaws
SHARE ON:
HYDL-S
long stroke
INCH serration
Hydraulic front end chuck Ø 500 – 800 mm
- Oil feed through spindle wall
- 3 jaws
Static chucks pneumatic / hydraulic
MANUAL JACK – MJ
Manual Jack to operate a power chuck
with Ø300-520 Plain Back
The large variety of SMW-Autoblok power chucks allow the customer to clamp the workpiece with the best chuck alternatives
- Irreversible mechanism based on an operating screw driven by a worm gear
- With spring energy storage for safe clamping
- Sealed mechanism and constantly lubricated
- Very low profile and possibility to integrate it in the machine pallet
SHARE ON:
USC
Pneumatic static cylinder
Stationary cylinder + chuck unit Ø 140 – 260 mm
- Can be equipped with different types of chucks
- With stroke control
SHARE ON:
US-CL
With 2 jaw
long stroke chuck
US-A
With 3 jaw long or normal stroke chuck
Stationary cylinder + chuck unit Ø 80 – 315 mm
- Hydraulic cylinder module+chuck
- Closed center chucks type CL/AN/AL
SHARE ON:
US-BIG DIAMETERS
Pneumatic static cylinder for 2 or 3 or 4 jaws
Stationary cylinder + chuck unit Ø 400 – 800 mm
- Option for serrated or Tongue & Groove jaws
- Option of sealed or not sealed chucks
- Option of 2/3/4 jaws depending on chuck size and model
- Option of long or normal stroke depending on chuck size & model
SHARE ON:
HB-D
INCH serration
2 or 3 jaws
HB-C
Tongue & groove
3 jaws
Stationary chuck, hydraulic Ø 130 – 315 mm
- Built-in hydraulic cylinder
- 2 and 3 jaws
SHARE ON:
PB-D
INCH serration
2 or 3 jaws
PB-C
Tongue & groove
3 jaws
Stationary chuck, pneumatic Ø 130 – 315 mm
- Built-in cylinder
- 2 and 3 jaws
SHARE ON:
STP
INCH serration
3 jaws
Stationary chuck, pneumatic Ø 125 – 280 mm
- Built-in cylinder
- With through hole
