Manual Series

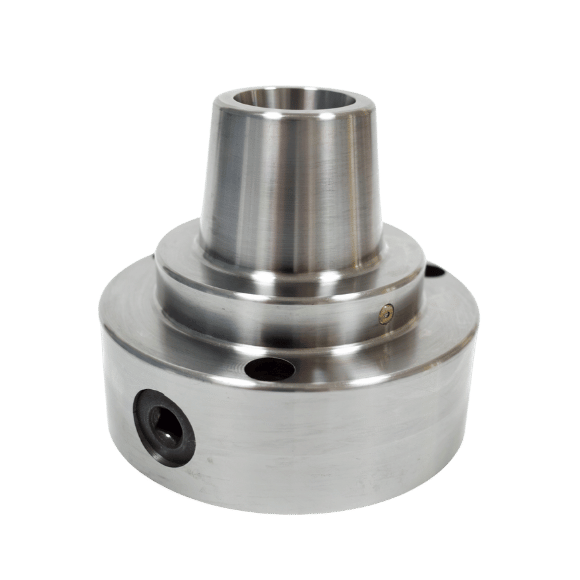

JMT-5C Manual chuck
JM5-5C Manual chuck

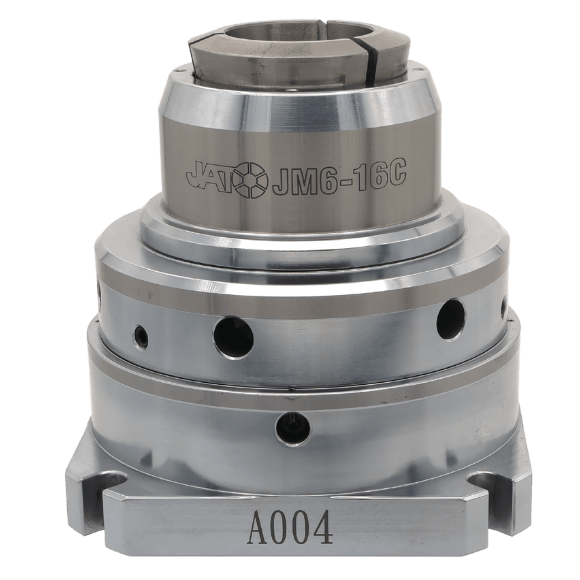

JM6-16C Manual chuck
JM6-42BZI Manual Collet Chuck
- They can be used for all turning, facing, boring, grinding, and milling operations on center lathes and grinding machines.
- The simple key operated scroll provides a uniform, distortion free clamping of the workpiece and low collet exchange time.
| JMT | |
|---|---|
| A | 126 ( 4.96″ ) |
| B | 95 ( 3.74″ ) |
| C | 26 ( 1.02″ ) |
| D | 5 (0.2″ ) |
| E | 107.5 ( 4.23″ ) |
| F | 64 ( 2.52″ ) |
| G | 87.9 ( 3.46″ ) |
| H | 108 ( 4.25″ ) |
| Mounting | 3H-M8 |
| Net Weight | 4.1 kgs ( 9.0 lbs ) |
| JMT | |
|---|---|
| A | 126 ( 4.96″ ) |
| B | 95 ( 3.74″ ) |
| C | 26 ( 1.02″ ) |
| D | 5 (0.2″ ) |
| E | 107.5 ( 4.23″ ) |
| F | 64 ( 2.52″ ) |
| G | 87.9 ( 3.46″ ) |
| H | 108 ( 4.25″ ) |
| Mounting | 3H-M8 |
| Net Weight | 4.1 kgs ( 9.0 lbs ) |
- Open and close via swing the wrench
- Draw back to grip, offer high repeat concentricity
- Works with 5C collet/16C collet and SK42(42BZI) rubber collet
- 15% smaller and lighter than regular scroll manual collet chuck
- Pivot holes can be easy to drive with any rod by 10mm
- Support to work on a rotary table
- All parts chrome coating, highly fluid-proof and rust-proof
- 5C and 16C support expanding to grip
| JMT | |
|---|---|
| A | 126 ( 4.96″ ) |
| B | 95 ( 3.74″ ) |
| C | 26 ( 1.02″ ) |
| D | 5 (0.2″ ) |
| E | 107.5 ( 4.23″ ) |
| F | 64 ( 2.52″ ) |
| G | 87.9 ( 3.46″ ) |
| H | 108 ( 4.25″ ) |
| Mounting | 3H-M8 |
| Net Weight | 4.1 kgs ( 9.0 lbs ) |
| JMT | |
|---|---|
| A | 126 ( 4.96″ ) |
| B | 95 ( 3.74″ ) |
| C | 26 ( 1.02″ ) |
| D | 5 (0.2″ ) |
| E | 107.5 ( 4.23″ ) |
| F | 64 ( 2.52″ ) |
| G | 87.9 ( 3.46″ ) |
| H | 108 ( 4.25″ ) |
| Mounting | 3H-M8 |
| Net Weight | 4.1 kgs ( 9.0 lbs ) |
- Open and close via swing the wrench
- Draw back to grip, offer high repeat concentricity
- Works with 5C collet/16C collet and SK42(42BZI) rubber collet
- 15% smaller and lighter than regular scroll manual collet chuck
- Pivot holes can be easy to drive with any rod by 10mm
- Support to work on a rotary table
- All parts chrome coating, highly fluid-proof and rust-proof
- 5C and 16C support expanding to grip
