เครื่องลับคมมีด Tormek T-4 Original เป็นเครื่องลับคมคุณภาพสูงขนาดกะทัดรัด เหมาะสำหรับใช้ในบ้าน งานอดิเรก หรือมืออาชีพที่มีพื้นที่จำกัด สามารถใช้ลับคมมีด กรรไกร ใบมีดเครื่องตัดหญ้า และสิ่ว เครื่องมือมีคมเกือบทุกชนิดที่คุณนึกออกได้ ด้วยระบบจับยึดแบบครบวงจรของ Tormek ฐานรองอเนกประสงค์ช่วยให้ได้ผลลัพธ์ที่แม่นยำและสม่ำเสมอ และคุณจะได้ความคมกริบระดับมีดโกนด้วยล้อลับคมหนัง

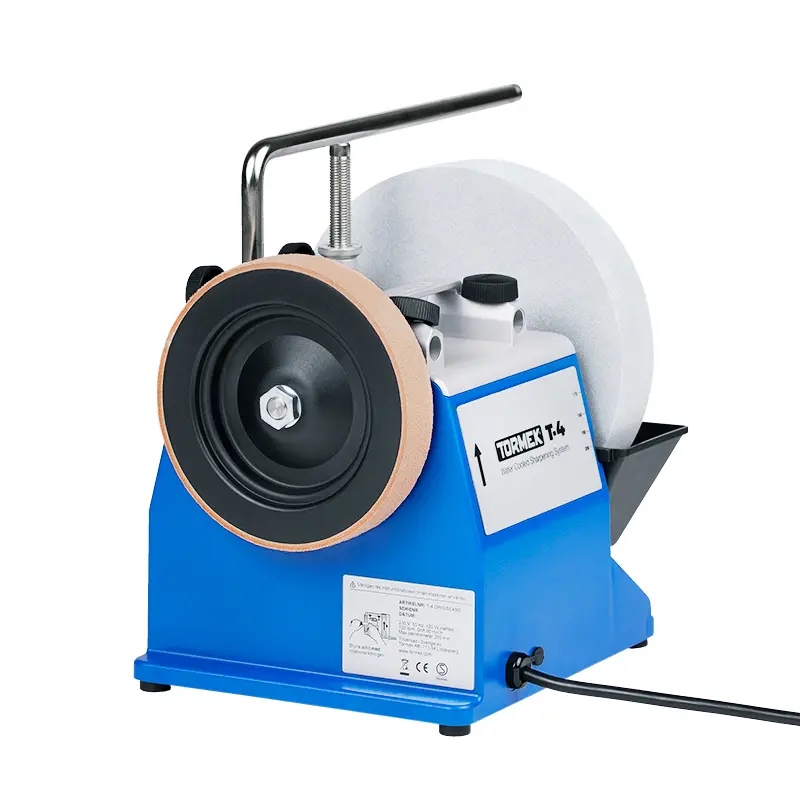

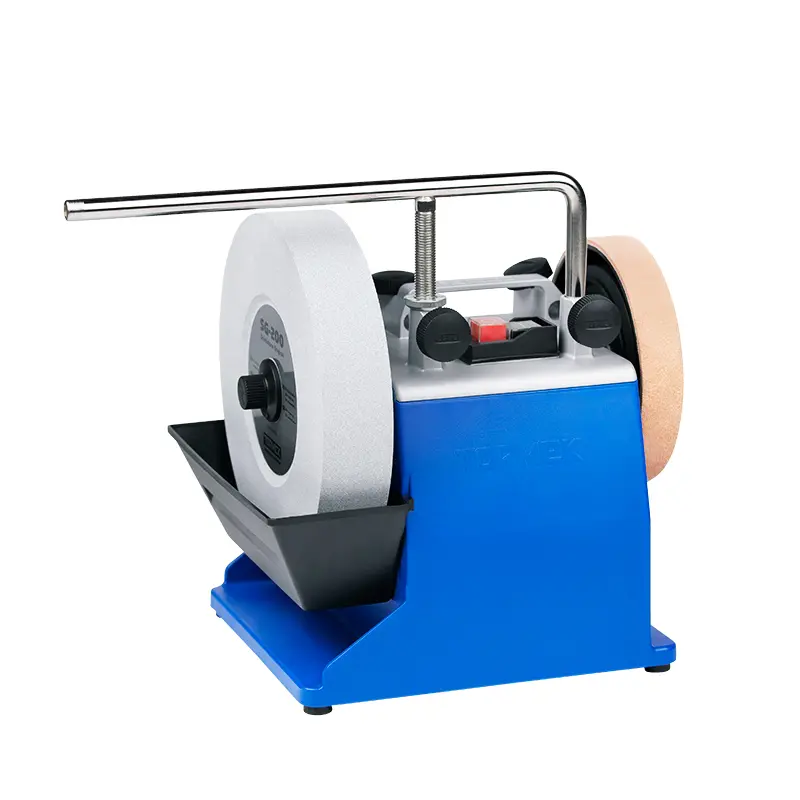

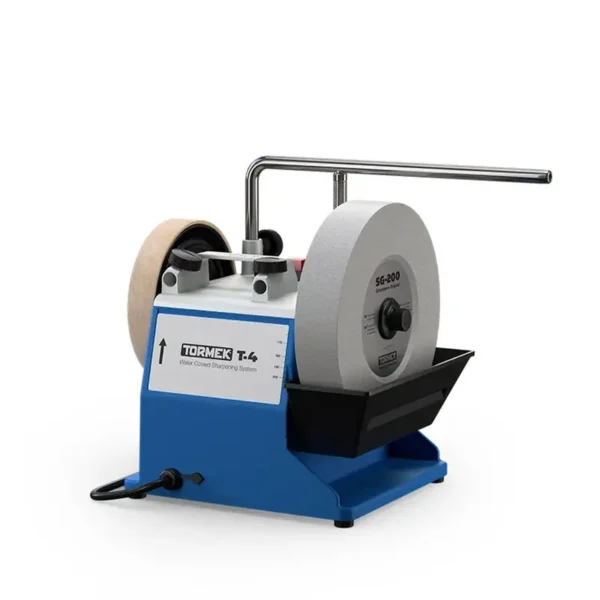

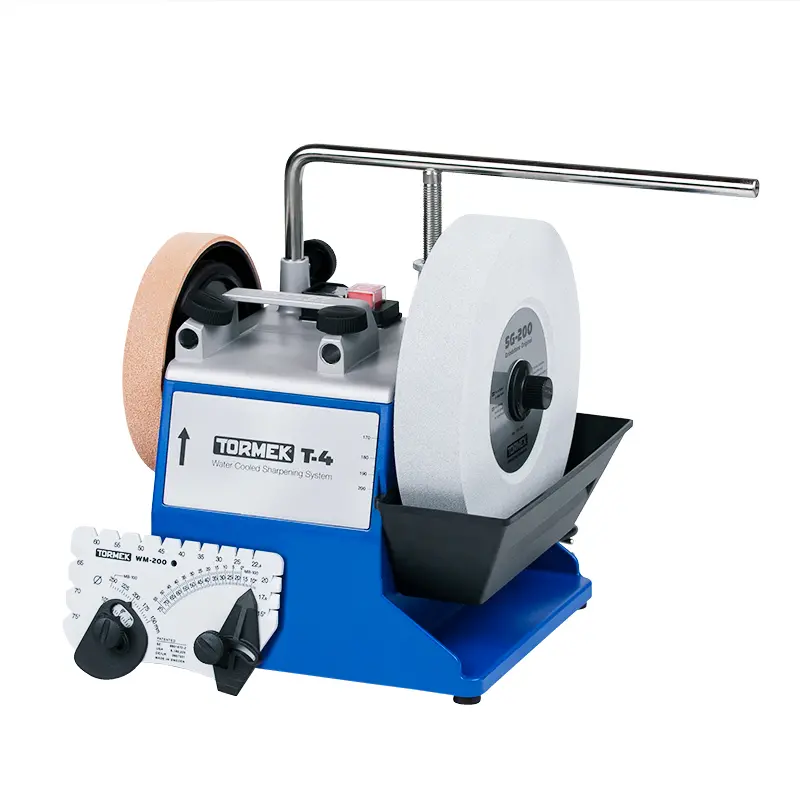

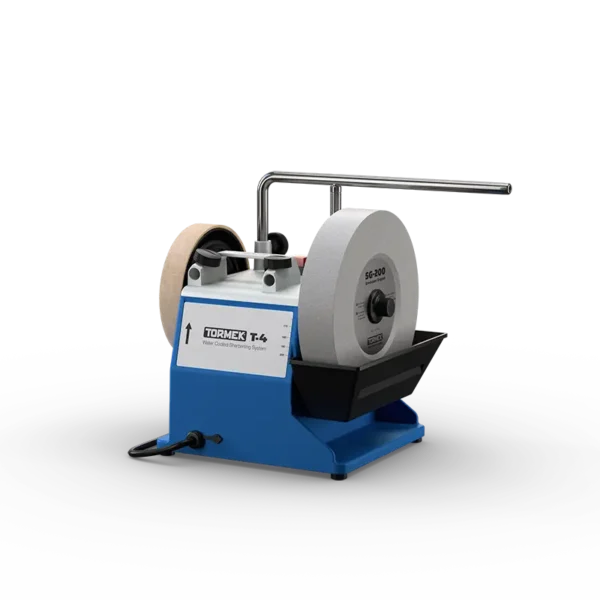

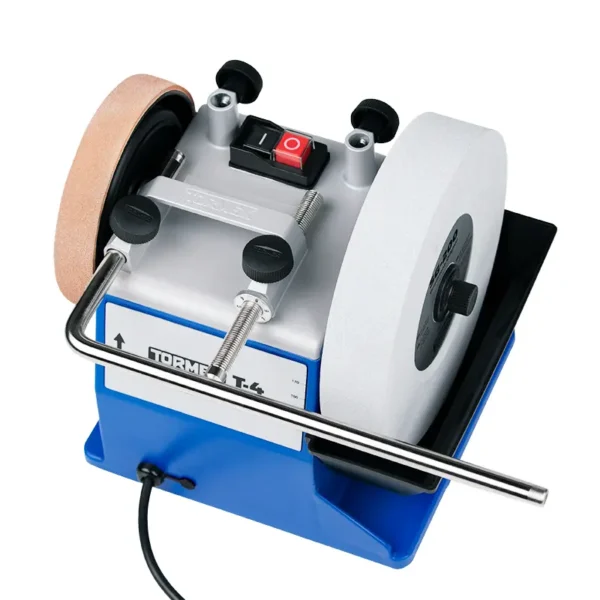

The Tormek T-4 Original offers the same precision and stability as our larger models, with a compact design. Vital features such as the motor and main shaft are mounted in the cast zinc top, where the patented universal support mounts are also integrated. This design provides unbeatable precision for the universal support, which guides all jigs and accessories.

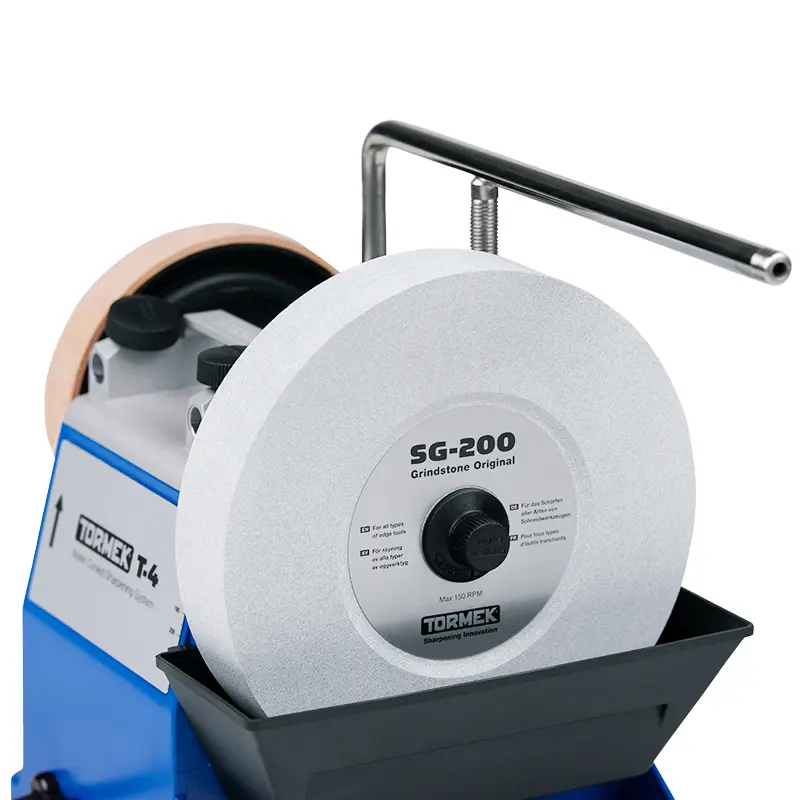

Like the larger machine models, the Tormek T-4 Original comes equipped with Tormek’s Original Grindstone. What distinguishes the grindstones between the models is their size. Tormek’s SG-200 Original Grindstone is optimized to combine efficient steel removal, a nice finish and a long life span. Using the SP-650 Stone Grader that is included with the machine, you can alternate the surface of the grinding wheel from 220 grit to a surface equivalent to 1000 grit, which provides several characteristics in the same single grinding wheel.
The Tormek T-4 Original is ideal for sharpening chisels, knives, scissors, and smaller tools such as woodcarving tools. It also works well for woodturning tools and drills. We recommend one of Tormek’s larger models for sharpening planer blades and moulding knives. Please note that a few types of woodturning gouges can’t be honed using the SVD-186 R Gouge Jig on the leather honing wheel due to the compact design of the Tormek T-4 Original. These tools can be honed freehand instead.
The base and support for all jigs. Enables unbeatable precision when sharpening.
Ensures controllable and accurate sharpening.
With acme thread and a scale for precise edge angle setting.
Efficiently collects sharpening dust and makes it easy to clean the water trough.
Width: 325 mm (12¾”)
Depth: 235 mm (9¼”)
Height: 257 mm (10 1/8″)
Width: 240 mm (9 7/16″)
Depth: 205 mm (8 1/16″)
Height: 260 mm (10¼”)
Inc. packaging: 9.8 kg (21.6 lbs)
Machine only: 8 kg (17.6 lbs)
Blue/gray
1.7 m (5′ 7″)
Precision-cast zinc top, powder-coated
Impact-resistant blue ABS plastic
SG-200 Original Grindstone
Aluminum oxide
Ø 200 × 40 mm (7.87 × 1.57″)
LA-145 Leather Honing Wheel
Cowhide from Tärnsjö Garveri, ABS plastic.
Ø 145 × 26 mm (5.71 × 1.02″)
Unique drive system with RKX18 rubber
Self-adjusting for load
MSK-200 Stainless Steel Shaft with EzyLock
120 rpm
Torque 8.4 Nm
Industrial motor, single phase, AC
120 W (input), 100-115 V / 220-240 V, 50-60 Hz
Continuous operation
Maintenance-free
Quiet running, 54 dB
10 000 hours of operating time
Accessories HB-10 Tormek Handbook Everything about the Tormek method TT-50
