Centco4-MLW

Centco4MLW

4 jaws chucks Ø 315 – 1400 mm

Independent self centering clamping in 2 axis
Weight-optimized chuck body
4 jaws

Closed Center Power Chucks

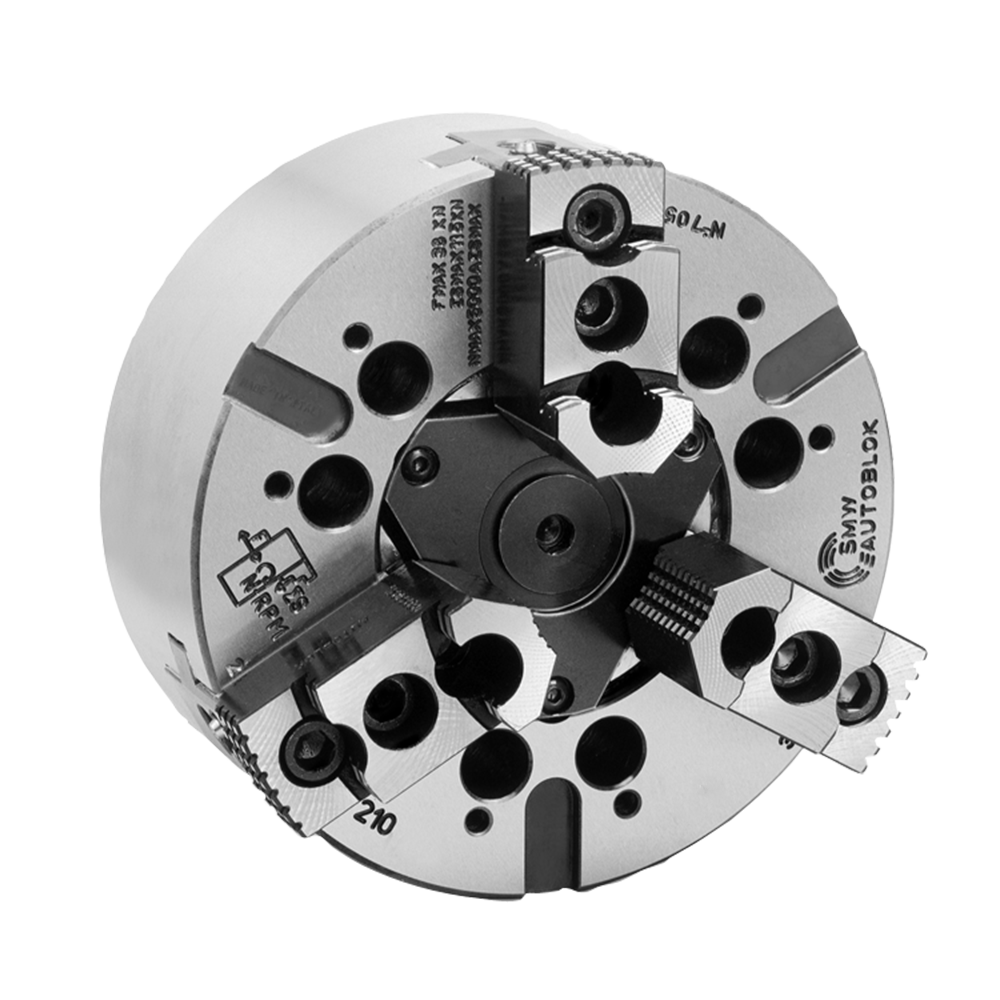

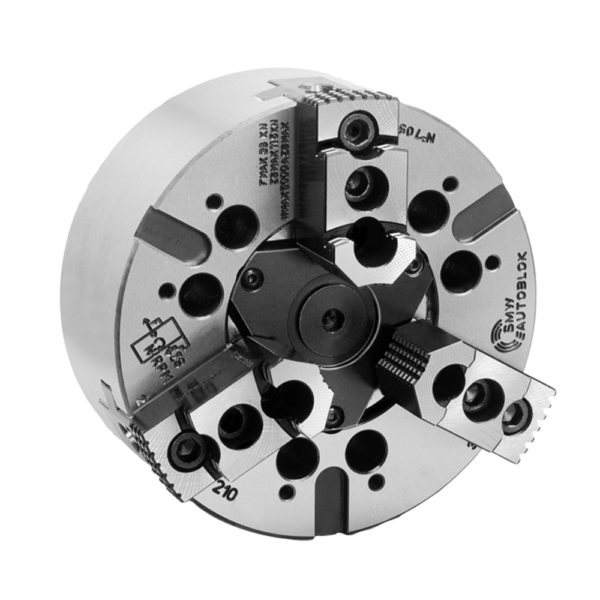

AN-D

INCH serration

AN-M

METRIC serration

High precision power chucks Ø 125 – 400 mm

Closed center
2 and 3 jaws (4 jaws only Ø 400 mm)

AL-D

INCH serration

AL-M

METRIC serration

High precision power chucks Ø 125 – 400 mm

Closed center
Long stroke
2 and 3 jaws (4 jaws only Ø 400 mm)

AN-C

Tongue & groove

High precision power chucks Ø 165 – 400 mm

Closed center
3 and 3 jaws (4 jaws only Ø 400 mm)

AP-D

INCH serration

AP-M

METRIC serration

High precision fully sealed power chucks Ø 170 – 400 mm

Closed center
2 jaws (only Ø 215-260) and 3 jaws
proofline® chucks = fully sealed–low maintenance

AP-C

Tongue & groove

High precision fully sealed power chucks Ø 170 – 400 mm

Closed center
2 jaws (only Ø 215-260) and 3 jaws
proofline® chucks = fully sealed–low maintenance

APL-D

INCH serration

APL-M

METRIC serration

High precision fully sealed power chucks Ø 215 – 400 mm

Closed center
Longstroke
3 jaws
proofline® chucks = fully sealed–low maintenance

APL-D

INCH serration

APL-C

Tongue & groove

High precision fully sealed power chucks Ø 500 – 1000 mm

Closed center
Long stroke
3 jaws
proofline® chucks = fully sealed–low maintenance

APL-C

Tongue & groove

High precision power chucks Ø 215 – 400 mm

Long stroke
Closed center
3 jaws
proofline® chucks = fully sealed–low maintenance

NT-C

Tongue & groove

High precision fully sealed power chucks Ø 170 – 400 mm

Centrifugal force compensation
Closed center
3 jaws
proofline® chucks = fully sealed–low maintenance

NT-D

INCH serration

NT-M

METRIC serration

High precision fully sealed power chucks Ø 170 – 400 mm

Centrifugal force compensation
Closed center
3 jaws
proofline® chucks = fully sealed–low maintenance

NTL-D

INCH serration

NTL-M

METRIC serration

High precision fully sealed power chucks Ø 260 – 400 mm

Centrifugal force compensation
Closed center – 3 jaws
Long stroke
proofline® chucks = fully sealed–low maintenance

NTL-C

LONG STROKE

Tongue & groove

High precision fully sealed power chucks Ø 260 – 400 mm

Centrifugal force compensation
Closed center – 3 jaws
Long stroke
proofline® chucks = fully sealed–low maintenance

NTL-D

INCH serration

NTL-C

Tongue & groove

High precision fully sealed power chucks Ø 500 – 1000 mm

Centrifugal force compensation
Closed center – 3 jaws
Long stroke
proofline® chucks = fully sealed–low maintenance

IN-D

INCH serration

IN-C

Tongue & groove

High precision power chucks Ø 500 – 800 mm

Closed center
3 and 4 jaws

IL-D

INCH serration

IL-C

Tongue & groove

High precision power chucks Ø 500-800 mm

Closed center
3 and 4jaws
Long stroke

IND-CP

INCH serration

MODULE 2 serration

High precision power chucks Ø 500 – 1250 mm

Closed center
3 jaws

IN-D 3-6 JAWS

MODULE 2 serration

IL-D

Long jaw stroke

High precision power chucks Ø 660 – 2500 mm

Radial setting of jaws
Long jaw stroke
3 and 6 jaws (all diameters)

IN-D 4 JAWS

MODULE 2 serration

IL-D

Long jaw stroke

High precision power chucks Ø 1000 – 1600 mm

Long jaw stroke
4 jaws (all diameters)

IR-C Ø 660 – 2500 mm

Tongue & groove

High precision pull-down chucks Ø 160 – 400 mm

Pull-down effect of inclined master jaws
Closed center
3 and 6 jaws (all diameters)

IR-C Ø 660 – 2000 mm

Tongue & groove

High precision power chucks Ø 80 – 315 mm

Long stroke
Closed center
4 jaws (all diameters)

RAN

Tongue & groove

High precision power chucks Ø 160 – 400 mm

Large through hole
Tongue & groove master jaws
3 jaws

CL-C

Tongue & groove

CL-D

INCH serration

High precision power chucks Ø 80 – 315 mm

Large through hole
Closed center
2 jaws

Open Center Power Chucks

BH-D

INCH serration

High precision power chucks Ø 130 – 450 mm

Large through hole
2, 3 and 4 jaws

BH-M

METRIC serration

High precision power chucks Ø 130 – 450 mm

Large trough-hole
2, 3 and 4 jaws
130-165-210-250-315-320-400-450

BH-D BIG DIAMETERS

INCH serration

High precision power chucks Ø 500-800 mm

EXTRA large through hole
3 jaws

BHD-FC

INCH serration

BHM-FC

Metric serration

High precision power chucks Ø 165 – 630 mm

Large through hole
3 jaws

BP-D

INCH serration

BP-M

Metric serration

High precision power chucks Ø 220 – 320 mm

large through hole
3 jaws
proofline® chucks = fully sealed–low maintenance

BP-C

Tongue & groove

High precision power chucks Ø 220 – 320 mm

Wedge-bar design
3 jaws
proofline® chucks = fully sealed–low maintenance

BB-D

INCH serration

BB-M

Metric serration

High precision power chucks Ø 140 – 435 mm

3 jaws

HFKN-D/-M

INCH/ METRIC Serration

HFKN-C

TONGUE & GROOVE

High precision power chucks Ø 110 – 500 mm

Large through hole
3 jaws

HFKS-2G

INCH/ METRIC Serration

Wedge-hook design with centrifugal force compensation

High precision power chucks Ø 165 – 320 mm

Large through hole
3 jaws
Reduced weight

Centco4

INCH Serration

4-Jaw chucks Ø 210 – 400 mm

Independent self centering clamping in 2 axis
Centrifugal force compensation
4 jaws
Large through hole

Quick jaw change power chucks

KNCS-N Ø 140 – 630 mm

QUICK JAW CHANGE

Quick jaw change power chucks Ø 140 – 630 mm

Large through hole
High speed
High flexibility: jaws radially adjustable/reversible
3 Jaws

KIT-RR

Converts a standard chuck into a quick jaw change chuck

Available from 210 to 400

Available for inch or metric serration master jaws

For AP-BH-NT SMW-Autoblok’s power chucks
Easy coupling and uncoupling with spring-loaded button
Safety against accidental release
Suitable for manual and/or robotic use
Ready for a robotized change

KNCS-N Ø 210 – 325 mm

QUICK JAW CHANGE

Quick jaw change power chucks Ø 210 – 325 mm

2 Jaws
Large through hole
High speed
High flexibility: jaws radially adjustable/reversible

KNCS-NB

QUICK JAW CHANGE

Wide master jaws

Quick jaw change power chucks Ø 210 – 800 mm

Large through hole
High flexibility: jaws radially adjustable/reversible
3 Jaws
Suitable to take any type of existing top jaws

KNCS-NBX

QUICK JAW CHANGE

Wide master jaws

Quick jaw change power chucks Ø 425 – 1000 mm

EXTRA large through hole
EXTRA long piston guide
High flexibility: jaws radially adjustable/reversible
3 Jaws
Suitable to take any type of existing top jaws

KNCS-2G

QUICK JAW CHANGE

Fully sealed

Quick jaw change power chucks Ø 170 – 630 mm

Large through hole
Protection against dust and swarf
High flexibility: jaws radially adjustable/reversible
3 Jaws

KNCS-matic

AUTOMATED QUCK JAW CHANGE

3-jaws-chuck

Backenschnellwechsel-Kraftspannfutter Ø 210 – 630 mm

Ready for automated jaw change utilizing handling robot systems
High repeatability when changing jaws and high speed
High fl exibility: jaws radially adjustable / reversible
High centering accuracy
3 jaws
Proofline: fully sealed – low maintenance

KNCS-NB-CL

CENTER LINE

Wide master jaws

High precision power chucks Ø 630

Quick jaw change
Large through hole
Radial fine adjustment
High flexibility: jaws radially adjustable / reversible

AP-RC

Quick jaw change

Tongue & groove

AP-RD

Quick jaw change

Serration

Quick jaw change high precision power chucks Ø 170 – 400 mm

Closed center
3 jaws
proofline® chucks = fully sealed–low maintenance

NT-RC

Quick jaw change

Tongue & groove

NT-RD

Quick jaw change

Serration

Quick jaw change high precision power chucks Ø 170 – 400 mm

Centrifugal force compensation
3 jaws, closed center
proofline® chucks = fully sealed–low maintenance

Pull-down chucks / Compensating chucks / Indexing chucks / Shaft chucks / Column chucks / 6 jaw 2+2+2 chucks

TSF-C

Self centering

Floating jaws

TSR-C

Self centering

Rigid jaws

High precision pull-down chucks Ø 135 – 650 mm

Active pull-down
Tongue & groove
3 jaws

TSF-C

Self centering

Floating jaws

High precision pull-down chucks Ø 170 – 315 mm

Active pull-down
Tongue & groove
2 jaws

TSF-RM

Self centering

Floating jaws

TSR-RM

Self centering

Rigid jaws

Quick jaw change pull-down chucks Ø 170 – 530 mm

Active pull-down
Quick jaw change with pallets
Tongue & groove pallets – 3 jaws

TSF-CP

Compensating

Floating jaws

TSR-CP

Compensating

Rigid jaws

Compensating pull-down chucks Ø 135 – 650 mm

Active pull-down
Tongue & groove
3 jaws

TSF-CP

Compensating

Floating jaws

Compensating pull-down chucks Ø 170 – 315 mm

Active pull-down
Tongue & groove
2 jaws

TSBF-C

Self centering

Floating jaws

TSBR-C

Self centering

Rigid jaws

High precision pull-down chucks Ø 220 – 330 mm

Active pull-down
Tongue & groove
Large through hole
3 jaws

TSBF-CP

Compensating

Floating jaws

TSBR-CP

Compensating

Rigid jaws

Compensating pull-down chucks Ø 220 – 330 mm

Active pull-down
Tongue & groove
Large through hole
3 jaws
proofline® chucks = fully sealed–low maintenance

FRC-N

Compensating clamping

Tongue & groove

Lever chuck Ø 215 – 365 mm

Pull-down to axial datum
Spring loaded or fixed center
proofline® chucks = fully sealed–low maintenance

FRS

Self centering clamping

Tongue & groove

Lever chuck Ø 215 – 365 mm

Self centering clamping
Large through hole
proofline® chucks = fully sealed–low maintenance

TPT-C Ø 210 – 400 mm

2+2 independent jaw movement

Tongue & groove

High precision 2+2 jaw power chuck with self-centering independent jaw movement Ø 210 – 400 mm

Closed center
Tongue & groove

TPT-C Ø 500 – 800 mm

2+2 independent jaw movement

Tongue & groove

High precision 2+2 jaw power chuck with self-centering independent jaw movement Ø 500 – 800 mm

Closed center
Tongue & groove

TPT-RC

2+2 independent jaw movement

Tongue & groove

High precision 2+2 jaw power chuck with self-centering independent jaw movement Ø 1000 – 2000 mm

Closed center
Tongue & groove

TX-C

Self centering

Rigid jaws

High precision pull-down chucks Ø 170 – 530 mm

Active pull-down
Tongue & groove
3 jaws

TX-RV

Self centering

Rigid jaws

Quick jaw change, high precision pull-down chucks Ø 170 – 530 mm

Active pull-down
Quick jaw change (internal / external)
3 jaws

TSX-C 2+2

Pull down chuck

4 jaws 2+2

High precision pull-down chucks Ø 265 – 315 mm

Active pull-down
2+2 jaws
Tongue & groove

TEF-C

2+2+2 equalising

6 floating jaws

TER-C

2+2+2 equalising

6 rigid jaws

High precision pull-down 2+2+2 equalising Ø 260 – 850 mm

Active pull-down
Tongue & groove
6 jaws 2+2+2

SJL-C

Self centering

Tongue & groove

SJL-M

Self centering

Metric serration

High precision 6 jaw chucks (2+2+2) equalising Ø 225 – 400 mm

Jaws equalising as pair
Equalising mechanism lockable

SJL-C

6 jaws (2+2+2) equalising

Self centering

High precision power chucks Ø 500 – 800 mm

For thin walled or deformation sensitive components
Tongue & groove / metric serration
Centrifugal force compensation
Jaws equalising as a pair / mechanism lockable
proofline® chucks = fully sealed – low maintenance

SJLS-C

6 jaws (2+2+2) equalising -Self centering

Tongue & groove

SJLS-M

Self centering

Metric serration

High precision power chucks Ø 225 – 400 mm

For thin walled or deformation sensitive components
Tongue & groove / metric serration
Low height
Jaws equalising as a pair / mechanism lockable
proofline® chucks = fully sealed – low maintenance

IEP-D

2+2+2 movement

INCH serration

IEP-C

2+2+2 movement

Tongue & groove

High precision 6 jaw chucks 2+2+2 equalising Ø 400 – 800 mm

Closed center
Equalising mechanism lockable
Centrifugal force compensation

IEP-D

2+2+2 movement

MODULE 2 serration

High precision 6 jaw chucks 2+2+2 equalising Ø 1000 – 1600 mm

Closed center
Equalising mechanism lockable
Centrifugal force compensation

AXN

Automatic indexing chuck

standard body

AXN-R

Automatic indexing chucks

reinforced Ø 210 – 315 mm

AXN Automatic indexing chucks Ø 210 – 1250 mm

Divisions: 4×90° / 8×45° / 3×120° / 6×60° or specials

W

Shaft chuck with face driver

Shaft chuck Ø 215 – 460 mm to a complete machining of shafts in one setup

Compensating or self centerting clamping
Quick change of jaws and face driver
Retractable jaws via retractable jaw carrier
proofline® chucks = fully sealed–low maintenance

CSC

Crank shaft chuck with retractable jaws

Crank shaft chuck Ø 260 – 325 mm

Axially movable and lockable center point
Retractable jaws via retractable jaw carrier
Balancing chambers for fine balancing on the machine
proofline® chucks = fully sealed – low maintenance

GSA

Shaft chuck with retractable jaw

Face driver

Shaft turning chuck Ø 200 – 480 mm

Compensating jaw clamping
Face driver with fixed or spring loaded center
proofline® chucks = fully sealed–low maintenance

SCG

Compensating chucks

4 jaw (2+2)

Compensating chucks Ø 206 mm

For grinding
Centerpoint quick change or adjustable centers
Hydraulic actuation
2+2 jaw independently operated in pairs
Fully sealed, oil bath lubricated and low maintenance

ACS-E 3

Self centering

column chuck

Self-centering column chucks with pull down Ø 110 – 350 mm

Pull down
Power operated via standard cylinders
O.D.clamping

ACS-E 6

Self centering

column chuck

Self-centering column chucks with pull down Ø 200 – 450 mm

Pull down
Power operated via standard cylinders
O.D.clamping

ACS-E 5

Self centering

column chuck

Self-centering column chucks with pull down Ø 145-210- 520 mm

Pull down
Power operated via standard cylinders
O.D. clamping

ACS-I 3/6

Self centering

column chuck

Self-centering column chucks with pull down Ø 130 – 300 mm

Pull down
Power operated via standard cylinders
I.D.clamping

Diaphragm chucks

D

Diaphragm chuck

Quick jaw change systems

Diaphragm clamping technology with quick jaw change at its best for hard turning, grinding and high precision turning

Ø 160-400 mm
O.D. or pitch line clamping
Centrifugal force compensation
Proofline® chucks = fully sealed–low maintenance

SIN-DFR

Cylinder for Diaphragm chuck type D D-PLUS D-VARIO

Closed center rotating hydraulic cylinder

Special cylinder to actuate diaphragm chuck
Up to 70 bar
Large piston area for opening small piston area for clamping
Central bore for air/coolant, 1 or 2 media
Stroke control via LPS

D-KOMBI

Radial-axial clamping

Quick jaw change systems

Diaphragm clamping technology with pull-down fingers jaw/pull-down finger quick change

Ø 210-400 mm
Radial and axial clamping
Flat gripping force curve
Proofline® chucks = fully sealed–low maintenance

ZHVD-DFR

Cylinder for Diaphragm chuck type D-KOMBI

Double piston rotating hydraulic cylinder

Special cylinder to actuate diaphragm chuck D-KOMBI
Up to 60 bar
1 piston for actuating diaphragm
1 piston for actuating axial clamping
Central bore for air/coolant, 1 or 2 media
Stroke control via 2 per LPS

D-PLUS

Diaphragm chuck – open center

Quick jaw change systems

Open center diaphragm chuck with quick jaw change systems

Ø 260-315 mm
Radial O.D. or pitch line clamping
With central bore
Centrifugal force compensation
Proofline® chucks = fully sealed–low maintenance

D-VARIO

Diaphragm chuck

Flexible modular system

Diaphragm chuck with radial fine adjustment of the center line

Ø 215 mm
Radial fine adjustment of the center line
Key Lock System=Quick positioning of jaws for gears with different number of teeth
Modular System with jaws for pitch line or outside clamping
Proofline® chucks = fully sealed–low maintenance

RU-2-20

Rotary union

Rotary union for 2 media

For double piston cylinder ZHVD-DFR for D-chucks

Collet chucks / Bar pulling chucks

COMOT-AZ

Flexible collet chuck

Use of vulcanized standard collet
Optional premium adapter for the use of slotted high-precision collets
Optional use of expanding mandrels of the “connect” series
Preparation for air sensing
Radial fine adjustment

KSZ-MB

Collet chuck

Collet chuck for bar machining

Bar Ø 3-80
Collets DIN 6343

GF 80

INCH serration

Bar pulling chuck

Spring actuated bar pulling chuck

For stationary outside clamping

Manual or power operated expanding mandrels / Adapter flanges

EMX-P

Expanding mandrel

Power operated

Power operated sleeve expanding mandrels Ø 14.7 – 131.7 mm

Highest repeatability
Size 1 – 11
Large expansibility
Preparation for air sensing
Segment sleeves vulcanized (option)

EMX-F/FP

Expanding mandrel

Power operated

Power operated sleeve expanding mandrels Ø 19.7 – 132.9 mm

Highest repeatability
Size 1 – 6
Large expansibility
Preparation for air sensing
FP: with pull-down
Segment sleeves vulcanized (option)

EMX-C

Segment sleeve mandrel

Power operated

Power operated segment expanding mandrels Ø 25 – 121 mm

Highest repeatability
Size 1 – 5
Large expansibility
Preparation for air sensing
Case hardened / wear resistant segment sleeves

Adapter Flanges EMX

ISO-A for sleeve expanding mandrels

The sleeve expanding mandrels have a cylindrical admission
Flanges for machine spindle DIN 55026 / ISO-A 702/1

EMX-S

Power operated expanding mandrels Ø 18 – 105 mm

For turning, grinding and milling
Size 1 – 4
Case hardened / wear resistant segment sleeves
Large expansibility
Very rigid design

Adapter Flanges EMX-S

ISO-A for sleeve expanding mandrels

The expanding mandrels have a cylindrical mounting
Flanges for machine spindle DIN 55026 / ISO-A 702/1

EM-A

Expanding mandrel

Manual or power operated

EM-AL

Expanding mandrels Ø 14.7 – 129.7 mm (size 11) 160max (size 12) 200 max (size 13)

Size 1-13
Large expansibility
EM-AL: body lengthened

EM-B

Expanding mandrel

Manual or power operated

Expanding mandrel

Size 0-4
Large expansibility

Flange for EM-A EM-B

ISO-A for expanding mandrels

ISO-A Flange for Expanding mandrels

Mandrels EM-A and EM-B have cylindrical mounting
Adapters for DIN55026 / ISO-A702 / 1 spindlenoses

Special expanding mandrel

Special solutions for your applications

Special Clamping Solutions

Application examples

Sliding jaw collet chuck
Special sleeve mandrels
Sliding jaw mandrels
Combination chuck

Closed center cylinders / Open center cylinders / Double piston cylinders

SIN-S

Closed center

rotating hydraulic cylinder

Closed center rotating hydraulic cylinders

Up to 70 bar
Central bore for media supply
Stroke control via proximity switch or linear positioning system

VNK-T2

Open center

rotating hydraulic cylinder

Open center rotating hydraulic cylinders

Up to 45 bar
Through-hole Ø37.5-127.5mm
Short design / low mass
Stroke control via proximity switch or linear positioning system

VSG

Open center

rotating hydraulic cylinder

Open center rotating hydraulic cylinder with extra large through hole

Up to 30 bar
EXTRA large through hole Ø 165-204 mm
Stroke control via proximity switch

SIN-HL

Closed center

rotating hydraulic cylinder

Closed center rotating hydraulic cylinders

High-low clamping
Up to 70 bar
Central bore for media supply
Stroke control via proximity switch or linear positioning system

SIN-L

Closed center

rotating cylinder

Closed center rotating hydraulic cylinders

EXTRA long stroke
Up to 70 bar
Central bore for air, coolant or oil
Stroke control via proximity switch or linear positioning system

DCN DCU DCR

Rotating hydraulic cylinder with 2 independent pistons

Double piston rotating hydraulic cylinders

Modular system for different piston strokes
Up to 70 bar
Central bore for air / coolant / oil
Stroke control via proximity switch or linear positioning system

ZHVD-SZ

Rotating hydraulic cylinder with 2 independent pistons

Double piston rotating hydraulic cylinders

Up to 80 bar
Central bore for air / coolant / oil
Stroke control via proximity switch or linear positioning system

DCE

Equal piston area and stroke

2 independent pistons

Double piston rotating hydraulic cylinders

Double piston rotating hydraulic cylinder
Up to 70 bar
Central bore for air / coolant / oil
Stroke control via proximity switch or linear positioning system

CSN

Closed center

pneumatic cylinders

Closed center rotating pneumatic cylinders

Up to 7 bar
Stroke control
Safety valve (optional)

LPS 4.0

Linear Position Sensor

for SMW-AUTOBLOK hydraulic cylinders
Measuring range 14 mm
Measuring range 48 mm
Measuring range 120 mm

Binary Box 4,0

Binary Interface Box

Binary output signal
Suitable to LPS 4.0 series
Easy setup – Plug & Play
Binary signal backward compatible to LPS 4.0

RU-1-10

Rotary union for 1 medium

RU-1-16

Rotary union for 1 medium

Rotary union for 1 medium for closed and open center cylinders

Media: air, oil or coolant

RU-2-22

Rotary union for 2 media

Rotary union for 2 media for closed and open center cylinders (not for ZHVD-DFR)

Media: air, oil or coolant

Pneumatic/hydraulic front-end chucks / Control units

SP + SP-ES + SP-L

INCH serration

Front-end pneumatic power chucks extra large through hole Ø 26 – 115 mm

EXTRA large through hole
3 jaws, chuck size 125-350
SP-ES: chuck with rapid and clamping stroke
SP-L: chuck with long jaw stroke

BIG BORE BB-N

INCH serration

Front-end pneumatic power chucks extra large through hole Ø 140 – 410 mm

Chuck size 400-800
Standard jaw stroke
3 jaws

BIG BORE BB-N-ES

INCH serration

Front-end pneumatic power chucks

extra large through hole Ø 140 – 560 mm
Chuck size 400-1000
Extended jaw stroke
3 jaws

BIG BORE BB-SC

INCH serration

Front-end spring clamp power chucks

EXTRA large through hole Ø 275 – 565 mm
Chuck size 600-1020
Clamping with spring packs
Rapid and clamping stroke

BIG BORE BB-EXL2G

INCH serration

Front-end pneumatic power chucks

extra large through hole Ø 191 – 390 mm
Chuck size 510-900
3 jaws
Extended jaw stroke

BIG BORE BB-AZ2G

INCH serration

Front-end pneumatic power chucks

extra large through hole Ø 275 – 560 mm
Chuck size 685-1000
Self centering or compensating clamping
Chuck with extra long rapid and clamping stroke – 3 jaws

BIG BORE BB-FZA2G

INCH serration

Front-end pneumatic 6-jaw sequence chucks

EXTRA large through hole Ø 275 – 390 mm
Chuck size 740-920
3 integrated centering jaws and 3 compensating jaws

BIG BORE BB-EXL-SC2G

INCH serration

Front-end spring clamp power chucks

EXTRA large through hole Ø 191 – 390 mm
Chuck size 510-900
Clamping with gas spring
Extra long rapid and clamping stroke

CC

INCH serration

Stationary centering and dampening chuck, pneumatic Ø 240 – 470 mm

With integrated dampener

AC-BB

Control unit for SP and Big Bore chucks

1/2“ Design – 3/4“ Design

Electronic safety control unit for pneumatic chucks basic version

Pneumatic diagram
Wiring diagram
Electronic safety control unit
For SP and Big Bore chucks
Without pressure control
Without stroke control

AC-XN

Control unit for pneumatic chucks

1/2“ Design – 3/4“ Design

Electronic safety control unit for pneumatic chucks for all commen voltages

Pneumatic diagram
Electric diagram

SF-RZ

Tongue & groove

2 Position hydraulic ring indexing chuck

3 self-centering jaws
Large evacuation windows for easy chip flow
Fullyautomaticandcontrolledindexing

SF-RAZ2G

Tongue & groove

2 Position hydraulic ring indexing chuck

3 self centering and 3 compensating jaws
Very compact design
Fully automatic and controlled indexing
Hydraulic actuation

HYND-S

INCH serration

Hydraulic front end chuck Ø 180 – 400 mm

Oil feed through spindle wall
3 and 4 jaws

HYDL-S

long stroke

INCH serration

Hydraulic front end chuck Ø 500 – 800 mm

Oil feed through spindle wall
3 jaws

Self-centering steady rests for turning and grinding

SLU-X

Self-centering Steady Rests

Standard Line

Self centering steady rest Standard Line

Sealed body
Stroke control for end position open (switch not included)

SLUB

Self-centering Steady Rests

Standard Line

Self centering steady rest Standard Line Extra compact with side mounted cylinder

Monitoring open / closed via proximity switch
Special sizes on request

SLUB-A

Self-centering Steady Rests

Standard Line

Self centering steady rest Standard Line Extra compact with side mounted cylinder

Additional pivoting upper arm for vertical loading
Monitoring open / closed via proximity switch
Special sizes on request

SLU

Self-centering Steady Rests

Basic Line

Self centering steady rest Basic Line

Large clamping range
Monitoring open / closed via proximity switch
Hardened arms

SLU-A

Self-centering Steady Rests

Basic Line

Self centering steady rest Basic Line

Additionalpivotingupperarm
Monitoring of position Steady Rest open and closed
Hardened arms

SR

Self-centering Steady Rests

Premium Line

Self centering steady rest Premium Line

Sealed body
Integrated coolant flush
Chip guard with coolant nozzles
Stroke control unit or proximity switch for end position open

SRA

Self-centering Steady Rests

Premium Line

Self centering steady rest Premium Line additional pivoting upper arm for vertical loading

Sealed body
Integrated coolant flush
Chip guard with coolant nozzles
Stroke control unit or proximity switch for end position open

SR-CL

Self-centering Steady Rests

Premium Line – with fine adjustment

Self centering steady rest Premium Line with fine adjustment

With fine adjustment of the clamped work piece
Sealed body
Integrated coolant flush
Chip guard with coolant nozzles

K

Self-centering Steady Rests

Premium Line

Self centering steady rest Premium Line compact design

Sealed body
Chip guard with coolant nozzles
Stroke control unit or proximity switches

KA

Self-centering Steady Rests

Premium Line

Self centering steady rest Premium Line additional pivoting upper arm for vertical loading

Compact design, sealed body
Chip guard with coolant nozzles
Double guided center arm to carry heavy loads
Excenter fine adjustment on the outer arms

KLU

Self-centering Steady Rests

Premium Line

KLU-A

Self centering steady rest Premium Line with narrow arms for crankshafts

Sealed body
Chip guard with coolant nozzles
Stroke control unit or proximity switches

RX

Self-centering Steady Rests

Premium Line

Self centering steady rest Premium Line extra compact steady rest

Integrated cylinder
Sealed body
Chip guard with coolant nozzles
Stroke control with proximity switch

USP 4.0

Ultraschall Wegmesssystem

Ultraschall Wegmesssystem für Lünetten

Für SMW-AUTOBLOK Lünetten
Berührungslose Wegmessung des gesamten Spannhubs– Verhindert Kollisionen mit dem Werkzeug
Zeitersparnis durch nur teilweises Öffnen
Ausgangssignal 4-20 mA oder 0-10 V Schutzklasse IP 67, Stromversorgung 24 VDC
proofline® = abgedichtet – wartungsarm

SCU

For SMW-AUTOBLOK Steady Rests

Linear stroke control unit for steady rests

Completely sealed, protection class IP66
Output signal 4-20mAor0-10V

SRG

Grinding Steady Rests

SRG-B

side cylinder

Grinding Steady Rests with fine adjustment of the center

Horizontal and vertical fine adjustment of the grinding center
Retractable Steady Rest arms
Port for compressed air against dust and coolant
Monitoring via proximity switches
Suitable for follow down grinding

Static chucks pneumatic / hydraulic

MANUAL JACK – MJ

Manual Jack to operate a power chuck

with Ø300-520 Plain Back

The large variety of SMW-Autoblok power chucks allow the customer to clamp the workpiece with the best chuck alternatives

Irreversible mechanism based on an operating screw driven by a worm gear
With spring energy storage for safe clamping
Sealed mechanism and constantly lubricated
Very low profile and possibility to integrate it in the machine pallet

USC

Pneumatic static cylinder

Stationary cylinder + chuck unit Ø 140 – 260 mm

Can be equipped with different types of chucks
With stroke control

US-CL

With 2 jaw

long stroke chuck

US-A

With 3 jaw long or normal stroke chuck

Stationary cylinder + chuck unit Ø 80 – 315 mm

Hydraulic cylinder module+chuck
Closed center chucks type CL/AN/AL

US-BIG DIAMETERS

Pneumatic static cylinder for 2 or 3 or 4 jaws

Stationary cylinder + chuck unit Ø 400 – 800 mm

Option for serrated or Tongue & Groove jaws
Option of sealed or not sealed chucks
Option of 2/3/4 jaws depending on chuck size and model
Option of long or normal stroke depending on chuck size & model

HB-D

INCH serration

2 or 3 jaws

HB-C

Tongue & groove

3 jaws

Stationary chuck, hydraulic Ø 130 – 315 mm

Built-in hydraulic cylinder
2 and 3 jaws

PB-D

INCH serration

2 or 3 jaws

PB-C

Tongue & groove

3 jaws

Stationary chuck, pneumatic Ø 130 – 315 mm

Built-in cylinder
2 and 3 jaws

STP

INCH serration

3 jaws

Stationary chuck, pneumatic Ø 125 – 280 mm

Built-in cylinder
With through hole

Chuck switching system / Chuck flanges / Top jaws / T-nuts / Grippers / Gripping force meter / Grease / Accessories

CCS

CHUCK SWITCHING SYSTEM

Manual chuck switching system

Highest repeatability and change-over accuracy
Automatic coupling of chuck in a single actuation
Large through hole
Optical control for the locking status

ISO-A FLANGE

DIN 55026 / ISO-A 702/1

Mounting fl anges on short taper spindle noses

Direct and indirect mounting
Reduction and increase mounting

TOP JAWS AND T-NUTS

Soft and hard top jaws

T-nuts

Hard top jaws, Soft top jaws and T-Nuts

GRIPPERS UGE FGH + HDS CLAMPING TIPS MGH

Grippers and Clamping tips

Grippers, special steel hardened-Grippers carbide, clamping tips

PRECISION GRIPPER G14 + G25

Grippers

Precision gripper controlled penetration

With pull down effect

PRECISION GRIPPER G15 + G30

Grippers

Precision gripper controlled penetration

For highest torque transmission

ROTORI

Jaw boring set to bore jaws on the chuck

high flexibility
high precise
Increased profitability

BORING RINGS ADS

Boring rings

Boring rings to bore jaws on the clamping chuck

Complete set to bore all diameters from 20 to 150 mm
Set consisting of 36 rings Ø 20-50 mm each stepped 2 mm
Clearly organized in packing box
Rings from Ø 105 mm and up have 3 tapped holes for clamping bolts to machine jaws for internal gripping
Rigid design. Rings are 10 mm thick, quenched for greater durability
Loading tool is used for the safe insertion of the rings without danger of injuries

RPS

Dress and cleaning plate

Dress and cleaning plate RPS for dressing and cleaning of top jaw serrations

2 different serrations per plate (upper and lower side)

GFT-X 4.0

Gripping force tester

Gripping force tester GFT-X 4.0 multi device tablet with expert apps

Wireless handheld with rechargeable battery
Dynamic or static gripping force measuring
Speed measuring
Display Software

GREASE K05 K67 GREASE PUMP

Grease for chucks

Grease to lubricate the chucks

Grease K05 for manual and power chucks
Grease K67 special grease for sealed chucks included proofline® series
Grease gun important for safe operation and maintenance

SMW-AUTOBLOK Turning

Turning

Manual Chucks
