Rotary Collet Chucks are essential for various high-precision machining applications, offering strong clamping force and stability to enhance machining accuracy and efficiency. This category is divided into two main types: Air Collet Chuck and Hydraulic Collet Chuck.

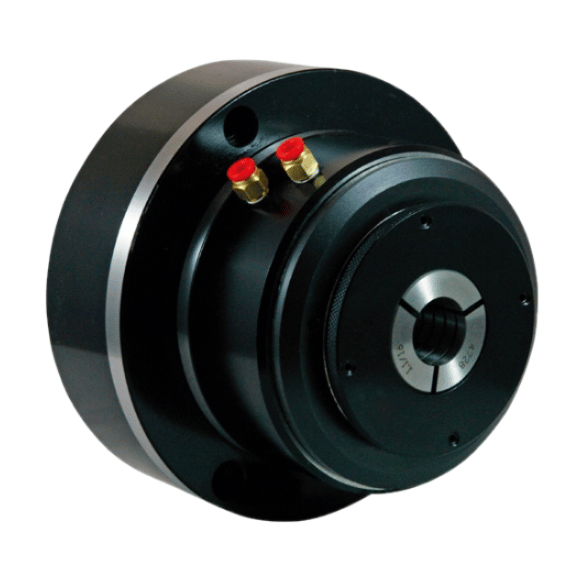

Air Collet Chuck is driven by air pressure, making it ideal for environments that require frequent chuck changes. It features a simple structure, easy operation, and fast clamping speed, making it the best choice for applications demanding high precision.

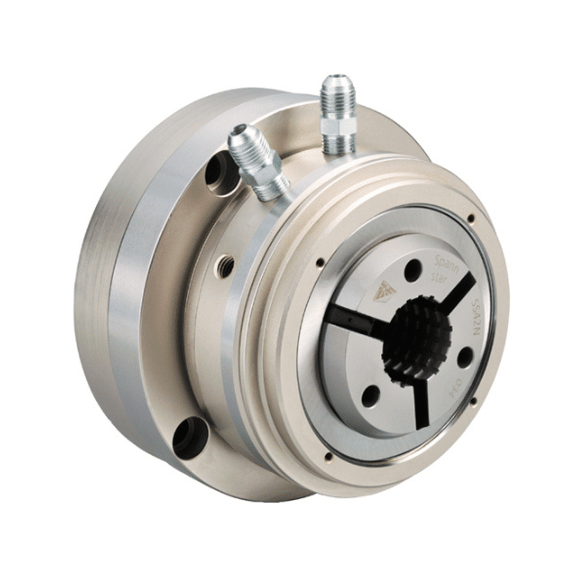

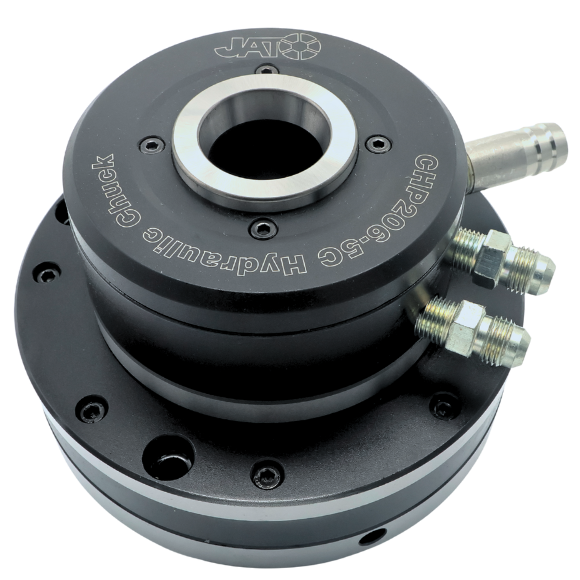

Hydraulic Collet Chuck, on the other hand, uses hydraulic pressure to provide more stable clamping force and higher rigidity, suitable for heavy-duty or high-precision machining applications. Its stability and repeatable positioning accuracy ensure high-quality performance during the machining process.
JATO Precision Industries Inc. specializes in offering a diverse range of Rotary Collet Chuck solutions to meet the machining needs of various industries, helping customers improve their production efficiency and product quality.

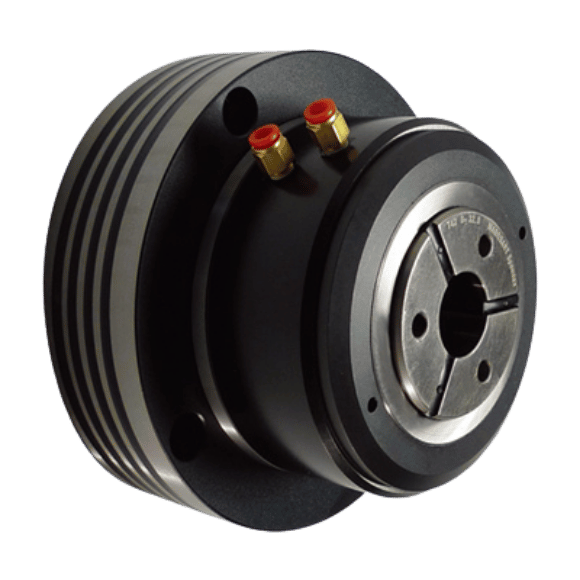

JAP 200-Thread Collet-YB 15/5C/16C
JAP 200-Din6343 Collet
JAP 200-BZI Collet
| JAP 205-15 | JAP 205-15W | JAP 206-5C | JAP 207-16C | |
|---|---|---|---|---|
| A | 144 (5.67″) | 144 (5.67″) | 166.5 (6.56″) | 203 (7.99″) |
| B (P.C.D.) | 128 (5.04″) | 128 (5.04″) | 147 (5.79″) | 176 (6.93″) |
| C | 120 ( 4.72″ ) | 120 ( 4.72″ ) | 130 ( 5.12″ ) | 160 ( 6.3″ ) |
| D | 15 ( 0.59″ ) | 15 ( 0.59″ ) | 26 ( 1.02″ ) | 40 ( 1.57″ ) |
| E | 5 ( 0.2″ ) | 5 ( 0.2″ ) | 5.2 ( 0.2″ ) | 5.2 ( 0.2″ ) |
| F | 73.5 ( 2.89″ ) | 73.5 ( 2.89″ ) | 101 ( 3.98″ ) | 113 ( 4.45″ ) |
| G | 36.5 ( 1.44″ ) | 36.5 ( 1.44″ ) | 55 ( 2.17″ ) | 65 ( 2.56″ ) |
| H | 87 ( 3.43″ ) | 87 ( 3.43″ ) | 116 ( 4.57″ ) | 136 ( 5.35″ ) |
| Mounting Bolts | 6H-M6 ( front ) | 6H-M6 ( front ) | 4H-M8 ( front ) | “3H-M10 ( front )+ 3H-M10 ( rear )” |
| Collet | YB-15 Collet | YB-15 Collet | 5C Collet | 16C Collet |
| Max. RPM | 4000 | 4000 | 3600 | 2800 |
| Air Pressure | 2-8kg/cm² (29-114 psi) | 2-8kg/cm² (29-114 psi) | 3-8kg/cm² (43-114 psi) | 3-8kg/cm² (43-114 psi) |
| Max. Capacity | 12 mm ( 0.47″ ) | 12 mm ( 0.47″ ) | 26 mm ( 1.02″ ) | 40 mm ( 1.57″ ) |
| Piston Area | 69cm² | 69cm² | 130cm² | 155cm² |
| Gripping Force | “1605 kgf@7kg/cm² (3533 lbf@100psi)” | “1605 kgf@7kg/cm² (3533 lbf@100psi)” | “3465 kgf@7kg/cm² (7623 lbf@100psi)” | “4078 kgf@7kg/cm² (8971 lbf@100psi)” |
| Net Weight | 4.7 kgs ( 10.4 lbs ) | 4.7 kgs ( 10.4 lbs ) | 10 kgs ( 22. lbs ) | 14.8 kgs ( 32.6 lbs ) |
| JAP207-B42 | JAP208-B60 | JAP210-B80 | |
|---|---|---|---|
| A | 197(7.76″) | 214(8.43″) | 247.5(9.74″) |
| B (P.C.D.) | 172(6.77″) | 186(7.32″) | 226(8.9″) |
| C | 155(6.1″) | 170(6.69″) | 200(7.87″) |
| D | 42(1.65″) | 60(2.36″) | 80(3.15″) |
| E | 5(0.2″) | 5.5(0.22″) | 6(0.24″) |
| F | 138(5.34″) | 147(5.79″) | 151.5(5.96″) |
| G | 77(3.03″) | 84.5(3.33″) | 80.5(3.17″) |
| H | 146(5.75″) | 174(6.85″) | 197(7.76″) |
| Mounting Bolts | “3H-M10 ( front )+ 3H-M10 ( rear )” | “3H-M10 ( front )+ 3H-M10 ( rear )” | 6H-M10 ( front ) |
| Collet | B42 Collet | B60 Collet | B80 Collet |
| Max. RPM | 2500 | 2000 | 1500 |
| Air Pressure | 3-8kg/cm² (43-114 psi) | 3-8kg/cm² (43-114 psi) | 3-8kg/cm² (43-114 psi) |
| Max. Capacity | 42 mm (1.65″) | 60 mm (2.36″) | 80 mm (3.15″) |
| Piston Area | 280cm² | 304cm² | 356cm² |
| Gripping Force | 4740 kgf@7kg/cm² (10428 lbf@100psi ) | 5150 kgf@7kg/cm² (11330 lbf@100psi ) | 6030 kgf@7kg/cm² (12060 lbf@100psi ) |
| Net Weight | 17.2 kgs ( 37.9 lbs ) | 21.9 kgs ( 48.3 lbs ) | 32 kgs ( 70.5 lbs ) |
- Built in rotary cylinder, free from draw bar and rotary cylinder
- Work with most popular collet, easy to find replacement or repair in local
- Double piston, provide more clamping force in limited O.D
- Import selected deep groove ball bearing, stable and tough
- Self-lock design on the close side to offer higher safety
- High resistance to coolant fluid and cutting chips (Fluid and dust proof when air feeding in)
- Please usd 5um filter in F.R.L units
- Easy installation, no specialist required
มีกระบอกหมุนในตัว ไม่ต้องใช้ก้านดึงและกระบอกหมุนเพิ่มเติม
ใช้งานได้กับหัวจับดอกสว่านทั่วไป หาอะไหล่หรือซ่อมแซมได้ง่ายในพื้นที่
ลูกสูบคู่ ให้แรงจับยึดมากขึ้นในขนาดเส้นผ่านศูนย์กลางภายนอกที่จำกัด
ตลับลูกปืนเม็ดกลมร่องลึกนำเข้าคุณภาพสูง ทนทานและเสถียร
ออกแบบล็อคตัวเองด้านปิดเพื่อความปลอดภัยที่สูงขึ้น
ทนทานต่อของเหลวหล่อเย็นและเศษตัด (กันของเหลวและฝุ่นเมื่อป้อนอากาศ)
โปรดใช้ตัวกรอง 5 ไมครอนในหน่วย F.R.L
ติดตั้งง่าย ไม่ต้องใช้ผู้เชี่ยวชาญ
