HEULE Combination Drilling Tools
Economical drilling combined with deburring, chamfering or countersinking.
VEX

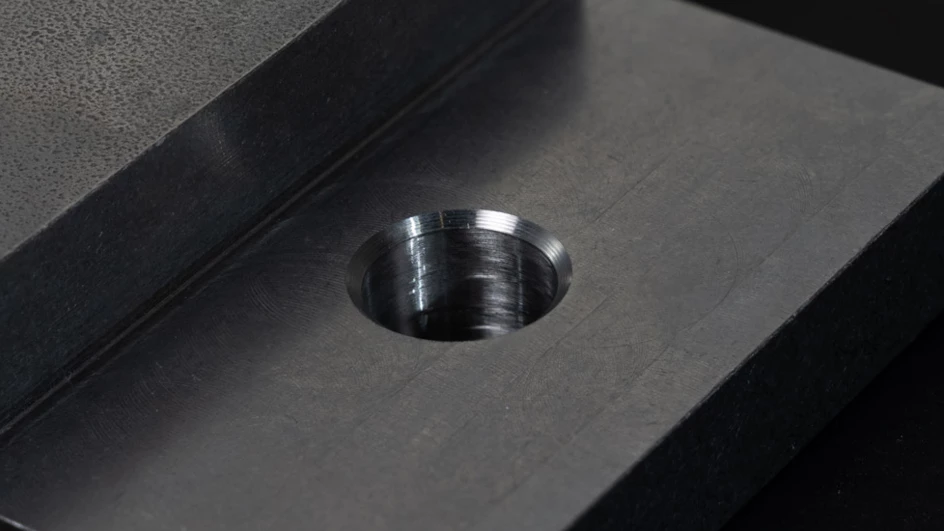

Drilling combined with front and back chamfering in a single pass
- Bore diameter 5.0 mm – 17.0 mm, drilling depth up to 2xd
- Easy-to-change carbide twist drill insert or drill head.
- Internal coolant possible from bore Ø 6.0 mm
- Short set-up and reduction of idle times thanks to simple handling
- Reduced process times thanks to multifunctional processing in a single tool
Range
The standard range includes tools for bore diameters from 5.0 mm to 17.0 mm. The corresponding drill inserts (VEX-S) or drill heads (VEX-P) are available in 0.1-mm increments. The blades for chamfering correspond to SNAP technology and are available in forward and backward cutting or backward cutting only versions. The chamfer size and angle are geometrically defined on the blade and can only be changed by using a blade with a modified geometry.

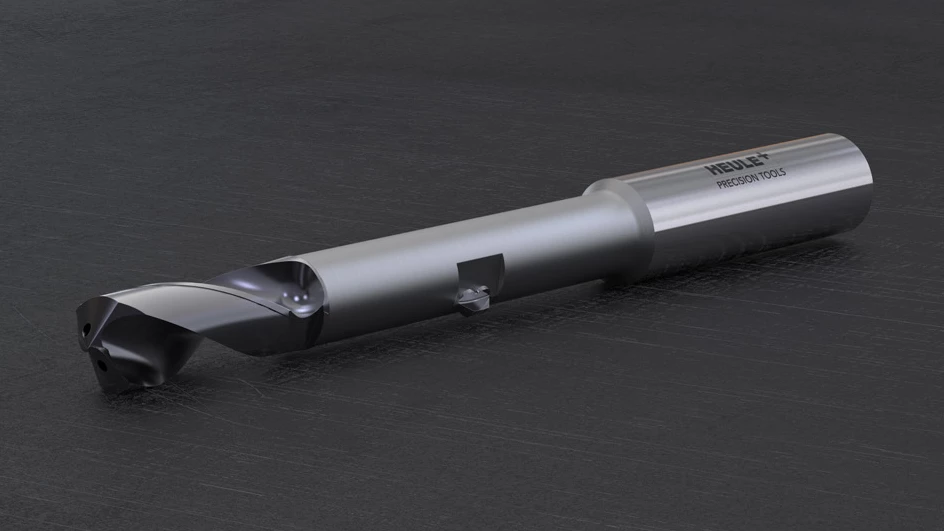

| VEX-S | ||||||
|---|---|---|---|---|---|---|
| Bore diameter range mm | Max. bore depth | Internal coolant supply | Max. chamfering capacity | Series | ||
| 1xd | 2xd | with | without | |||
| 5.0–5.99 | 6.0 | 12.0 | x | 1.0 mm | B | |
| 6.0–6.99 | 7.0 | 14.0 | x | x | 1.0 mm | C |
| 7.0–8.49 | 8.5 | 17.0 | x | x | 1.0 mm | D |
| 8.5–10.49 | 10.5 | 21.0 | x | x | 1.0 mm | E |
| 10.5–11.49 | 11.5 | 23.0 | x | x | 1.0 mm | F |

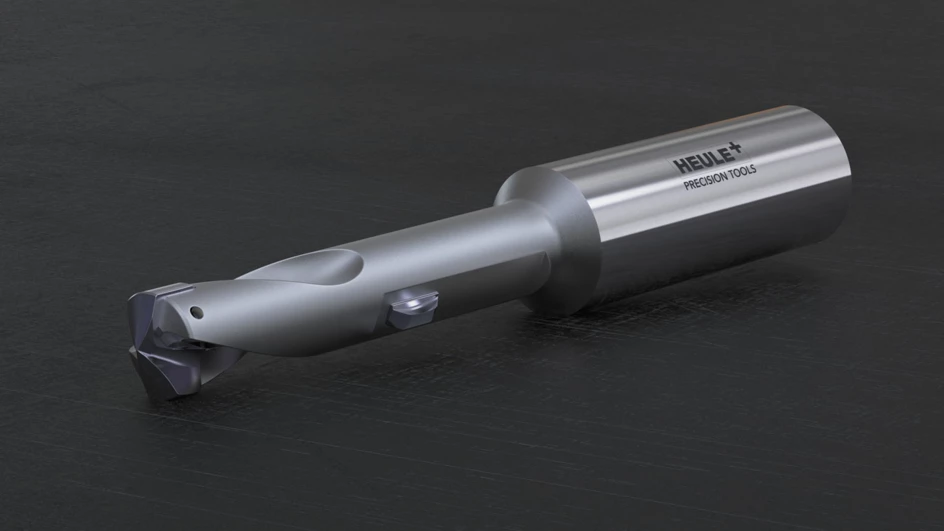

| VEX-P | |||||
|---|---|---|---|---|---|
| Bore diameter range mm | Max. bore depth | Internal coolant supply | Max. chamfering capacity | Series | |
| 1.5xd | with | without | |||
| 11.0–13.99 | 21.0 | x | 1.0 mm | C | |
| 14.0–17.00 | 25.5 | x | 1.0 mm | D | |
Should no standard tool solution be available for your application, HEULE can make a detailed application analysis. The result will be an application-specific solution.
