HEULE Chamfering Tools

Economical front and back chamfering of bores in a single pass.

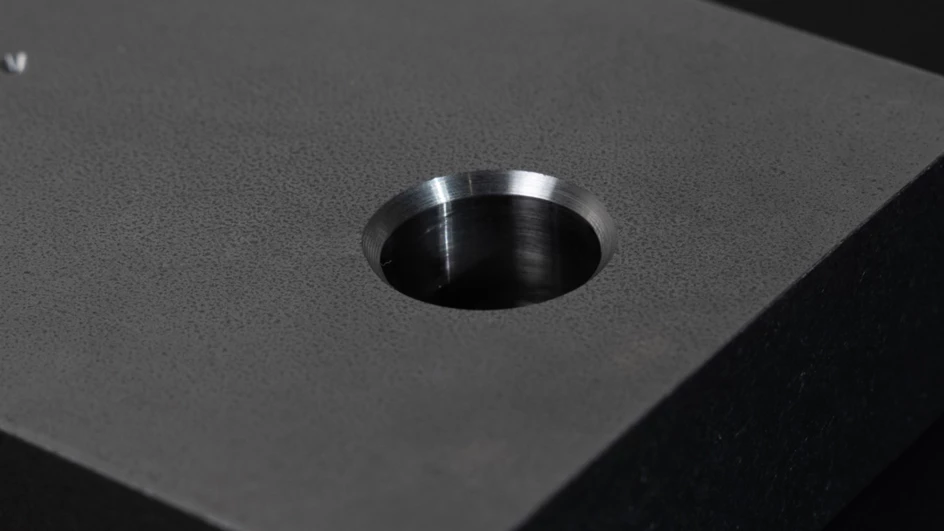

With HEULE chamfering tools, you can remove burrs from bore edges and create a chamfer at the same time. Both sides are machined in a single operation – without having to turn the workpiece. This not only optimises your process times but also reduces unit costs.

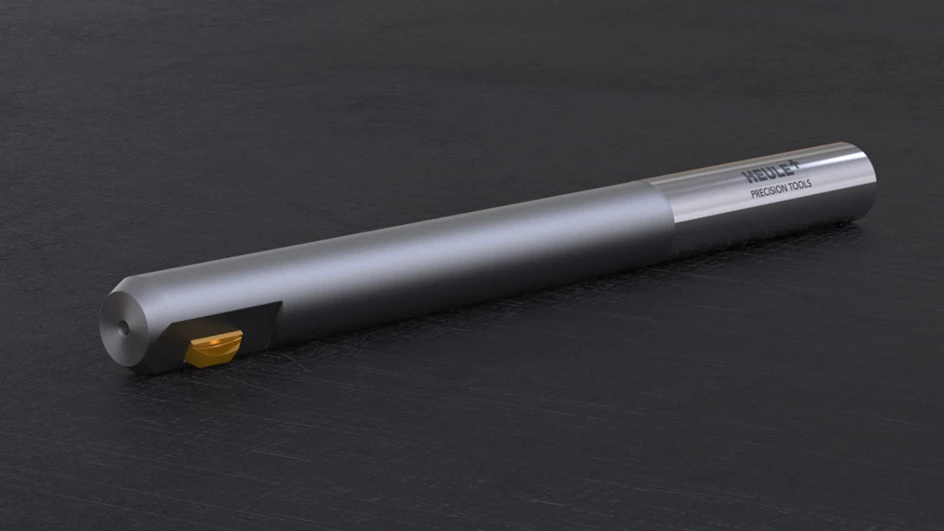

SNAP

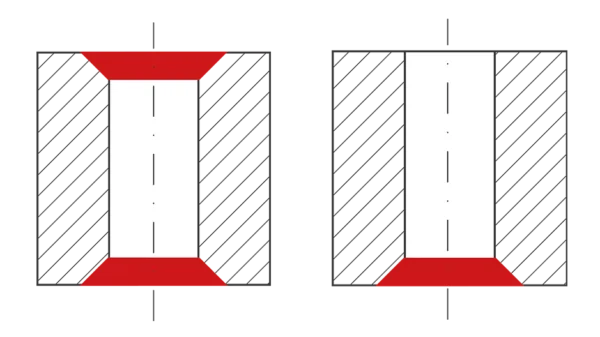

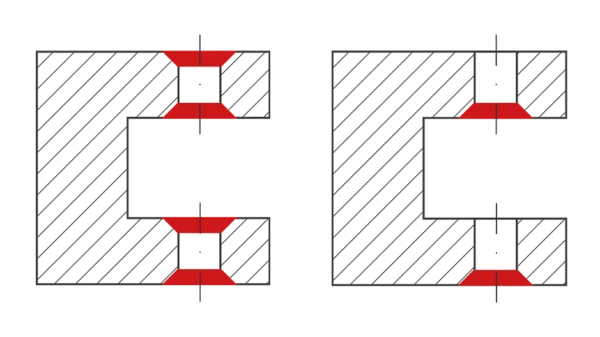

Front and back in one single pass

• No need to turn the workpiece or stop the spindle

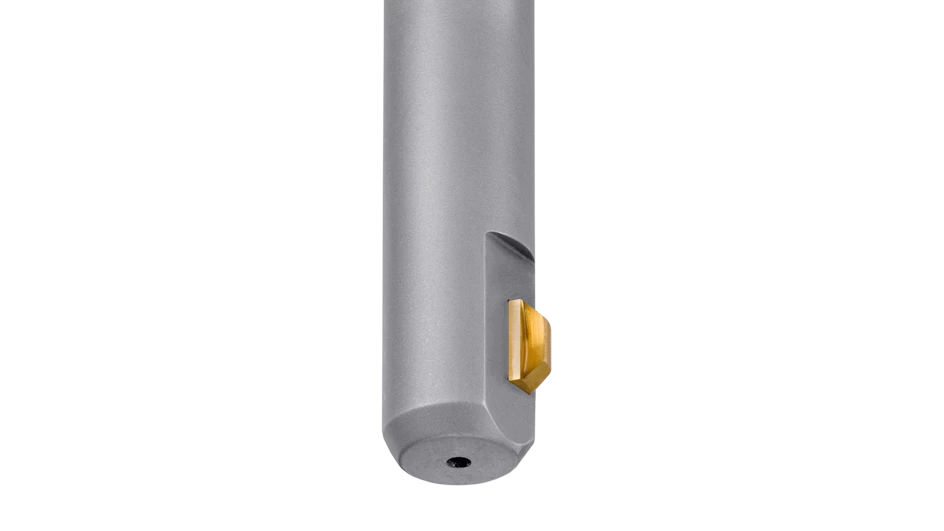

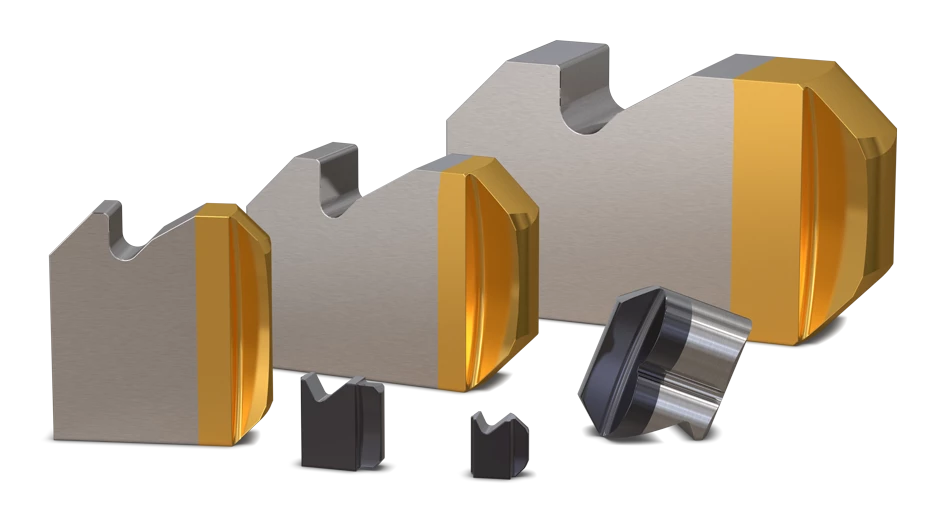

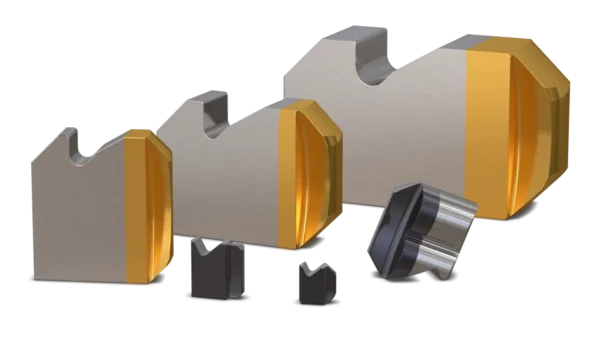

• Carbide blade that can be changed by hand in the machine
• Particularly suitable for CNC operations with large batch sizes
• Standard range starting from bore diameter 2.0 mm

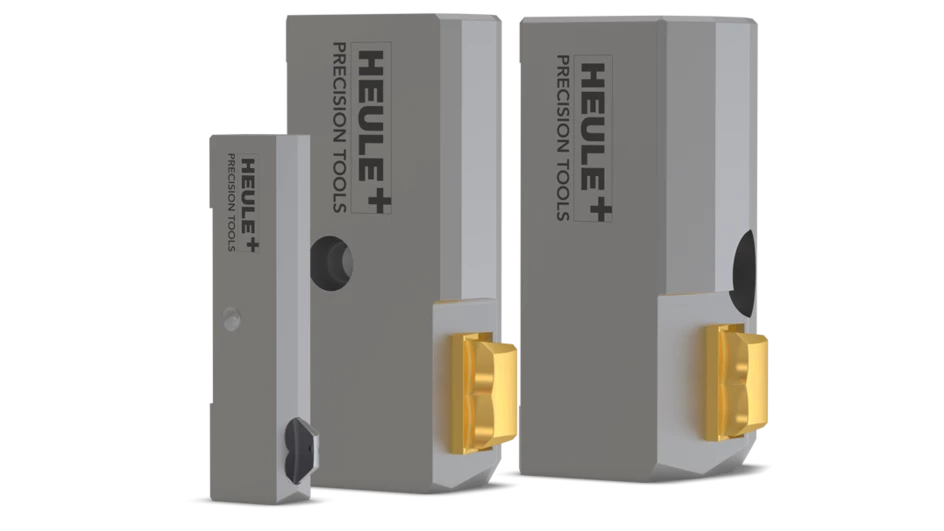

• Cassette solutions starting from bore diameter 12.6 mm to any size

Bore	Max. Chamfering capacity	Tool series
2.0 – 2.9 mm	0.20 – 0.30 mm	SNAP2
3.0 –  3.9 mm	0.30 – 0.50 mm	SNAP3
4.0 – 5.0 mm	0.60 – 0.75 mm	SNAP4
5.0 – 8.0 mm	1.00 mm	SNAP5
8.0 – 12.0 mm	0.75 mm	SNAP8
12.0 – 20.0 mm	1.00 mm	SNAP12
from 12.6 mm	1.50 mm	SNAP5 cassette
20.0 mm – 35.0 mm	1.50 mm	SNAP20
from 25.0 mm	1.50 mm	SNAP20 cassette
from 18.0 mm	0.50 – 1.00 mm	SNAP18 Module *
