สินค้า HALS LUBE PUMP

รายละเอียดสินค้า

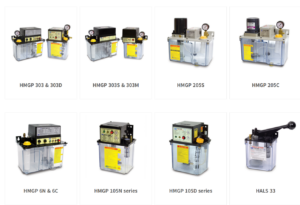

HMGP 303 & 303D

HMGP 303S & 303M

HGP 205S

HMGP 205C

HMGP 6N & 6C

HMGP 105N series

HMGP 105D series

HALS 33

HMGP 6A & 6MA

HV series

340 series

350 series

HMLV series

MIXING VALV

Valve series

HMGP 303 & 303D

Internal Control Fixed Quantity Oil Supply Pump

Model

Feature

• A gear type volume pump that allows precise delivery across a wide range of viscosities.
• It can be applied to long distances of more than 20m, and can also be used in small, large machine tools and high-precision machines.
• To make full use of the fixed quantity oil supply system, the HMV series needs to be used for the valve.
• It has an internal control, and therefore does not require separate control devices.
• It has a built-in ullage decrease detector. (Float switch)

PUMP SPEC

Components

External Figure

Operating Guide

• The pump operates once power is connected and electricity is supplied. You can set the pause time using the Interval ① on the front of the pump, and discharge ② to set the operating time (seconds). Afterwards, the pump will repeatedly operate and pause
• Minimum pause time of the pump is 3 minutes, and the minimum discharge time can be set to 3 seconds.
• When operating the pump, the DIS, lamp ③ switches on, and during the pause, the INT lamp ④ switches on. When ullage inside the tank decreases, the EMG, lamp ⑤ switches on. When ullage inside the tank decreases, the EMG lamp ⑤ switches on.
• The MAN. button ⑥ can be used for test operations and to let air out from the pipes
  (But, do not operate more than 5 minutes, as it can cause Motor damage)
• The pump is set at 17kg/cm when released from the factory, but this may differ depending on the changes in the viscosities of the oils used (oil viscosity, surrounding temperature).

Hydraulic circuit drawing

Wiring Diagram

HMGP 303S & 303M

External Control Fixed Quantity Oil Supply Pump

Model

Feature

• A highly reliable externally controlled fixed quantity oil supply pump.
• It is used across a wide range of fields, and is especially suitable as a fixed quantity oil supply pump for high-precision, large machine tools.
• The pump’s main drive connection parts are made of single die casting pieces to ensure excellent durability.
• An external control type that allows free pump control.
• It has a built-in ullage decrease detector and a pressure decrease detector.

PUMP SPEC

HMGP 205S

External Control Fixed Quantity Oil Supply Pump

Model

Feature

• A large capacity fixed quantity oil supply pump suitable for multiple oil supply sites and large machines
• An external control type that allows various pump controls according to operational environments.
• Main drive parts of the pump are inside the AL body to ensure superior durability.
• The pump part can be used separately, and can be attached to other tanks for use.

PUMP SPEC

HMGP 205C

External Control Continuous Oil Supply Pump

Model

Feature

• It can be applied to large capacity proportional oil supply systems
• It is suitable for lubricating oil supply devices, as well as for a small number of lubricating oil recovery devices.
• An externally controlled pump, and is capable of various applications according to the users’ operational environments.
• It is equipped with an ullage decrease detector.
• Applied applied broadly from HJB series to HJC series.(Continuous type)

PUMP SPEC

HMGP 6N & 6C

Internal Control or External Control Proportional Oil Supply Pump

Model

Feature

• It is the most suitable pump for proportional oil supply, and can be applied to a wide range of industrial fields
• It has a simple structure and excellent durability
• Internal control (6N) or External control (6C) are available.
• It is equipped with a ullage decrease detector tovincrease reliability.
• It is equipped with a dustproof device, and can be used in presses that are subjected to vibrations and impacts.
• A line filter and a drain filter are used side by side, allowing oil reuse.
• To fully utilize the proportional oil supply system, you must use the HJB series valve.

PUMP SPEC

HMGP 105N series

Internal & External Control Proportional Oil Supply Pump

Model

Feature

• It is the most suitable pump for proportional oil supply. It can be applied to a wide range of industrial machines.
• The compact design reduces installation space limitations, and the simple use means easy installation and repairs
• During reduced ulage, selections can be made to suit user environments using contact output and buzzer.
• Every model is attached with a suction filter to prevent the entry of alien substances in the pipe.
• Increased pressure settings are available according to operational environments.
• Internal control type(HMGP-105N, 105M, 103) and External control type(HMGP-105C) can be used.

PUMP SPEC

HMGP 105D series

Internal & External Control Proportional Oil Supply Pump

Model

Feature

• A product identical in shape to HMGP-105, but with the control box made out of die casting AL to ensure superior durability and resistance against external impacts.
• The main parts of the pump are integrated to ensure easy repairs and maintenance.
• Internal control type(HMGP-105D) and External control type(HMGP-105DC, 105W) can be used.

PUMP SPEC

HALS 33

Piston Manual Pump

Model

Feature

A piston manual pump with a specially processed cylinder interior to raise the pump discharge pressure to 7kg/cm2 for a smooth supply of lubricating oil. Also compact and lightweight, requiring little installation space, and is therefore very economical.

PUMP SPEC

HMGP 6A & 6MA

Air Drive Fixed Quantity / Proportional Oil Supply Pump

Model

Feature

• HMGP-6A
  – Easy lubricating oil supply through supplying compressed air
  – The pump drive parts are produced with die casting molds for superior durability
  – Easy control bar operation for free control of the quantity of discharge
  – The attached suction filter on every model prevents suction of foreign substances
• HMGP-6MA
  – A fixed quantity oil supply pump used with the HMV Series fixed quantity valve
  – It is capable of long distance delivery.

PUMP SPEC
